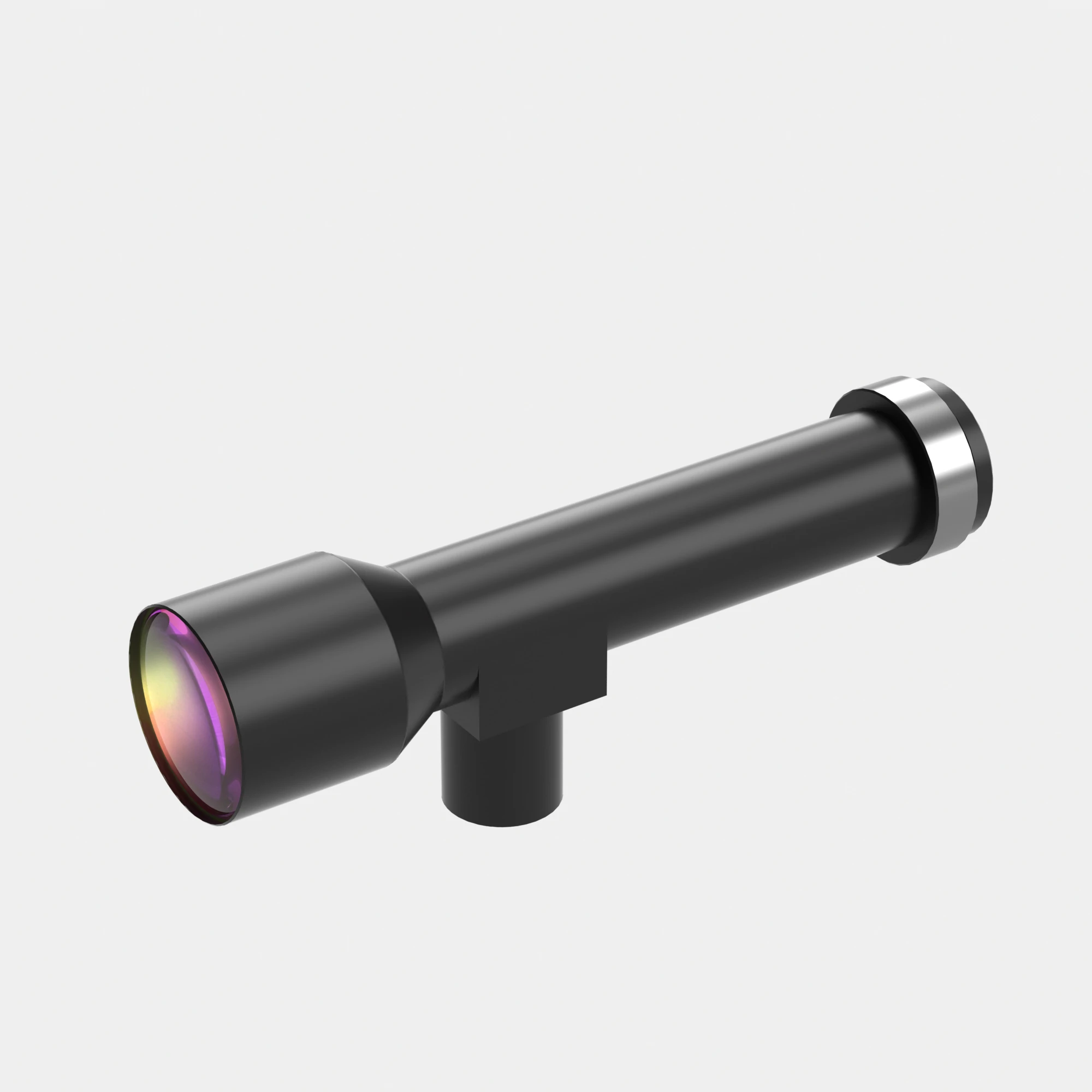

2/3" 4X Telecentric Lenses | WWH40-110CTV2 COOLENS®

WWH40-110CTV2
Image Circle:11(2/3")mm, Magnification:4X, WD:110±2mm, NA:0.1, Mount:C, Type:Telecentric Lenses
$624.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$624.00 USD each
Description

Model NO. WWH40-110CTV2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 4.000 Working Distance(mm) 110±2
NA 0.1000 Type Telecentric
Mount C Best Aperture(f/#) 20
MTF30 (lp/mm) 50 Object Resolution(μm) 3.4
Depth of Field(mm) 0.1 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 128.5
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.1
Filter Screw Size M32.0x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 1.6x1.2
1/1.8”（7.13x5.37） 1.8x1.3
2/3" (8.8x6.6) 2.2x1.7

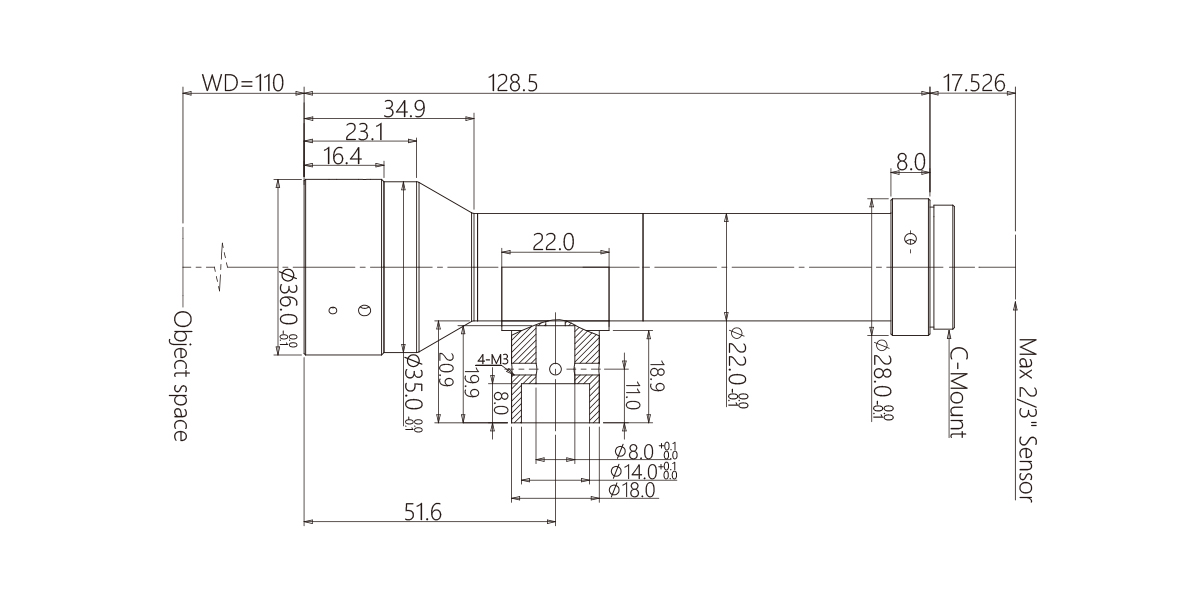

Dimensions

Naming Rule
