Model NO. |
WWH60-110AT |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
6.0 |
Working Distance(mm) |
110 |
NA |
0.075 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
38.9 |
MTF30 (lp/mm) |
23 |
Object Resolution(μm) |
4.473 |
Depth of Field(mm) |
0.086 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
152.7 |
With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.1 |
Filter Screw Size |
M25x0.5 |
Field of View (mm x mm) |
1/2" (6.4x4.8) |
1.1x0.8 |
1/1.8”(7.13x5.37) |
1.2x0.9 |
2/3" (8.8x6.6) |
1.5x1.1 |

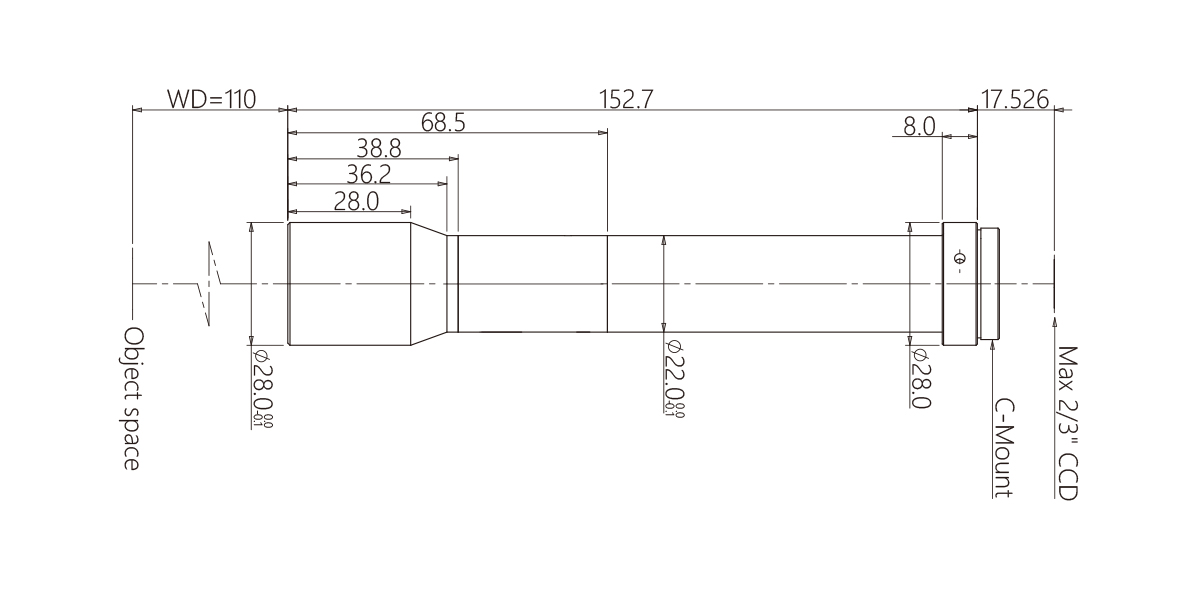

Dimensions
![]()
Naming Rule
![]()
