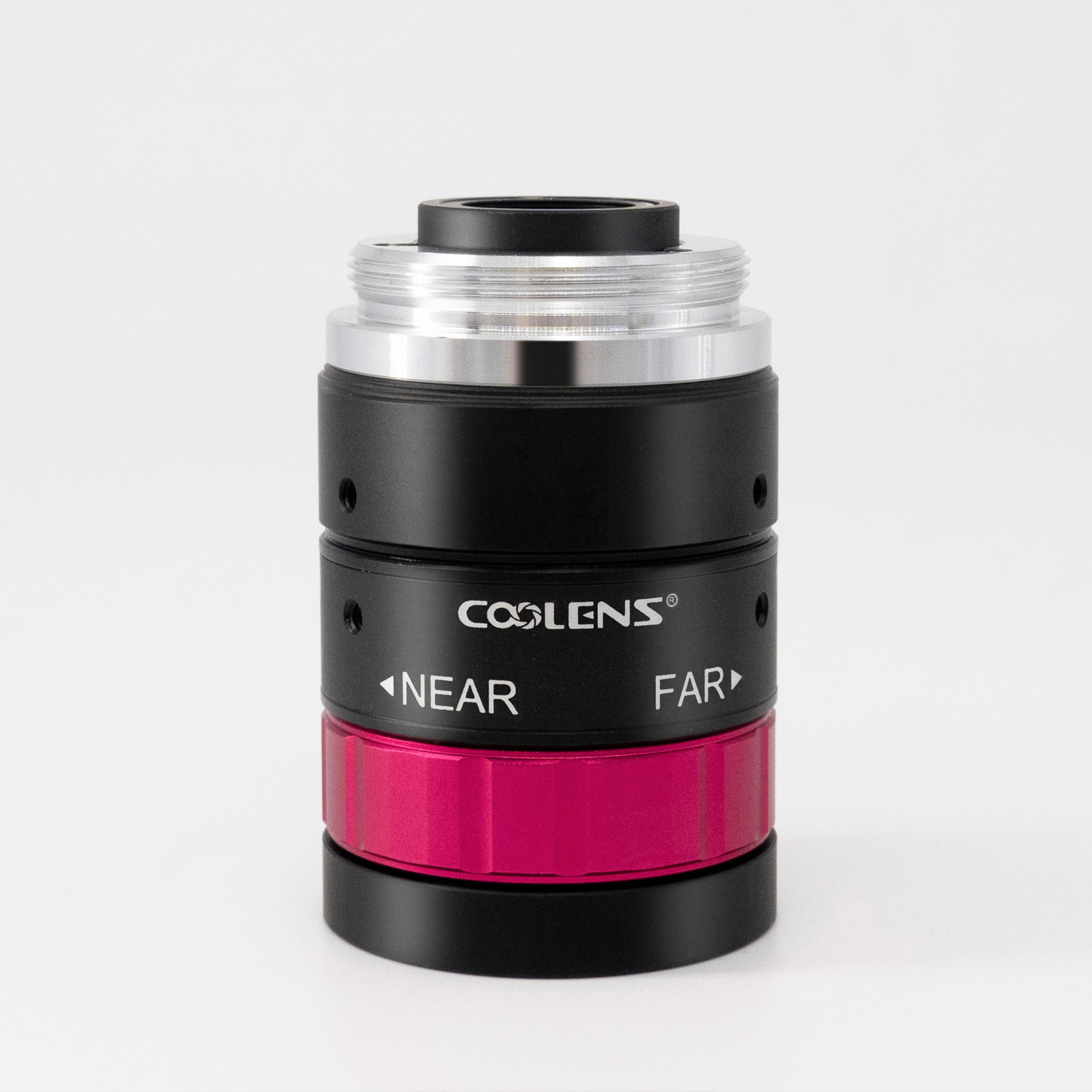

Coolens | 2/3" f12 Fixed Focal Length C Mount Lens For Machine Vision

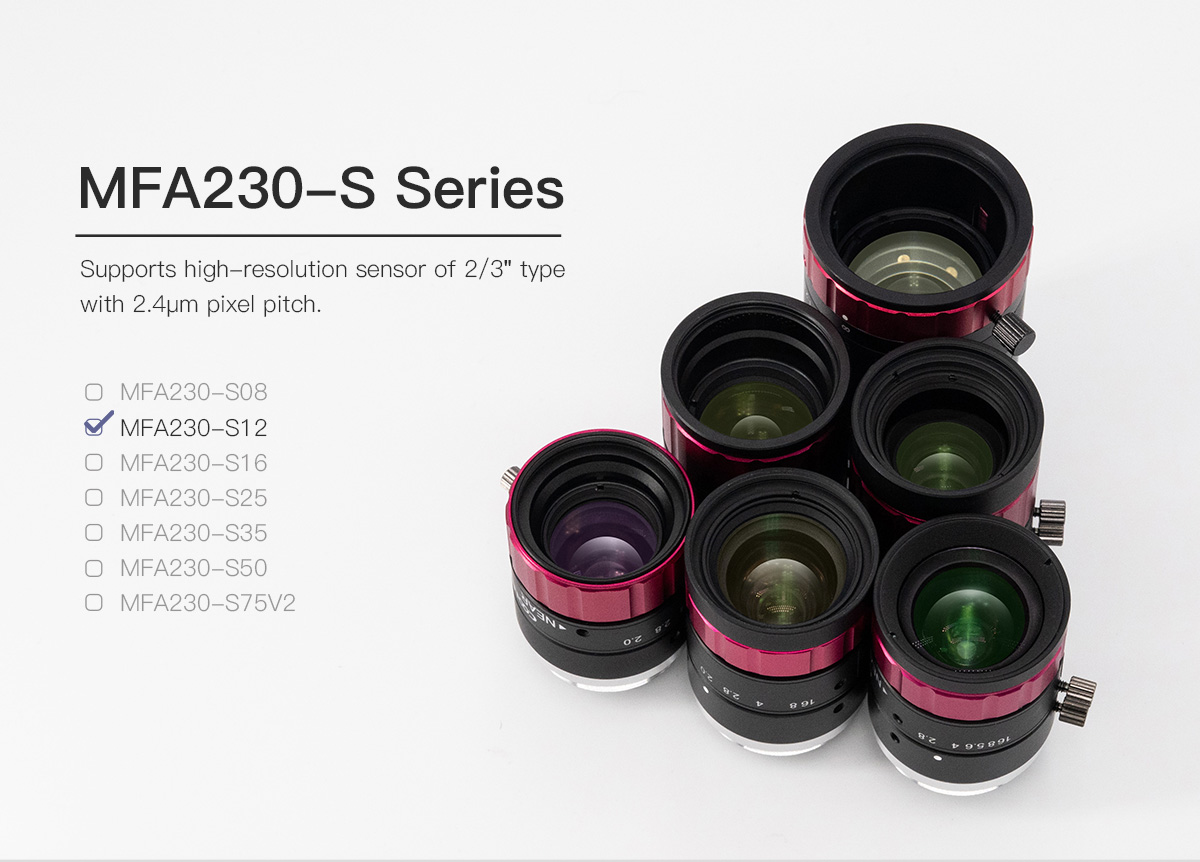

Model No: MFA230-S12 Image Format: Support 2/3" sensor in maximum, up to 10 MegaPixels, ultrahigh resolution with 2.4μm mega-pixel. Focal Length: 12mm. Also Support: 1/1.7" 12MP, 2/3" 5MP. Resolution: High Resolution, high Contrast, uniform Field Performance. Relative Illumination: Excellent corner brightness and low distortion. Distortion: Extremely low distortion.

$195.00 USD

Quantity

Reliable Manufacturer

Fast Delivery

Always Care Your Needs

Return & Refund Policy

Description

Focal Length 12mm

10 MegaPixels

2.4μm mega-pixel

C-Mount Lens

FA Lens for Machine Vision

Model No.		MFA230-S12		Mount		C-Mount
Focal Length		12mm		Back Focal Length		13.4mm in Air
F NO.		F2.0 - F16		Filter Size		M27 x P0.5

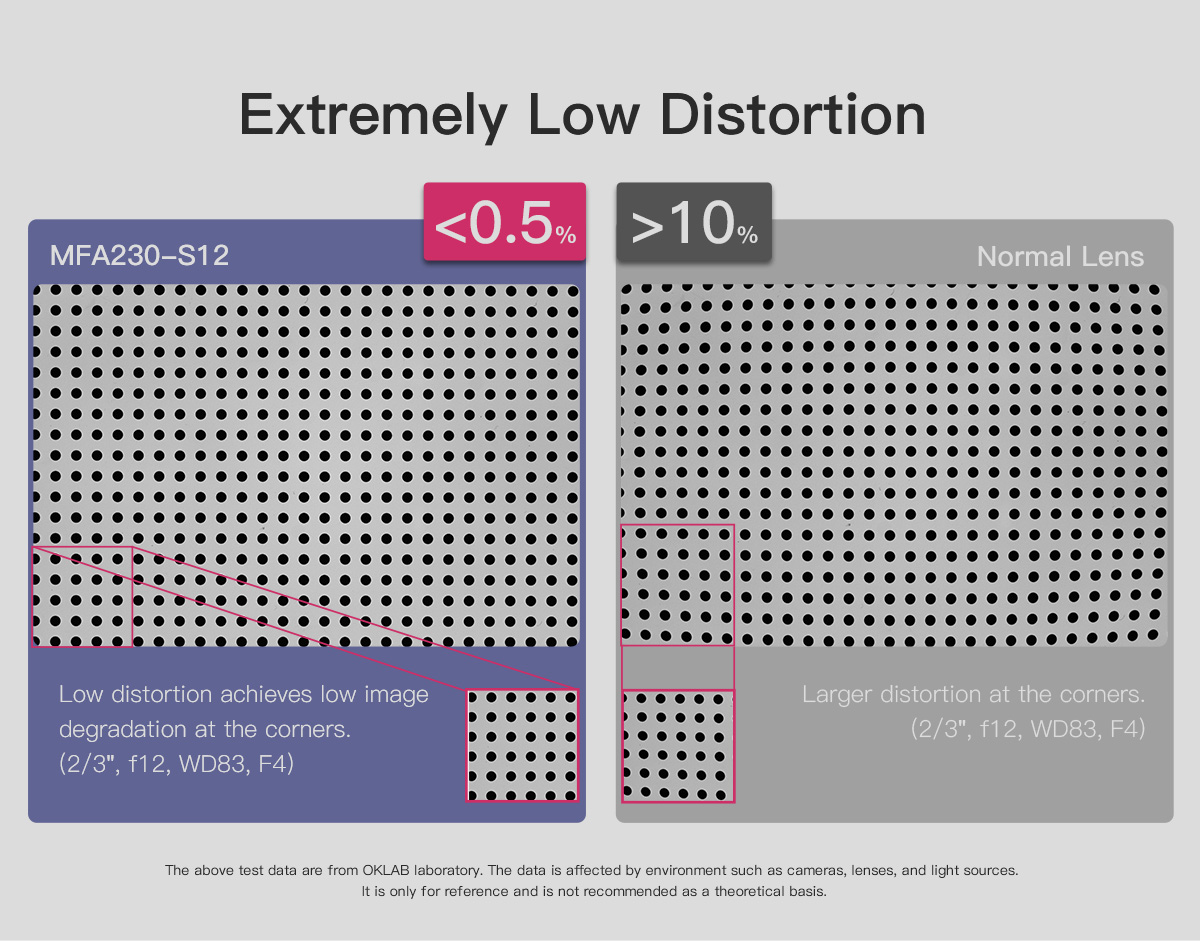

Max. Image Format		2/3" (φ11.4mm)		Distortion		<0.5%
Angle of View	D	2/3"	48.1°	1/1.8"	39.7°	1/2"	35.8°
	H		39.7°		33.1°		29.0°
	V		27.5°		22.3°		21.9°
M.o.D		0.1m		Object Dimension at M.o.D	2/3"	79.67mm x 66.78mm
Weight		60.5g			1/1.7"	69.98mm x 52.83mm
Flange Back Length		17.526mm in Air
Structure		10 Groups, 11 Elements		Operating Temperature		-10°C — 50°C
Operation of Iris		Range	F2.6 - F16	Operation of Focus		Range	MOD-INF
		Angle	68.03°			Angle	155.78°
Spectral Transmission		AT 436nm-656nmT≥85%

Dimensions
