2/3" 35mm Fixed Focal Length Lens | MFA230-S35 COOLENS®

Name: 2/3" 35mm Fixed Focal Length Lens | MFA230-S35 COOLENS®
SKU: MFA230-S35
Price: 117 USD
Availability: InStock
Rating: 0 (0 reviews)

MFA230-S35

Image Circle: 2/3" Focal Length: 35mm MTF30 (lp/mm):150 Mount: C

$117.00 USD

Quantity

Description

Model No.		MFA230-S35		Image Circle Diameter (Φmm)		2/3"
Focal Length(mm)		35		Magnification(x)		Adjustable
Working Distance(mm)		Min.200		MTF30 (lp/mm)		150
Type		Fixed Focal Length		Support Cameras		10M
Mount		C		Back Focal Length		14.93mm in Air

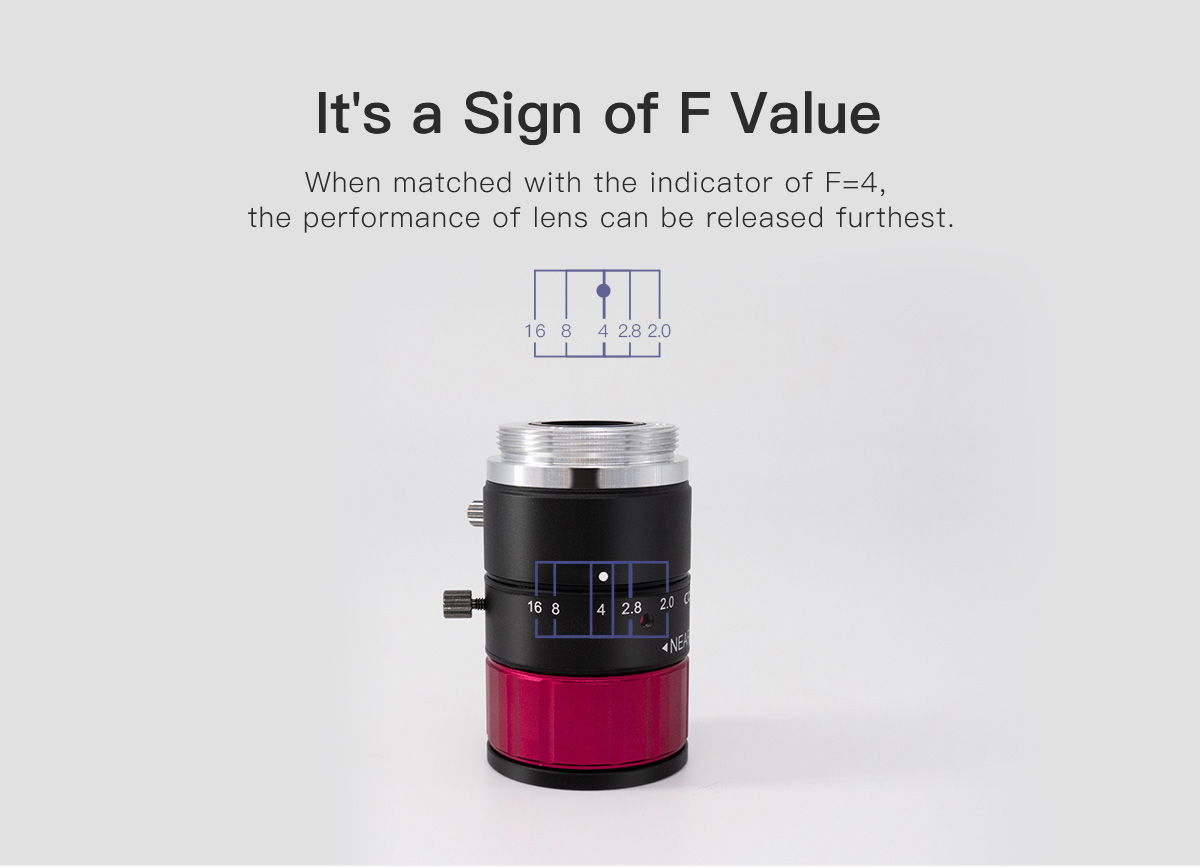

F NO.		F2.0 - F16		Filter Size		M25.5 x P0.5

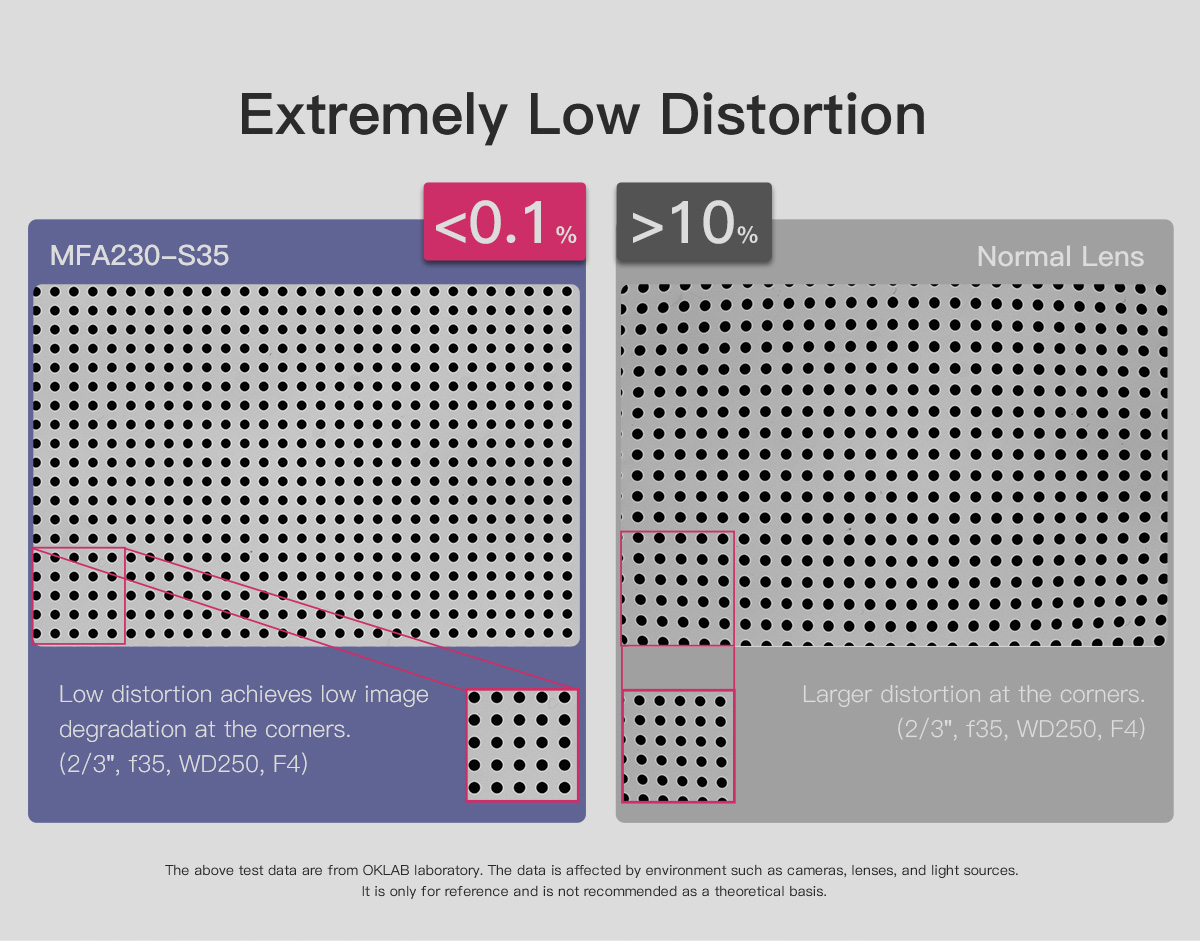

Max. Image Format		2/3" (φ11.4mm)		Distortion		<0.1%
Angle of View	D	2/3"	16.5°	1/1.8"	13.5°	1/2"	12.1°
	H		12.8°		11.7°		9.6°
	V		10.7°		7.4°		7.2°
M.o.D		0.2m		Object Dimension at M.o.D	2/3"	47.28mm x 39.63mm
Length (mm)		43.24			1/1.7"	41.53mm x 31.36mm
Flange Back Length		17.526mm in Air
Structure		5 Groups, 8 Elements		Operating Temperature		-10°C — 50°C

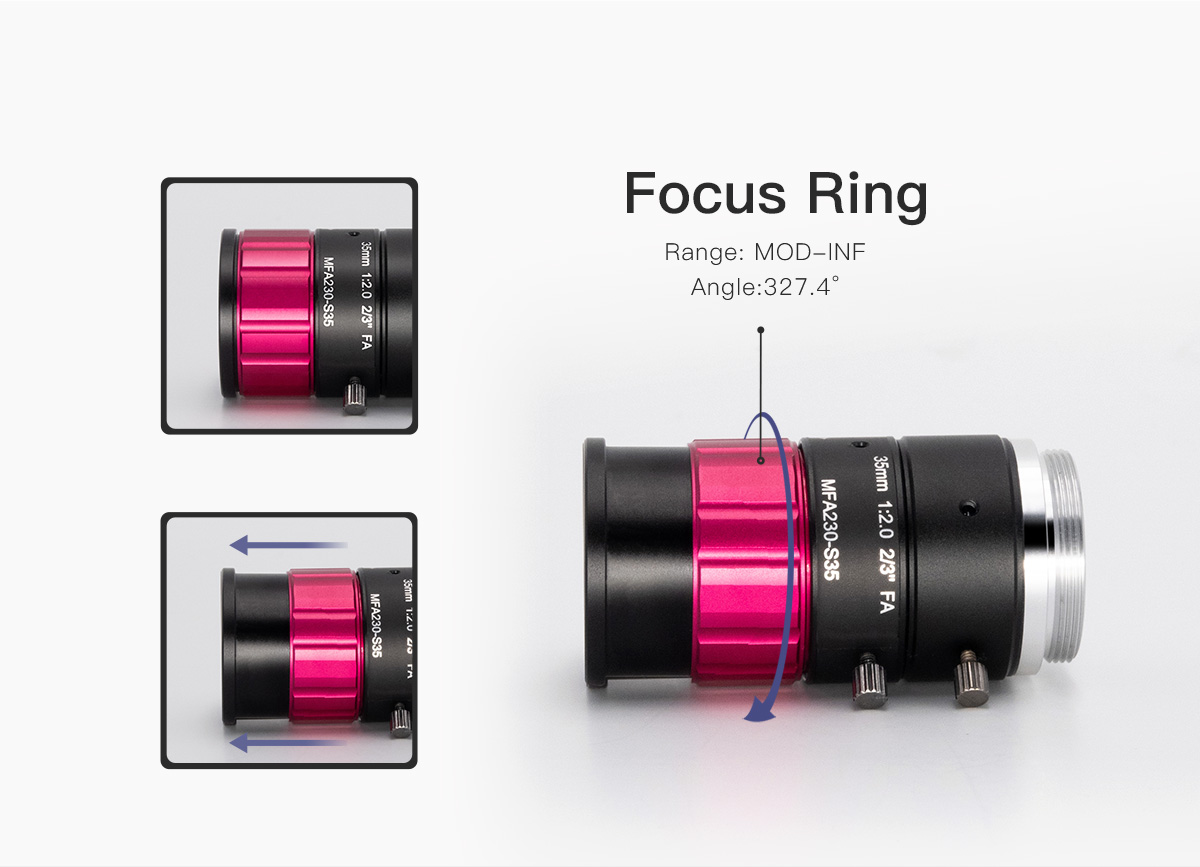

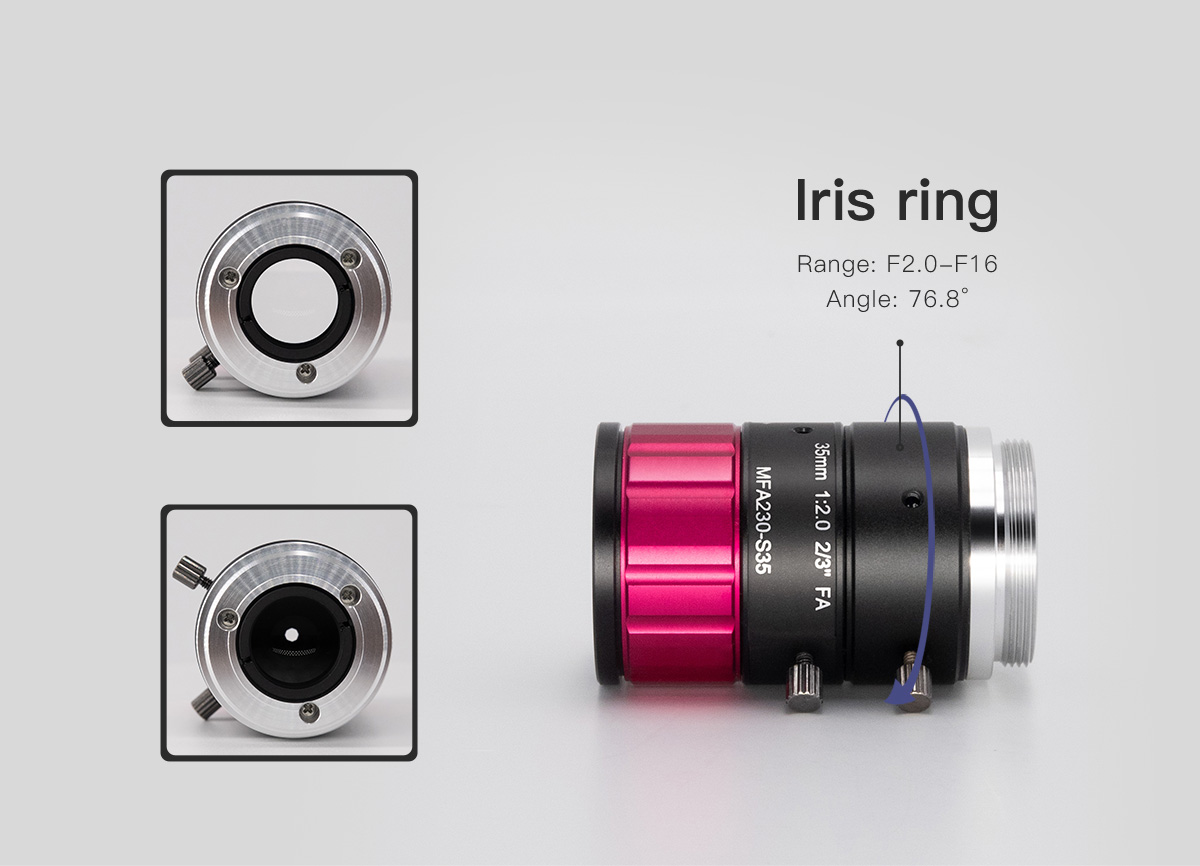

Operation of Iris		Range	F2.0 - F16	Operation of Focus		Range	MOD-INF
		Angle	76.8°			Angle	327.4°
Spectral Transmission		AT 436nm-656nmT≥85%

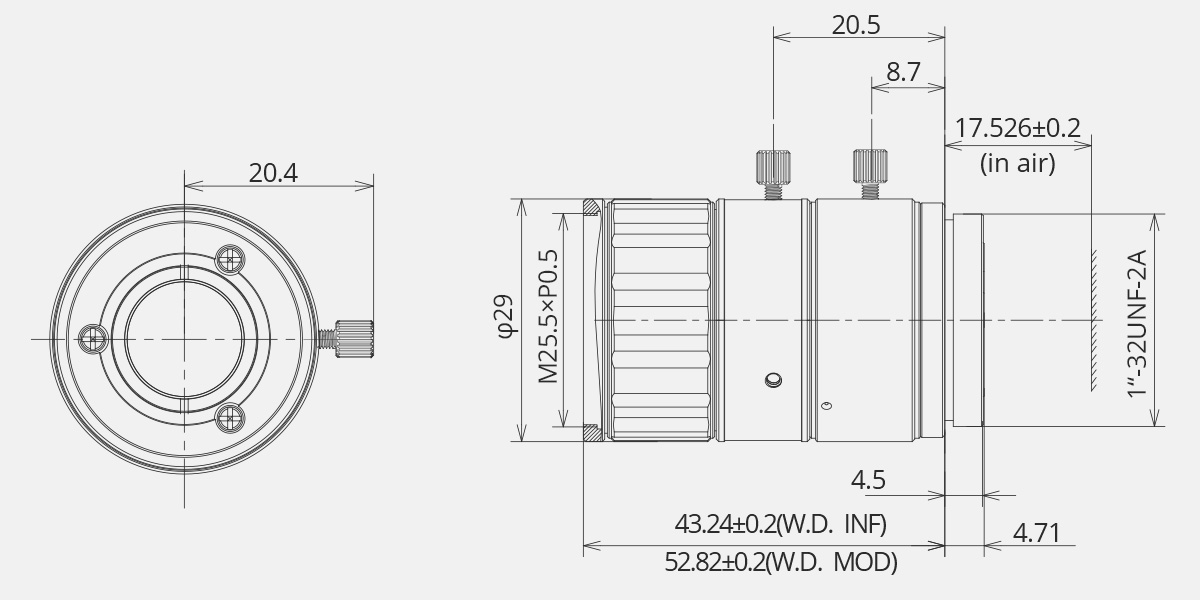

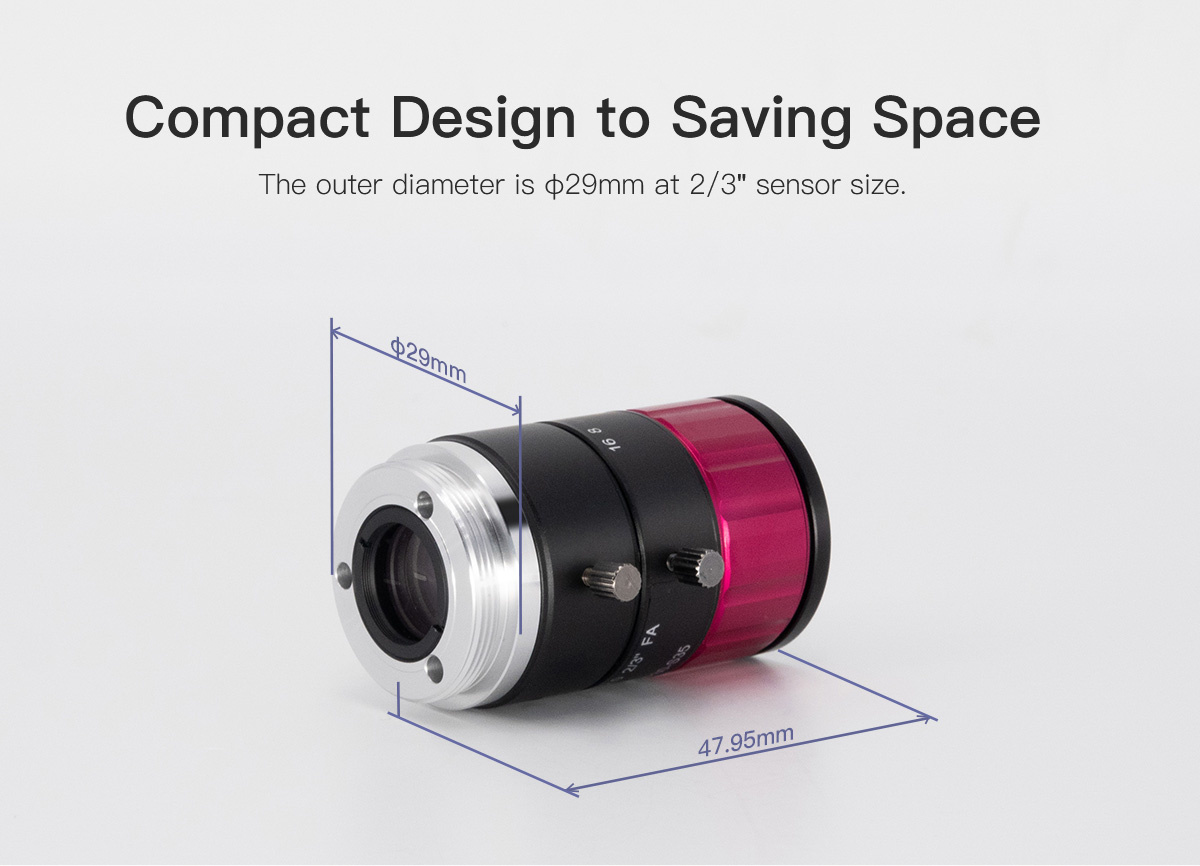

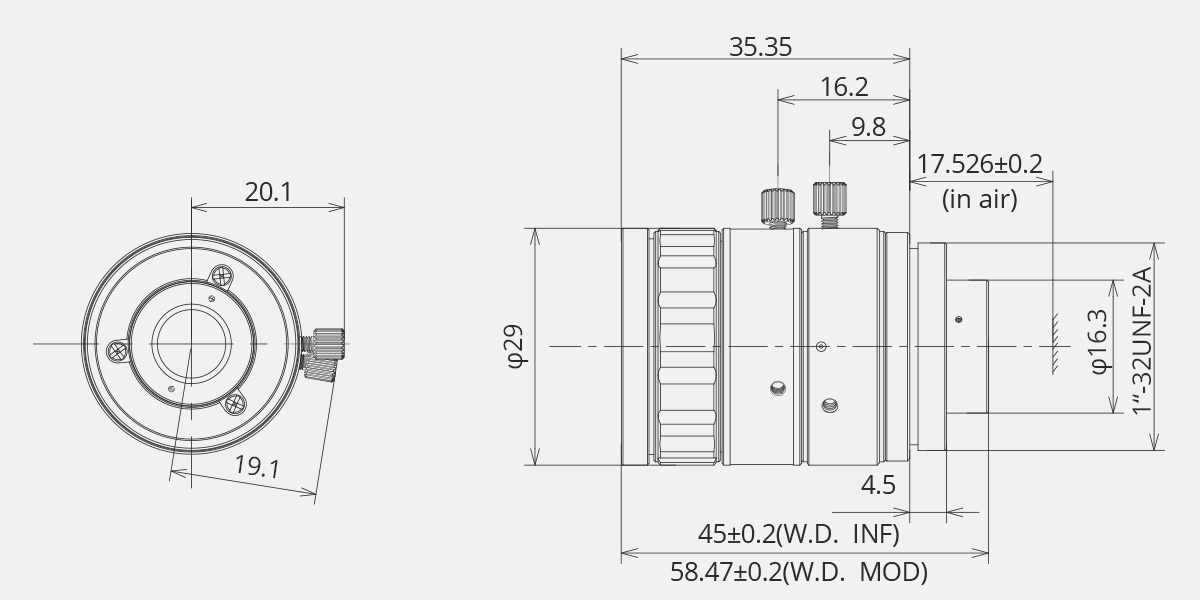

Dimensions

2/3" 35mm Fixed Focal Length Lens | MFA230-S35 COOLENS®

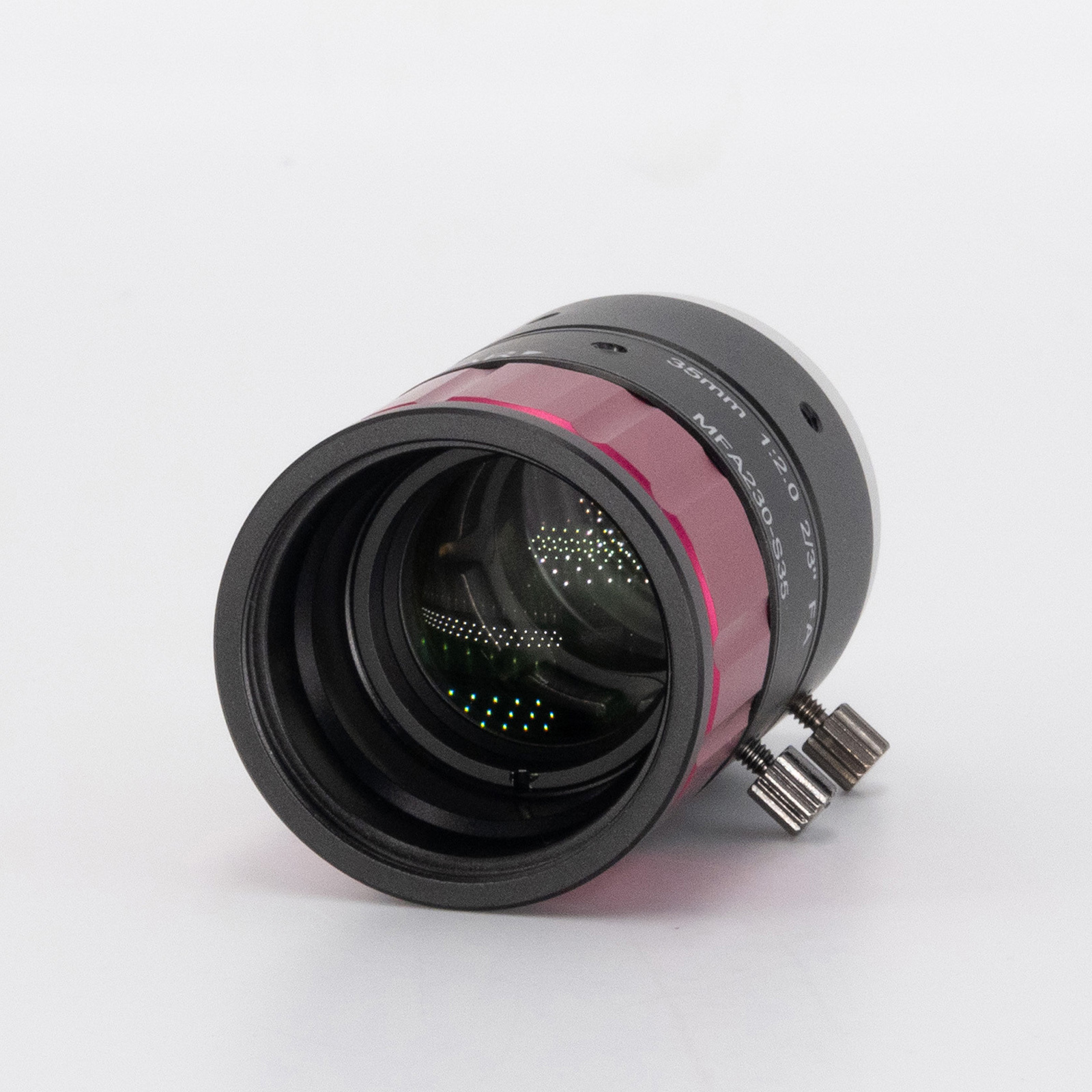

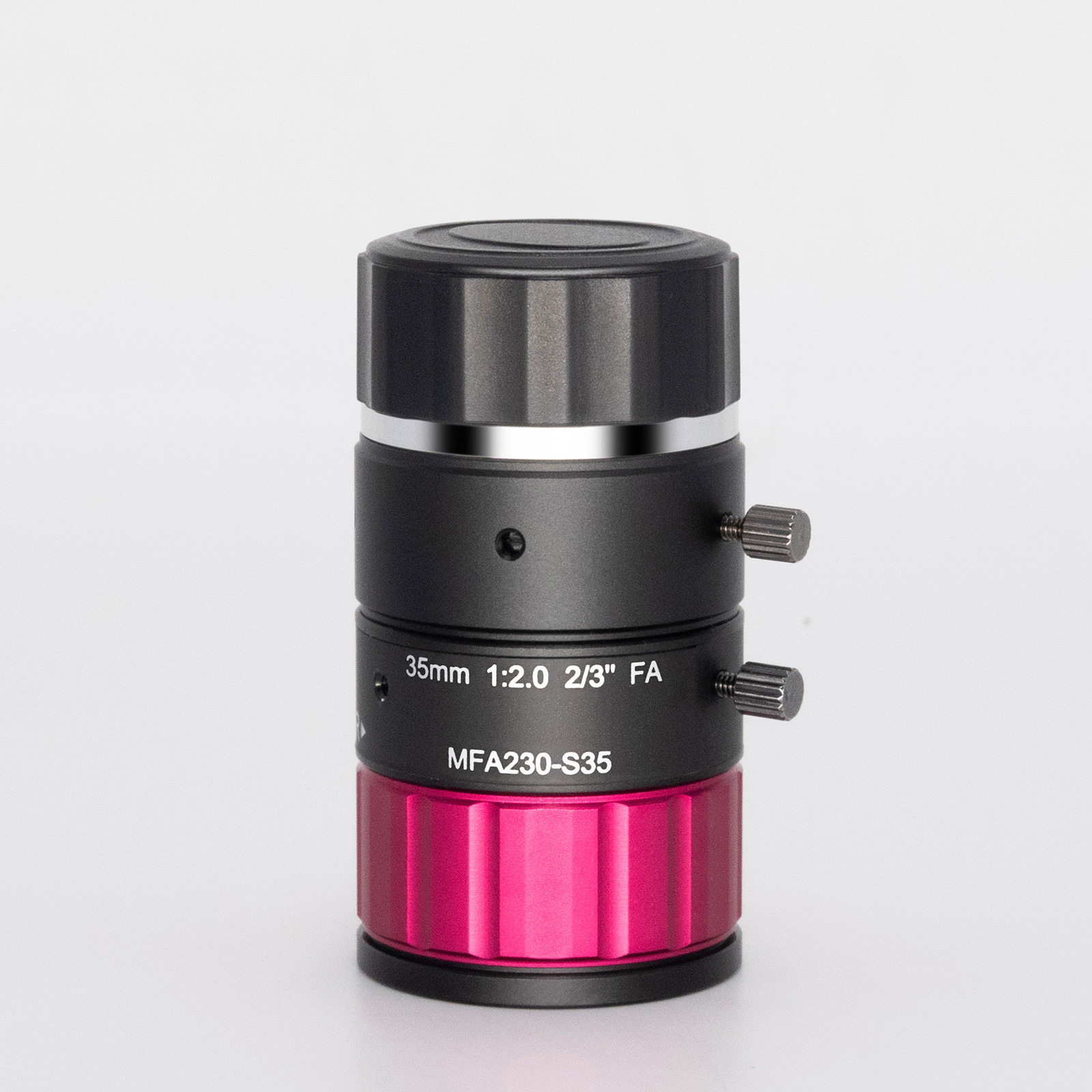

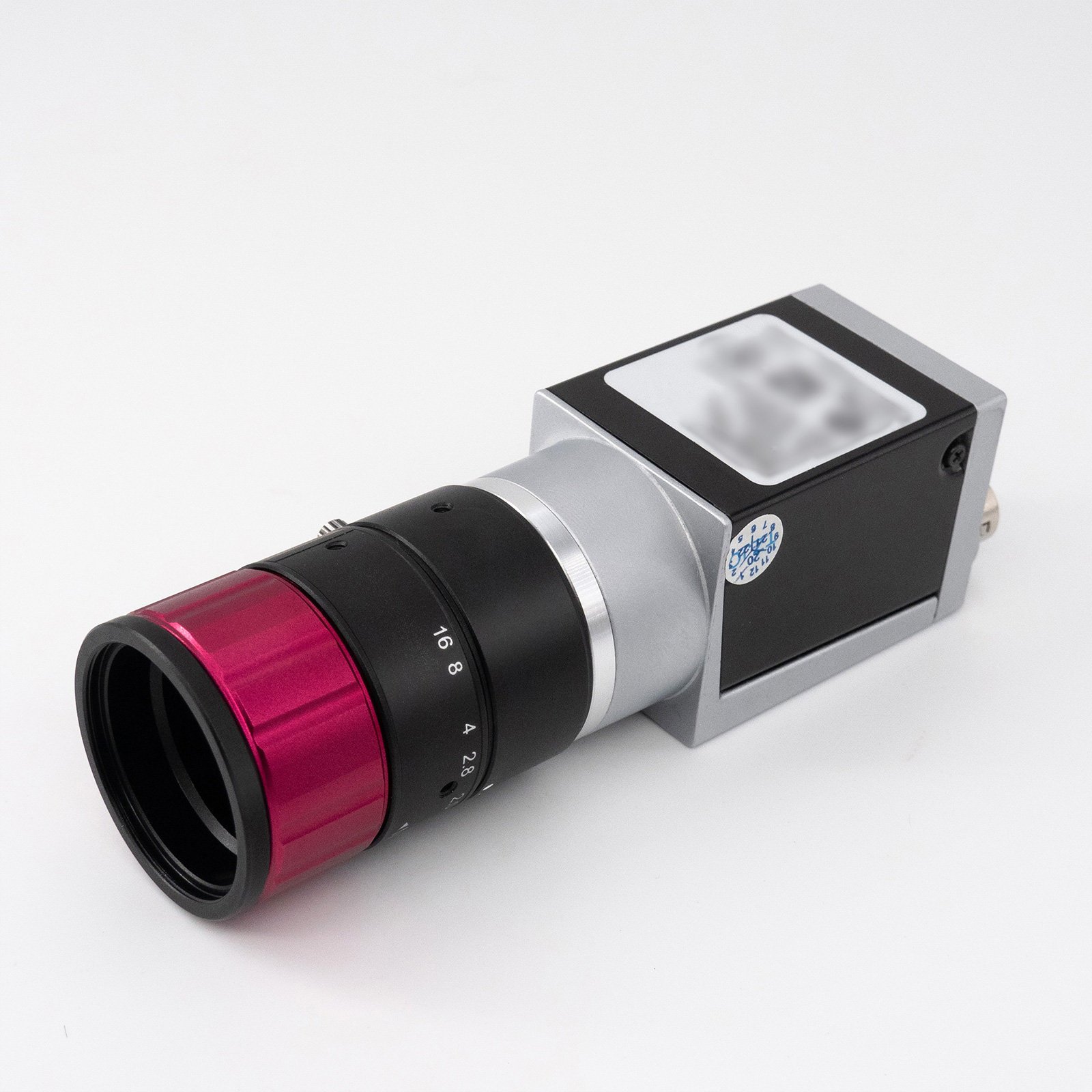

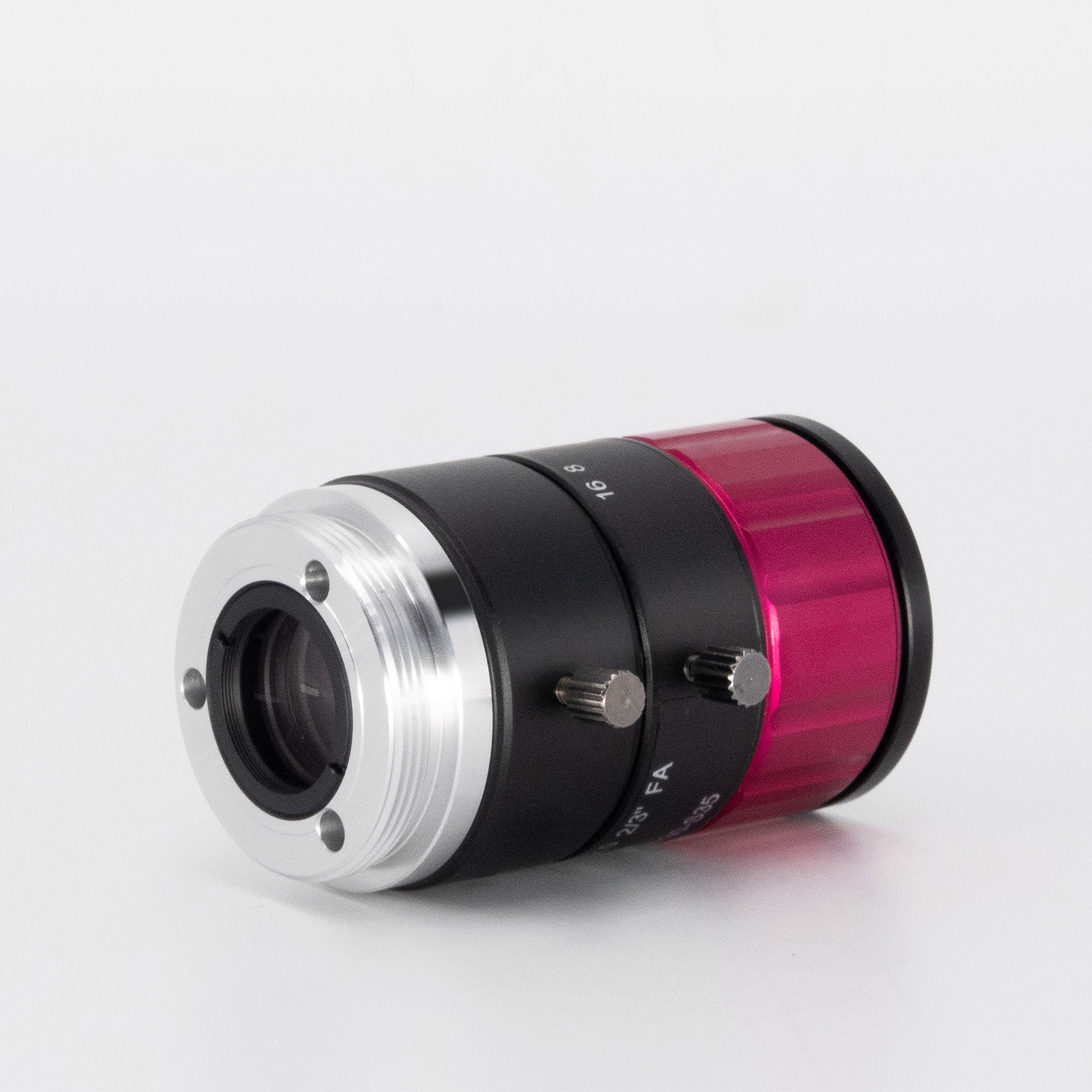

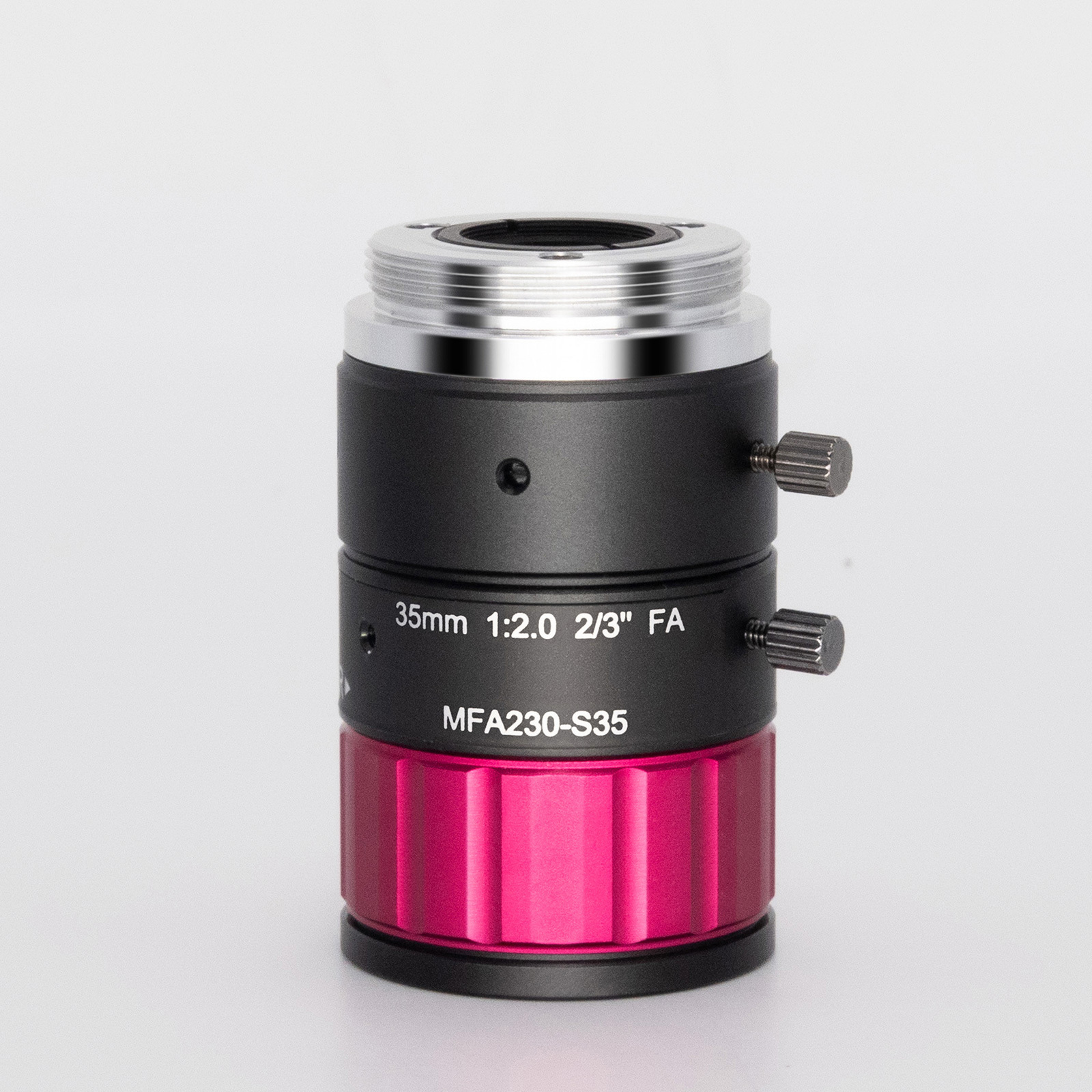

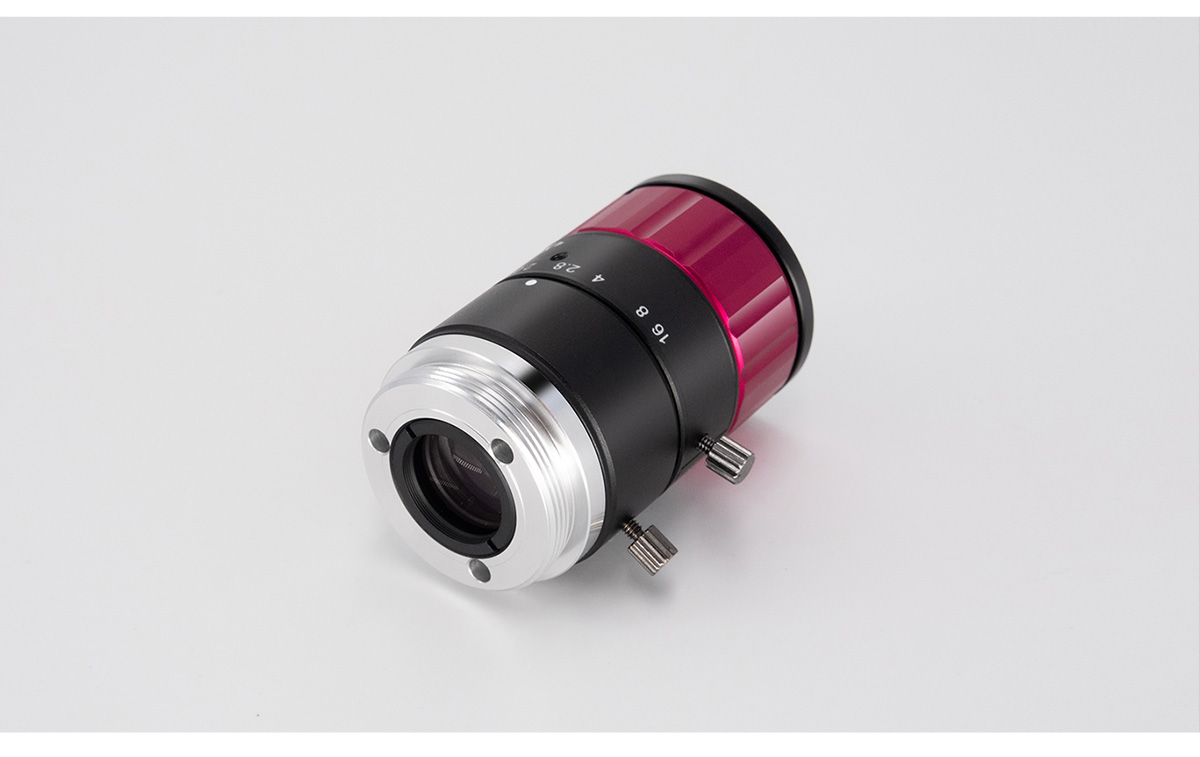

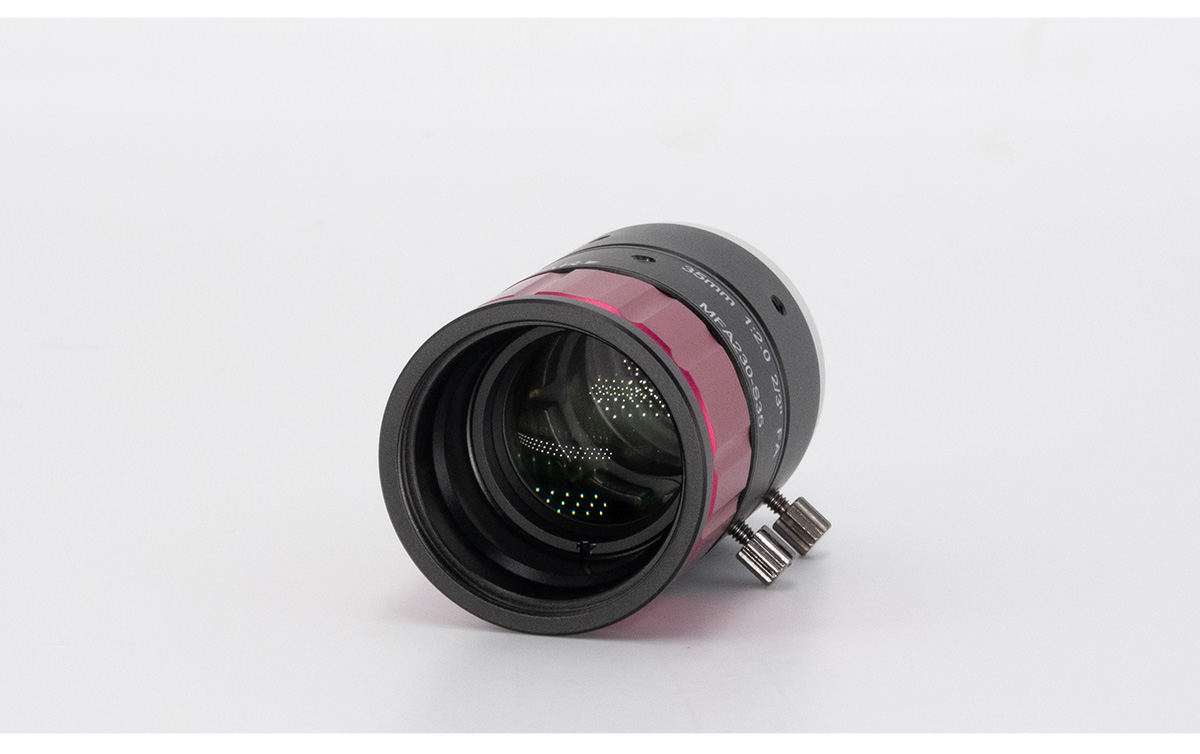

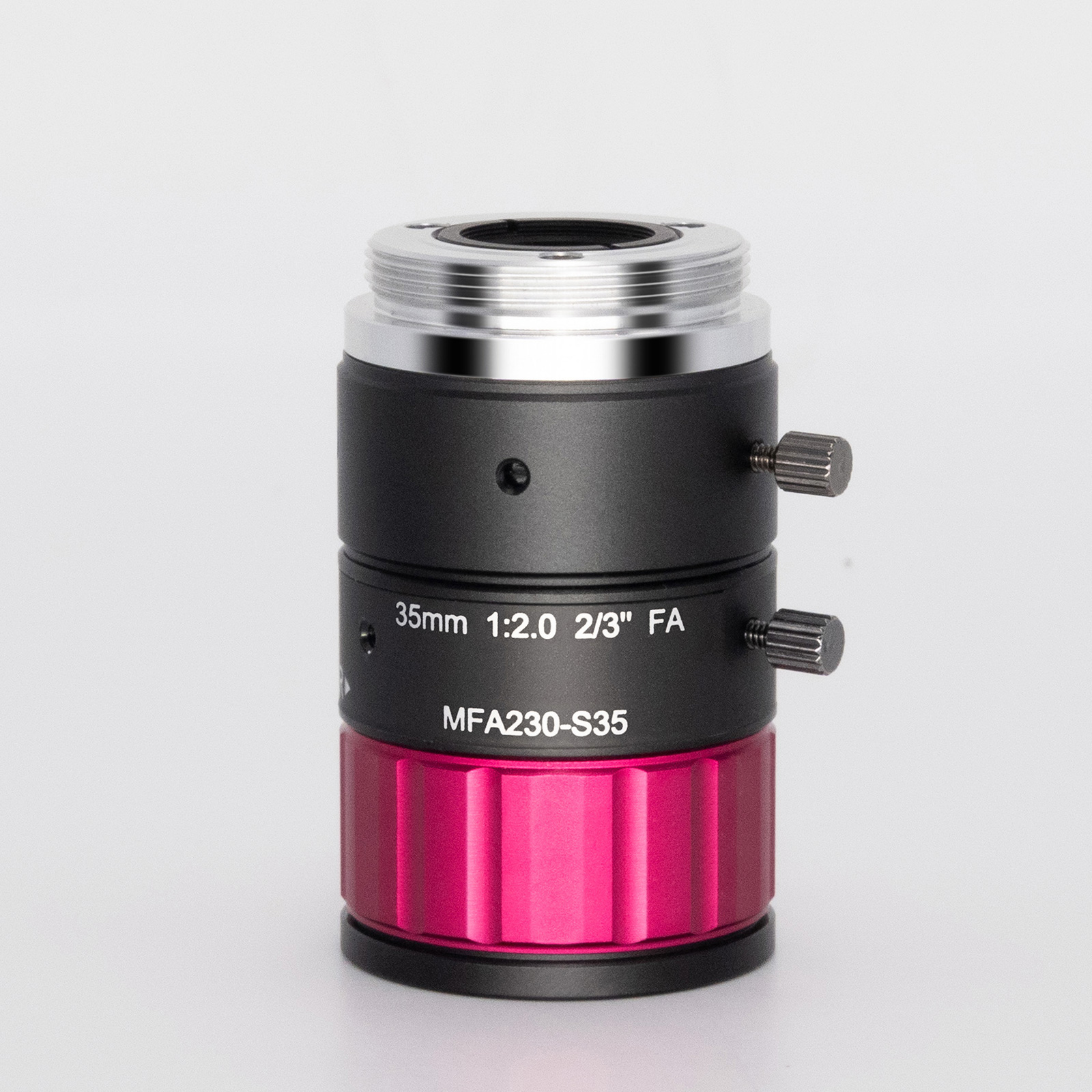

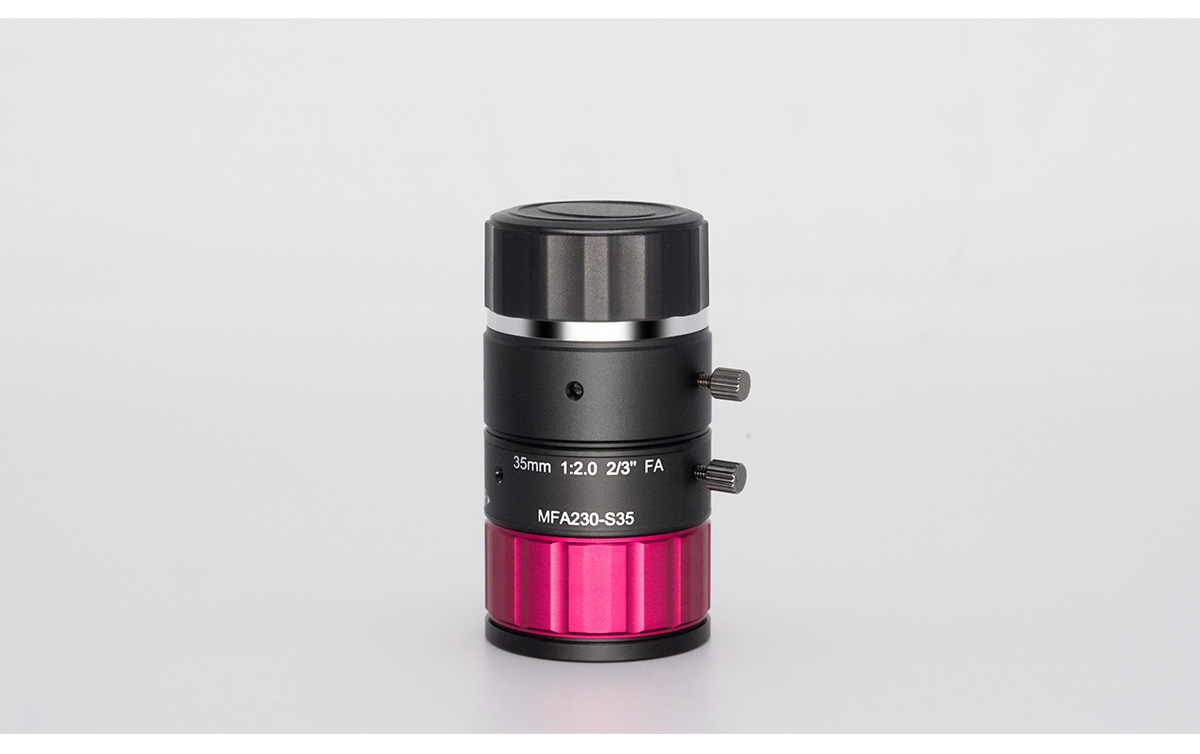

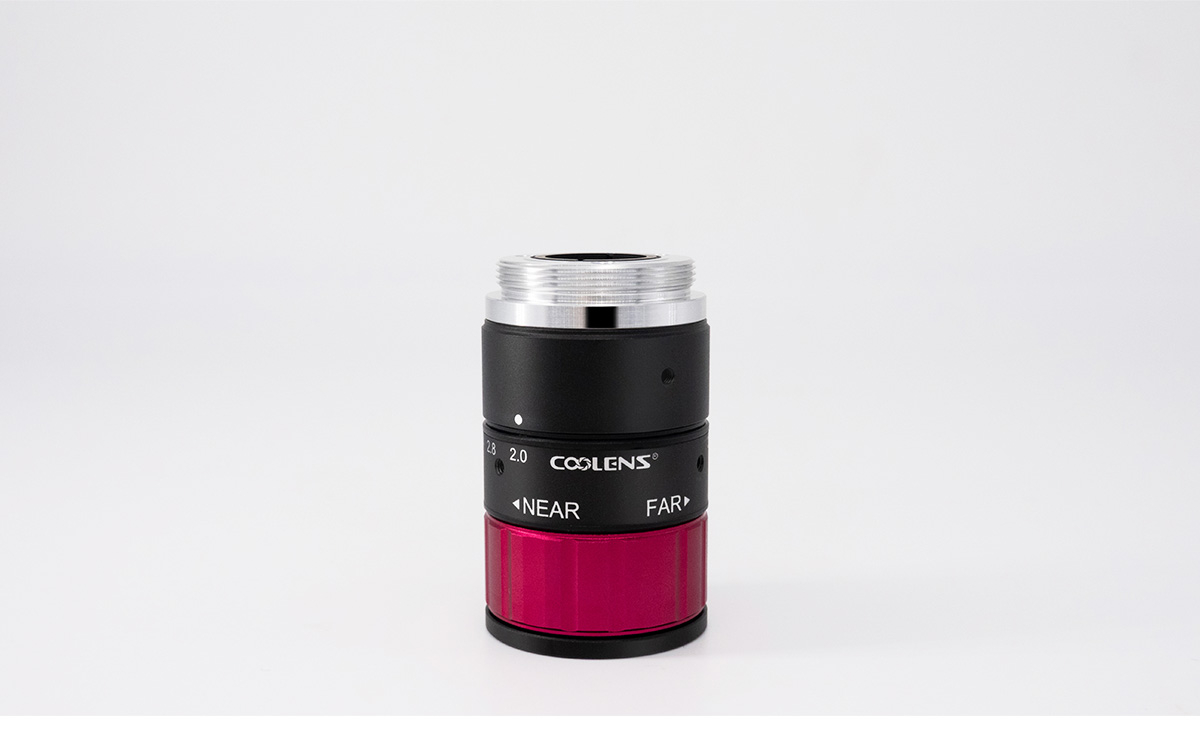

Product Photograph
