Model No. | MFA230-S08 | Image Circle Diameter (Φmm) | 2/3" | ||||
Focal Length(mm) | 8 | Magnification(x) | Adjustable | ||||

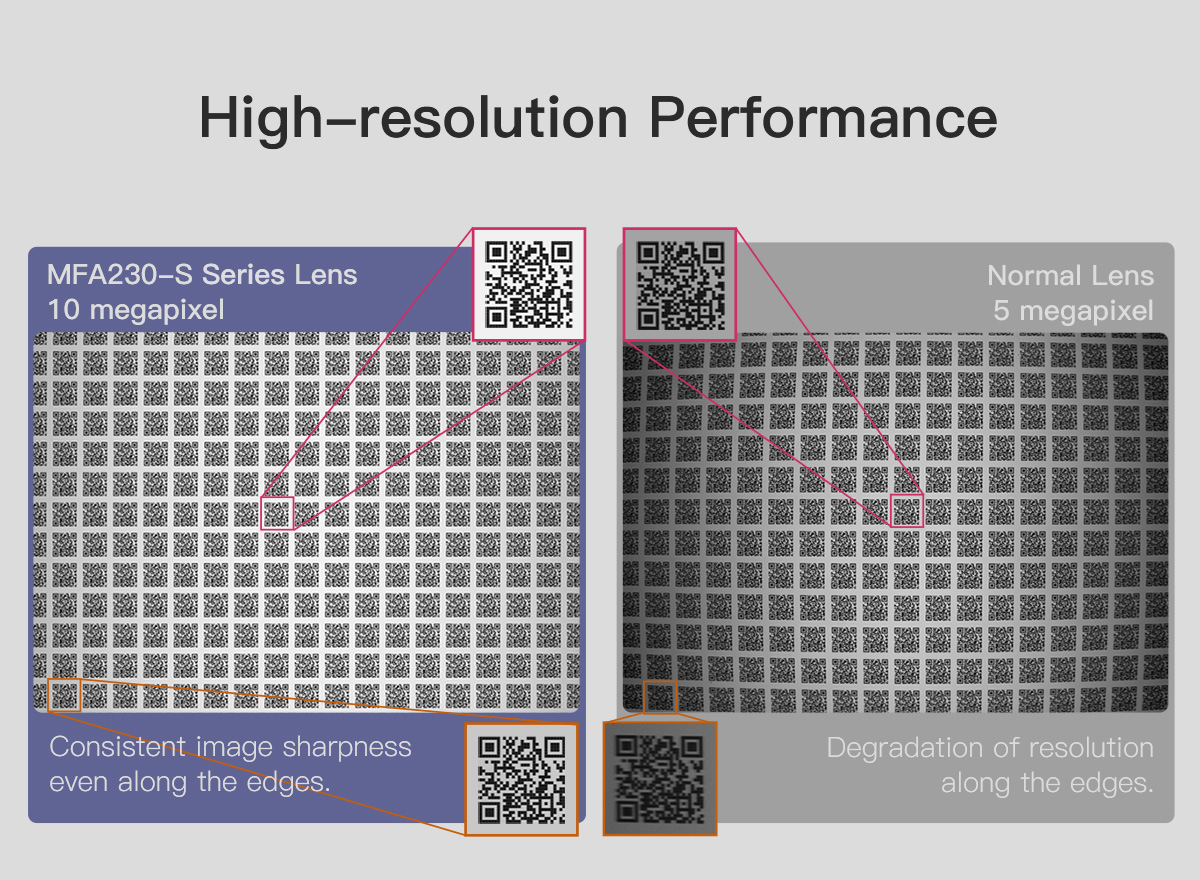

Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 150 | ||||
Type | Fixed Focal Length | Support Cameras | 10M | ||||

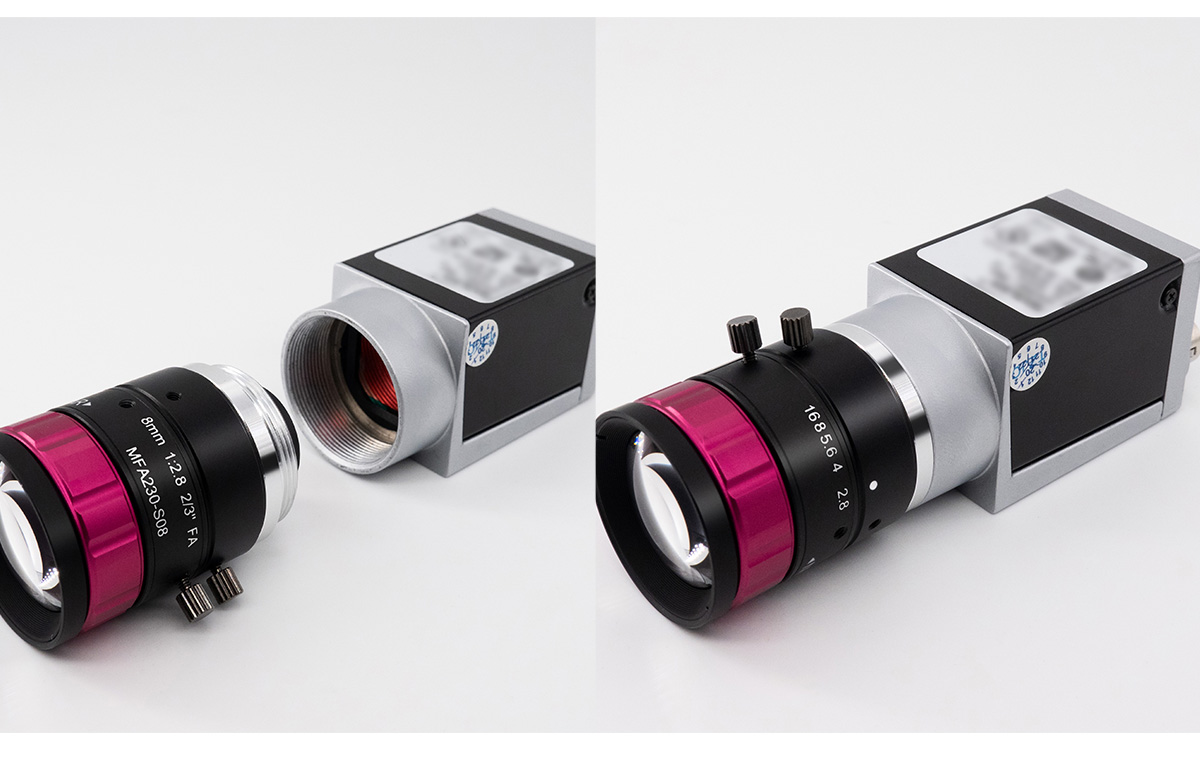

Mount | C | Back Focal Length | 10.5 mm in Air | ||||
F NO. | F2.6 - F16 | Filter Size | / | ||||

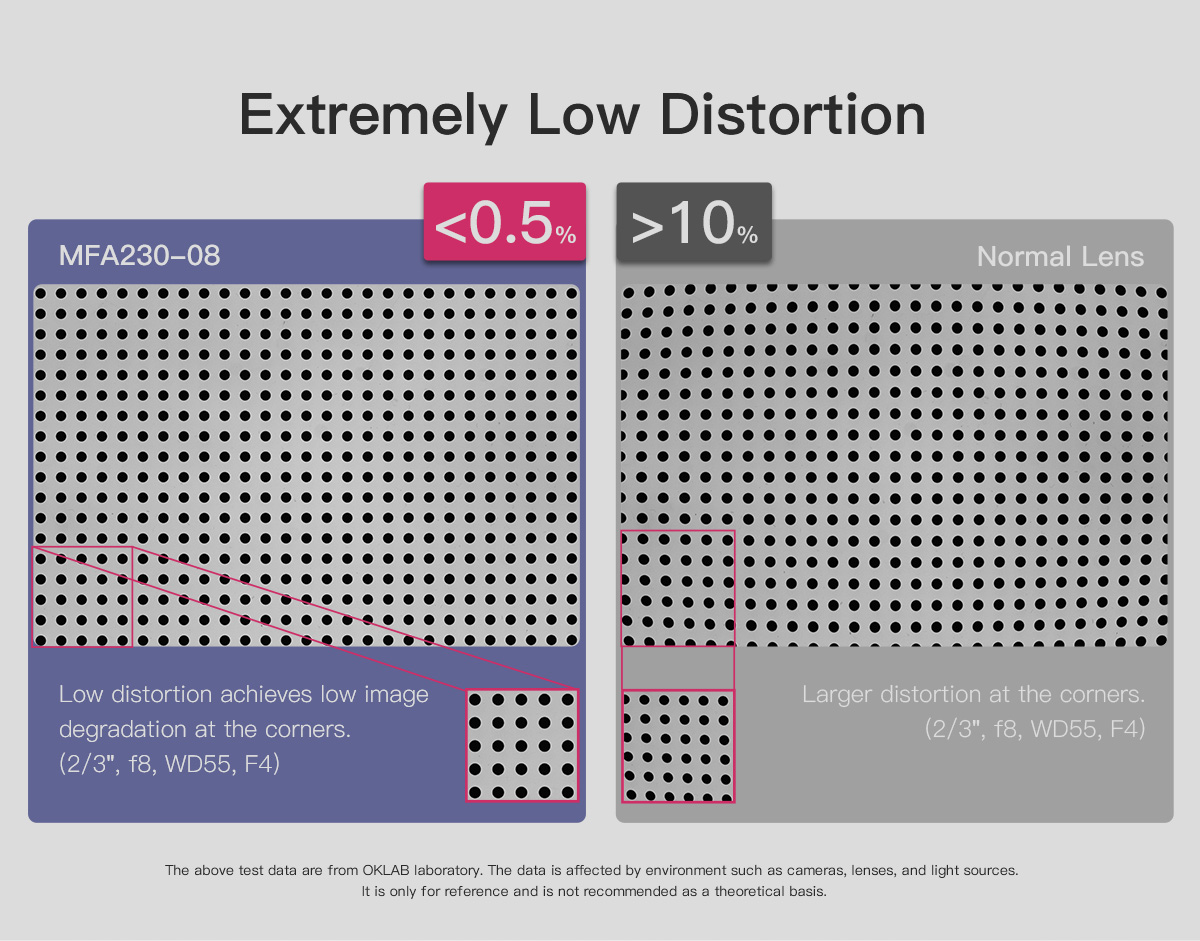

Max. Image Format | 2/3" (φ11.4mm) | Distortion | <0.5% | ||||
Angle of View | D | 2/3" | 67.2° | 1/1.8" | 56.5° | 1/2" | 51.4° |
H | 53.5° | 47.7° | 42.0° | ||||
V | 46.0° | 34.1° | 32.1° | ||||
M.o.D | 0.11m | Object Dimension at M.o.D | 2/3" | 115.54mm x 96.85 mm | |||

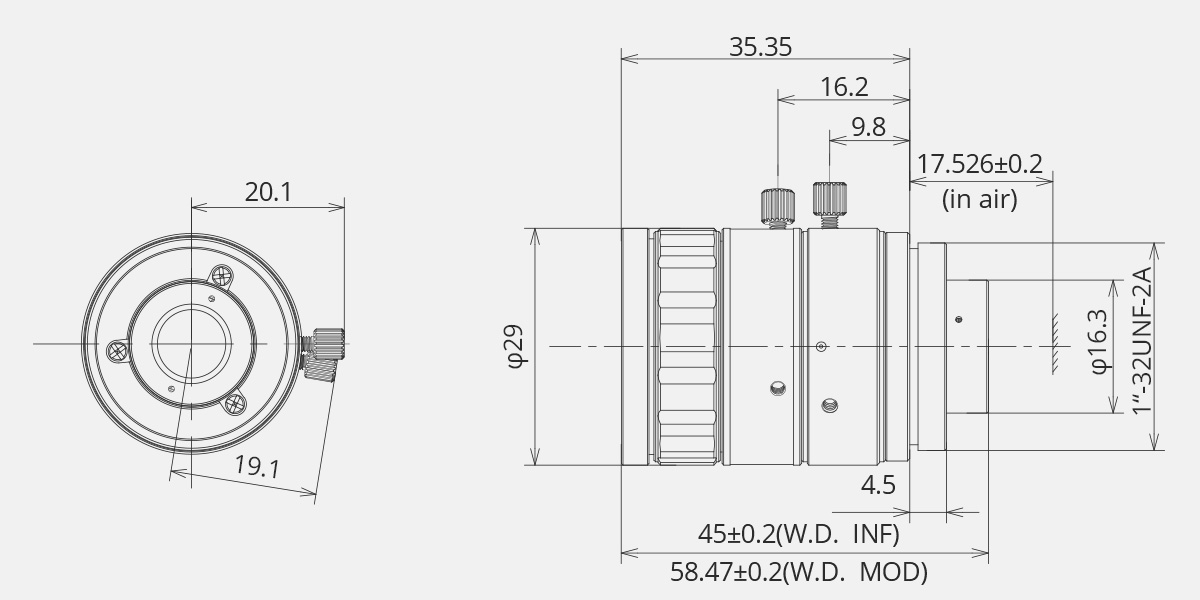

Length (mm) | 45 | 1/1.7" | 101.49mm x 76.62 mm | ||||
Flange Back Length | 17.526mm in Air | ||||||
Structure | 11 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||

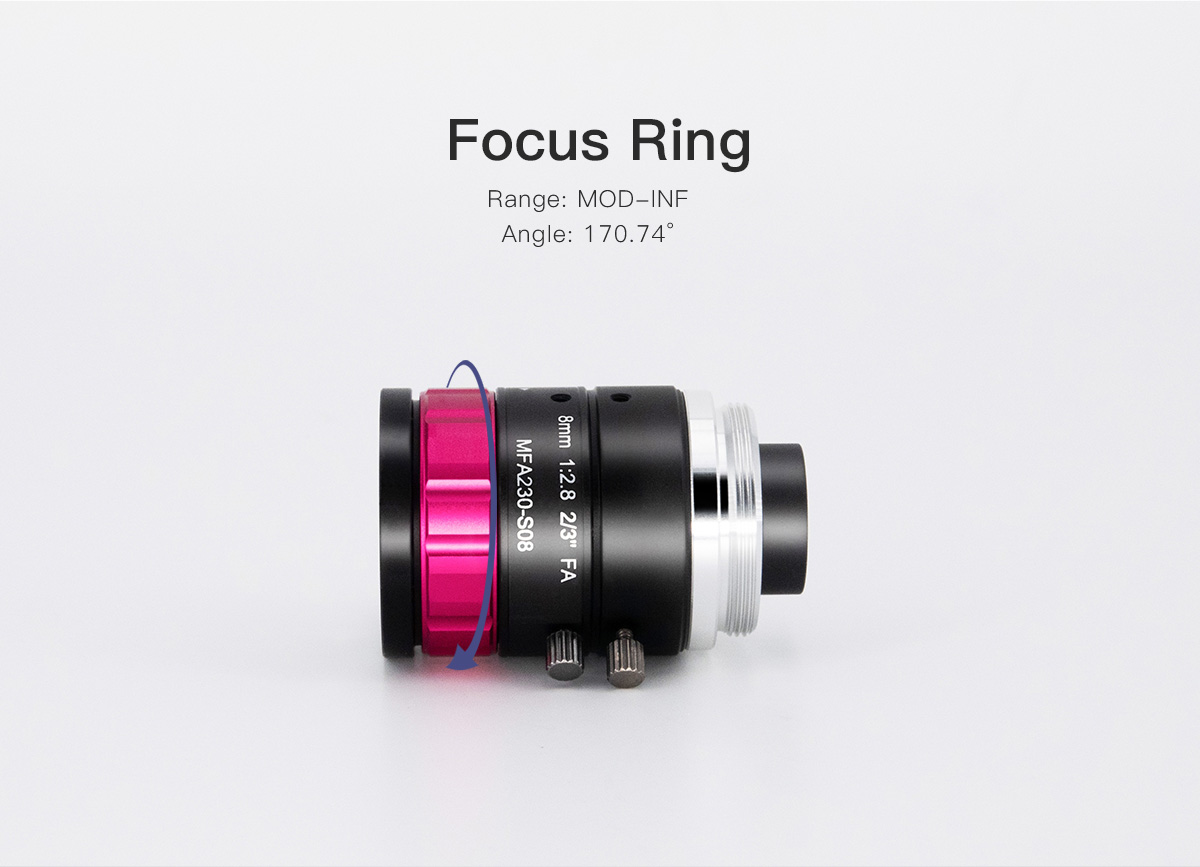

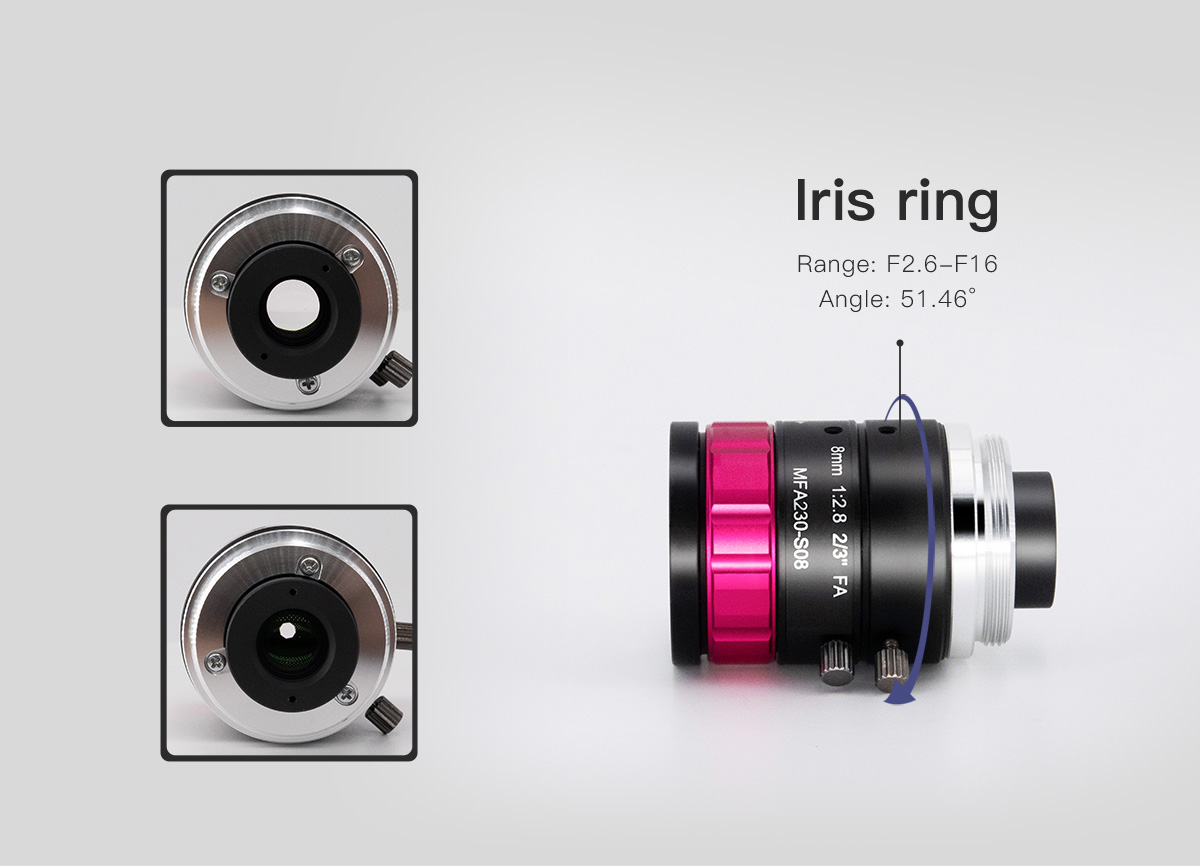

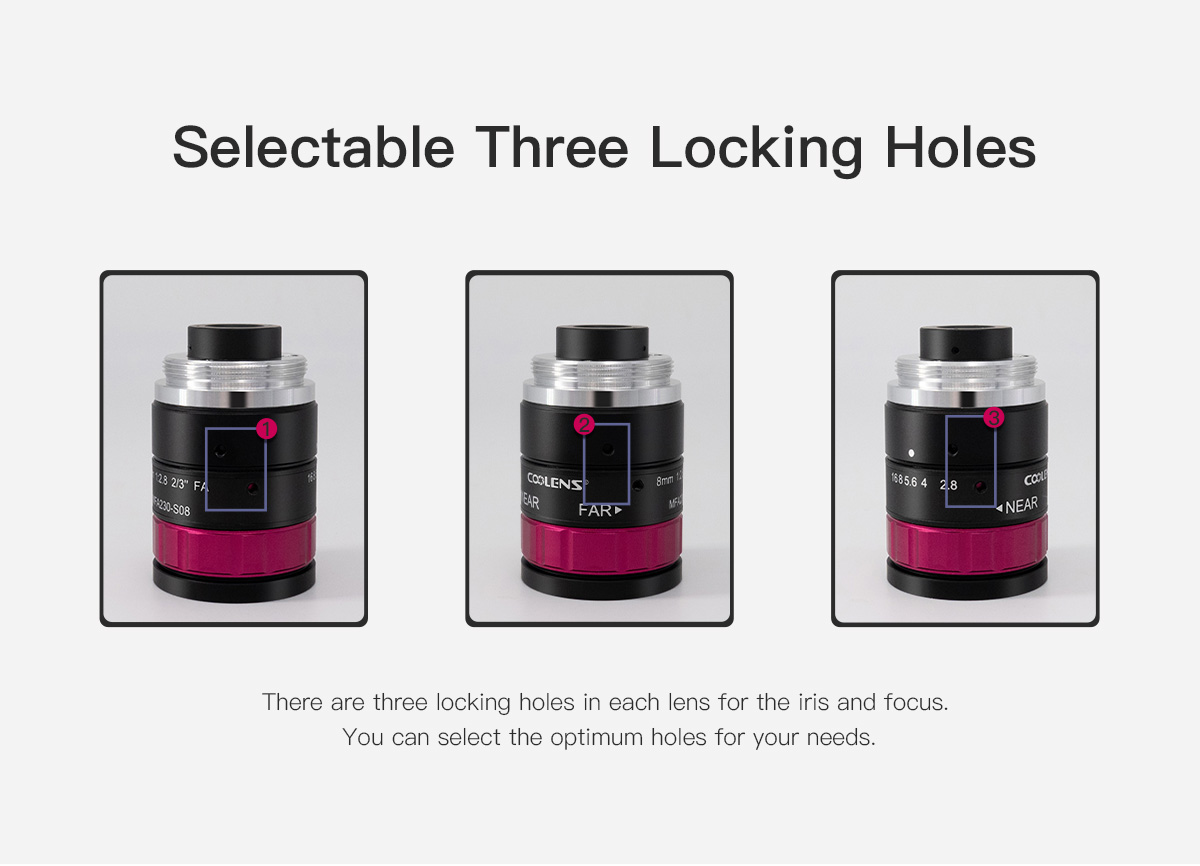

Operation of Iris | Range | F2.6 - F16 | Operation of Focus | Range | MOD-INF | ||
Angle | 47.28° |
Angle
|
170.74°
|
||||
Spectral Transmission | AT 436nm-656nmT≥85% |

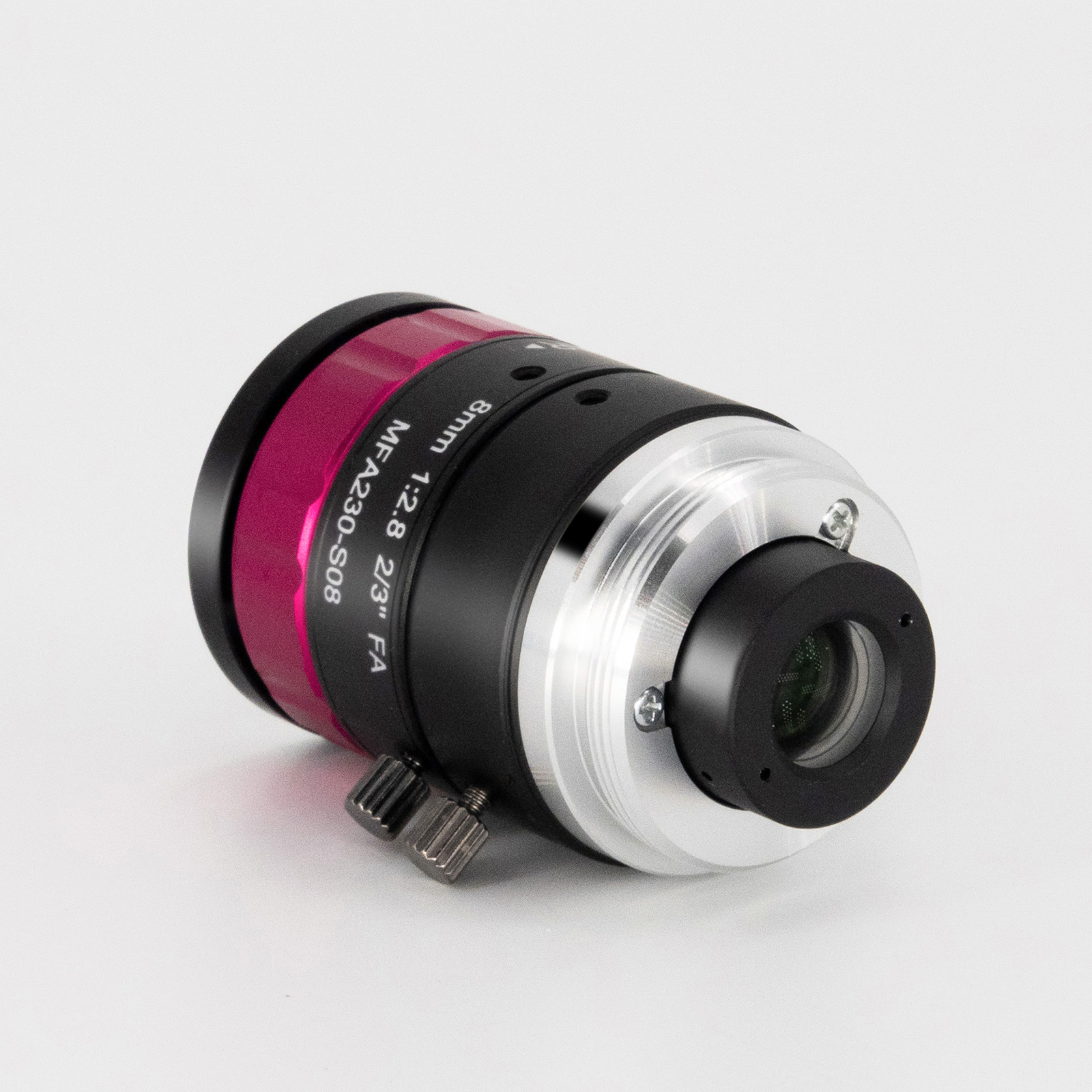

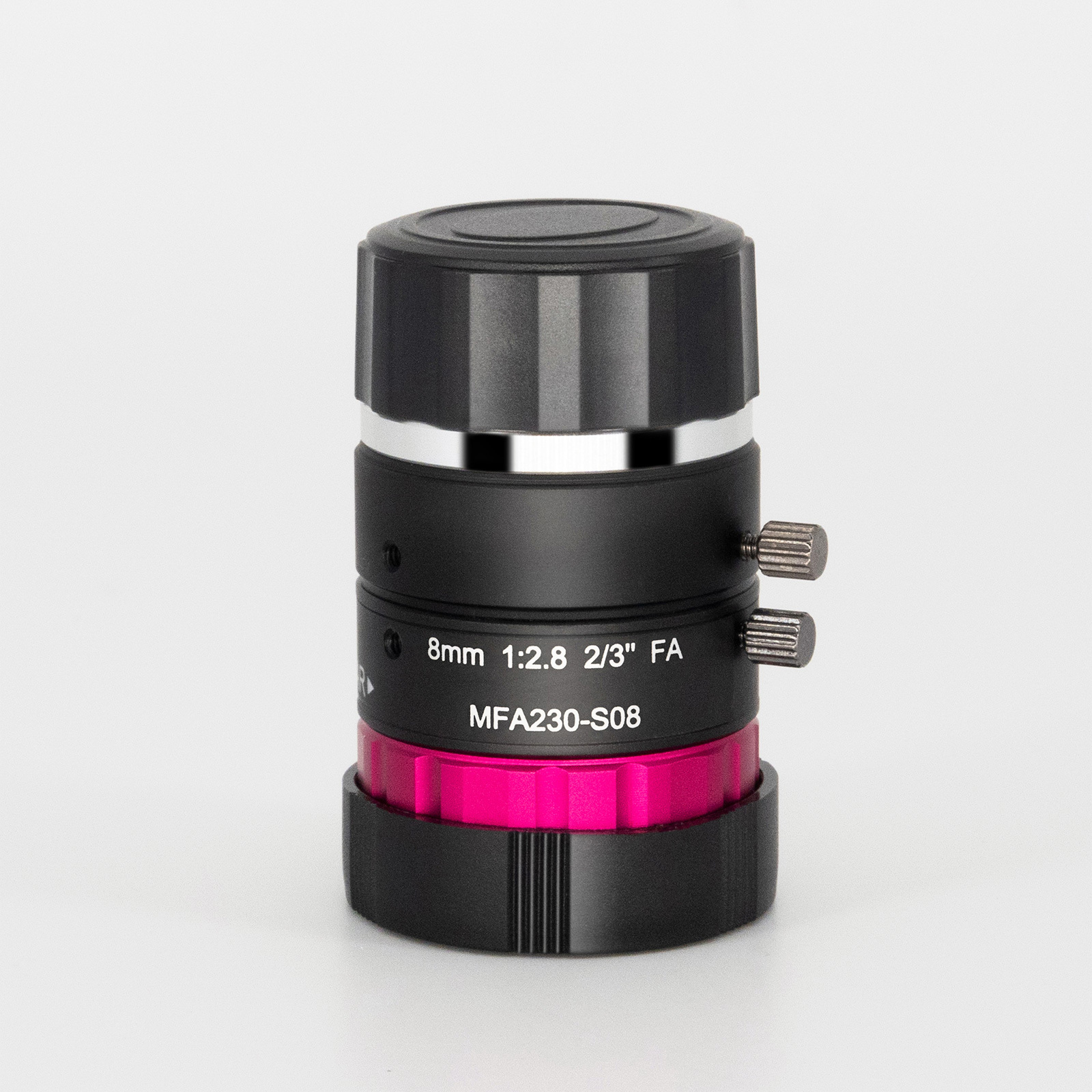

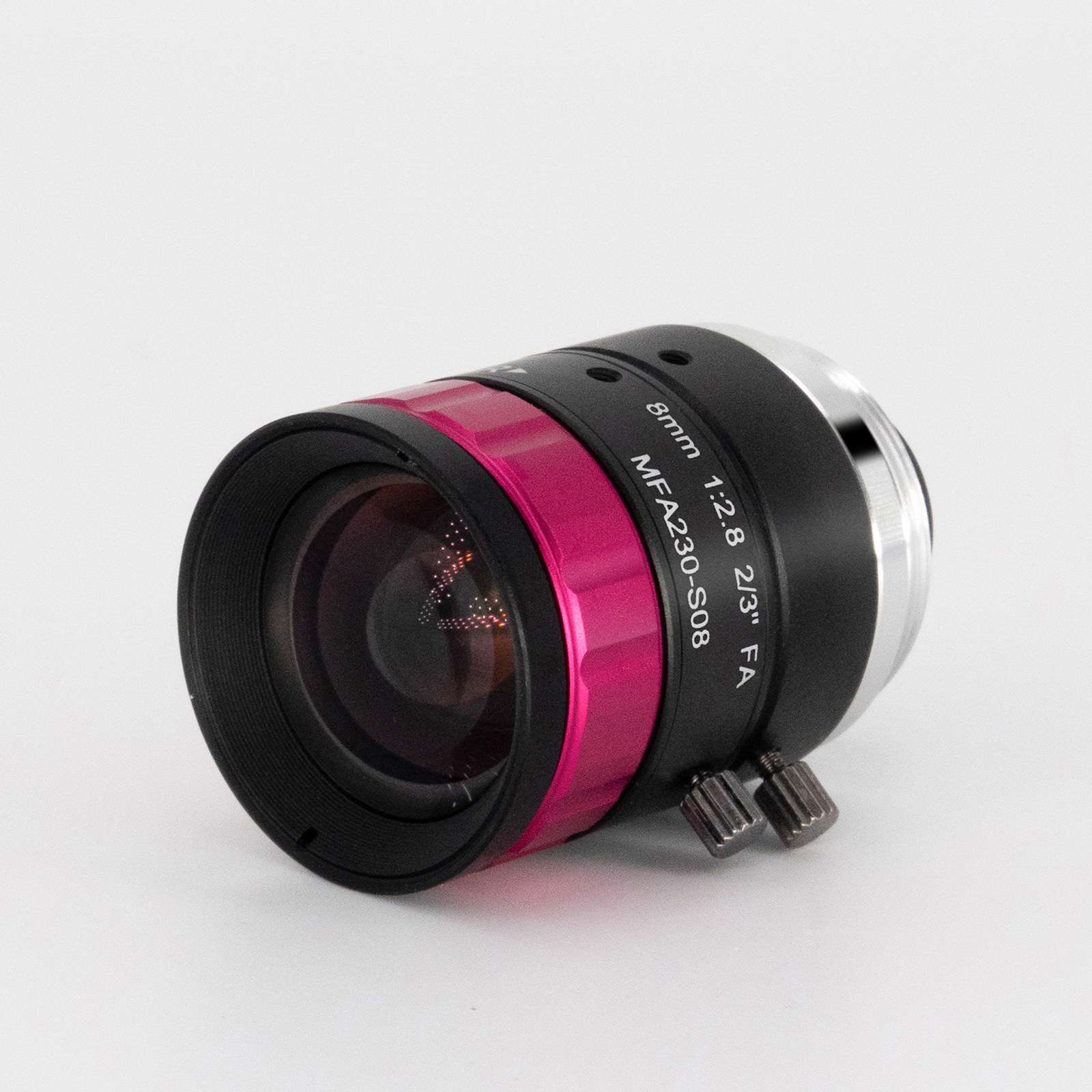

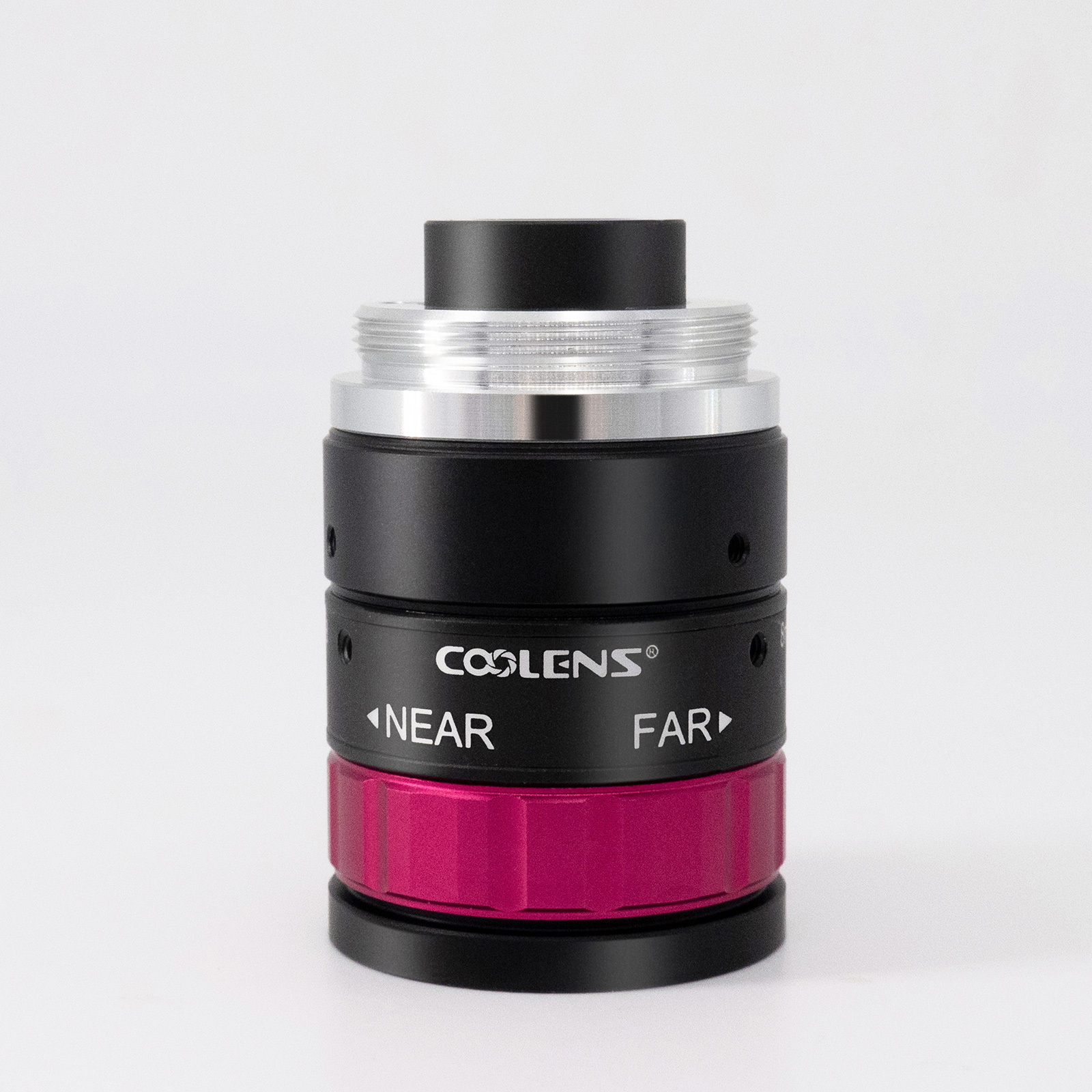

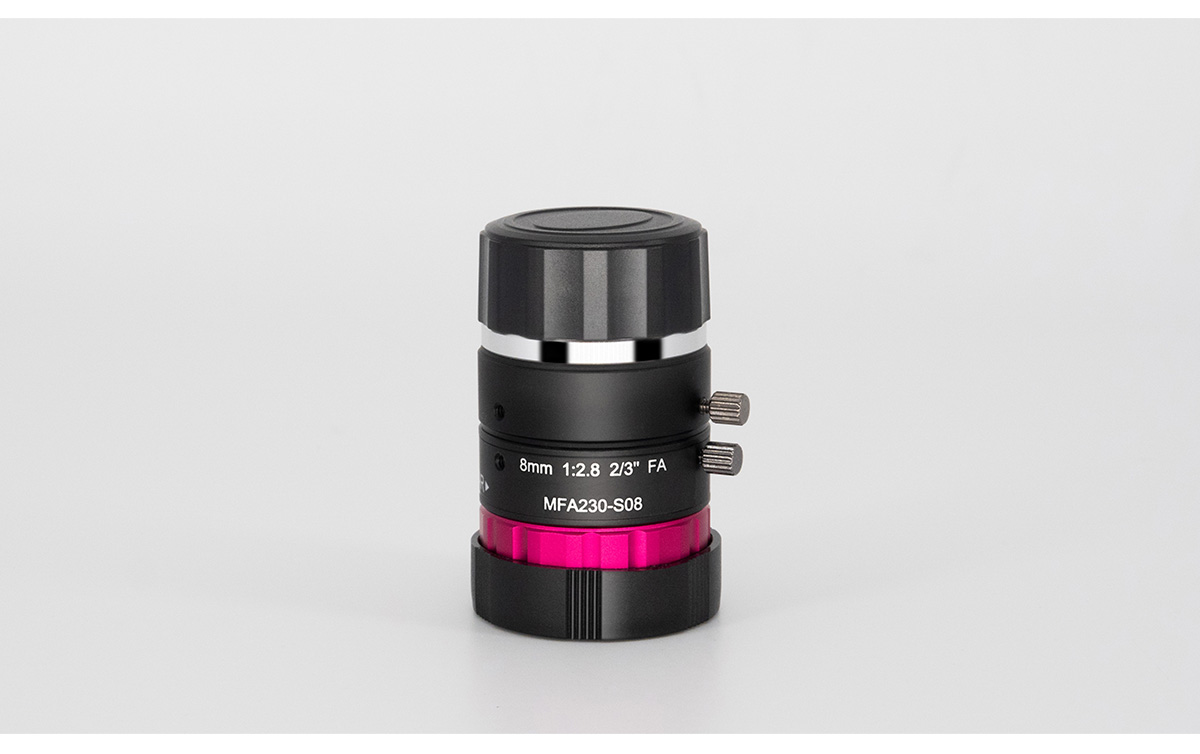

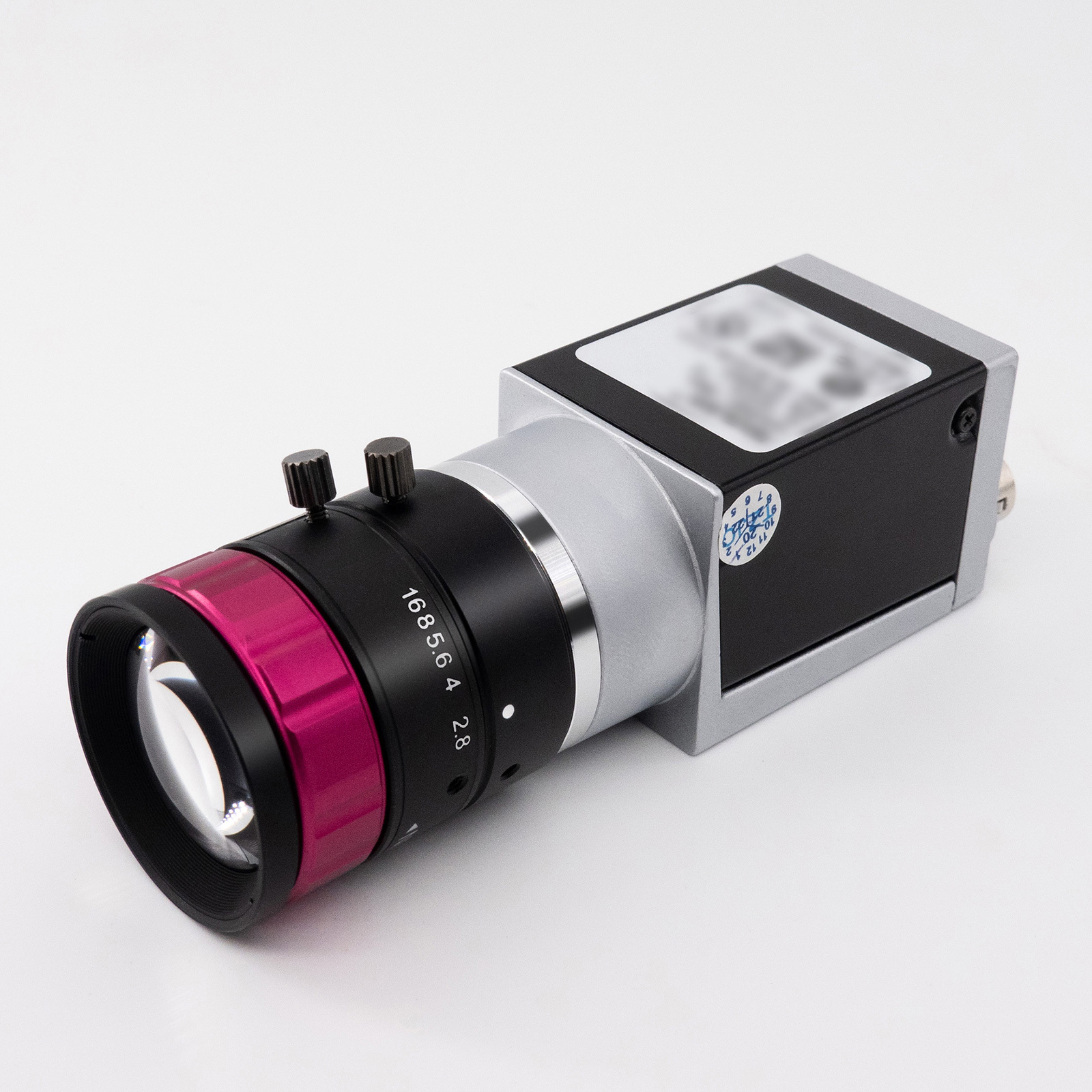

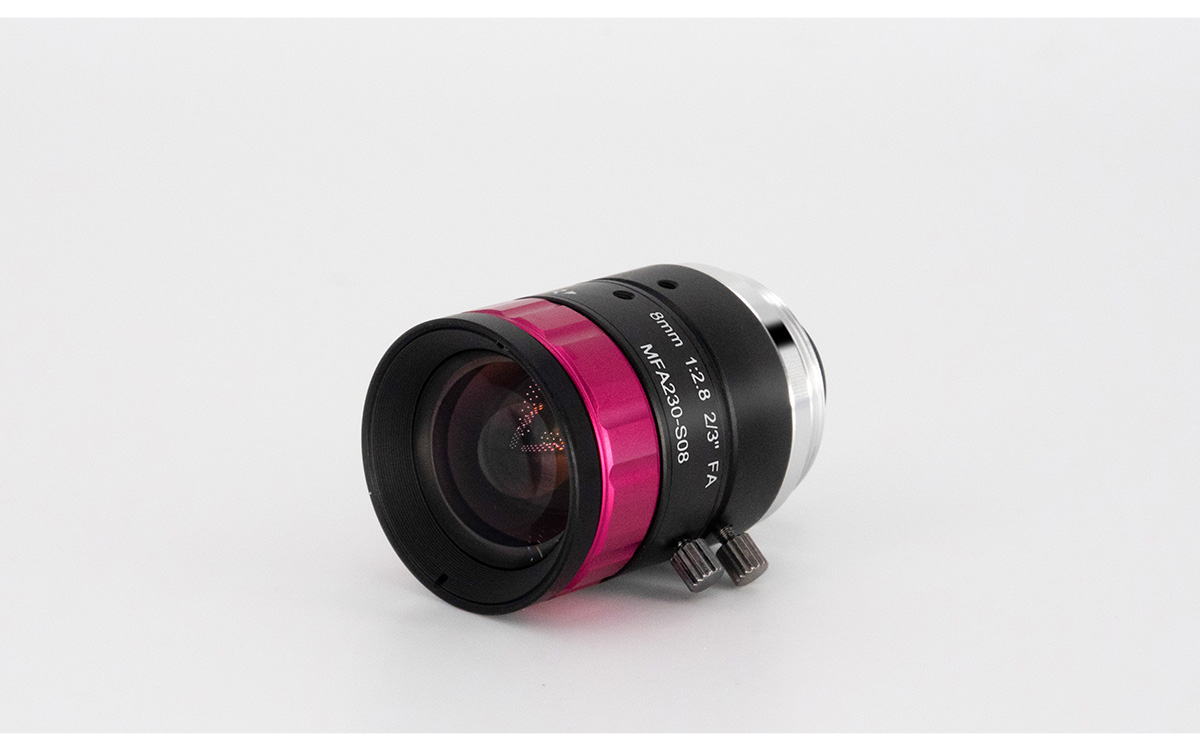

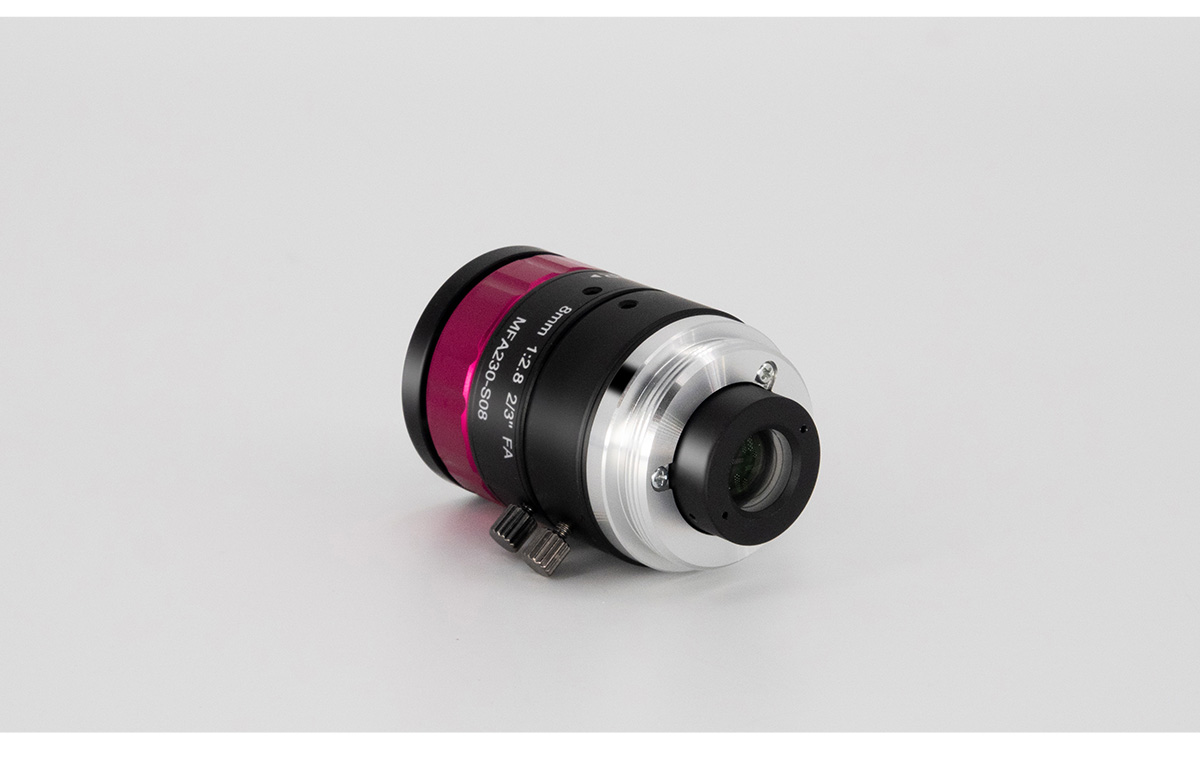

2/3" 8mm Fixed Focal Length Lens | MFA230-S08 COOLENS®
$117.00 USD
Shipping calculated at checkout.
Quantity










Description
-
Description
Model No. | MFA230-S08 | Image Circle Diameter (Φmm) | 2/3" | ||||
Focal Length(mm) | 8 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 150 | ||||
Type | Fixed Focal Length | Support Cameras | 10M | ||||
Mount | C | Back Focal Length | 10.5 mm in Air | ||||
F NO. | F2.6 - F16 | Filter Size | / | ||||
Max. Image Format | 2/3" (φ11.4mm) | Distortion | <0.5% | ||||
Angle of View | D | 2/3" | 67.2° | 1/1.8" | 56.5° | 1/2" | 51.4° |
H | 53.5° | 47.7° | 42.0° | ||||
V | 46.0° | 34.1° | 32.1° | ||||
M.o.D | 0.11m | Object Dimension at M.o.D | 2/3" | 115.54mm x 96.85 mm | |||
Length (mm) | 45 | 1/1.7" | 101.49mm x 76.62 mm | ||||
Flange Back Length | 17.526mm in Air | ||||||
Structure | 11 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||
Operation of Iris | Range | F2.6 - F16 | Operation of Focus | Range | MOD-INF | ||
Angle | 47.28° |
Angle
|
170.74°
|
||||
Spectral Transmission | AT 436nm-656nmT≥85% |
