Model NO. | DTCA35F-22C-G-M58-AL | Magnification(x) | 2.0 | ||||
Object Field of View (Φmm) | 22.0 | Working Distance (mm) | 102 | ||||
Max Sensor Size (Φmm) | 44(35mm Full) | Best Aperture (F/#) | 32 | ||||
Telecentricity typical (max) (deg) | 0.01 | Distortion typical (max) (%) | 0.045 | ||||
MTF30 (lp/mm) | 118-32 | Depth of Field (mm) | 0.16-0.64 | ||||
Length of I/O (mm) | 397 | Mount | M58 | ||||
Length (mm) | 282.5 | Weight (kg) | 2.18 | ||||
Coaxial Illumination Port Option | YES | Iris Adjustable | YES | ||||
Back Focal Length Adjustable | YES | ||||||
Field of View (mm × mm) | CMV50000 (36.43x27.62) | 18.2x13.8 | |||||
KAI43142 (36.18x24.12) | 18.1x12.1 |

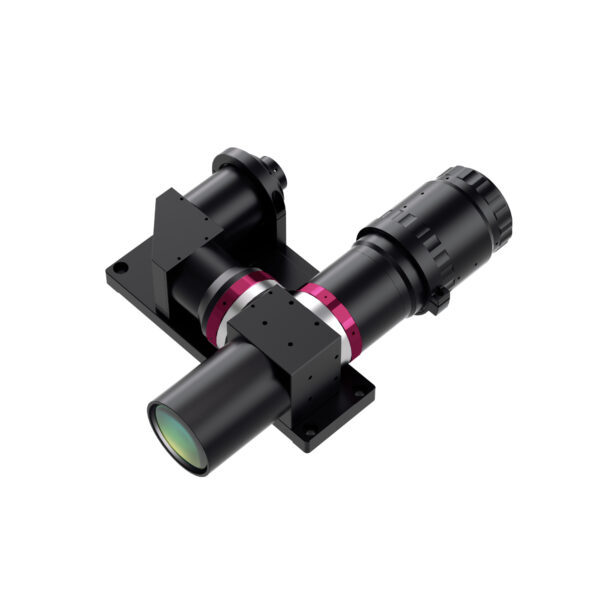

2.0X, 35mm Full Frame M58-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®
$0.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCA35F-22C-G-M58-AL | Magnification(x) | 2.0 | ||||
Object Field of View (Φmm) | 22.0 | Working Distance (mm) | 102 | ||||
Max Sensor Size (Φmm) | 44(35mm Full) | Best Aperture (F/#) | 32 | ||||
Telecentricity typical (max) (deg) | 0.01 | Distortion typical (max) (%) | 0.045 | ||||
MTF30 (lp/mm) | 118-32 | Depth of Field (mm) | 0.16-0.64 | ||||
Length of I/O (mm) | 397 | Mount | M58 | ||||
Length (mm) | 282.5 | Weight (kg) | 2.18 | ||||
Coaxial Illumination Port Option | YES | Iris Adjustable | YES | ||||
Back Focal Length Adjustable | YES | ||||||
Field of View (mm × mm) | CMV50000 (36.43x27.62) | 18.2x13.8 | |||||
KAI43142 (36.18x24.12) | 18.1x12.1 |
