2/3" 2.5X Telecentric Lenses | WWH25-63CTLV3 COOLENS®

Name: 2/3" 2.5X Telecentric Lenses | WWH25-63CTLV3 COOLENS®
Brand: COOLENS
SKU: WWH25-63CTLV3
Price: 468 USD
Availability: InStock
Rating: 0 (0 reviews)

WWH25-63CTLV3

Image Circle:11(2/3")mm, Magnification:2.5X, WD:63±1mm, NA:0.125, Mount:C, Type:Telecentric Lenses

$468.00 USD

Quantity

Description

Model NO.	WWH25-63CTLV3	Image Circle Diameter (Φmm)	11(2/3")
Magnification(x)	2.500	Working Distance(mm)	63±1
NA	0.125	Type	Telecentric
Mount	C	Best Aperture(f/#)	9.9
MTF30 (lp/mm)	83	Object Resolution(μm)	2.7
Depth of Field(mm)	0.1	Distortion Typical(% max)	0.03
Telecentricity Typical (°max)	0.05	Length (mm)	110.6
With Coaxial Illumination Port	Yes	Measured Depth of Field (mm)	0.1
Filter Screw Size	M25x0.5
Field of View (mm x mm)

1/2”（6.4x4.8）		2.6x1.9
1/1.8”（7.13x5.37）		2.9x2.1
2/3”（8.45x7.1）		3.4x2.8

2/3" 2.5X Telecentric Lenses | WWH25-63CTLV3 COOLENS®

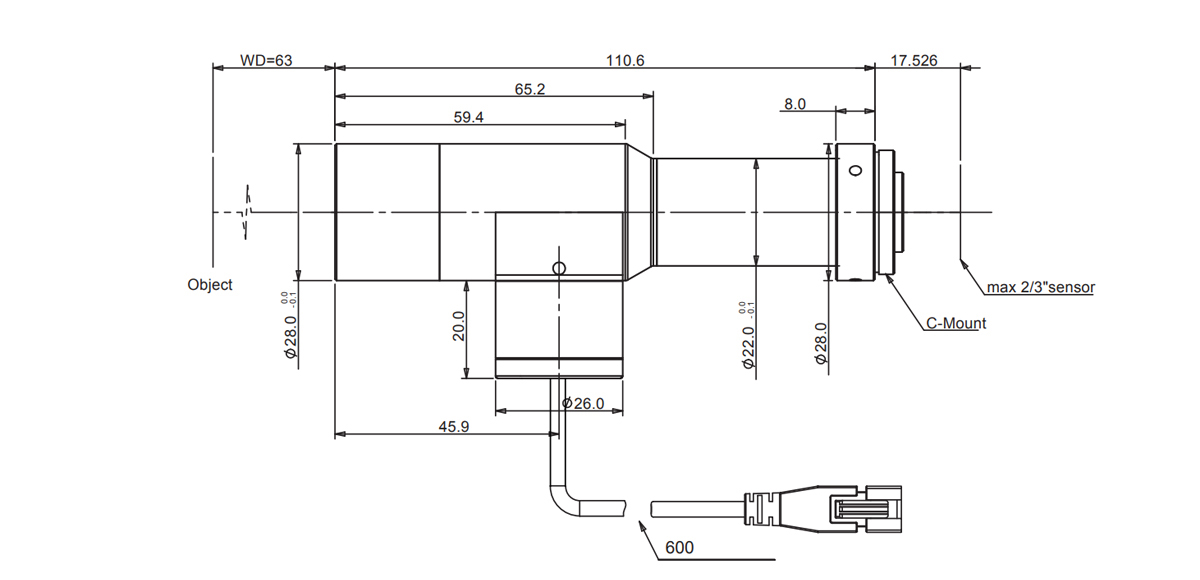

Dimensions

Naming Rule
