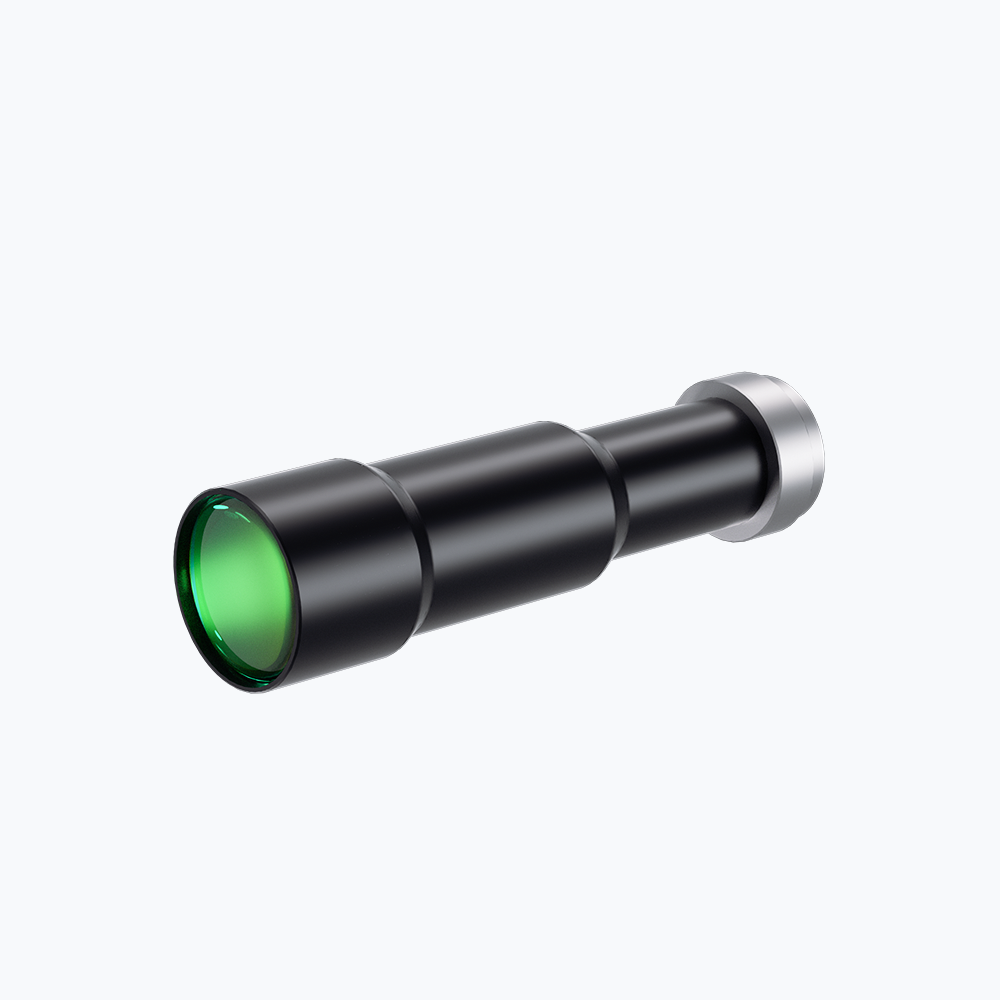

2/3" 2.5X Telecentric Lenses | WWH25-108ATV3 COOLENS®

WWH25-108ATV3

Image Circle:11(2/3")mm, Magnification:2.5X, WD:108±2mm, NA:0.1, Mount:C, Type:Telecentric Lenses

$351.00 USD

Quantity

Description

Model NO.		WWH25-108ATV3		Image Circle Diameter (Φmm)		11(2/3")
Magnification(x)		2.500		Working Distance(mm)		108±2
NA		0.1000		Type		Telecentric
Mount		C		Best Aperture(f/#)		12.5
MTF30 (lp/mm)		55		Object Resolution(μm)		3.4
Depth of Field(mm)		0.2		Distortion Typical(% max)		<0.1
Telecentricity Typical (°max)		<0.5		Length (mm)		110.8
With Coaxial Illumination Port		No		Measured Depth of Field (mm)		0.2
Filter Screw Size		M30x0.5
Field of View (mm x mm)

1/2”（6.4x4.8）				2.6×1.9
1/1.8”（7.13x5.37）				2.9×2.1
2/3" IMX250/264 (8.45x7.1)				3.5x2.6

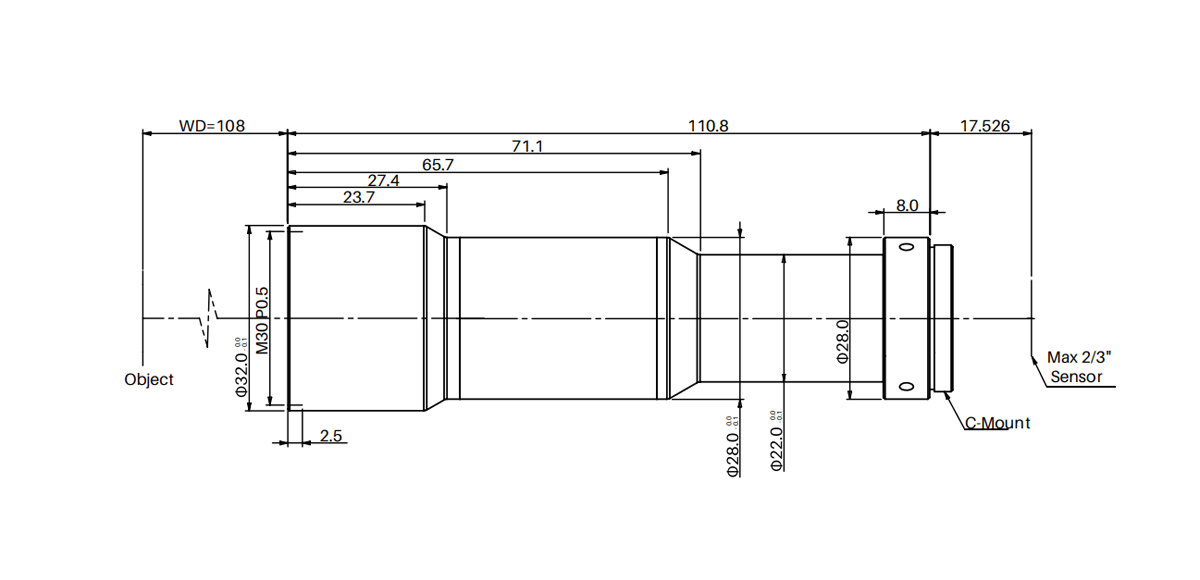

Dimensions

Naming Rule
