Model NO. | WWH25-63ATV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 2.500 | Working Distance(mm) | 63±1 | ||||
NA | 0.125 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 9.9 | ||||
MTF30 (lp/mm) | 83 | Object Resolution(μm) | 2.7 | ||||
Depth of Field(mm) | 0.1 | Distortion Typical(% max) | 0.03 | ||||

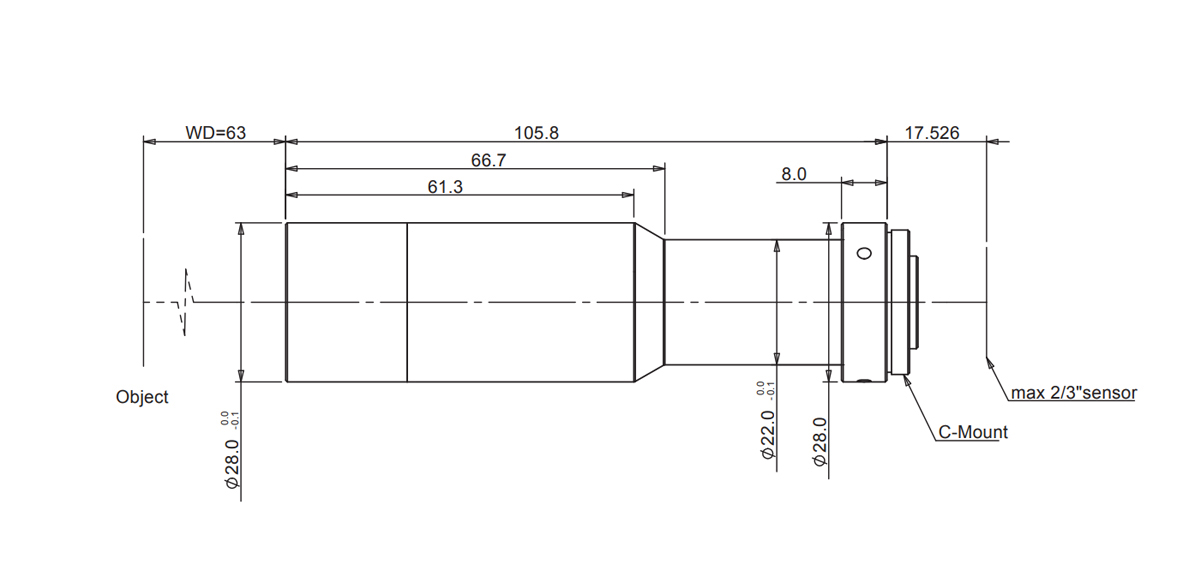

Telecentricity Typical (°max) | 0.05 | Length (mm) | 105.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.1 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 2.56x1.92 | ||||||
1/1.8”(7.13x5.37) | 2.85x2.15 | ||||||
2/3”(8.45x7.1) | 3.38x2.84 |

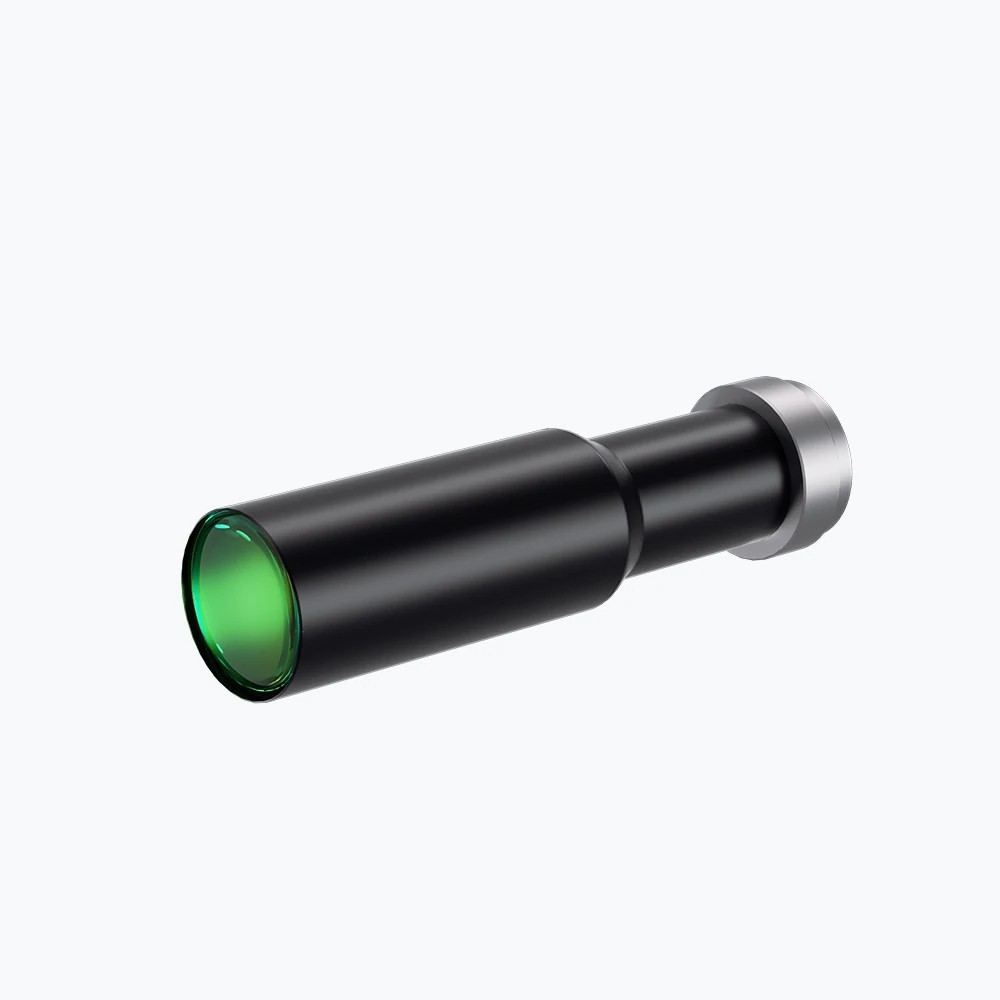

2/3" 2.5X Telecentric Lenses | WWH25-63ATV3 COOLENS®
$351.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWH25-63ATV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 2.500 | Working Distance(mm) | 63±1 | ||||
NA | 0.125 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 9.9 | ||||
MTF30 (lp/mm) | 83 | Object Resolution(μm) | 2.7 | ||||
Depth of Field(mm) | 0.1 | Distortion Typical(% max) | 0.03 | ||||
Telecentricity Typical (°max) | 0.05 | Length (mm) | 105.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.1 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 2.56x1.92 | ||||||
1/1.8”(7.13x5.37) | 2.85x2.15 | ||||||
2/3”(8.45x7.1) | 3.38x2.84 |
