Model NO. | DTCA210-11.8-M58 | Image Circle Diameter (Φmm) | 33(2") | ||||
Magnification(x) | 2.8 | Working Distance(mm) | 90±1 | ||||
NA | 0.1422 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 11.8 | ||||
Best Aperture(f/#) | 11 | MTF30 (lp/mm) | >90 | ||||
Object Resolution(μm) | 2.4 | Depth of Field(mm) | ±0.05@F11 | ||||
Distortion Typical(% max) | <0.02 | Telecentricity Typical (°max) | <0.05 | ||||

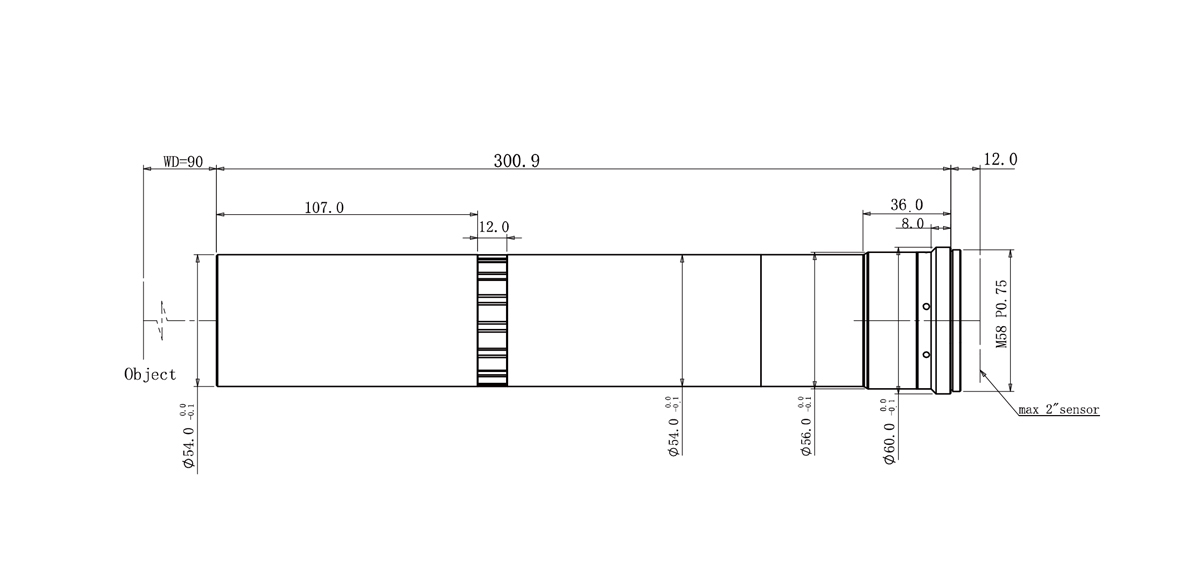

Length of I/O(mm) | 403±1 | Length (mm) | 300.9 | ||||
Weight(kg) | 1.25 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.05 | ||||
Filter Screw Size | M48x0.5 | ||||||
Field of View (mm × mm) |
GMAX 0806 43M(7915*5436, 2.8μm) | 7.9×5.4 | |||||
SONY IMX342 32M(6480*4860, 3.45μm) | 8.0×6.0 | ||||||
PYTHON 25K 25M(5120*5120, 4.5μm) | 8.2×8.2 |

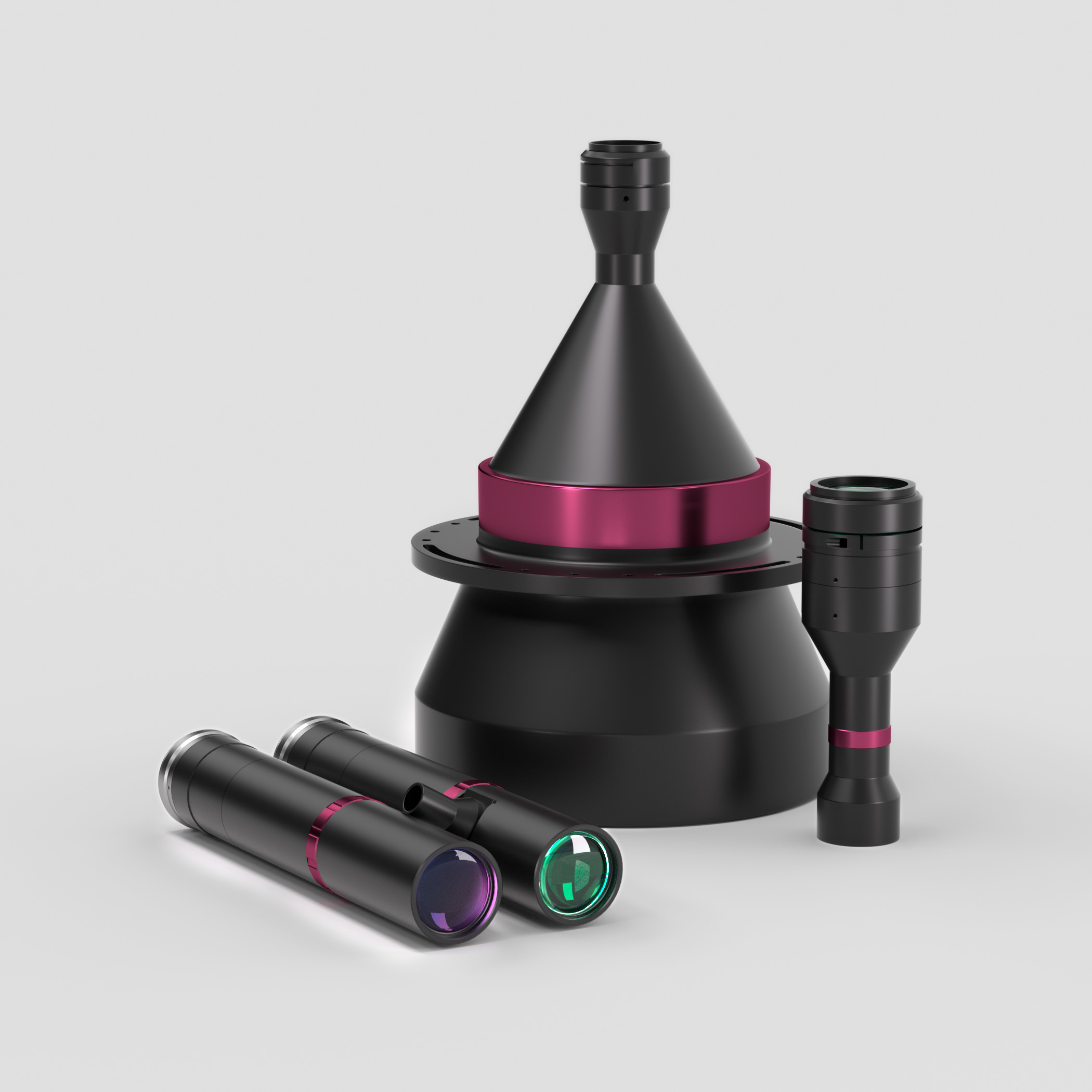

2" 2.8X Bi-Telecentric Lenses | DTCA210-11.8-M58 COOLENS®
$2,370.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCA210-11.8-M58 | Image Circle Diameter (Φmm) | 33(2") | ||||
Magnification(x) | 2.8 | Working Distance(mm) | 90±1 | ||||
NA | 0.1422 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 11.8 | ||||
Best Aperture(f/#) | 11 | MTF30 (lp/mm) | >90 | ||||
Object Resolution(μm) | 2.4 | Depth of Field(mm) | ±0.05@F11 | ||||
Distortion Typical(% max) | <0.02 | Telecentricity Typical (°max) | <0.05 | ||||
Length of I/O(mm) | 403±1 | Length (mm) | 300.9 | ||||
Weight(kg) | 1.25 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.05 | ||||
Filter Screw Size | M48x0.5 | ||||||
Field of View (mm × mm) |
GMAX 0806 43M(7915*5436, 2.8μm) | 7.9×5.4 | |||||
SONY IMX342 32M(6480*4860, 3.45μm) | 8.0×6.0 | ||||||
PYTHON 25K 25M(5120*5120, 4.5μm) | 8.2×8.2 |
