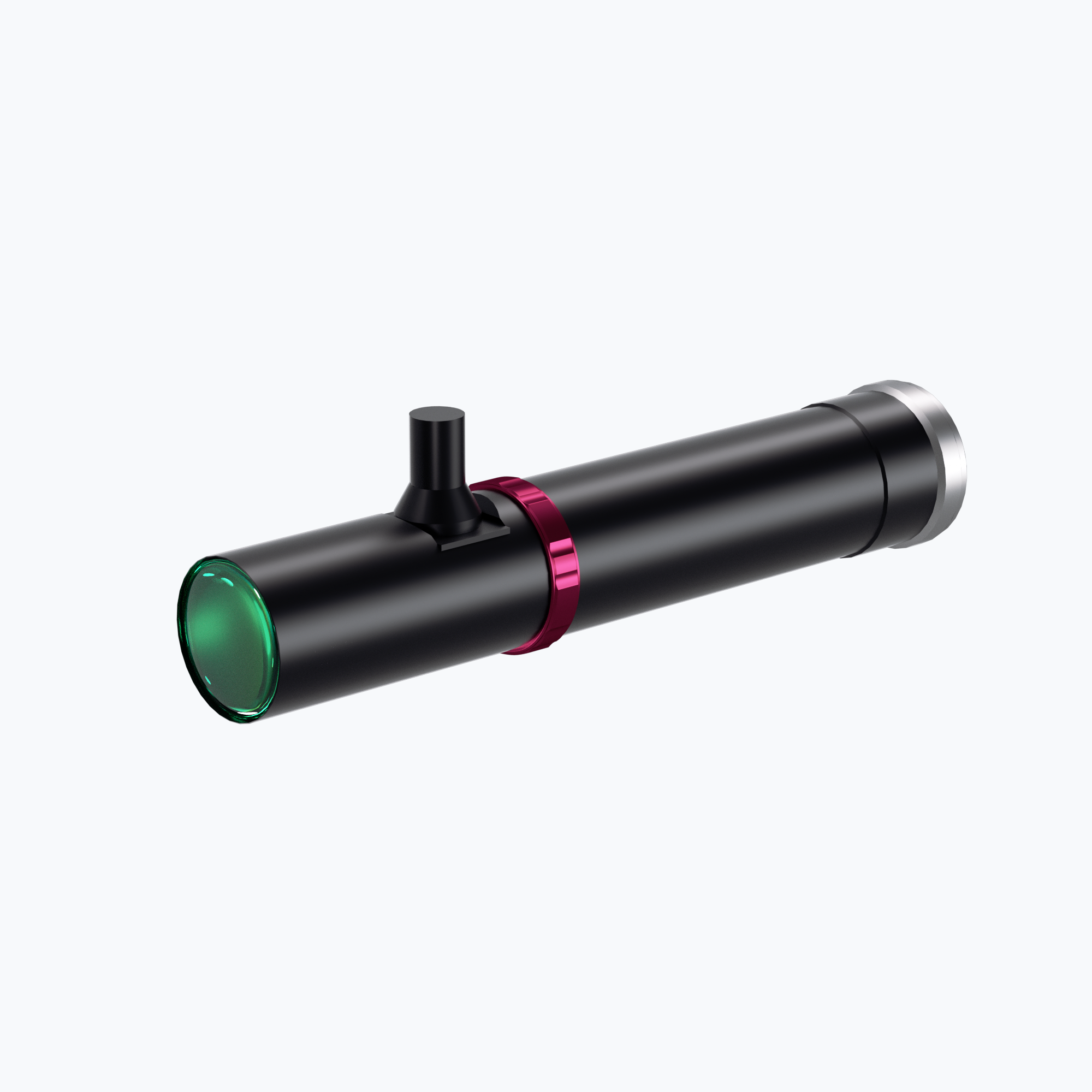

2" 2.8X Bi-Telecentric Lenses | DTCA210-11.8C-M58 COOLENS®

$2,750.00 USD
Shipping calculated at checkout.
Quantity
2" 2.8X Bi-Telecentric Lenses | DTCA210-11.8C-M58 COOLENS®-OKLAB

Description

Model NO. DTCA210-11.8C-M58 Image Circle Diameter (Φmm) 33(2")
Magnification(x) 2.8 Working Distance(mm) 90±1
NA 0.1422 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 11.8
Best Aperture(f/#) 11 MTF30 (lp/mm) >90
Object Resolution(μm) 2.4 Depth of Field(mm) ±0.05@F11
Distortion Typical(% max) <0.02 Telecentricity Typical (°max) <0.05
Length of I/O(mm) 403±1 Length (mm) 300.9
Weight(kg) 1.25 Iris Adjustable No
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.6
Filter Screw Size M48x0.5
Field of View (mm × mm)
GMAX 0806 43M(7915*5436, 2.8μm) 7.9×5.4
SONY IMX342 32M(6480*4860, 3.45μm) 8.0×6.0
PYTHON 25K 25M(5120*5120, 4.5μm) 8.2×8.2

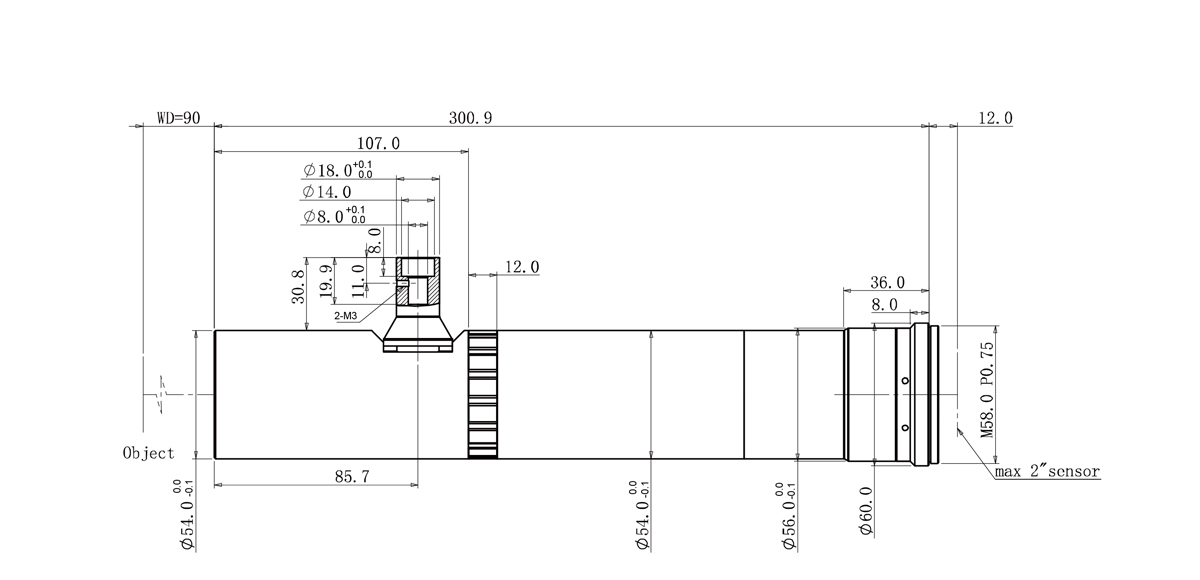

Dimensions

Naming Rule

  • Description

Model NO. DTCA210-11.8C-M58 Image Circle Diameter (Φmm) 33(2")
Magnification(x) 2.8 Working Distance(mm) 90±1
NA 0.1422 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 11.8
Best Aperture(f/#) 11 MTF30 (lp/mm) >90
Object Resolution(μm) 2.4 Depth of Field(mm) ±0.05@F11
Distortion Typical(% max) <0.02 Telecentricity Typical (°max) <0.05
Length of I/O(mm) 403±1 Length (mm) 300.9
Weight(kg) 1.25 Iris Adjustable No
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.6
Filter Screw Size M48x0.5
Field of View (mm × mm)
GMAX 0806 43M(7915*5436, 2.8μm) 7.9×5.4
SONY IMX342 32M(6480*4860, 3.45μm) 8.0×6.0
PYTHON 25K 25M(5120*5120, 4.5μm) 8.2×8.2

Dimensions

Naming Rule
