Model NO. | WWK30-110-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 3.000 | Working Distance(mm) | 110±2 | ||||
NA | 0.0750 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 20.1 | ||||
MTF30 (lp/mm) | >40 | Object Resolution(μm) | 4.5 | ||||
Depth of Field(mm) | ±0.09@F20.1 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length (mm) | 161.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.2 | ||||
Filter Screw Size | M32.0x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 4.4x2.9 | ||||||
1.1" IMX253 (14.19x10.38) | 4.7x3.5 |

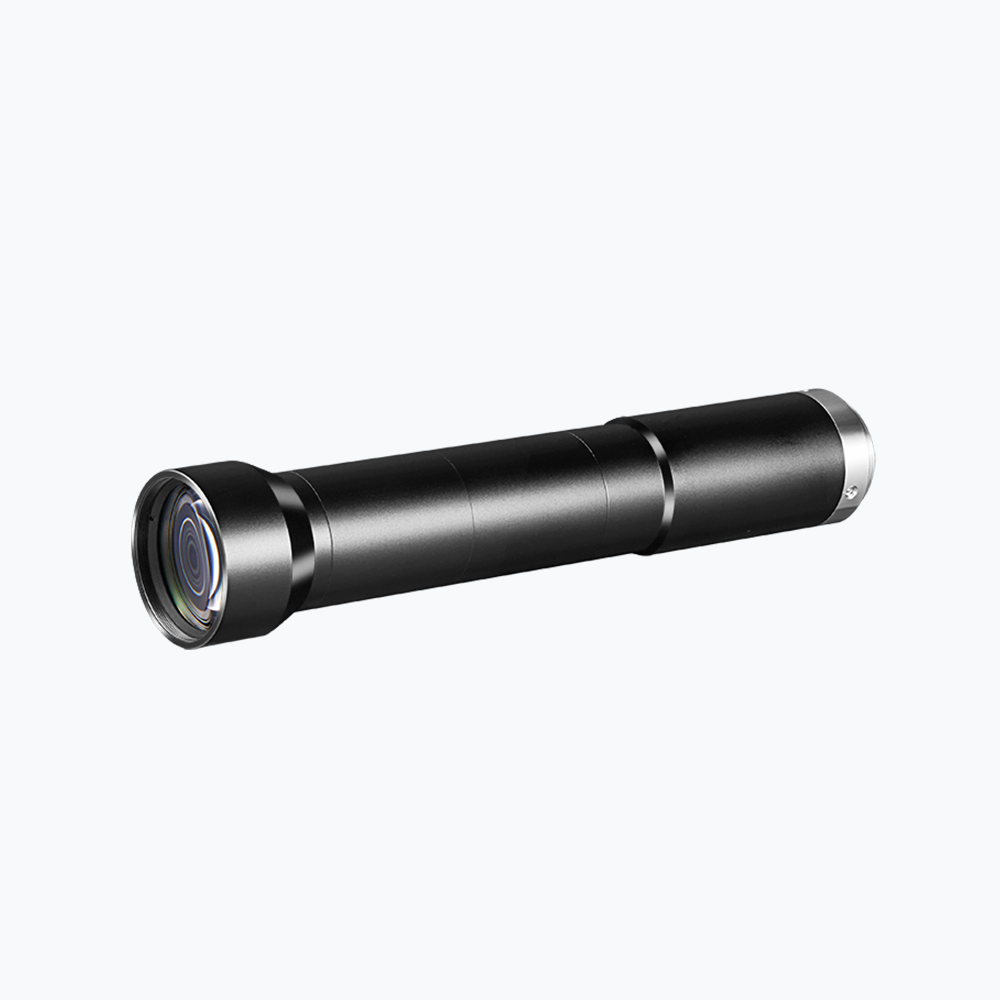

1.1" 3X Telecentric Lenses | WWK30-110-111 COOLENS®
$741.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK30-110-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 3.000 | Working Distance(mm) | 110±2 | ||||
NA | 0.0750 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 20.1 | ||||
MTF30 (lp/mm) | >40 | Object Resolution(μm) | 4.5 | ||||
Depth of Field(mm) | ±0.09@F20.1 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length (mm) | 161.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.2 | ||||
Filter Screw Size | M32.0x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 4.4x2.9 | ||||||
1.1" IMX253 (14.19x10.38) | 4.7x3.5 |
