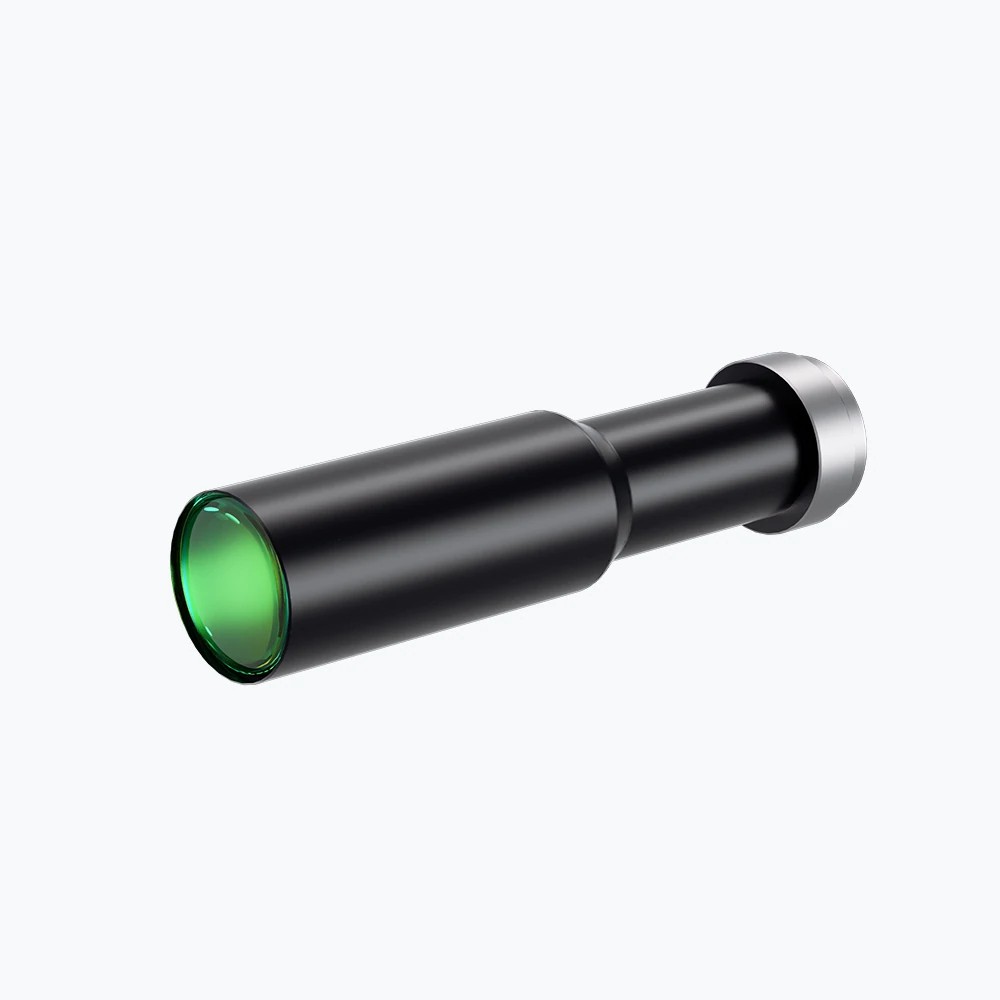

2/3" 3X Telecentric Lenses | WWH30-63ATV3 COOLENS®

WWH30-63ATV3
Image Circle:11(2/3")mm, Magnification:3X, WD:63±1mm, NA:0.125, Mount:C, Type:Telecentric Lenses
$351.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$351.00 USD each
Description

Model NO. WWH30-63ATV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 3.000 Working Distance(mm) 63±1
NA 0.125 Type Telecentric
Mount C Best Aperture(f/#) 11.9
MTF30 (lp/mm) 74 Object Resolution(μm) 2.7
Depth of Field(mm) 0.1 Distortion Typical(% max) 0.02
Telecentricity Typical (°max) 0.04 Length (mm) 111.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.2
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 2.13x1.6
1/1.8”（7.13x5.37） 2.38x1.79
2/3”（8.45x7.1） 2.82x2.37

Dimensions

Naming Rule
