Model No.	Image Circle Diameter (Φmm)	Magnification(x)	Working Distance(mm)	NA	Type	Mount	Price
DTCM430H-26-M58-AL	23.6(4/3")	0.908	73±1	0.0368	Bi-Telecentric	M58	$1,776.00
DTCM430H-36-M58-AL	23.6(4/3")	0.656	110±2	0.0295	Bi-Telecentric	M58	$1,851.00
DTCM430H-42-M58-AL	23.6(4/3")	0.562	118±3	0.0304	Bi-Telecentric	M58	$2,046.00
DTCM430H-48-M58-AL	23.6(4/3")	0.492	128±3	0.0266	Bi-Telecentric	M58	$2,454.00
DTCM430H-56-M58-AL	23.6(4/3")	0.421	138±3	0.0266	Bi-Telecentric	M58	$2,532.00
DTCM430H-64H-M58-AL	23.6(4/3")	0.369	158±3	0.0266	Bi-Telecentric	M58	$2,766.00
DTCM430H-72-M58-AL	23.6(4/3")	0.328	178±3	0.0236	Bi-Telecentric	M58	$2,922.00
DTCM430H-80H-M58-AL	23.6(4/3")	0.295	228±4	0.0319	Bi-Telecentric	M58	$3,078.00
DTCM430H-90-M58-AL	23.6(4/3")	0.262	208±3	0.0213	Bi-Telecentric	M58	$3,293.00
DTCM430H-100H-M58-AL	23.6(4/3")	0.236	238±4	0.0213	Bi-Telecentric	M58	$3,507.00
DTCM430H-110-M58-AL	23.6(4/3")	0.215	263±4	0.0213	Bi-Telecentric	M58	$3,702.00
DTCM430H-120H-M58-AL	23.6(4/3")	0.197	273±5	0.0213	Bi-Telecentric	M58	$3,876.00
DTCM430H-136-M58-AL	23.6(4/3")	0.174	288±5	0.0188	Bi-Telecentric	M58	$4,383.00
DTCM430H-150-M58-AL	23.6(4/3")	0.157	300±5	0.0099	Bi-Telecentric	M58	$4,949.00
DTCM430H-170-M58-AL	23.6(4/3")	0.139	318±5	0.0150	Bi-Telecentric	M58	$6,702.00
DTCM430H-190H-M58-AL	23.6(4/3")	0.124	330±5	0.0134	Bi-Telecentric	M58	$8,454.00
DTCM430H-216-M58-AL	23.6(4/3")	0.109	372±5	0.0118	Bi-Telecentric	M58	$11,259.00
DTCM430H-240H-M58-AL	23.6(4/3")	0.098	410±6	0.0107	Bi-Telecentric	M58	$14,055.00
DTCM430H-258-M58-AL	23.6(4/3")	0.091	338±5	0.0099	Bi-Telecentric	M58	$14,610.00
DTCM430H-300-M58-AL	23.6(4/3")	0.079	465±6	0.0085	Bi-Telecentric	M58	$19,676.00

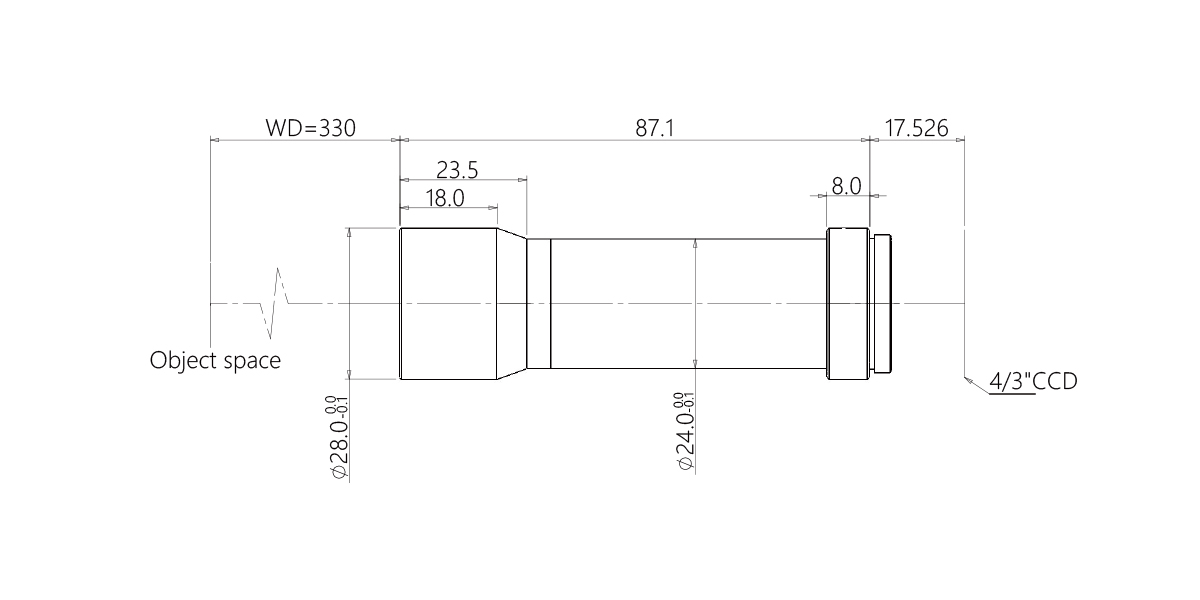

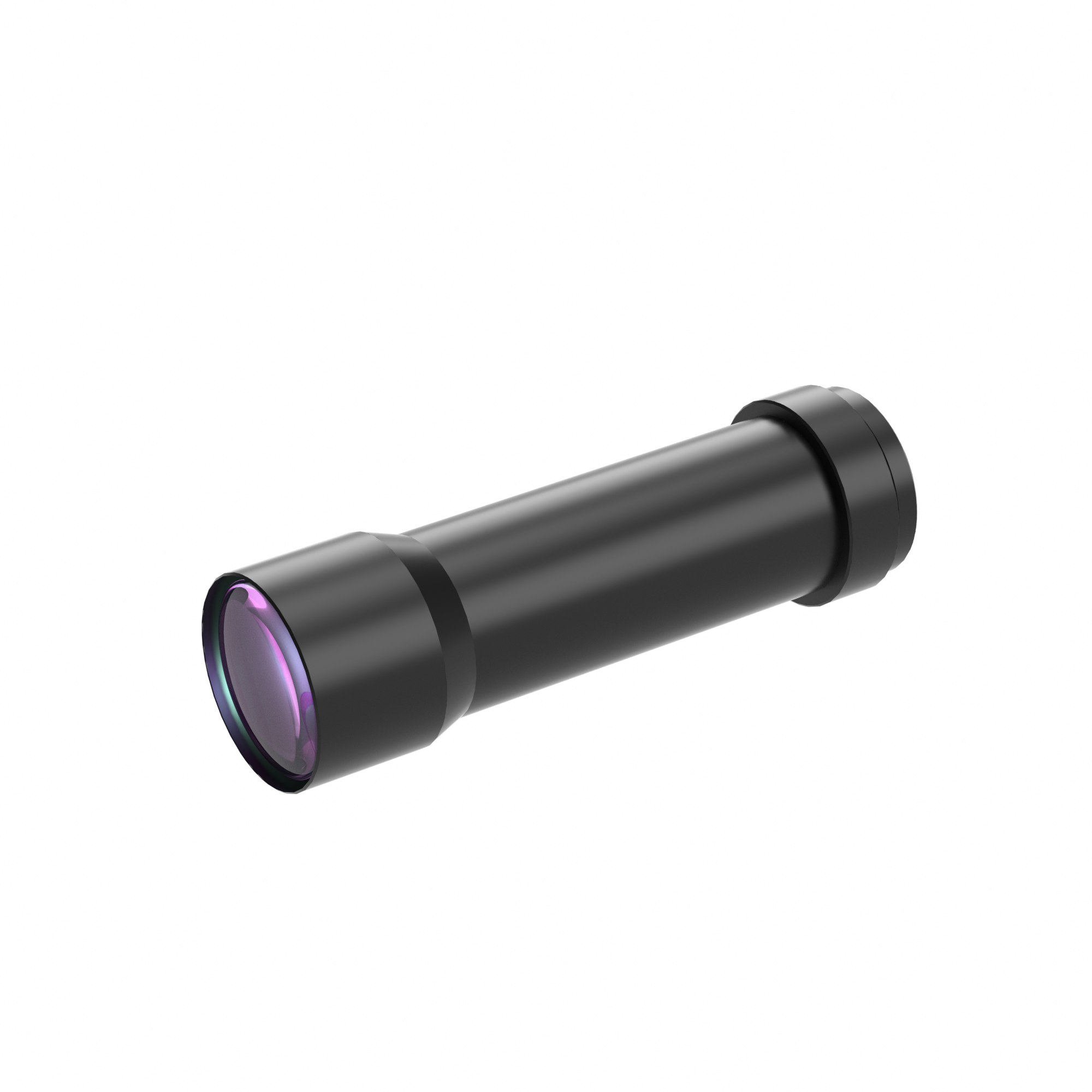

4/3" 0.25X Industrial Lenses | WH025-330A-430 COOLENS®
