Model NO. |
DTCA35F-11C-G-M58-ALV3 |
Image Circle Diameter (Φmm) |
44(35mm Full) |
Magnification(x) |
4 |
Working Distance(mm) |
60 |
NA |
0.18-0.0624 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
11 |
Best Aperture(f/#) |
11-32 |
MTF30 (lp/mm) |
90-32 |
Object Resolution(μm) |
1.86-5.37 |
Depth of Field(mm) |
0.06-0.16 |
Distortion Typical(% max) |
0.02 |
Telecentricity Typical (°max) |
0.02 |
Length of I/O(mm) |
425 |
Length (mm) |
365.4 |
Weight(kg) |
3.55 |
Iris Adjustable |
Yes |
With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
/ |
Filter Screw Size |
/ |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
9.1x6.9 |
KAI43142 (36.18x24.12) |
9.0x6.0 |

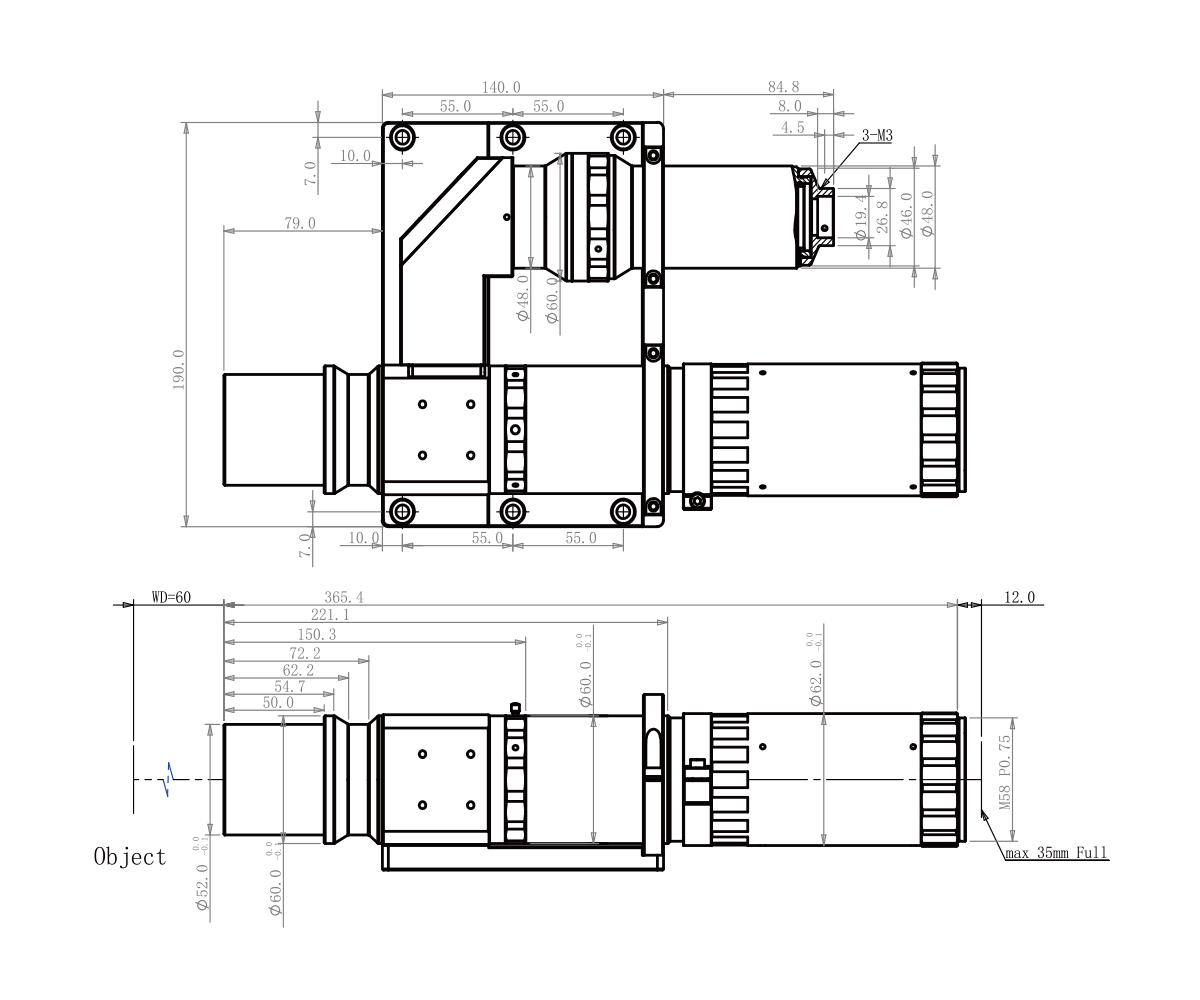

Dimensions
![]()
Naming Rule
![]()
