Model NO. | WWK40-108C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 4.000 | Working Distance(mm) | 108±2 | ||||
NA | 0.1000 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 20 | ||||
MTF30 (lp/mm) | >43 | Object Resolution(μm) | 3.4 | ||||
Depth of Field(mm) | ±0.05@F20 | Distortion Typical(% max) | <0.07 | ||||
Telecentricity Typical (°max) | <0.05 | Length (mm) | 165.5 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.12 | ||||
Filter Screw Size | M30x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 3.3x2.2 | ||||||
1" IMX183 (13.13x8.76) | 3.5x2.6 |

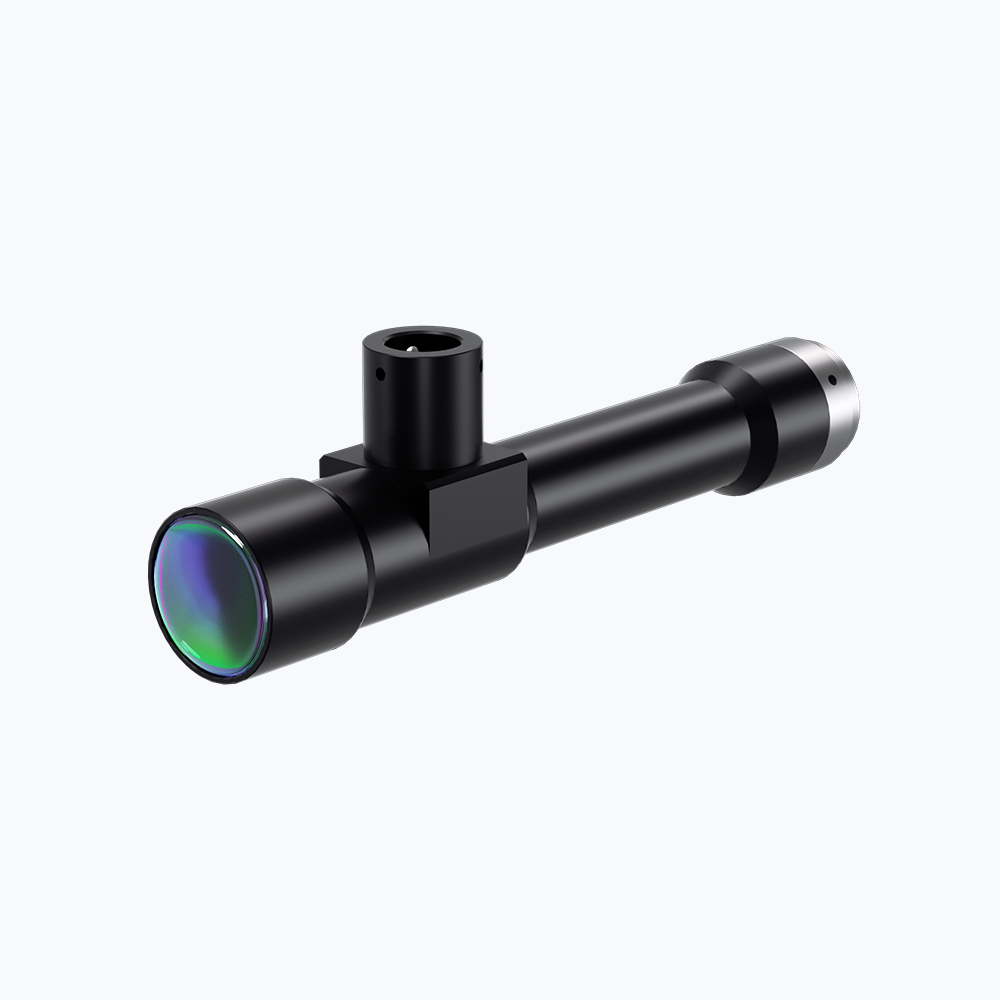

1.1" 4X Telecentric Lenses | WWK40-108C-111V3 COOLENS®
$876.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK40-108C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 4.000 | Working Distance(mm) | 108±2 | ||||
NA | 0.1000 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 20 | ||||
MTF30 (lp/mm) | >43 | Object Resolution(μm) | 3.4 | ||||
Depth of Field(mm) | ±0.05@F20 | Distortion Typical(% max) | <0.07 | ||||
Telecentricity Typical (°max) | <0.05 | Length (mm) | 165.5 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.12 | ||||
Filter Screw Size | M30x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 3.3x2.2 | ||||||
1" IMX183 (13.13x8.76) | 3.5x2.6 |
