Model NO. | WWH40-108CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 4.000 | Working Distance(mm) | 108±2 | ||||
NA | 0.1000 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 19.4 | ||||
MTF30 (lp/mm) | 43 | Object Resolution(μm) | 3.4 | ||||
Depth of Field(mm) | 0.1 | Distortion Typical(% max) | <0.1 | ||||

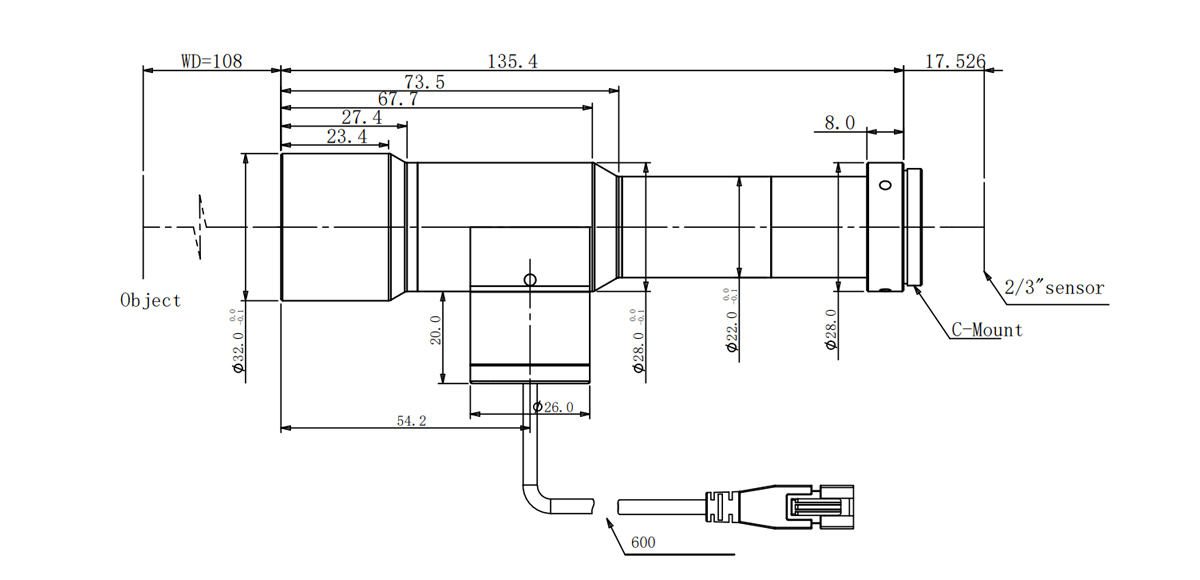

Telecentricity Typical (°max) | <0.10 | Length (mm) | 135.4 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
Filter Screw Size | M30x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2.3”(6.44x4.62) | 1.6x1.2 | ||||||
1/1.8”(7.13x5.37) | 1.8x1.3 | ||||||
2/3" IMX250/264 (8.45x7.1) | 2.2x1.7 |

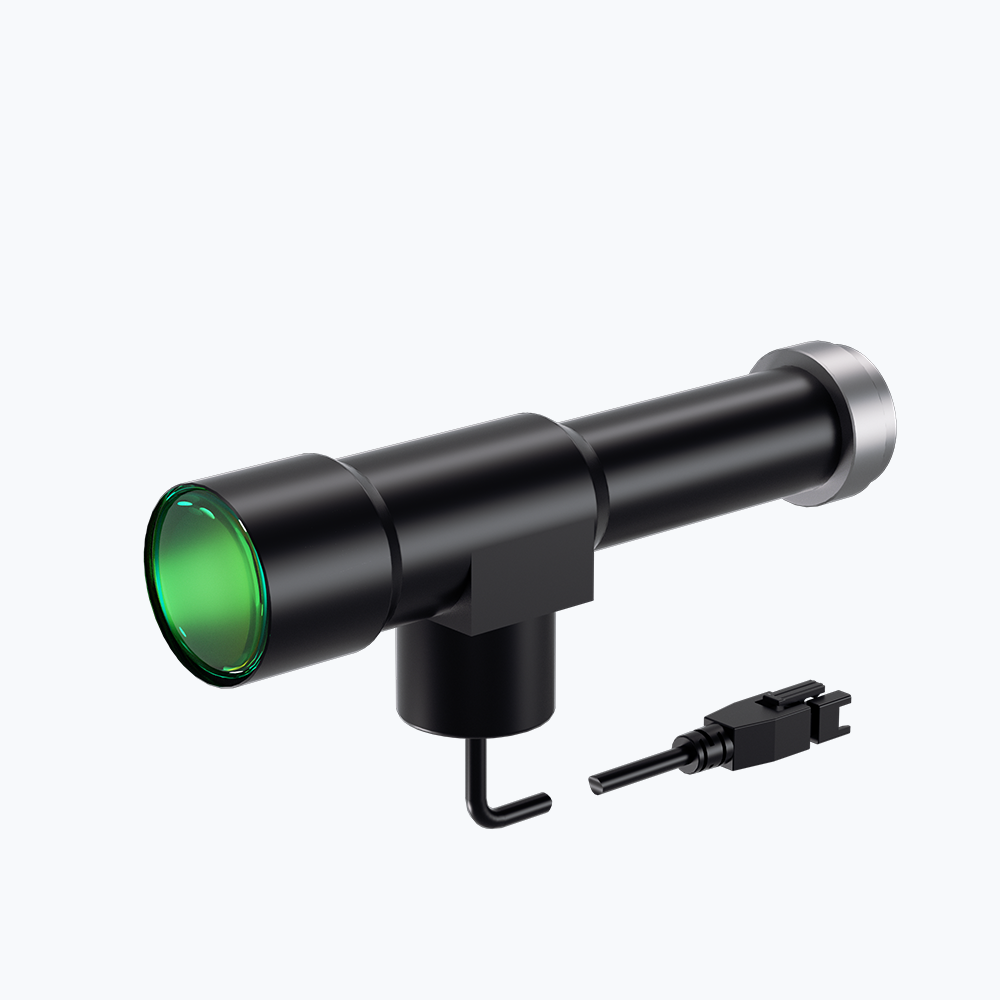

2/3" 4X Telecentric Lenses | WWH40-108CTLV3 COOLENS®
$507.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWH40-108CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 4.000 | Working Distance(mm) | 108±2 | ||||
NA | 0.1000 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 19.4 | ||||
MTF30 (lp/mm) | 43 | Object Resolution(μm) | 3.4 | ||||
Depth of Field(mm) | 0.1 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.10 | Length (mm) | 135.4 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.2 | ||||
Filter Screw Size | M30x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2.3”(6.44x4.62) | 1.6x1.2 | ||||||
1/1.8”(7.13x5.37) | 1.8x1.3 | ||||||
2/3" IMX250/264 (8.45x7.1) | 2.2x1.7 |
