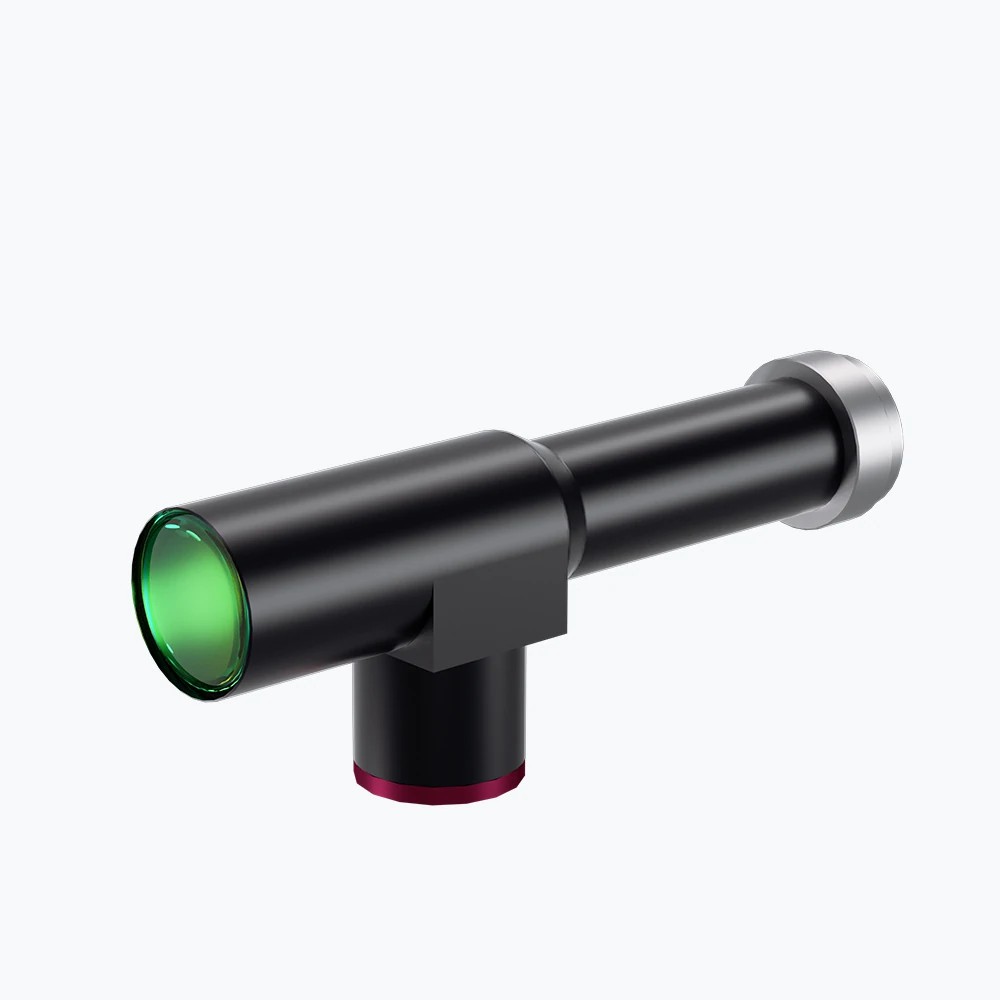

2/3" 4X Telecentric Lenses | WWH40-63CTLV3 COOLENS®

$507.00 USD
Shipping calculated at checkout.
Quantity
2/3" 4X Telecentric Lenses | WWH40-63CTLV3 COOLENS®-OKLAB

Description

Model NO. WWH40-63CTLV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 4.000 Working Distance(mm) 63±1
NA 0.125 Type Telecentric
Mount C Best Aperture(f/#) 15.8
MTF30 (lp/mm) 57 Object Resolution(μm) 2.7
Depth of Field(mm) 0.1 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) 0.03 Length (mm) 128.9
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.2
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 1.6x1.2
1/1.8”(7.13x5.37) 1.78x1.34
2/3”(8.45x7.1) 2.1x1.8

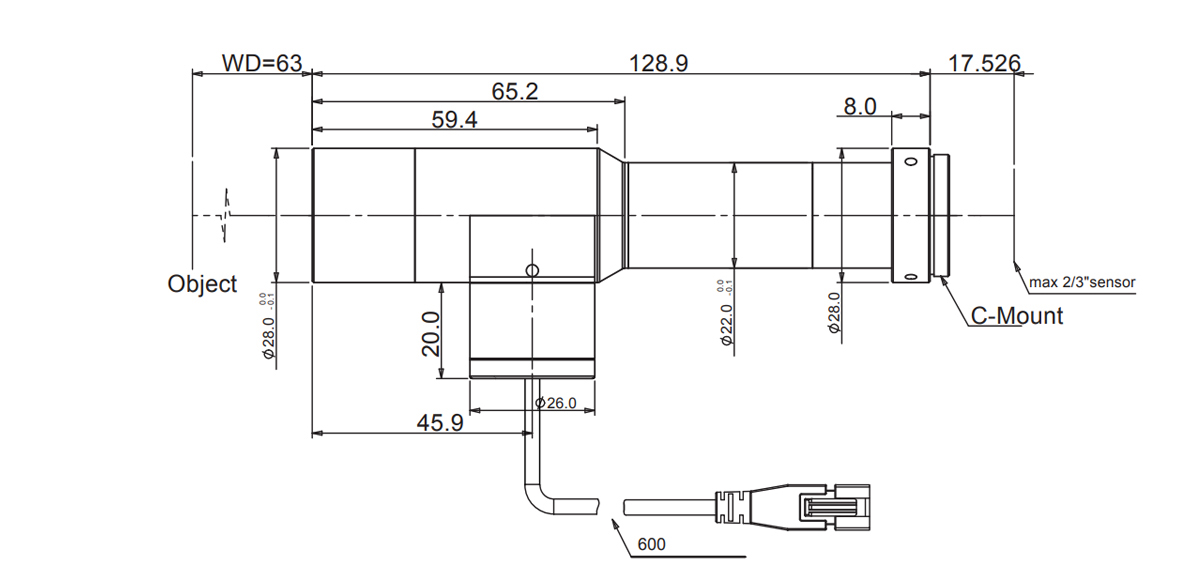

Dimensions

Naming Rule

  • Description

Model NO. WWH40-63CTLV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 4.000 Working Distance(mm) 63±1
NA 0.125 Type Telecentric
Mount C Best Aperture(f/#) 15.8
MTF30 (lp/mm) 57 Object Resolution(μm) 2.7
Depth of Field(mm) 0.1 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) 0.03 Length (mm) 128.9
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.2
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 1.6x1.2
1/1.8”(7.13x5.37) 1.78x1.34
2/3”(8.45x7.1) 2.1x1.8

Dimensions

Naming Rule
