Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision

$29.00 USD
Shipping calculated at checkout.
Length
Quantity
Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 6 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB

Description

These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

• This is an extension cable for industrial camera power supply I/O trigger and data transmit.
• Hirose 6 pin female connector to open end, make DIY connections according to your needs.

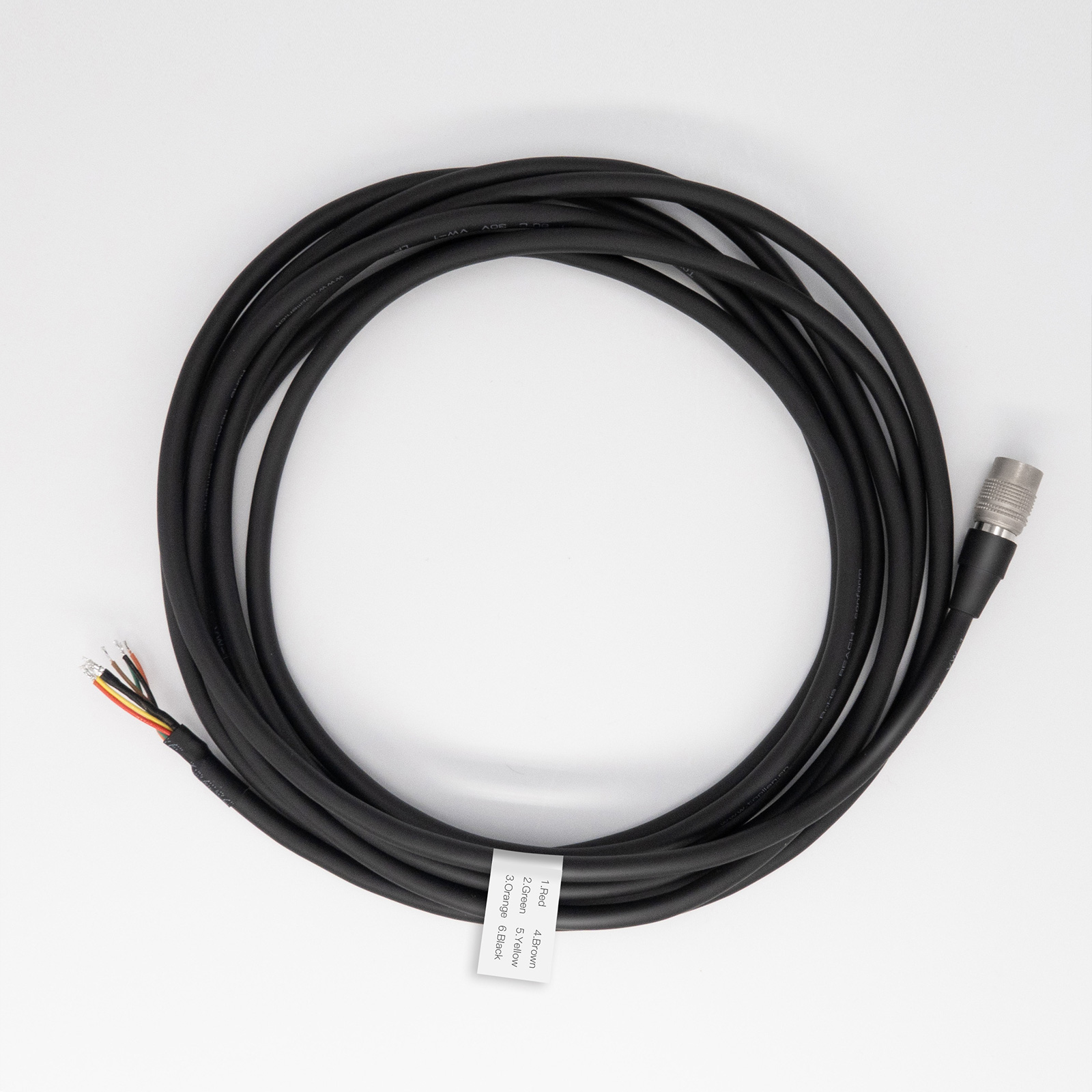

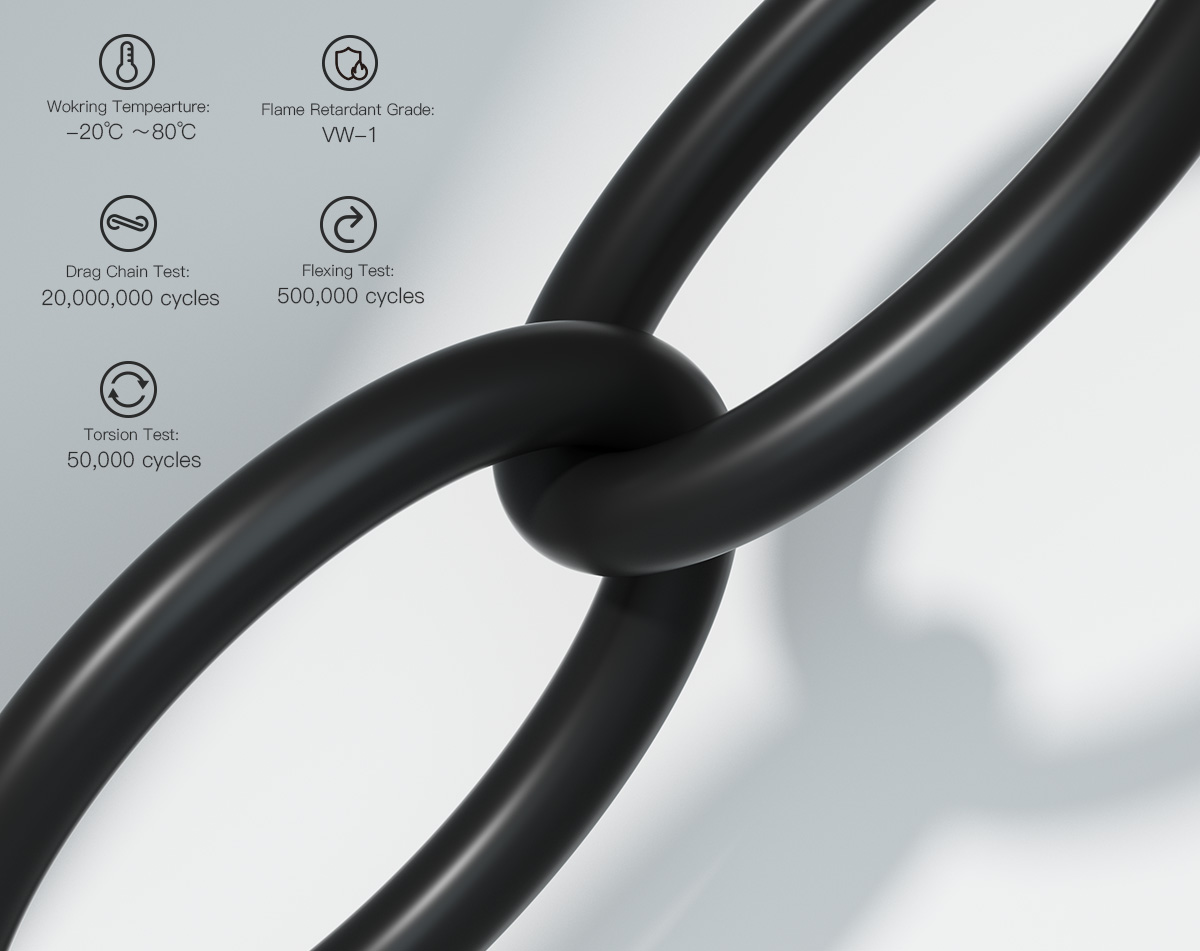

• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.

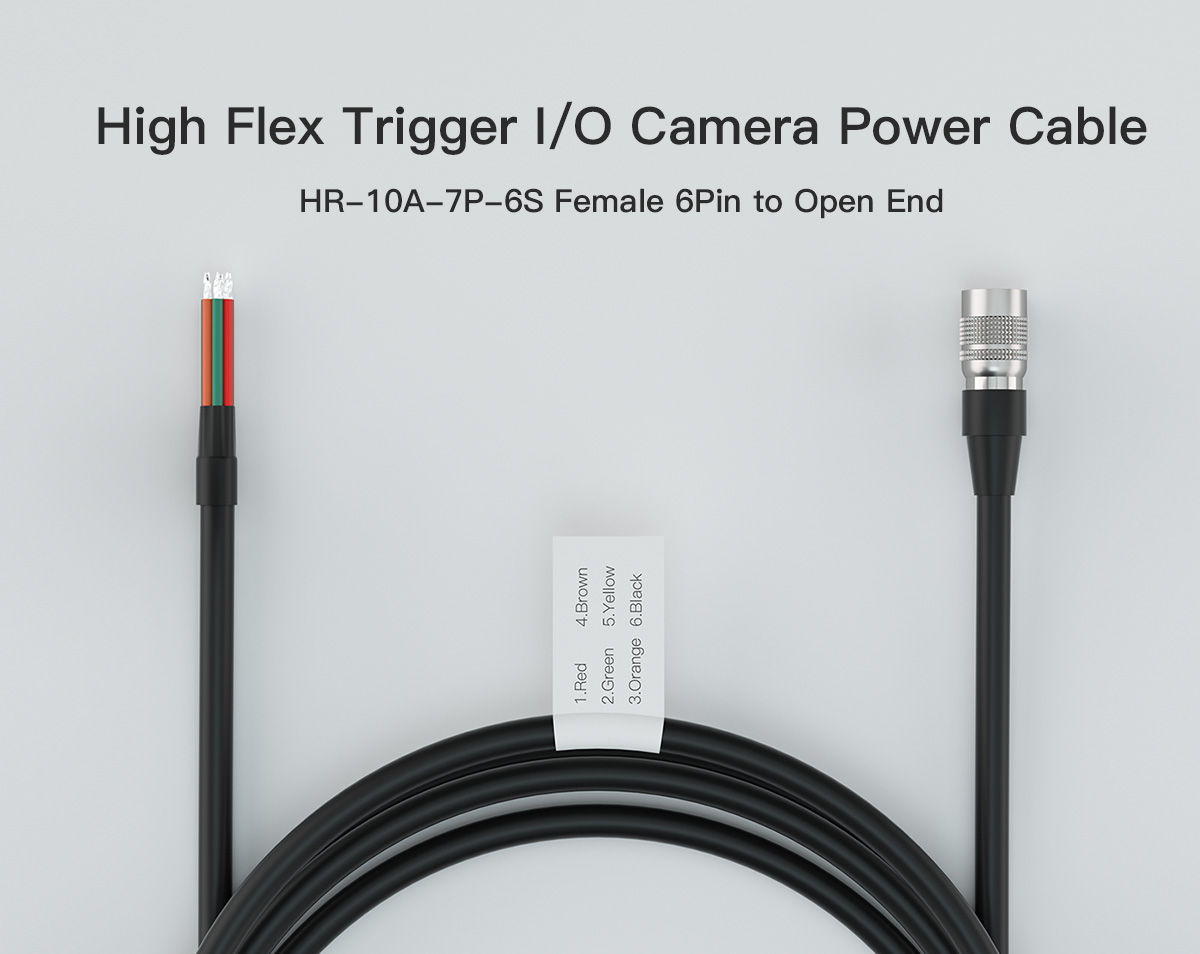

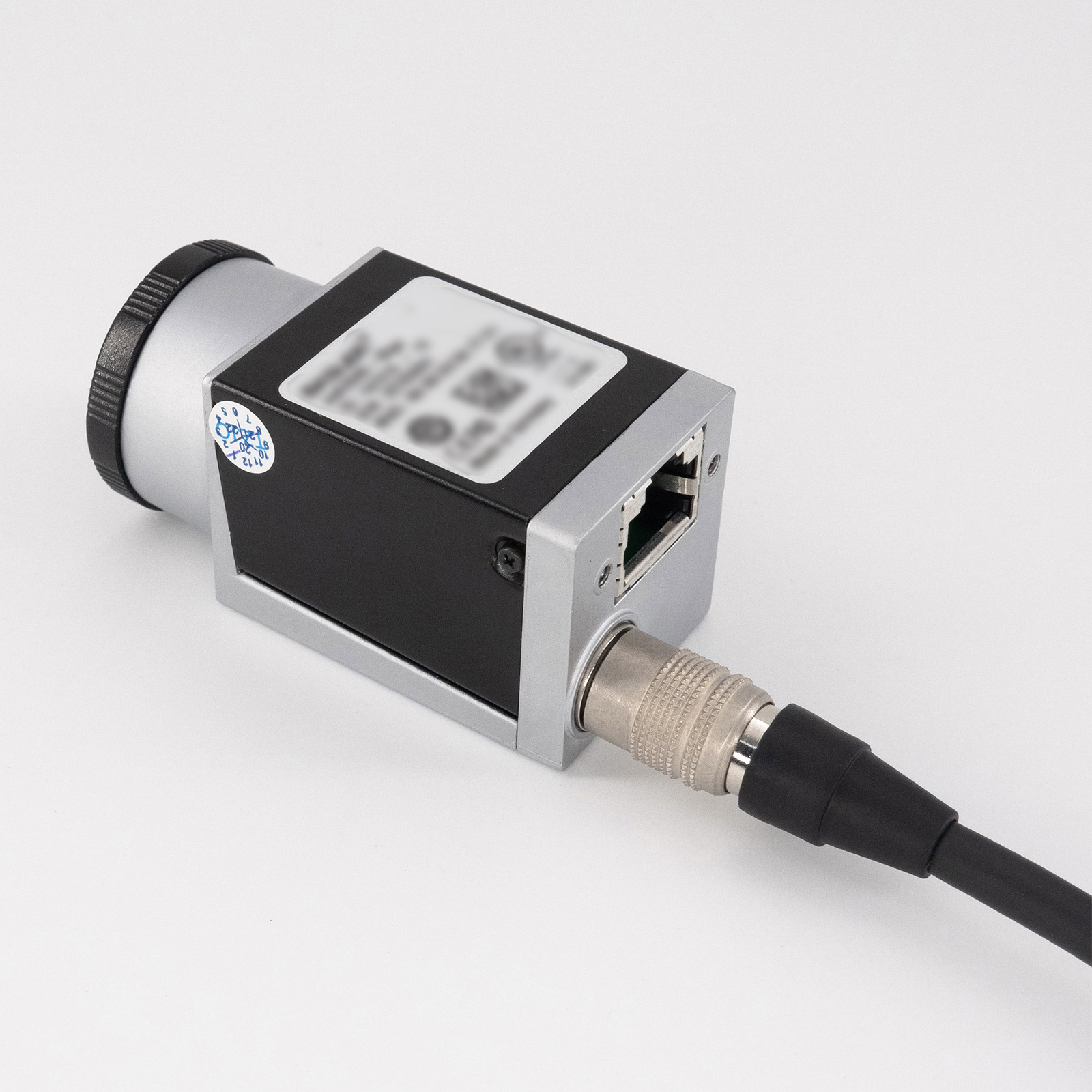

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 6 pin Male Connector.

Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T

 Connector Specification

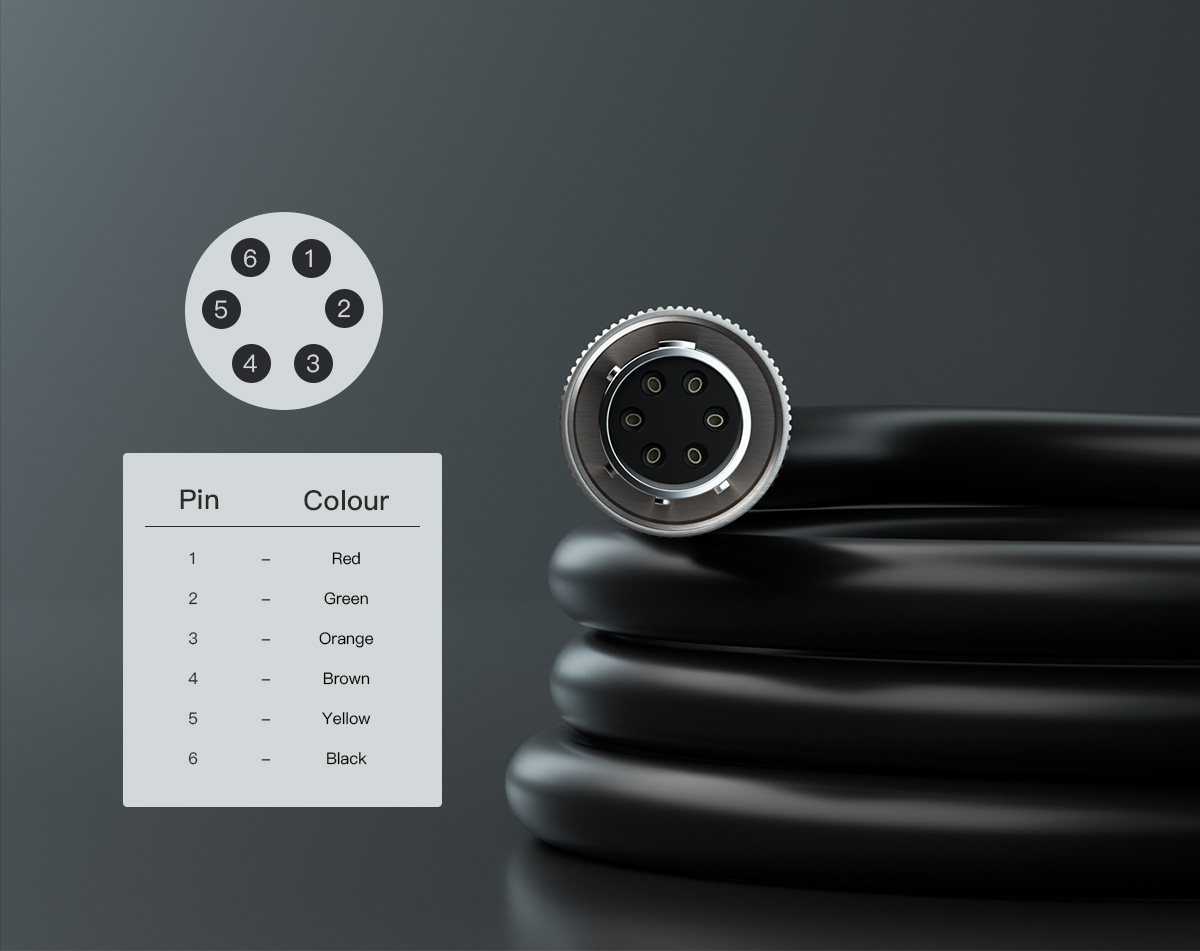

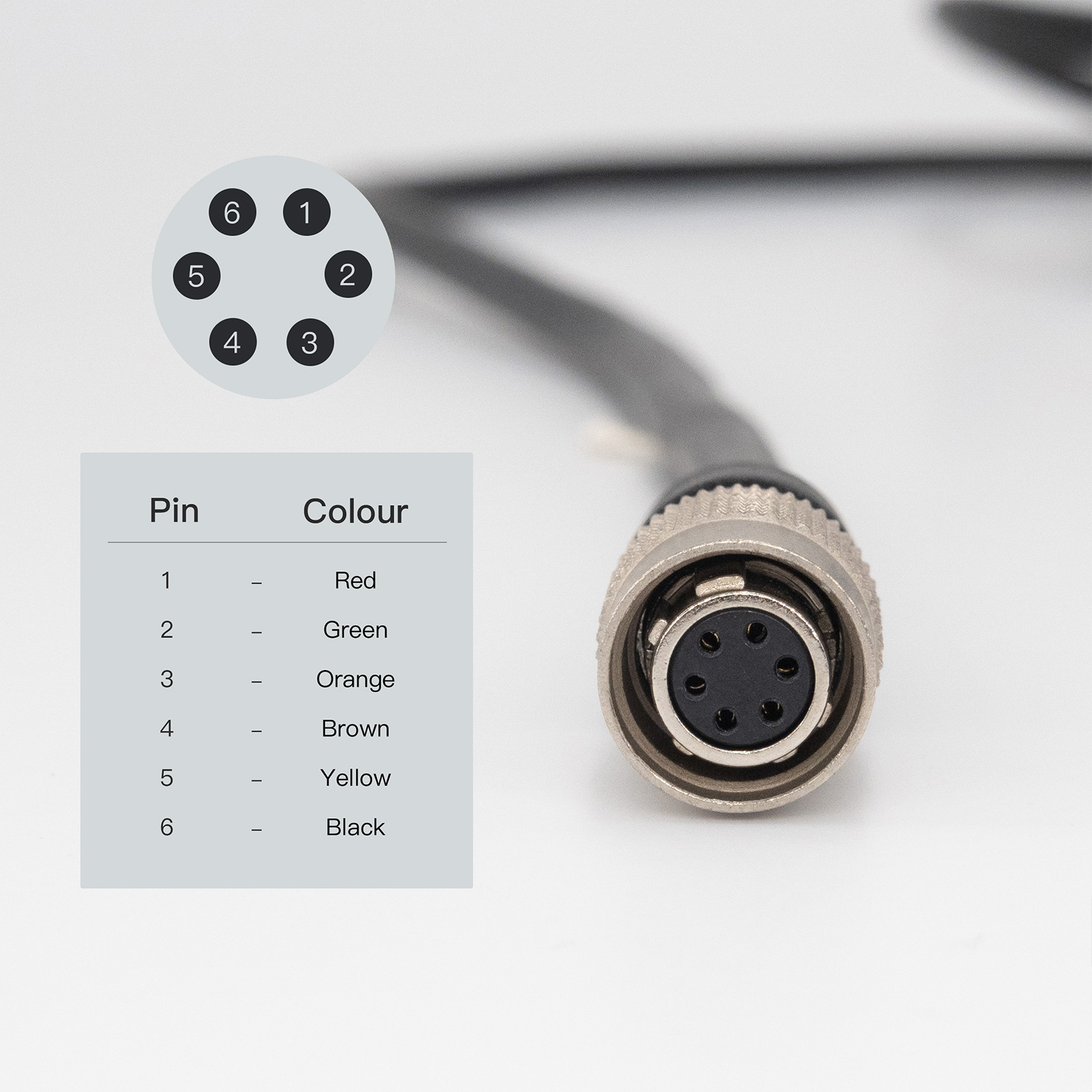

Bill Of Materials Wiring Diagram Location of Pins
Item Description QTY Specification PIC Pin Clour
Wire 1 2X24AWG+4X26AWG
RoHS LF BLACK


1

Red
Connector 1 HR-10A-7P-6S
2

Green
Shrinkable Tube 1 ø6.0
Shrinkable Tube 1 ø2.0 3 Orange
Label 1 Wiring Diagram 4 Brown
Inner Mold 1 OFM019 5 Yellow
Outer Mold 1 OFM020 6 Black
Label 1 BLACK DWHC-10035 86A

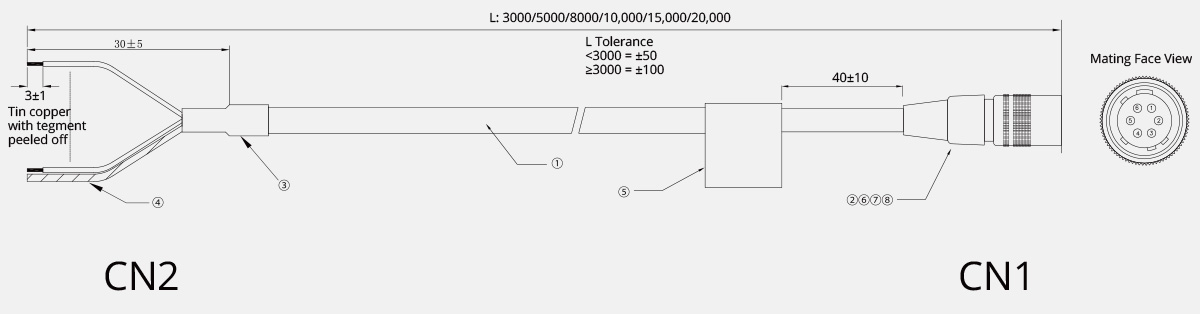

Drawing   Pair Twist Insulator Colour
Pair Twist Insulator Colour
1 Red
2 Green
3 Orange
4 Brown
5 Yellow
6 Black



Model NO. OLA-ANA-2-X-XM CABLE Printing 2X24AWG+4X26AWG
Style 2X24AWG+4X26AWG RoHS LF BLACK Size 2X24AWG+4X26AWG
Approbation UL20276 Flame Retardant Grade VW-1
Conductor Size 24AWG 26AWG Shielded Al/Pet 0.05*10mm
Cond. Material Bare Copper BC Bare Copper BC Braid 16/7/0.1TC
Construction 41/0.08 BC 30/0.08 BC ACovered 85% Min
Diameter 0.59mm 0.51mm Jacketed Material PVC
Tolern ±0.003mm ±0.003mm Diameter ø5.0±0.3mm
Insulation Material PVC PVC Colour Black (Similar to RAL 9005)
Diameter 1.09±0.05mm 0.95±0.05mm Wokring Tempearture Fixed Installation -20°C ~ 80°C
Colour Red Yellow, Brown, Moved Installation -10°C ~ 50°C
Black Orange,Green Minimal Bending Radius Minimal Bending Radius 4 X Cable-ø
Electrical Properties
Conductor Resistance ≤87.6 Ω/km 20°C ≤124 Ω/km 20°C Moved Installation 8 X Cable-ø
Test Voltage 500V/1min 500V/1min Printing Movecable FT1 80°C 30V VW-1 LF RoHS REACH conform
Sparking Voltage 1500V 1500V
Quality Certifications

Product Photograph

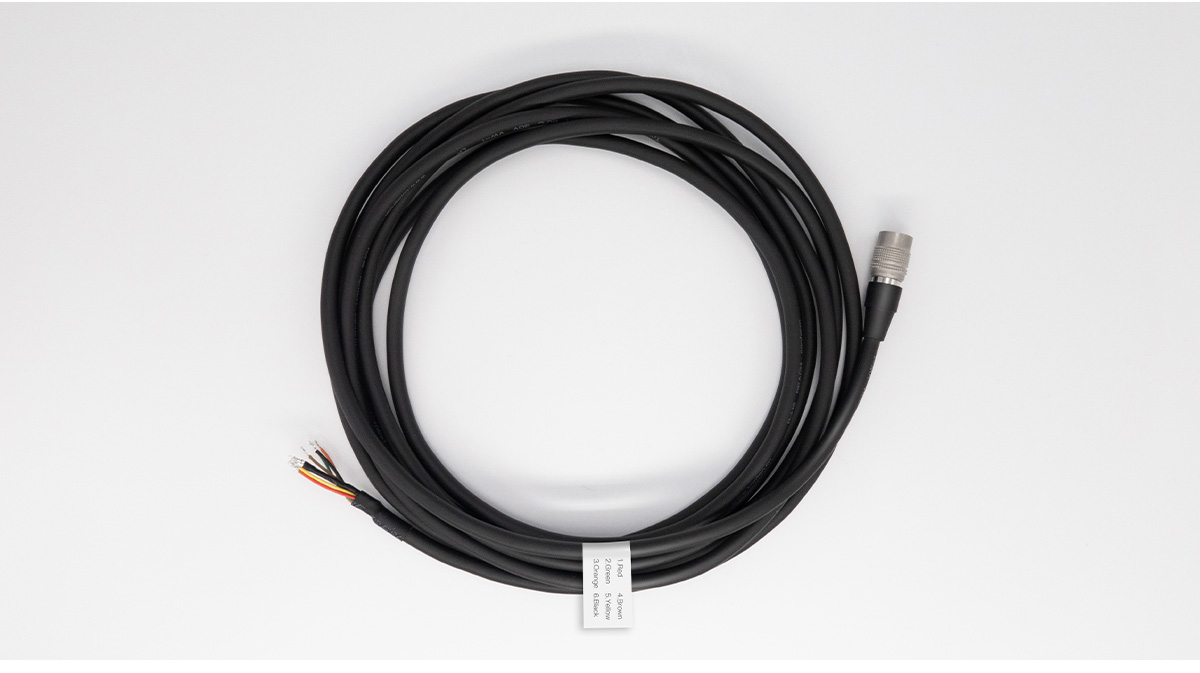

High Flex

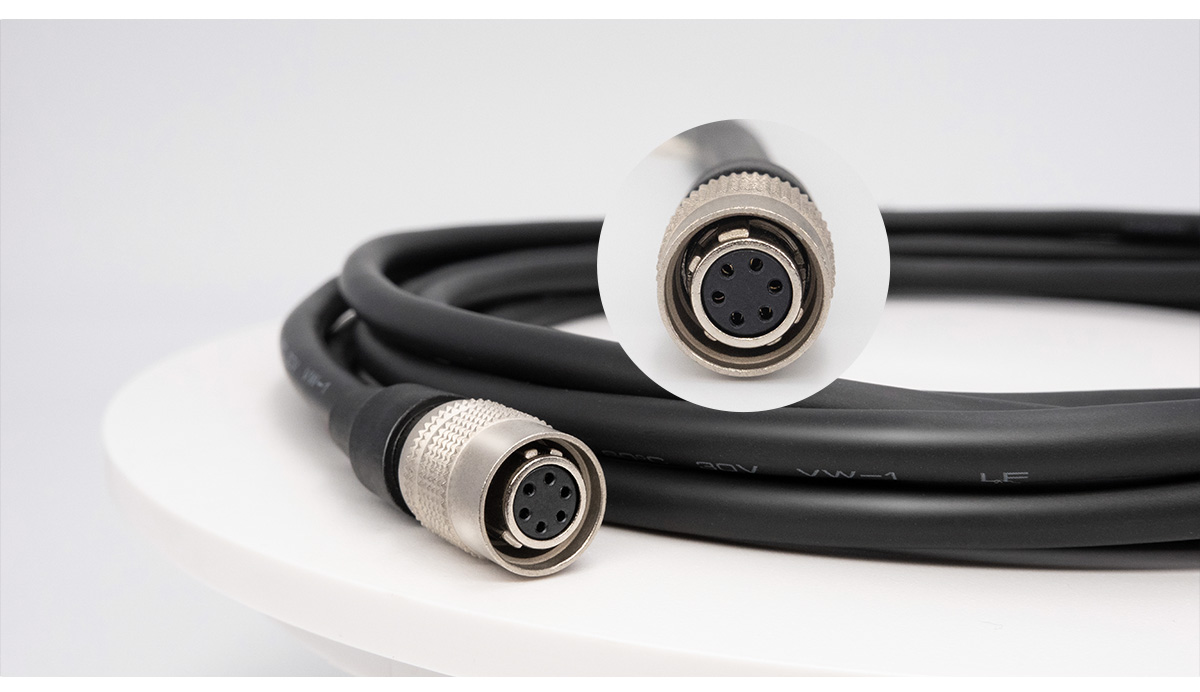

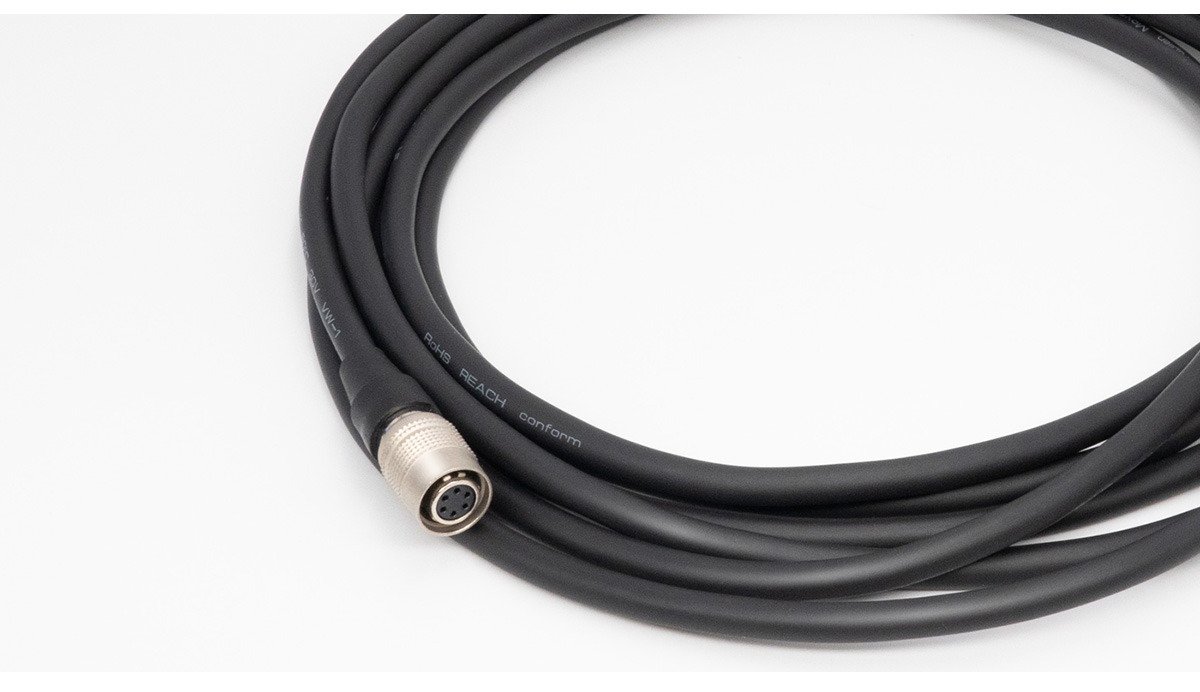

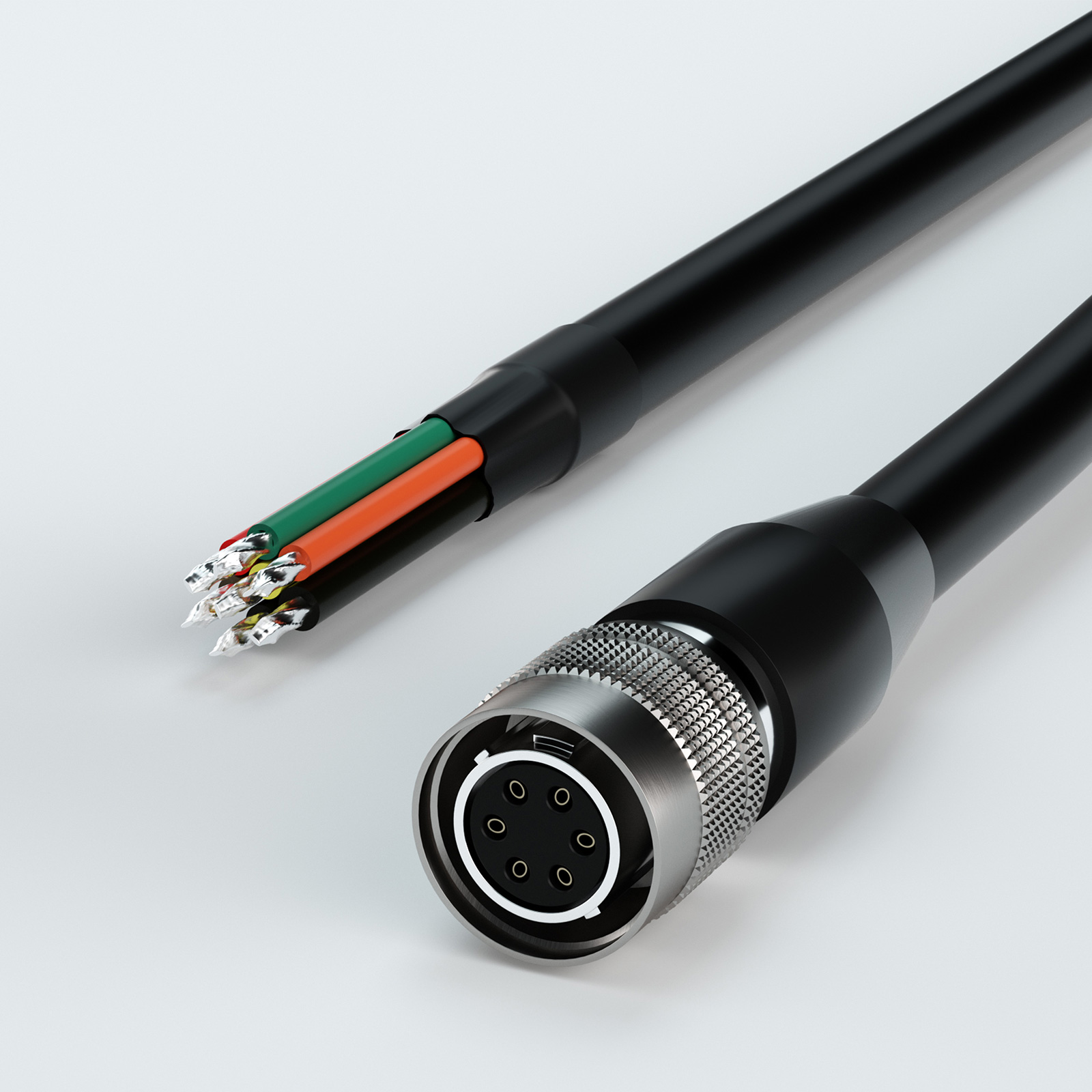

HR-10A-7P-6S

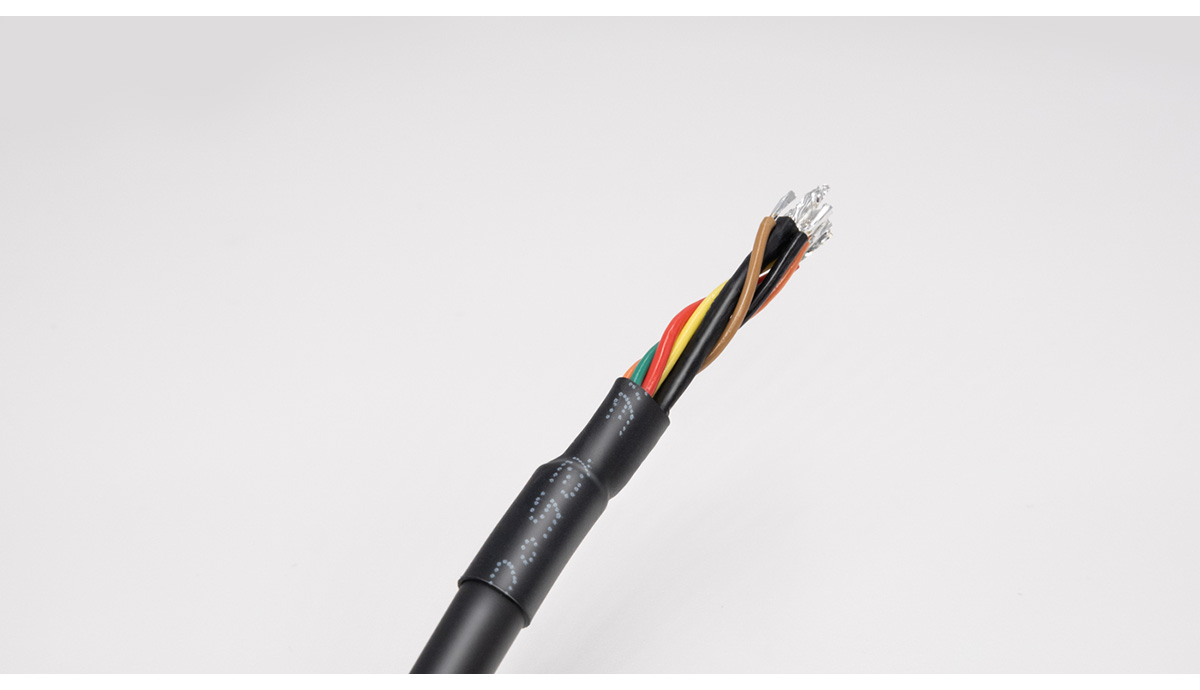

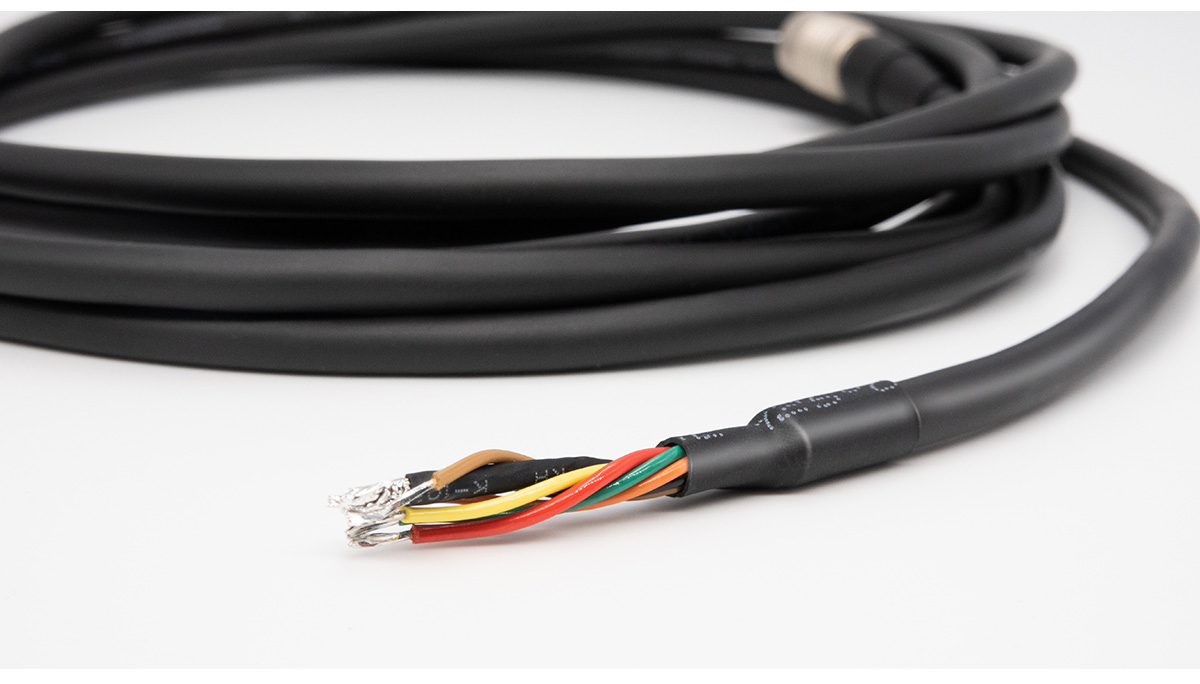

Open End

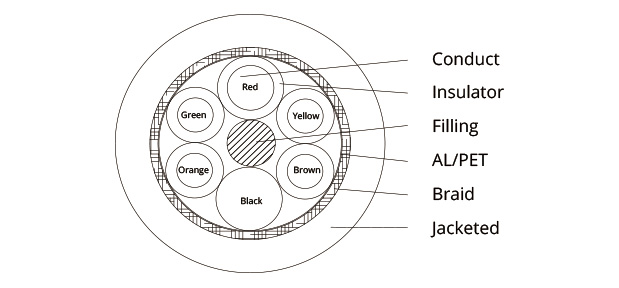

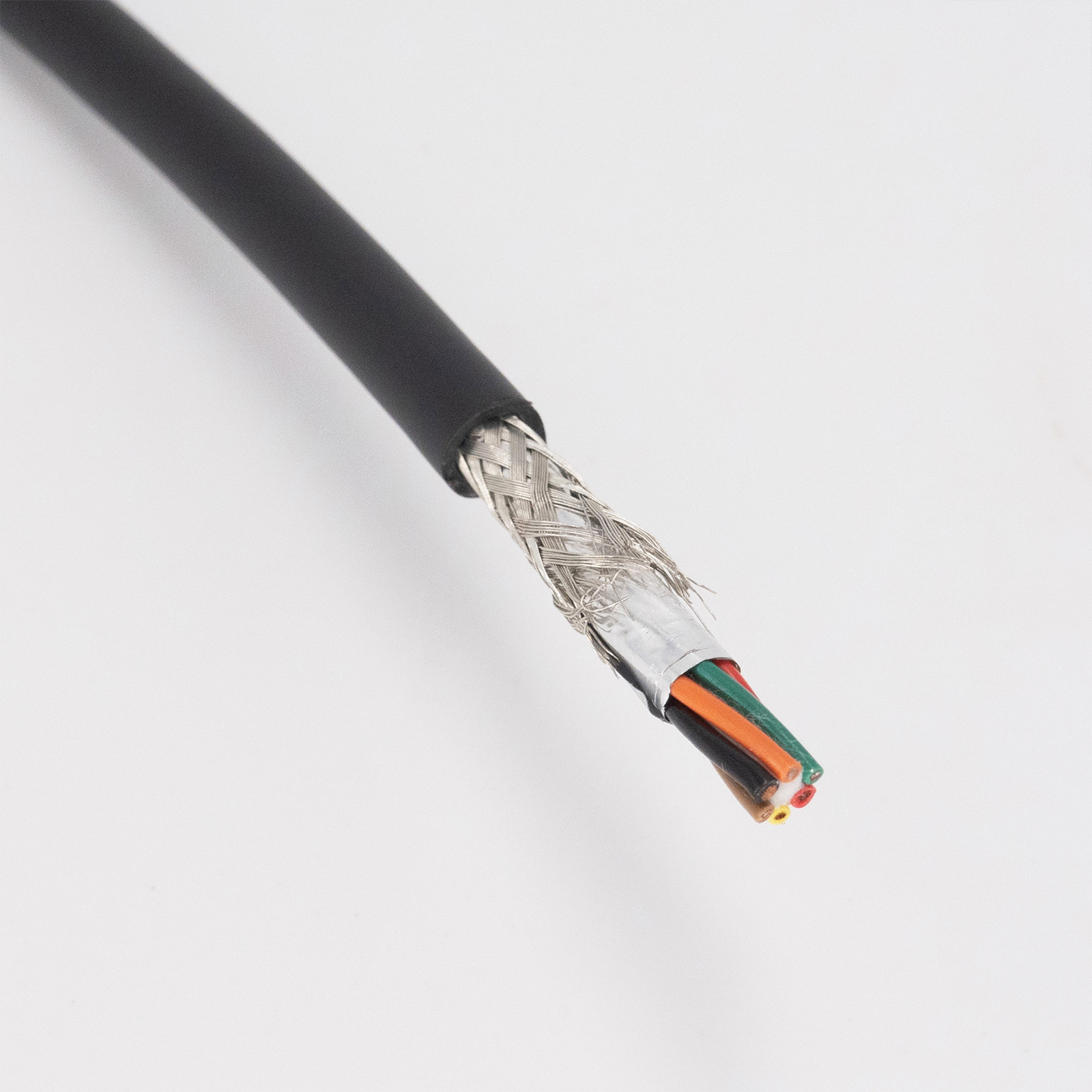

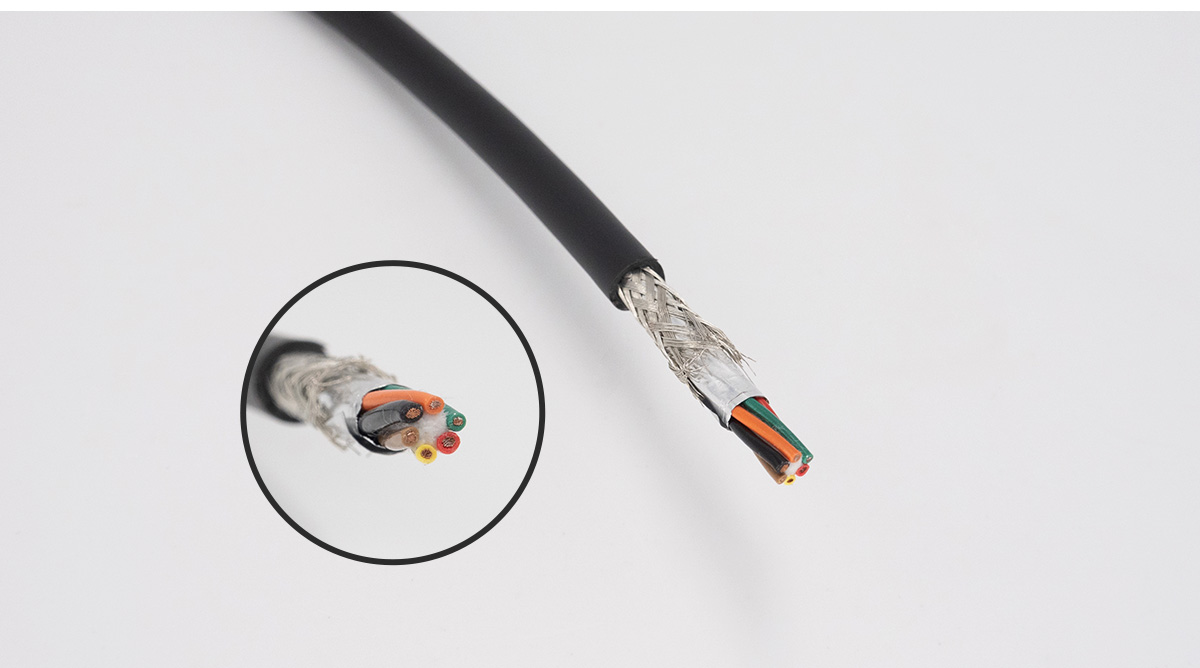

 Double shielded braid
