| Model NO. |
WWK60-108C-111V3 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
6.000 |
Working Distance(mm) |
108±2 |
| NA |
0.1000 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
29.7 |
| MTF30 (lp/mm) |
>29 |
Object Resolution(μm) |
3.4 |
| Depth of Field(mm) |
±0.035@F29.7 |
Distortion Typical(% max) |
<0.04 |
| Telecentricity Typical (°max) |
<0.03 |
Length (mm) |
175.5 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.1 |
| Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1" IMX183 (13.13x8.76) |
2.2x1.5 |
| 1" IMX183 (13.13x8.76) |
2.4x1.7 |

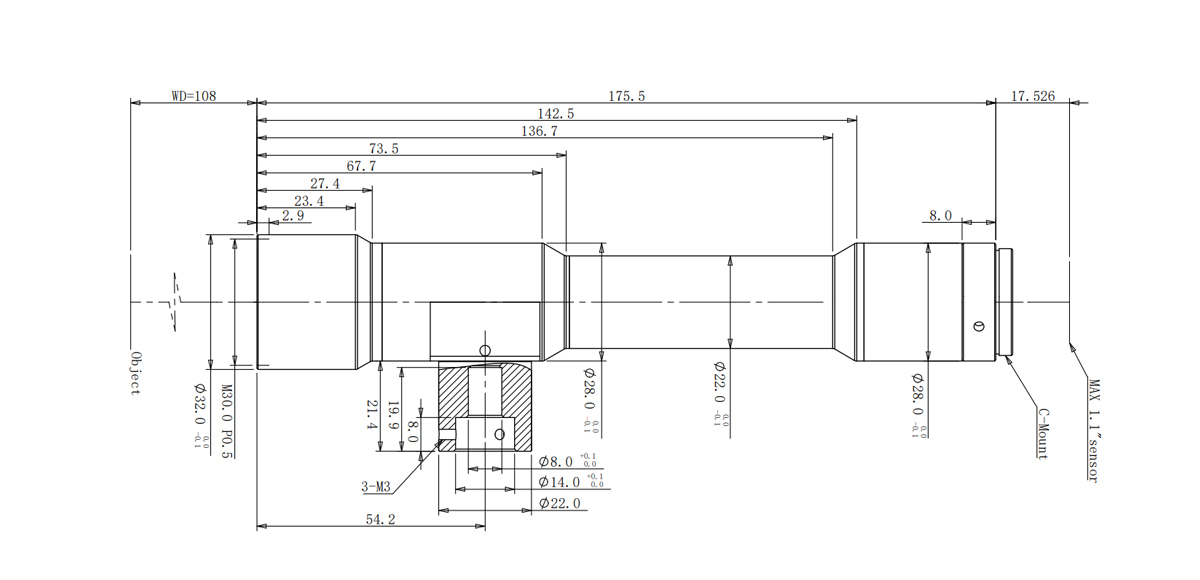

Dimensions
Naming Rule
