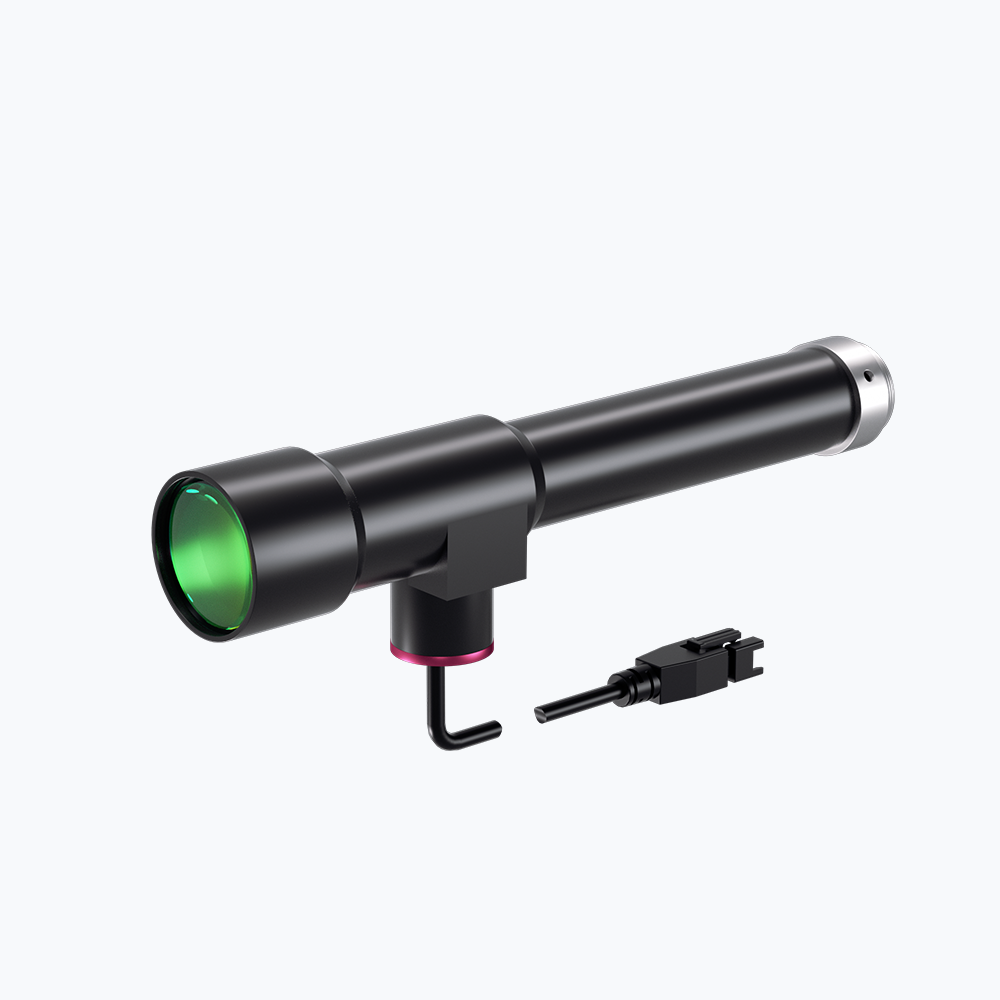

| Model NO. |
WWH60-108CTLV3 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
6.000 |
Working Distance(mm) |
108±2 |
| NA |
0.1000 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
28.7 |
| MTF30 (lp/mm) |
31 |
Object Resolution(μm) |
3.4 |
| Depth of Field(mm) |
0.1 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.11 |
Length (mm) |
165.5 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.1 |
| Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
1.1x0.8 |
| 1/1.8”（7.13x5.37） |
1.2x0.9 |
| 2/3" IMX250/264 (8.45x7.1) |
1.5x1.1 |

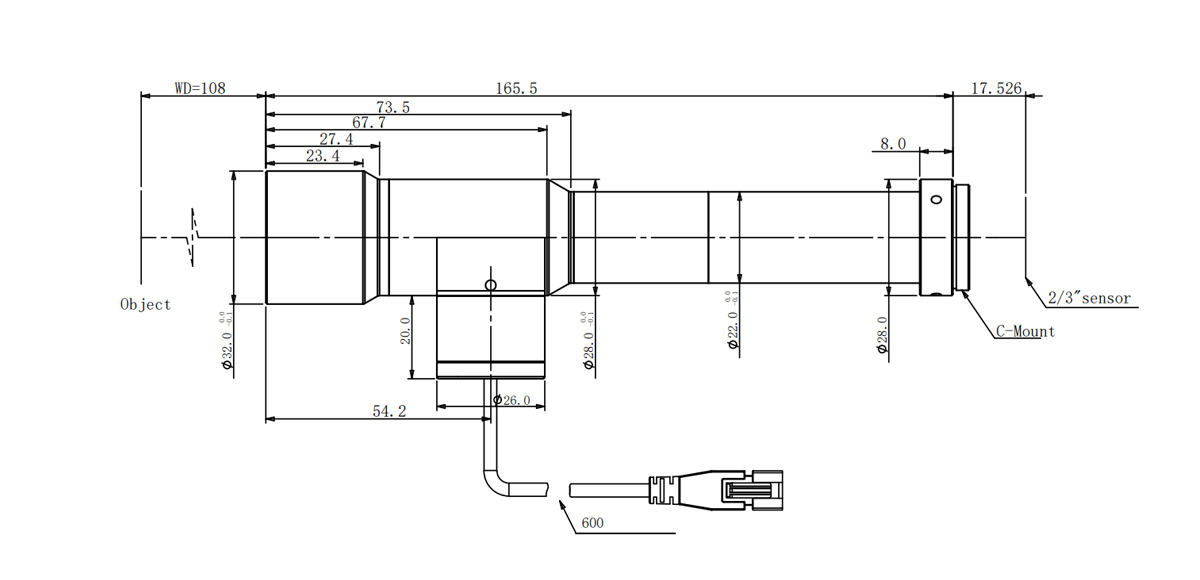

Dimensions
Naming Rule
