Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision

OLA-ANA-4-X-3M
$39.00 USD
Shipping calculated at checkout.
Length
Quantity
Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision-OKLAB

Description

These cables can be used in demanding applications.They are ensure network throughput in harsh industrial environments.

• This is an extension cable for industrial camera power supply I/O trigger and data transmit.

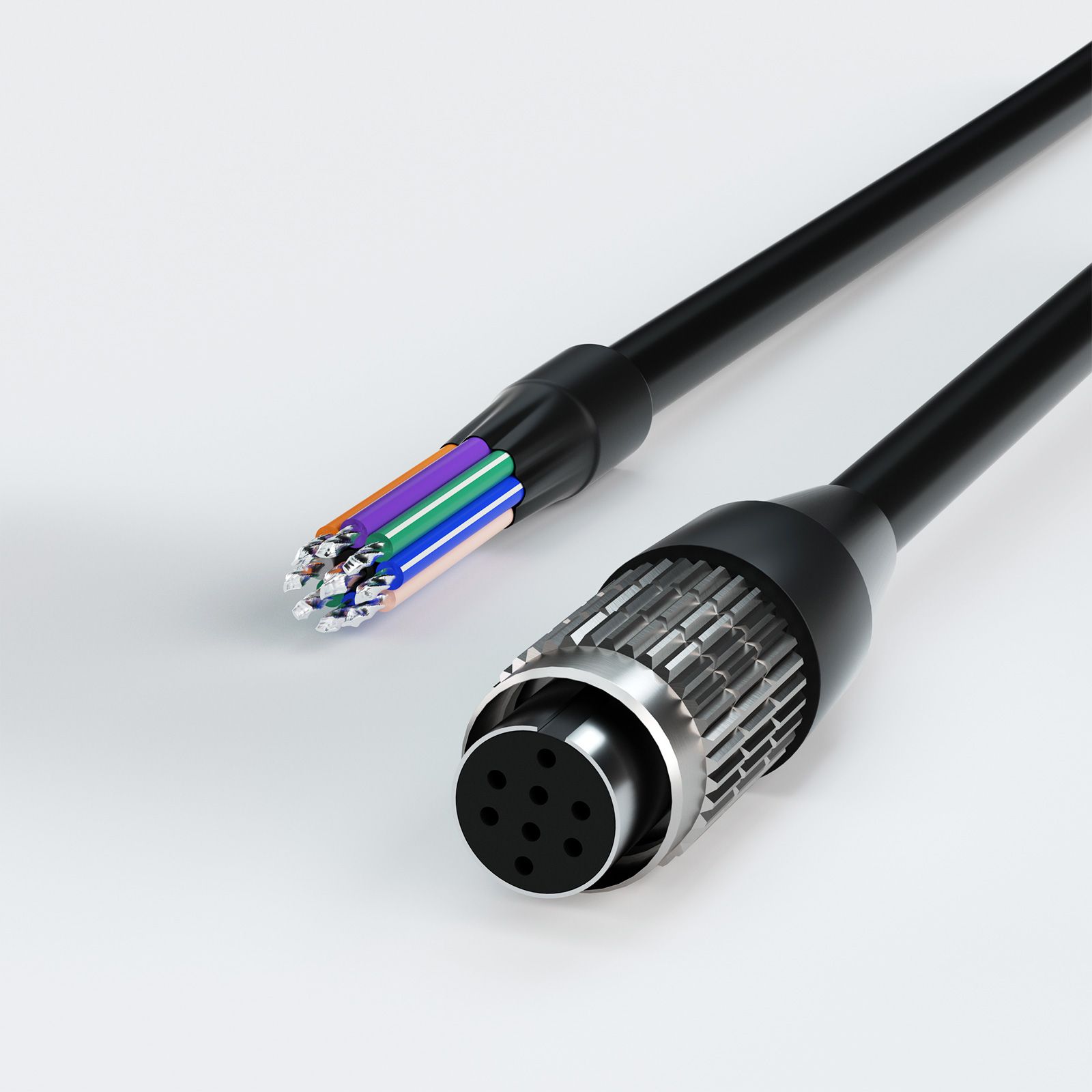

• Hirose 8 pin female connector to open end, make DIY connections according to your needs.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.

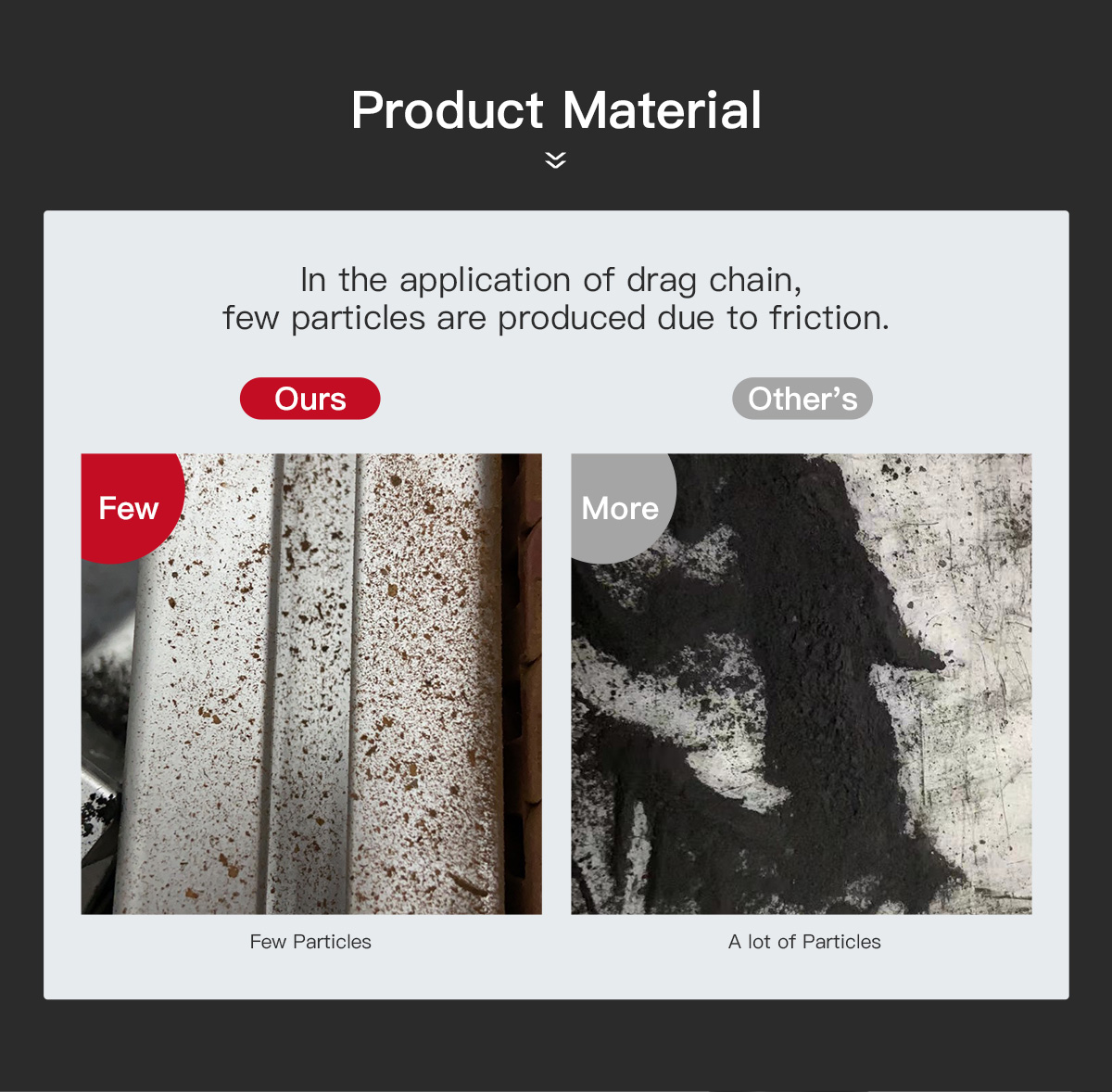

• High flexible, drag chain.

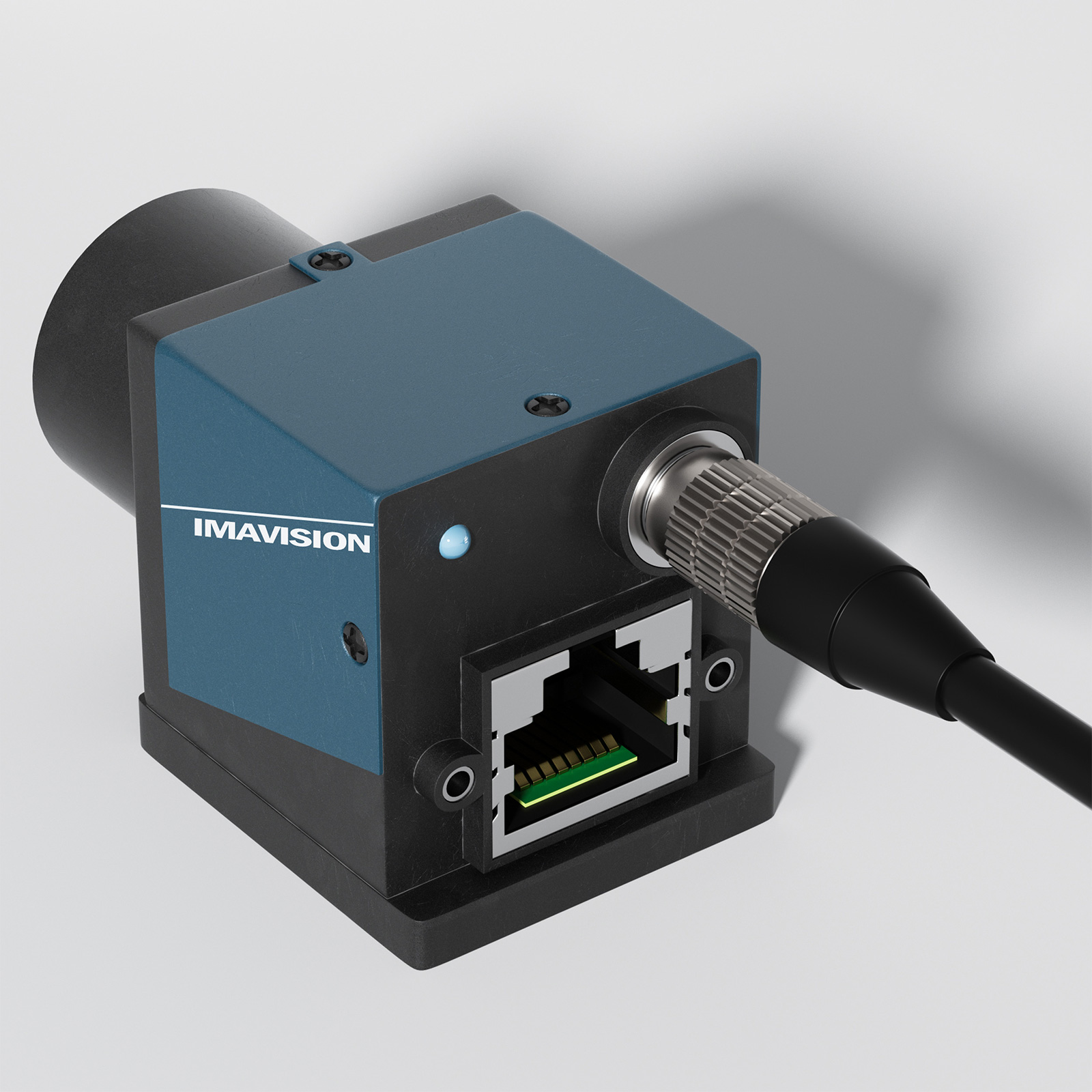

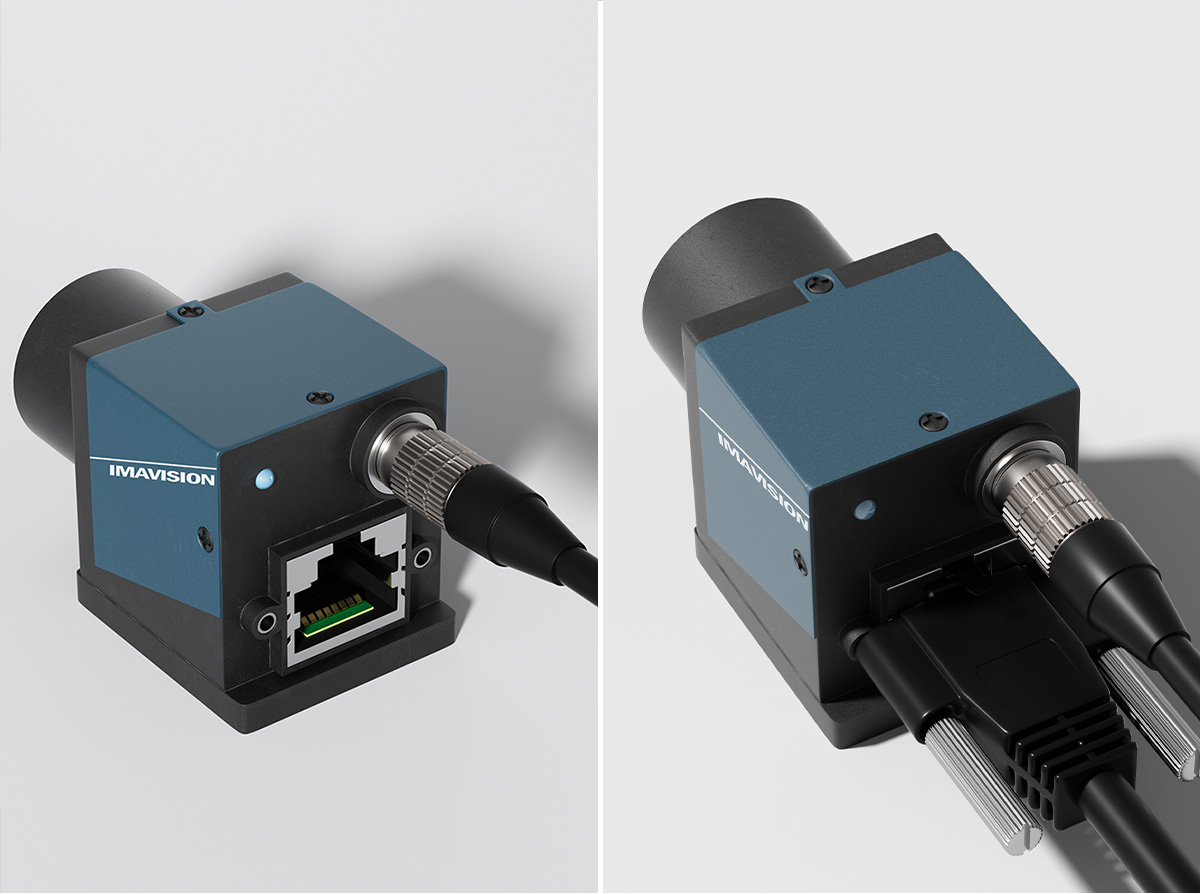

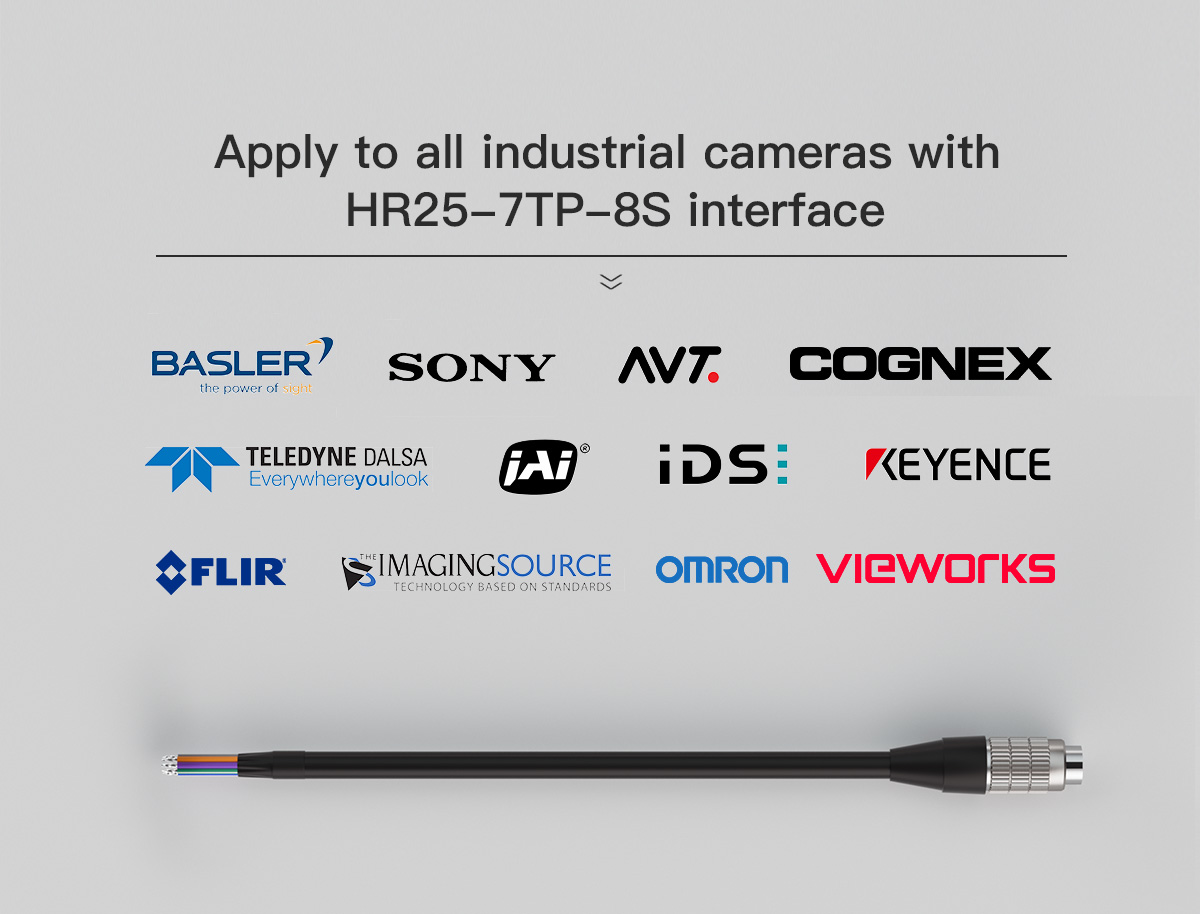

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 8 pin Male Connector.

Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T

 Connector Specification

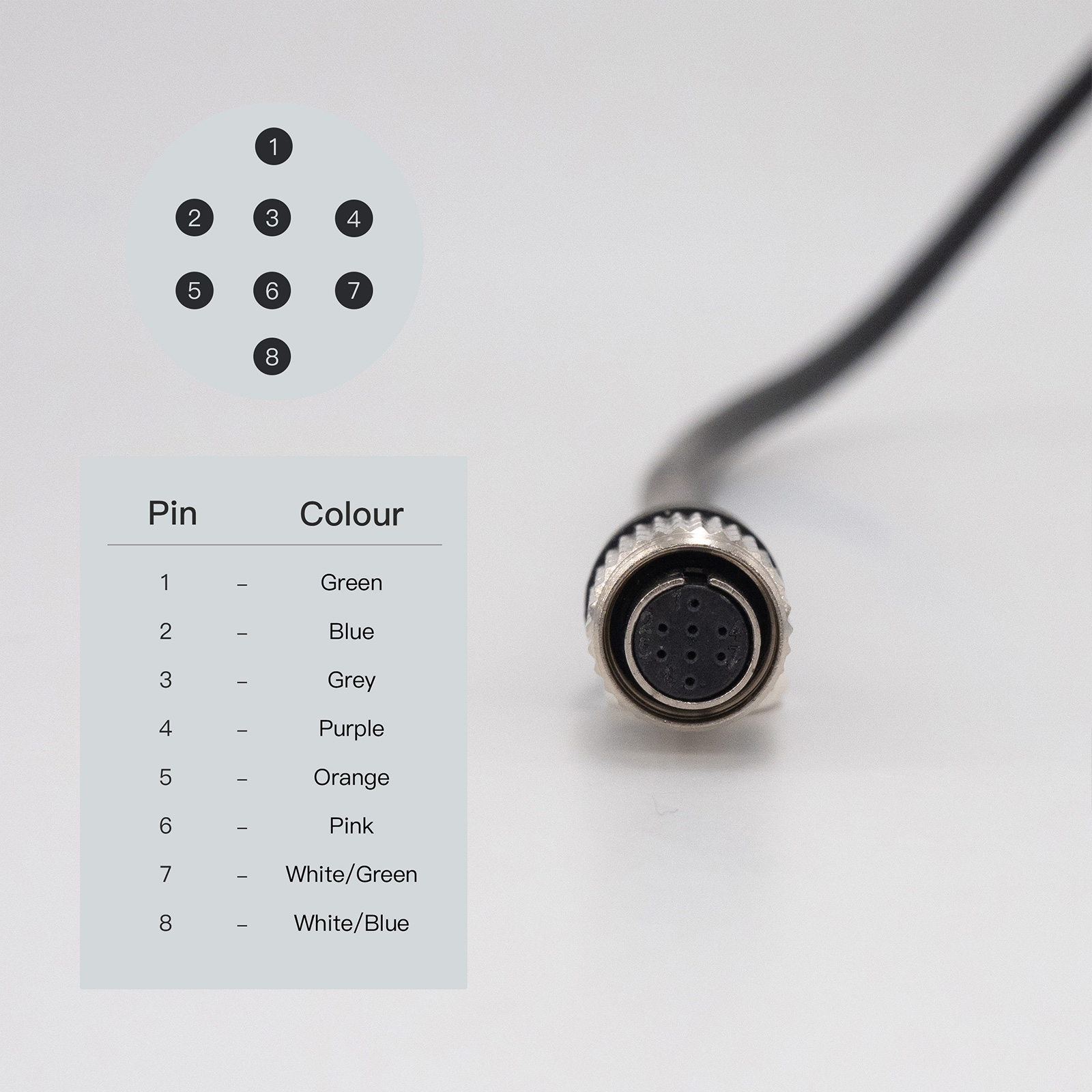

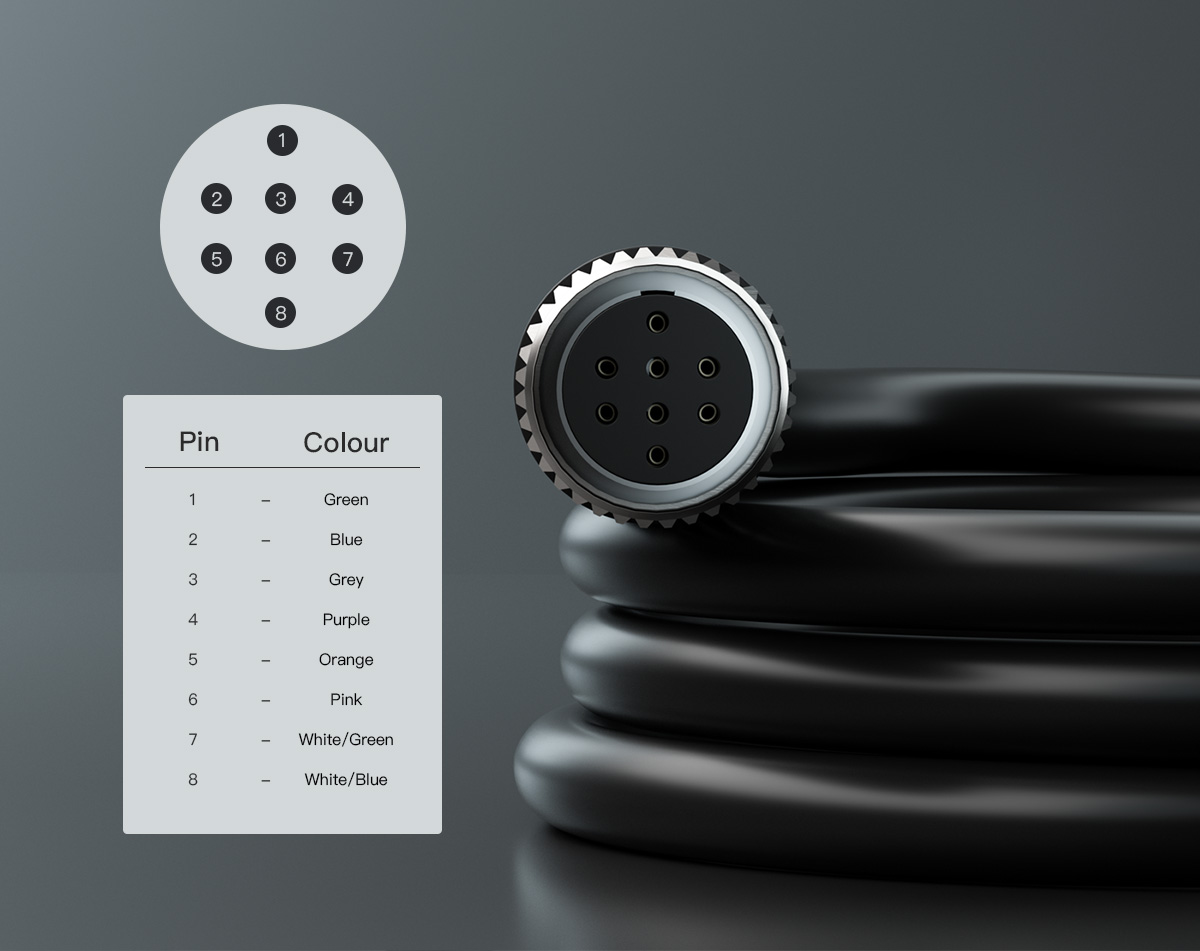

Bill Of Materials Wiring Diagram  Location of Pins
Item Description QTY Specification PIC Pin Clour
1 Green
Wire 1 6Px26AWG RoHS LF BLACK 2 Blue
Connector 1 HR25-7TP-8S 3 Grey
Shrinkable Tube 1 ø6.0 4 Purple
Shrinkable Tube 1 ø2.0 5 Orange
6 Pink
Label 1 Wiring Diagram 7 White/Green
8 White/Blue

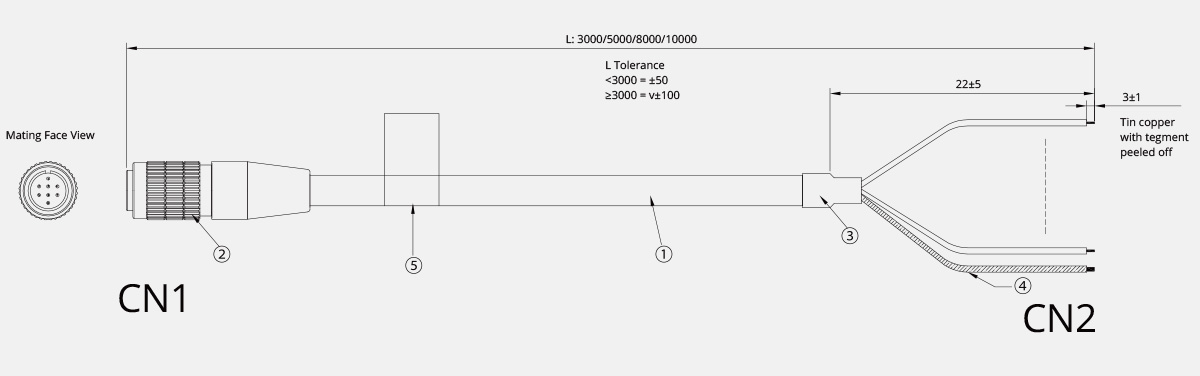

Drawing   Pair Twist Insulator Colour
Pair Twist Insulator Colour
1 Green
2 Blue
3 Grey
4 Purple
5 Orange
6 Pink
7 White/Green
8 White/Blue
* White / Blue: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others.



Model NO. OLA-ANA-1-X-3M CABLE
Style 8CX28AWG RoHS LF BLACK Size 8X28AWG
Approbation NOUL Flame Retardant Grade VW-1
Conductor Size 28AWG/8C Shielded Foil 0.05*20mm
Cond. Material Bare Copper BC Braid 16/7/0.1TC
Construction 41/0.08 BC 30/0.08 BC ACovered
Diameter 0.4mm
Jacketed
Material PVC
Tolern ±0.003mm Diameter ø5.0±0.3mm
Insulation Material PVC Colour Black (Similar to RAL 9005)
Diameter 0.8±0.05mm Wokring Tempearture Fixed Installation -20°C ~ 80°C
Colour Green, Blue, Moved Installation -10°C ~ 50°C
Grey, Purple, Minimal Bending Radius Fixed Installation 4 X Cable-ø
Orange, Pink, Moved Installation 8 X Cable-ø
White/Green, White/Blue Electrical Properties Fixed Installation ≤87.6 Ω/km 20°C
Assembly Standed 8CX28AWG Test Voltage 500V/1min
Quality Certifications

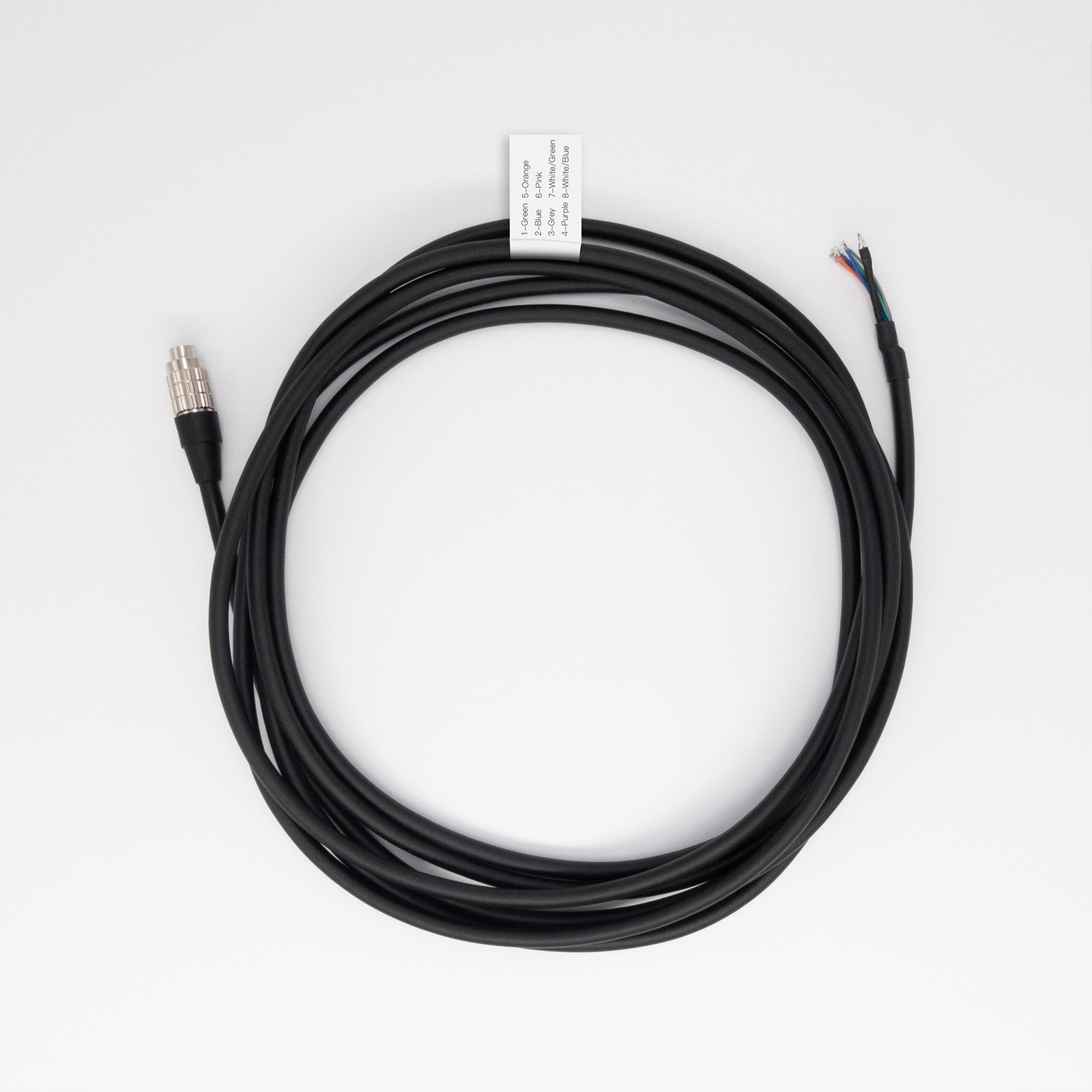

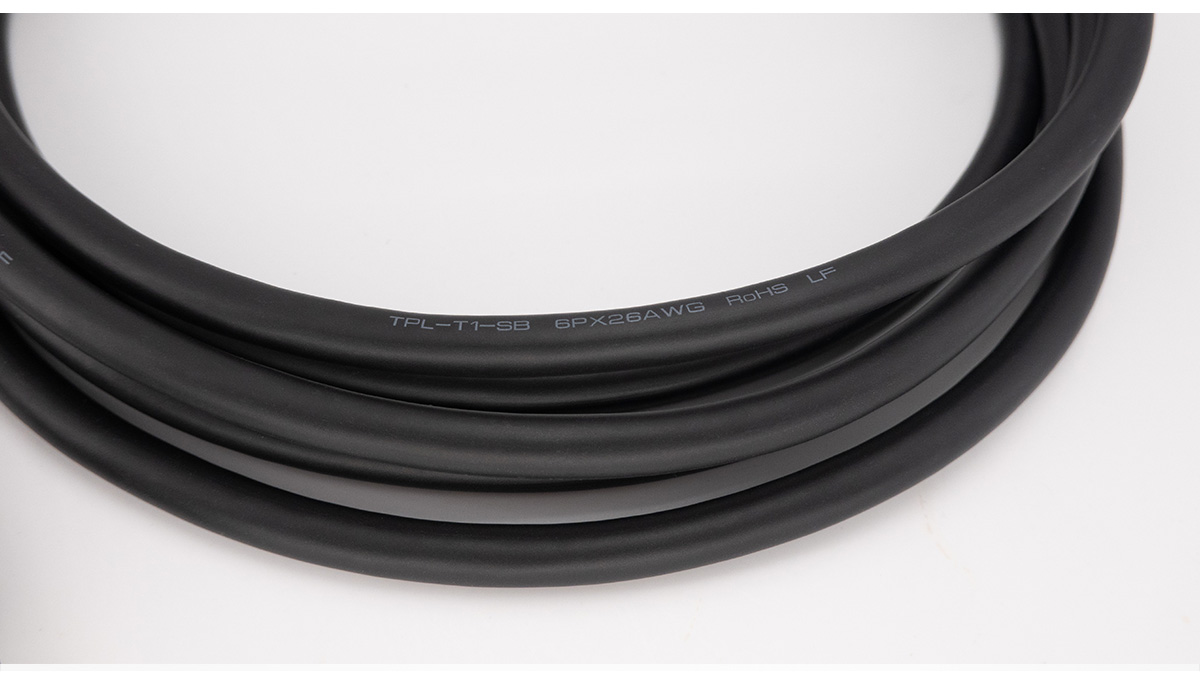

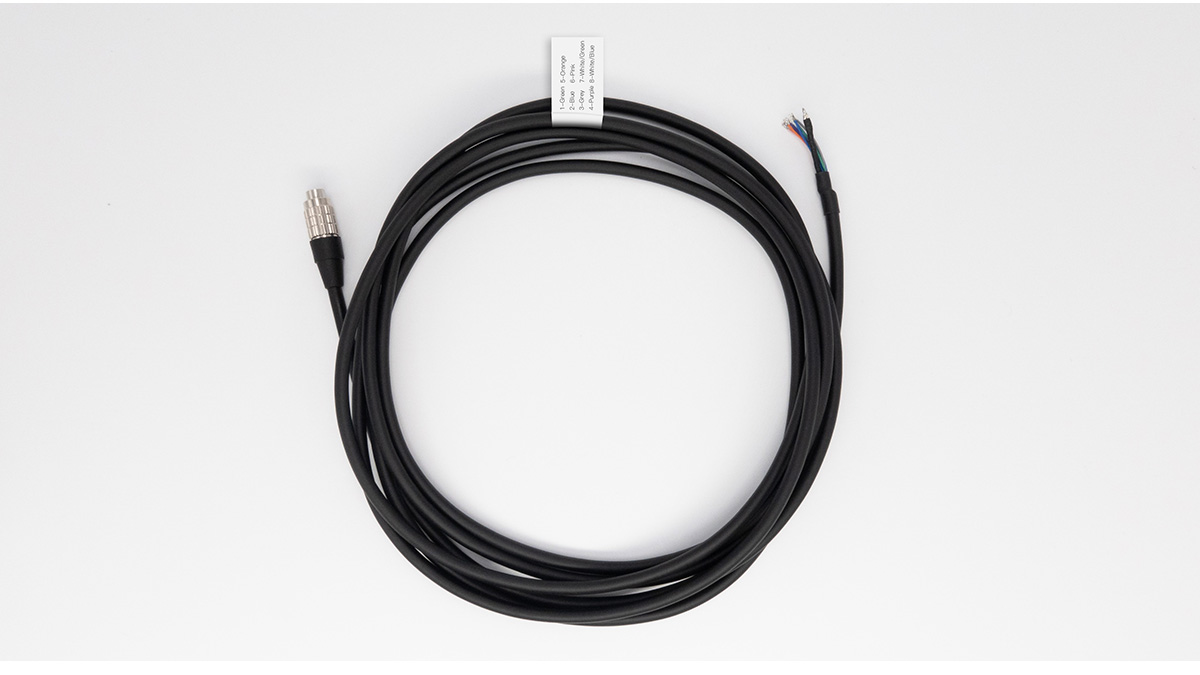

Product Photograph

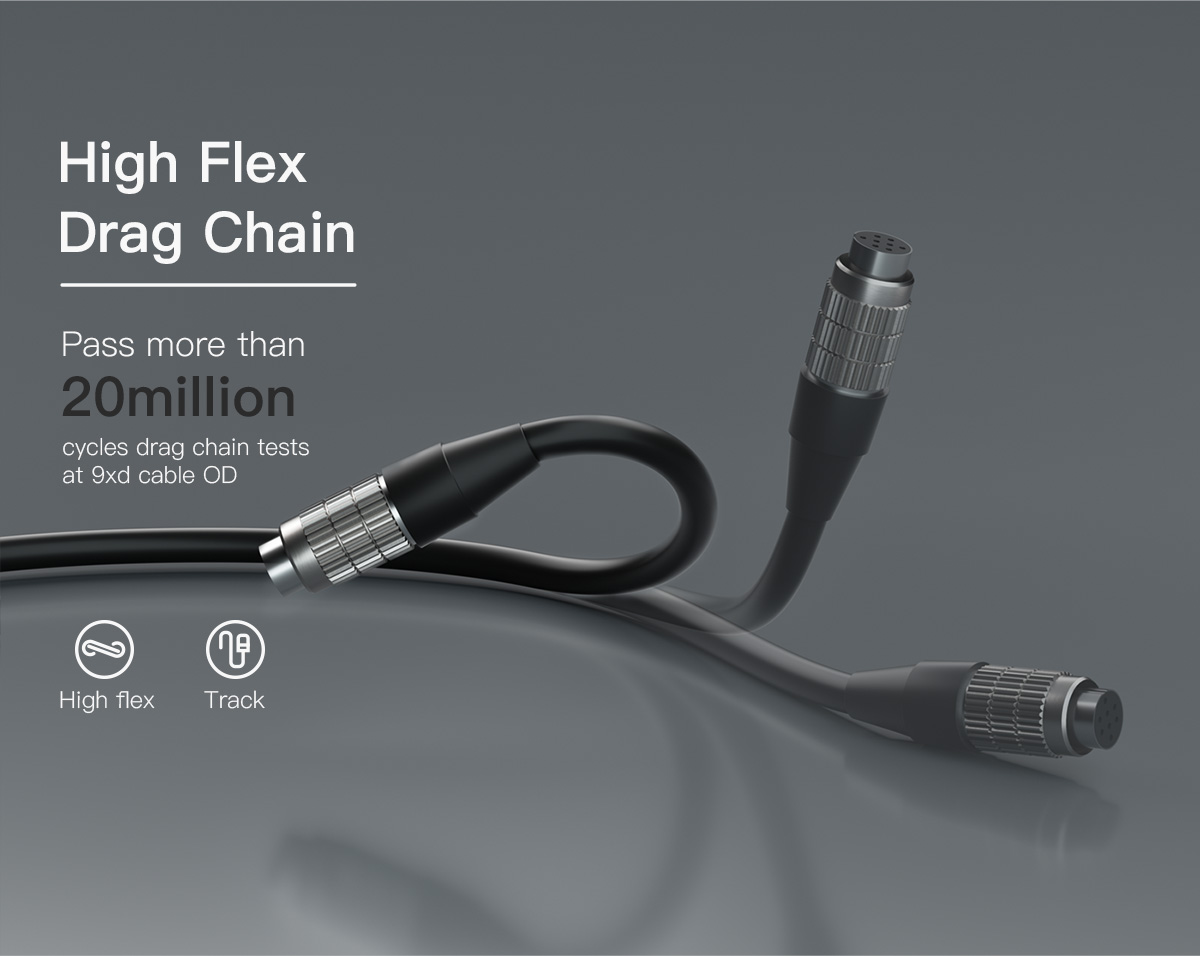

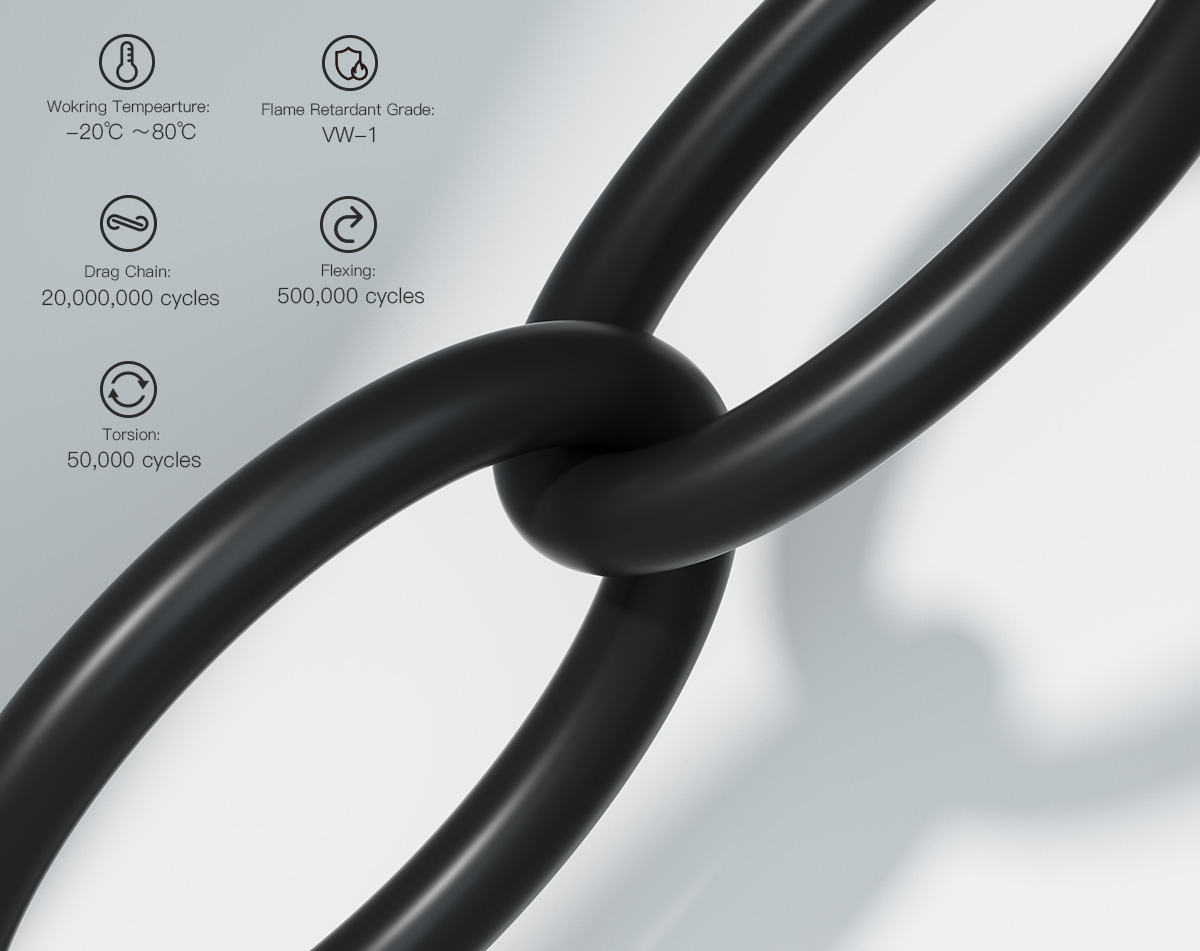

High Flex

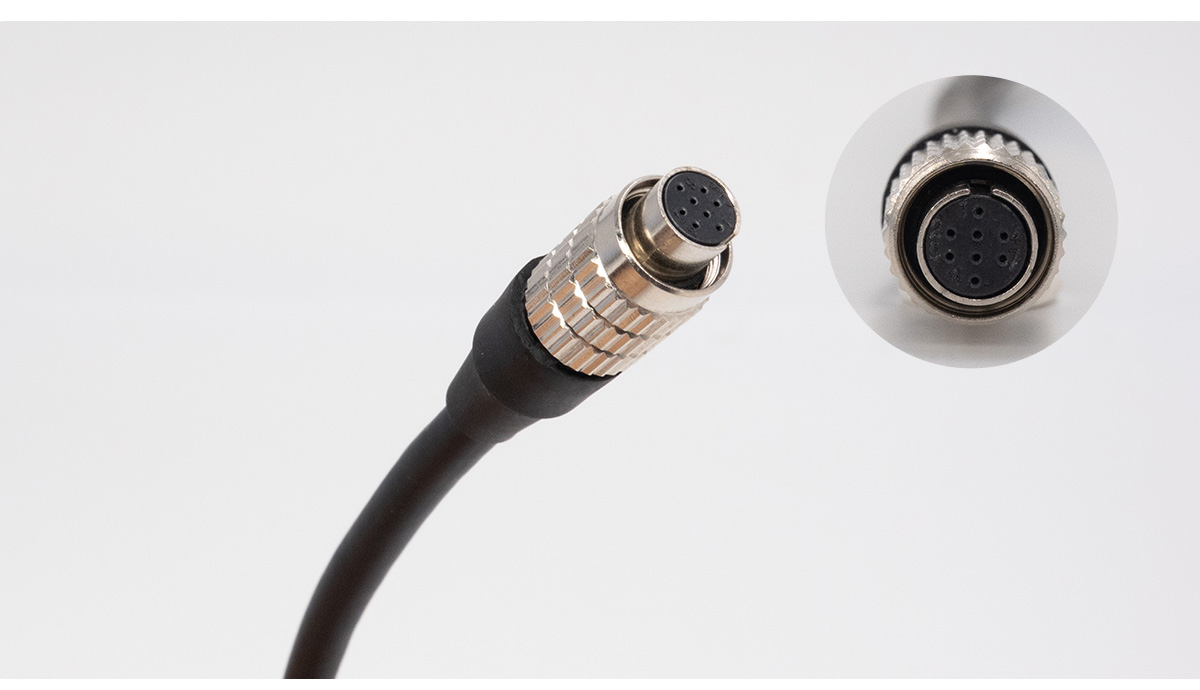

HR25-7TP-8S

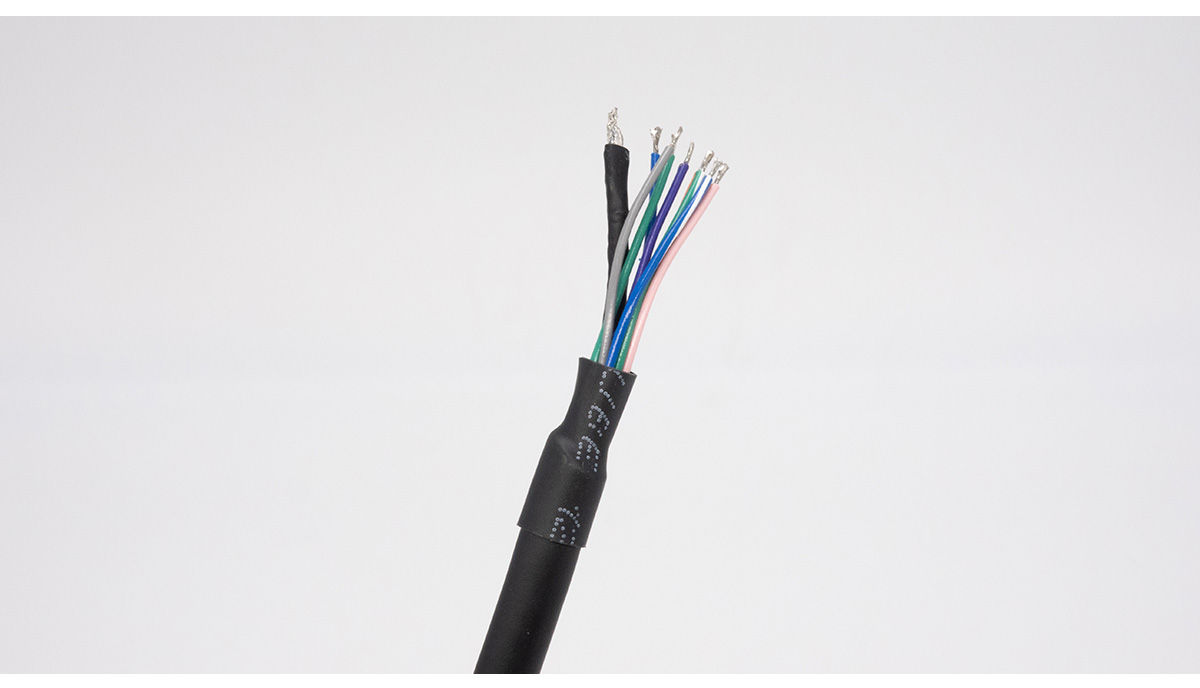

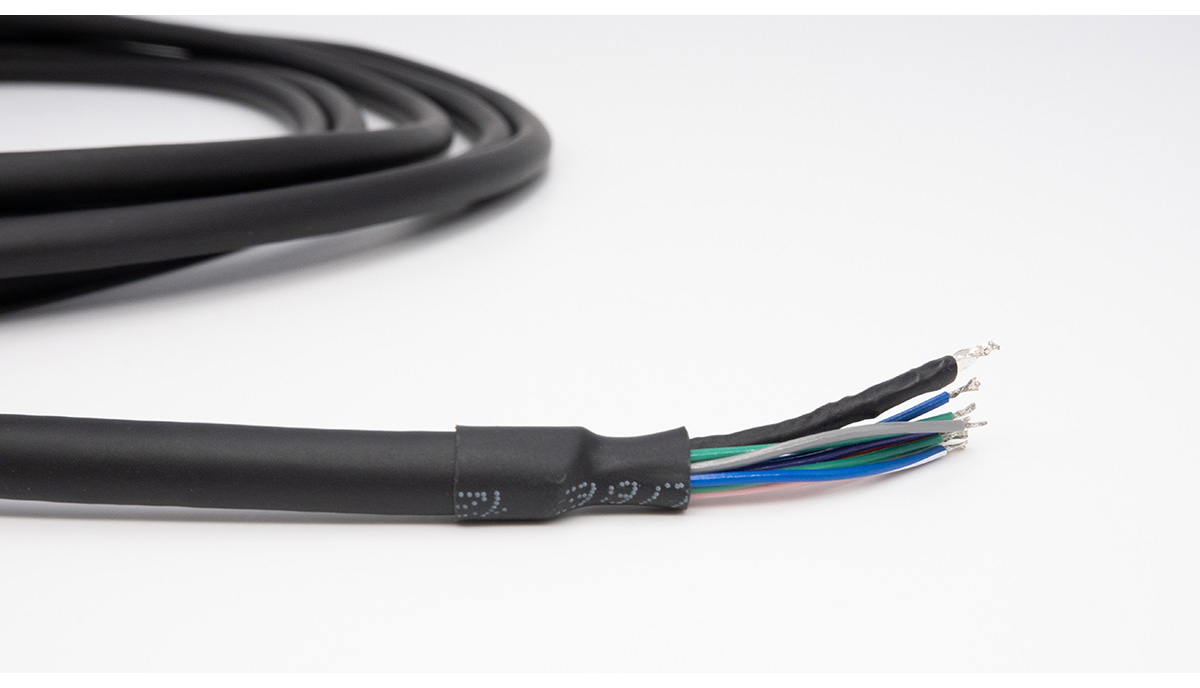

Open End

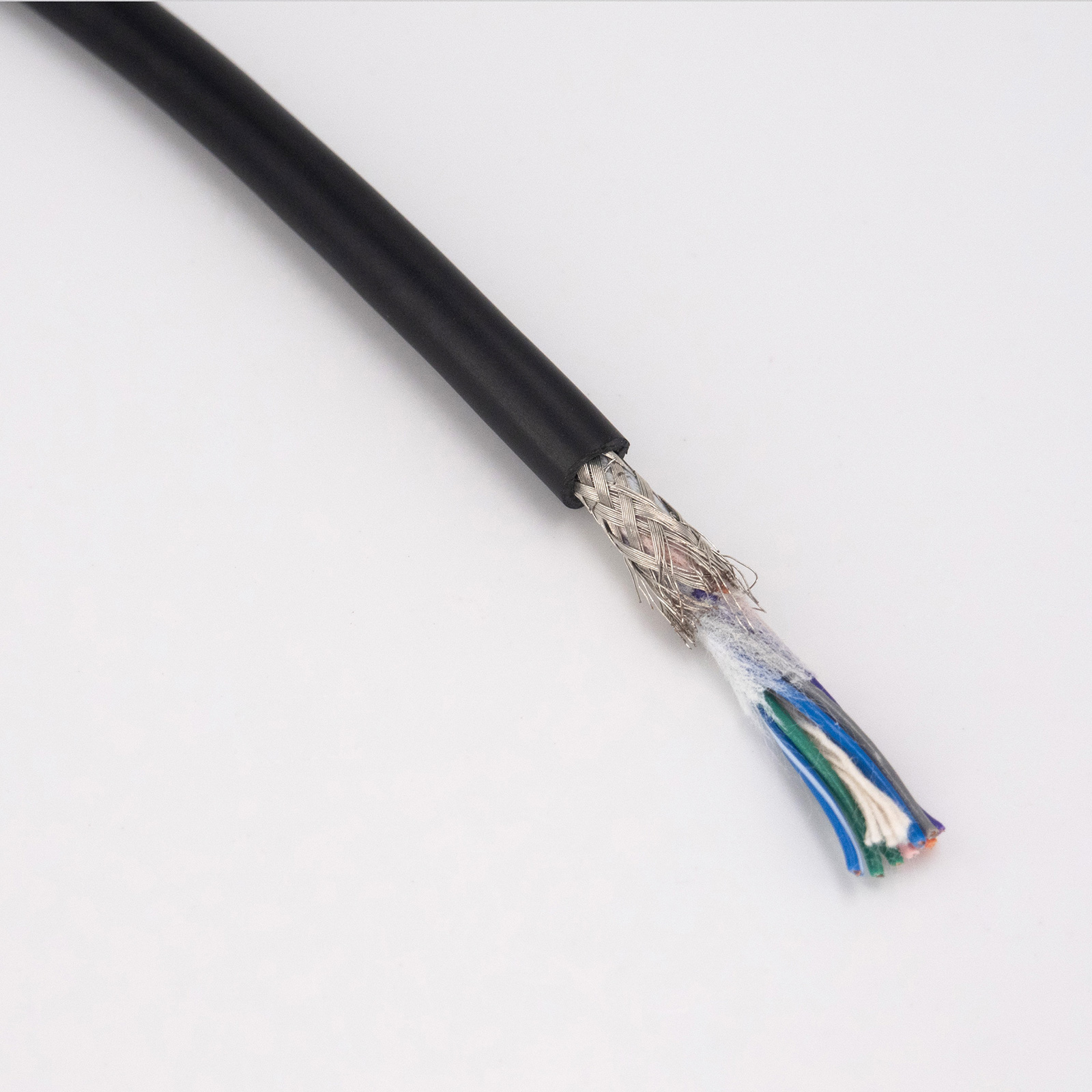

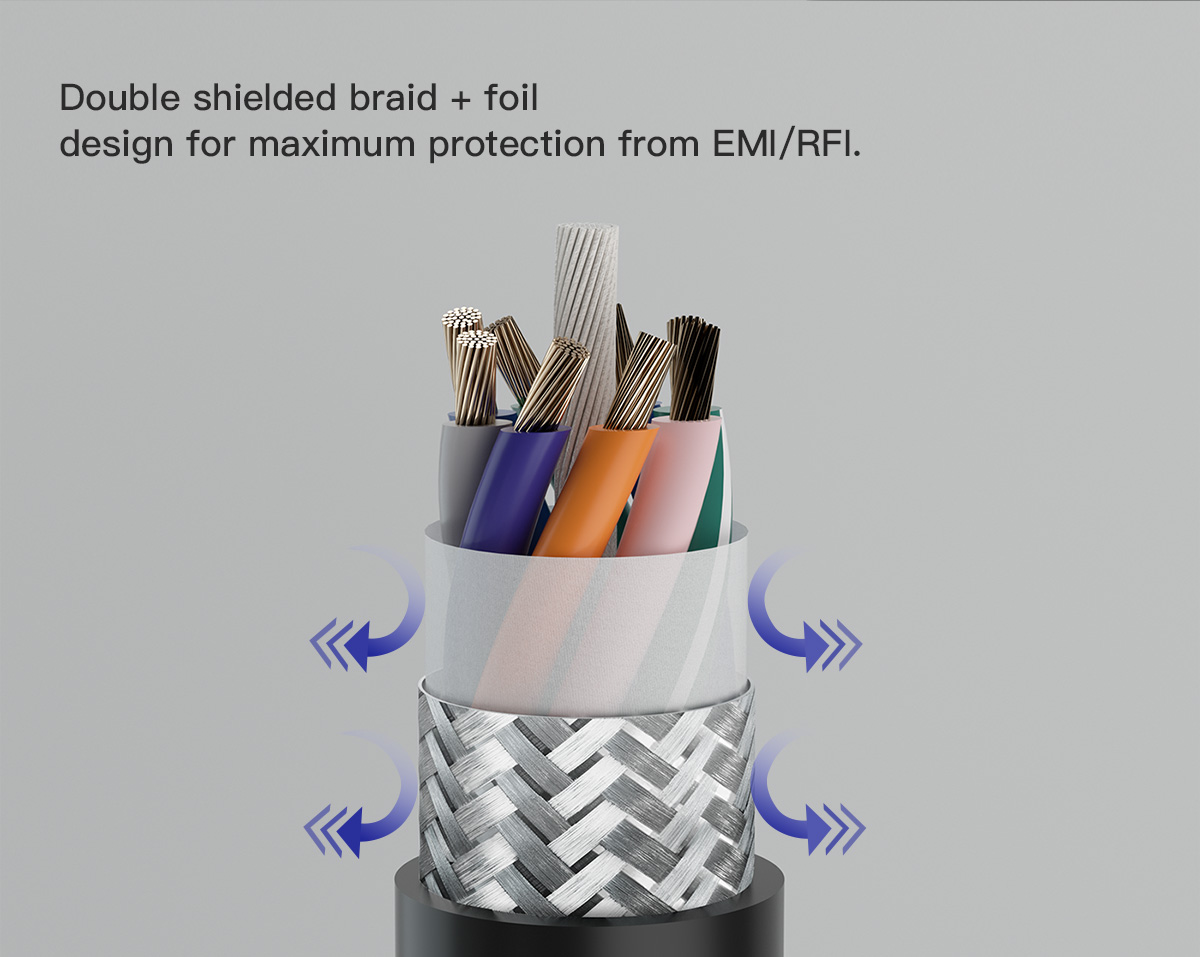

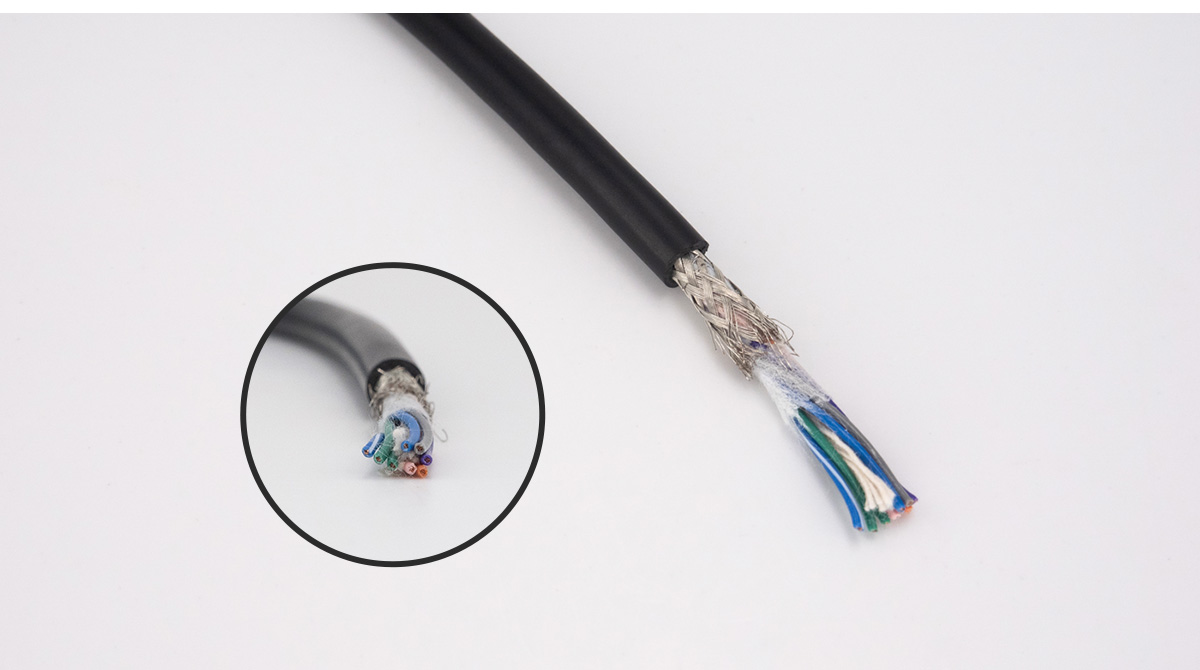

 Double shielded braid
