Model NO. | WWK80-178C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 8.000 | Working Distance(mm) | 178±2 | ||||
NA | 0.0900 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 43.8 | ||||
MTF30 (lp/mm) | >21 | Object Resolution(μm) | 3.7 | ||||
Depth of Field(mm) | ±0.03@F43.8 | Distortion Typical(% max) | <0.08 | ||||

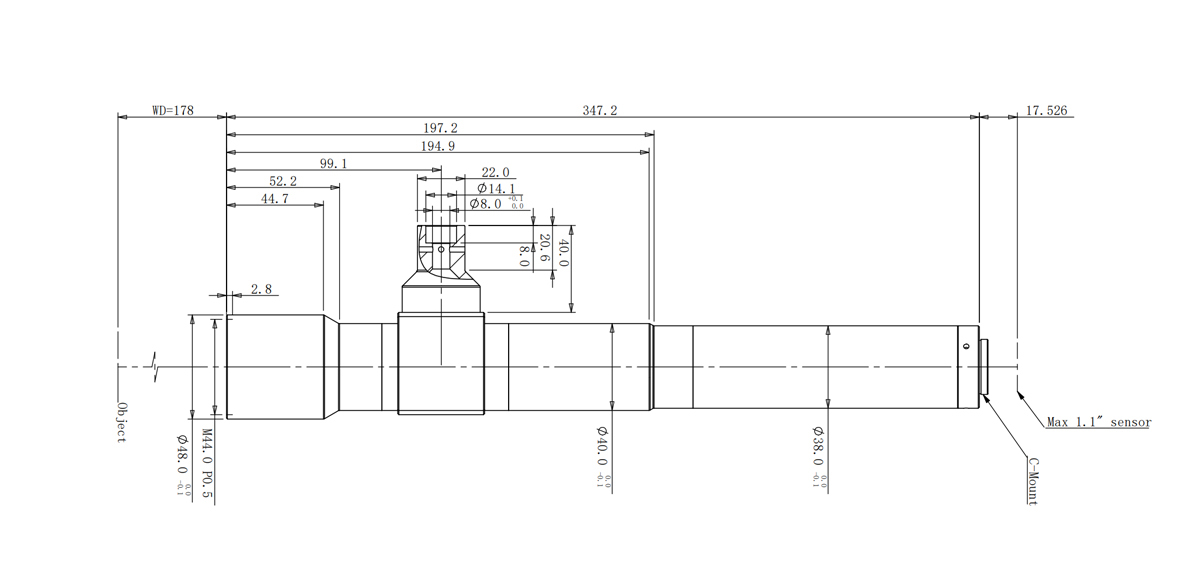

Telecentricity Typical (°max) | <0.04 | Length (mm) | 347.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | M44x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 1.6x1.1 | ||||||
1.1" IMX253 (14.19x10.38) | 1.8x1.3 |

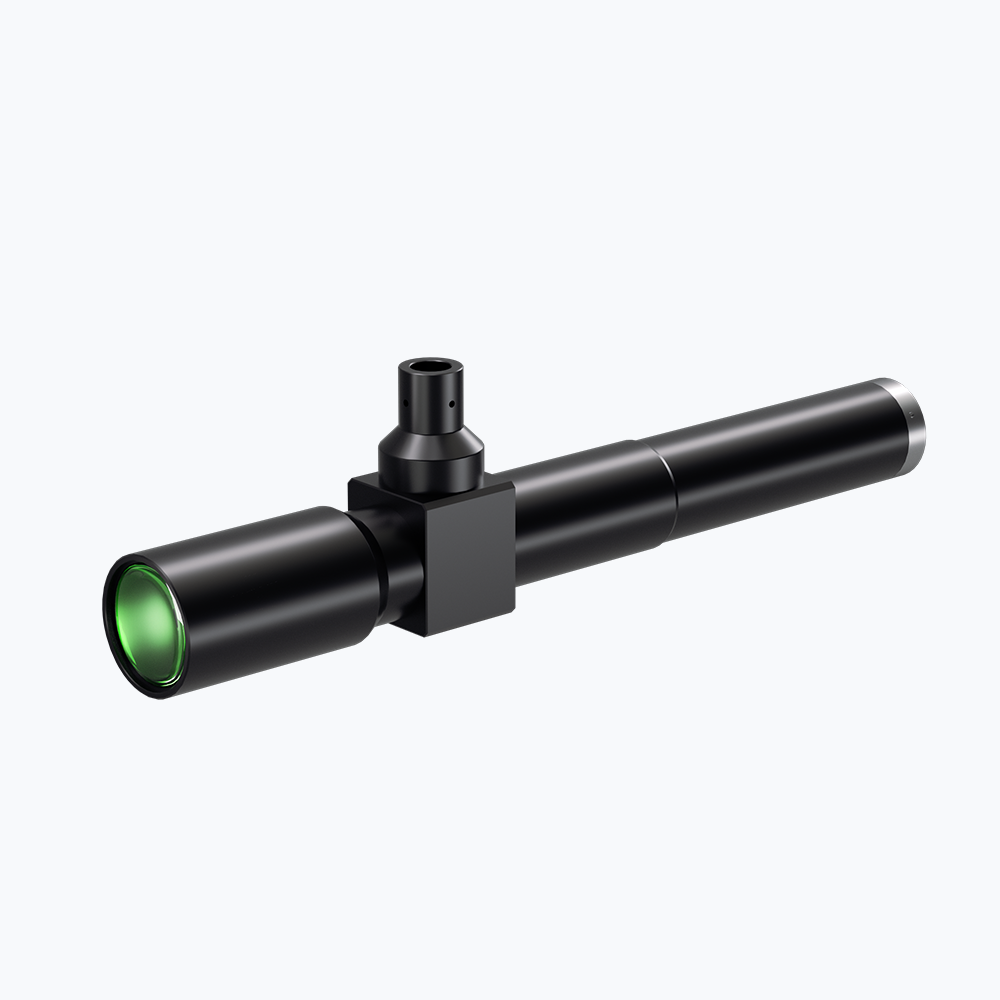

1.1" 8X Telecentric Lenses | WWK80-178C-111V3 COOLENS®
$0.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK80-178C-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 8.000 | Working Distance(mm) | 178±2 | ||||
NA | 0.0900 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 43.8 | ||||
MTF30 (lp/mm) | >21 | Object Resolution(μm) | 3.7 | ||||
Depth of Field(mm) | ±0.03@F43.8 | Distortion Typical(% max) | <0.08 | ||||
Telecentricity Typical (°max) | <0.04 | Length (mm) | 347.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | M44x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 1.6x1.1 | ||||||
1.1" IMX253 (14.19x10.38) | 1.8x1.3 |
