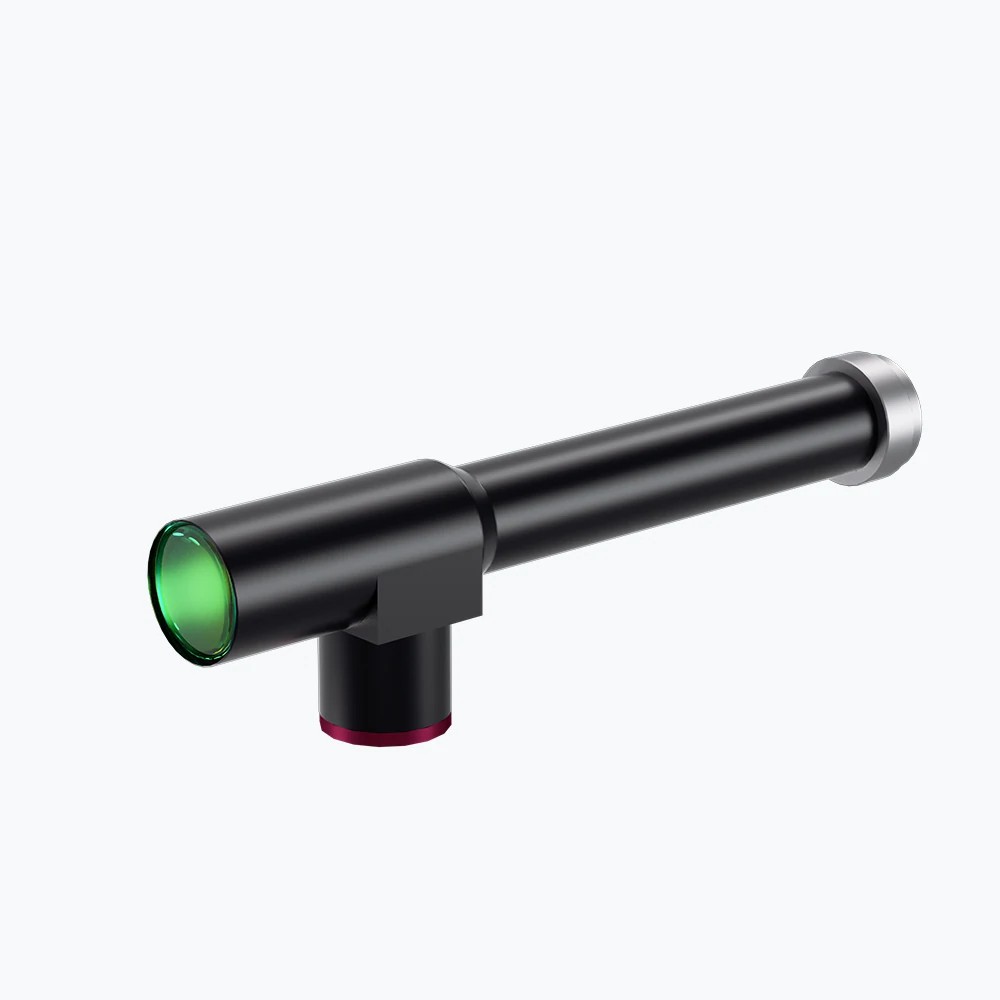

2/3" 8X Telecentric Lenses | WWH80-63CTLV3 COOLENS®

$605.00 USD
Shipping calculated at checkout.
Quantity
2/3" 8X Telecentric Lenses | WWH80-63CTLV3 COOLENS®-OKLAB

Description

Model NO. WWH80-63CTLV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 8.000 Working Distance(mm) 63±1
NA 0.125 Type Telecentric
Mount C Best Aperture(f/#) 31.3
MTF30 (lp/mm) 30 Object Resolution(μm) 2.7
Depth of Field(mm) 0.04 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) 0.02 Length (mm) 179.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.08
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 0.8x0.6
1/1.8”(7.13x5.37) 0.89x0.67
2/3”(8.45x7.1) 1.1x0.9

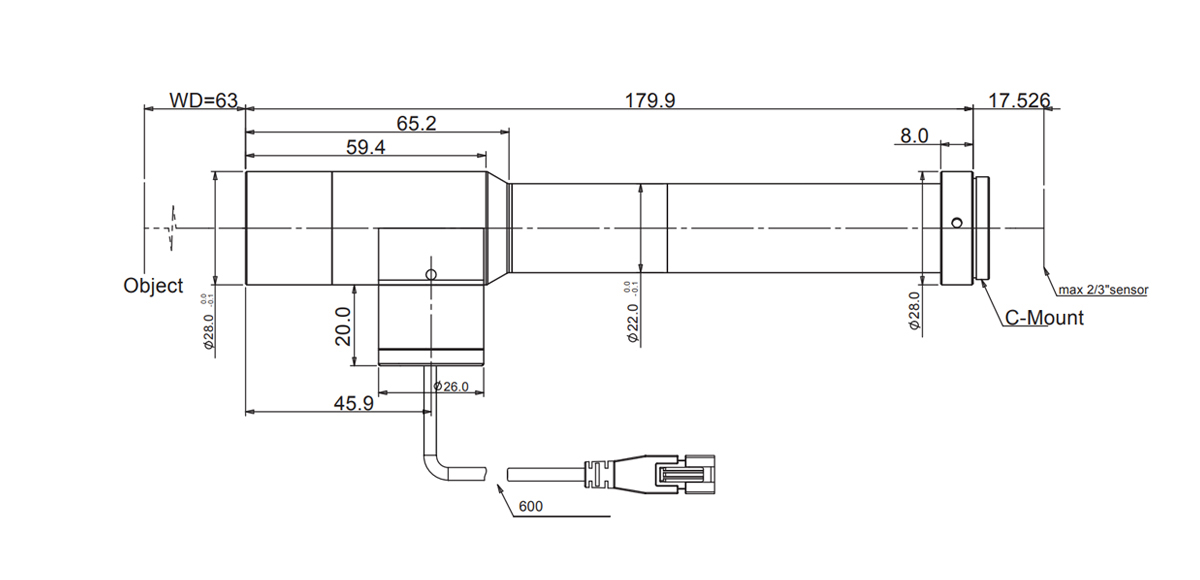

Dimensions

Naming Rule

  • Description

Model NO. WWH80-63CTLV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 8.000 Working Distance(mm) 63±1
NA 0.125 Type Telecentric
Mount C Best Aperture(f/#) 31.3
MTF30 (lp/mm) 30 Object Resolution(μm) 2.7
Depth of Field(mm) 0.04 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) 0.02 Length (mm) 179.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.08
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 0.8x0.6
1/1.8”(7.13x5.37) 0.89x0.67
2/3”(8.45x7.1) 1.1x0.9

Dimensions

Naming Rule
