Beam Diamenter 170-Telecentric Illuminators | DTCL-170-xW-y COOLIGHT®

•Optically Collimated Light for Increased Edge Contrast •Superior Collimation Ideal for use with Telecentric Lenses •Beam Diameter 170mm •Ideal for Use with High Resolution Cameras

$5,013.00 USD

Power

1W

3W

Light Color

Red

Green

Blue

White

Quantity

Description

Model NO.	DTCL-170-xW-y	Color	Red-630nm
Beam Dia. (mm)	170		Green-520nm
Working Distance(mm)	110-220		Blue-460nm
Diameter (mm)	212		White-/
Power	1W/3W	Voltage	12V~24V
Length (mm)	392.8	Compatible Lens	DTCMxxx-170
		Electricity	350mA/750mA

Beam Diamenter 170-Telecentric Illuminators | DTCL-170-xW-y COOLIGHT®

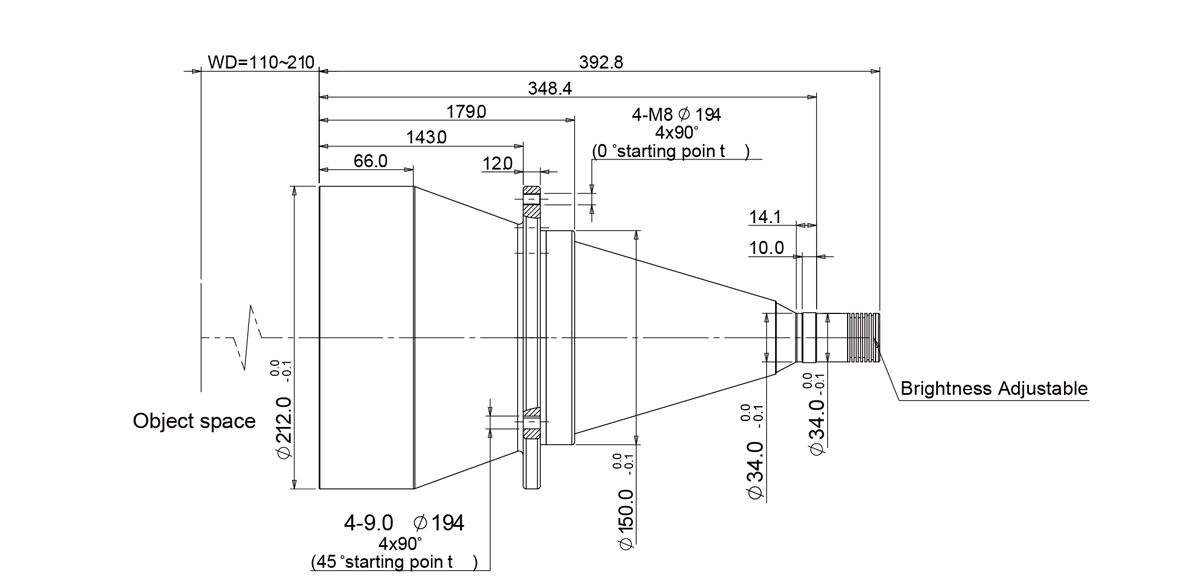

Dimensions

Naming Rule
