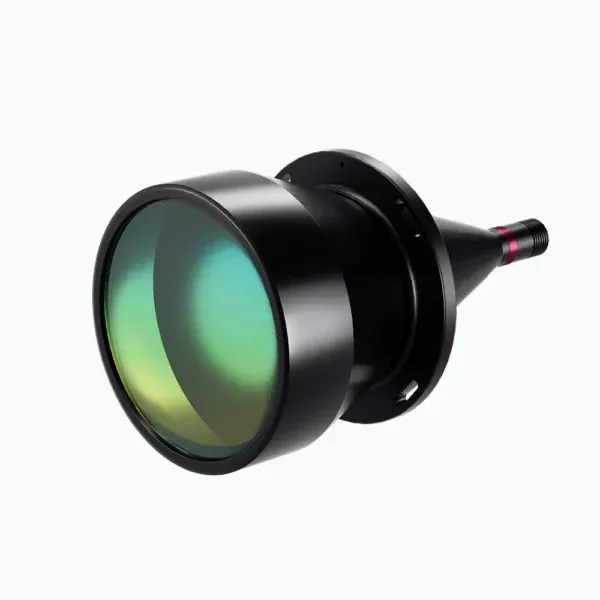

Beam Diamenter 190-Telecentric Illuminators | DTCL-190H-xW-y COOLIGHT®
Beam Diamenter 190-Telecentric Illuminators | DTCL-190H-xW-y COOLIGHT®
•Optically Collimated Light for Increased Edge Contrast •Superior Collimation Ideal for use with Telecentric Lenses •Beam Diameter 190mm •Ideal for Use with High Resolution Cameras
$6,918.00 USD
$0.00 USD
Power
1W
3W
Light Color
Red
Green
Blue
White
Quantity
Only left
Volume Pricing
Quantity
Price
1+
undefined
each
Sold Out
Add to cart
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Download the Specification: pdf
Download the IGES: igs
Download the STEP: step
Model NO.
DTCL-190H-xW-y
Color
Red-630nm
Beam Dia. (mm)
190
Green-520nm
Working Distance(mm)
110-220
Blue-460nm
Diameter (mm)
230
White-/
Power
1W/3W
Voltage
12V~24V
Length (mm)
420.1
Compatible Lens
DTCMxxx-190H
Electricity
350mA/750mA

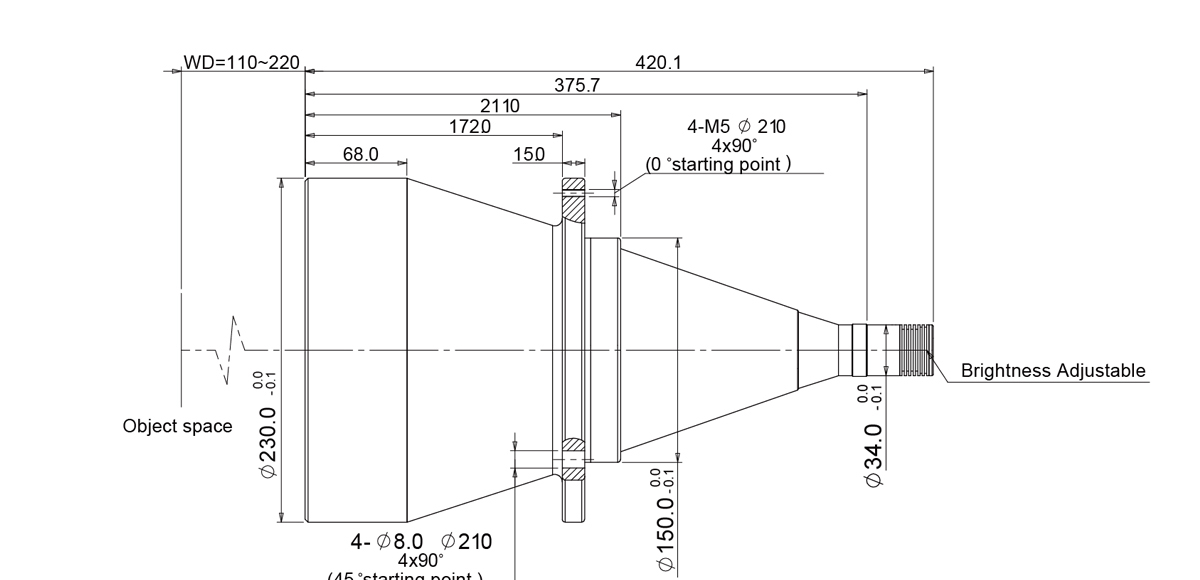

Dimensions
Naming Rule
