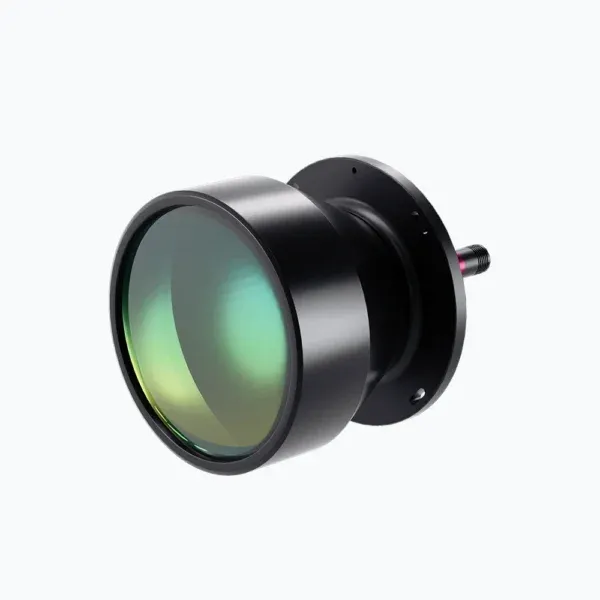

Beam258-Telecentric Illuminators | COOLIGHT®
Beam258-Telecentric Illuminators | COOLIGHT®
DTCL-258-xW-y
Model No: DTCL-258-xW-y •Optically Collimated Light for Increased Edge Contrast •Superior Collimation Ideal for use with Telecentric Lenses •Beam Diameter 258mm •Ideal for Use with High Resolution Cameras
$12,834.00 USD
$0.00 USD
Quantity
Only 100 left
Sold Out
Add to cart
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Click to Download the Specification

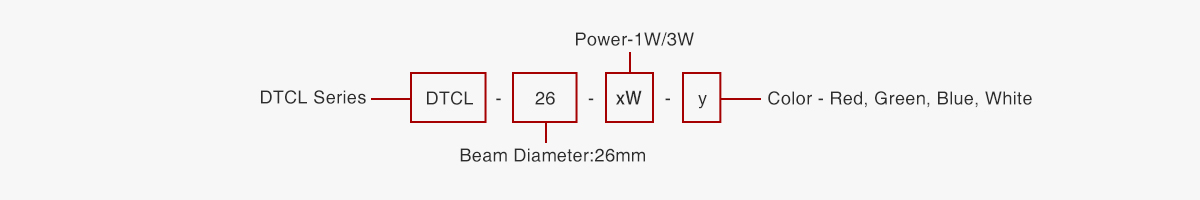

Model NO.
DTCL-258-xW-y
Color
Red-630nm
Beam Dia. (mm)
258
Green-520nm
Working Distance(mm)
145-290
Blue-460nm
Diameter (mm)
300
White-/
Power
1W/3W
Voltage
12V~24V
Length (mm)
436.8
Compatible Lens
DTCMxxx-258
Electricity
350mA/750mA

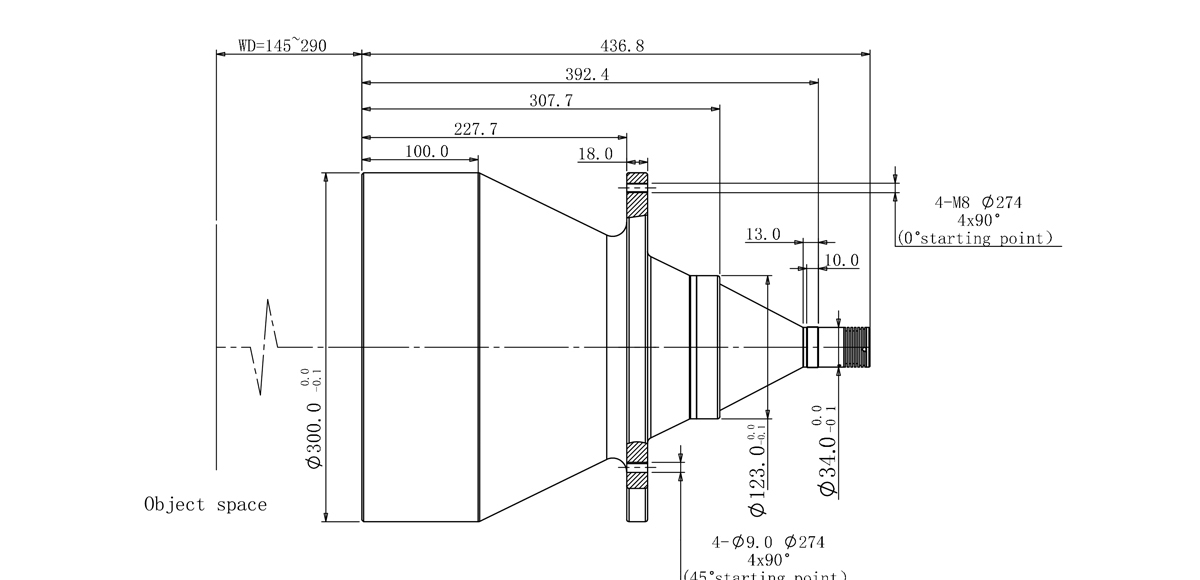

Dimensions
