Home / 1.2" 70mm Fixed Focal Length Lens | MFA121-U70 COOLENS®

1.2" 70mm Fixed Focal Length Lens | MFA121-U70 COOLENS®

MFA121-U70
Image Circle: 1.2" Focal Length: 70mm MTF30 (lp/mm):200 Mount: C"
$261.00 USD $0.00 USD
Quantity
Only 997 left
Buy now
Description

Model NO. MFA121-U70 Focal Length(mm) 70
Image Circle Diameter (Φmm) 1.2" Magnification(x) Adjustable
Working Distance(mm) Min.200 MTF30 (lp/mm) 200
Type Fixed Focal Length Support Cameras 24M
Max Diameter(RATIO) F=4.0~16 Supported Camera Resolution 25M
Length (mm) 79.42
Angle H 1'' 9.2° 1.1" 10.4° 1.2" 10.3°
V 7.2° 7.8° 9.3°
D 11.7° 12.9° 13.9°
Distortion(TV) <0.08% Focus Distance(min) 0.5M
Flange Back 17.526mm in air Back Focus 19.6mm in air
Filter Screw Size M35.5x0.5 Dimension Φ38.6x79.42mm
Mount C-Mount Temperature Range -10~+50°C
Flange Back -20~+60°C

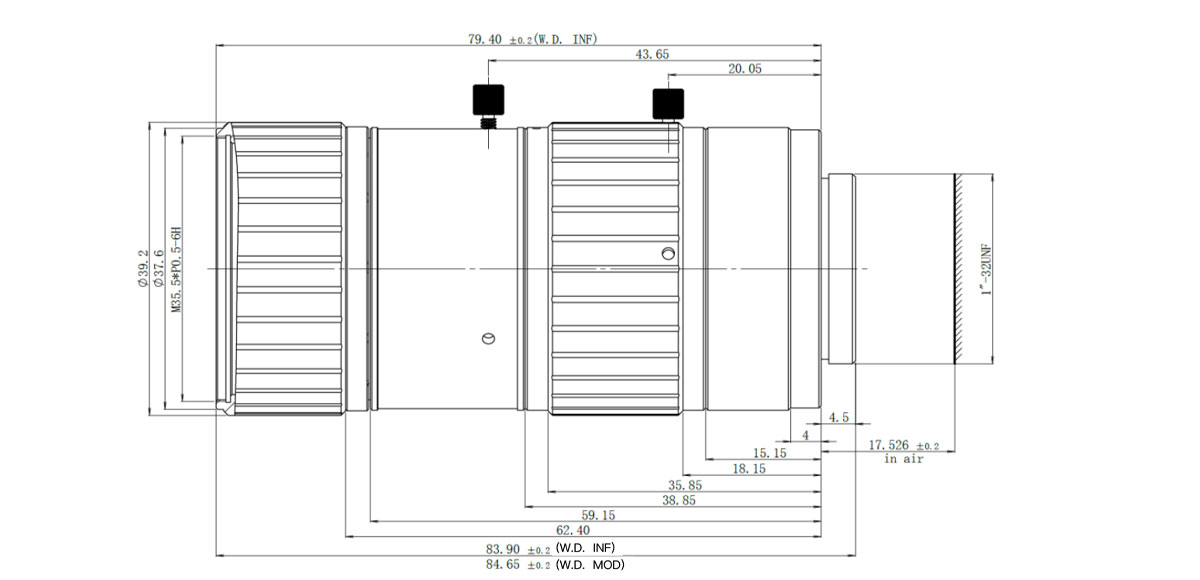

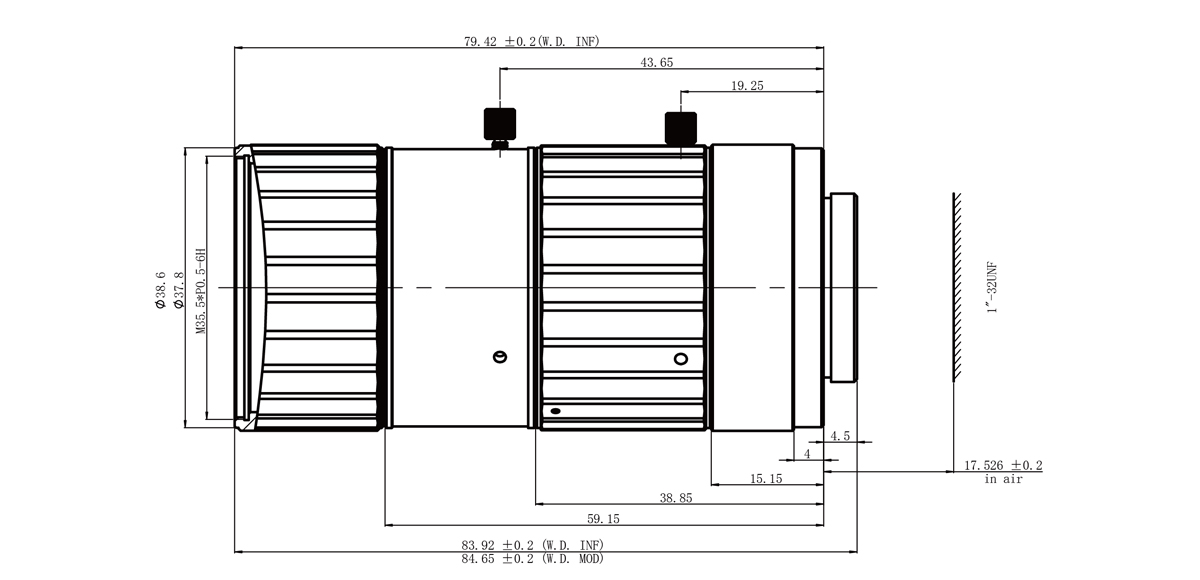

Dimensions

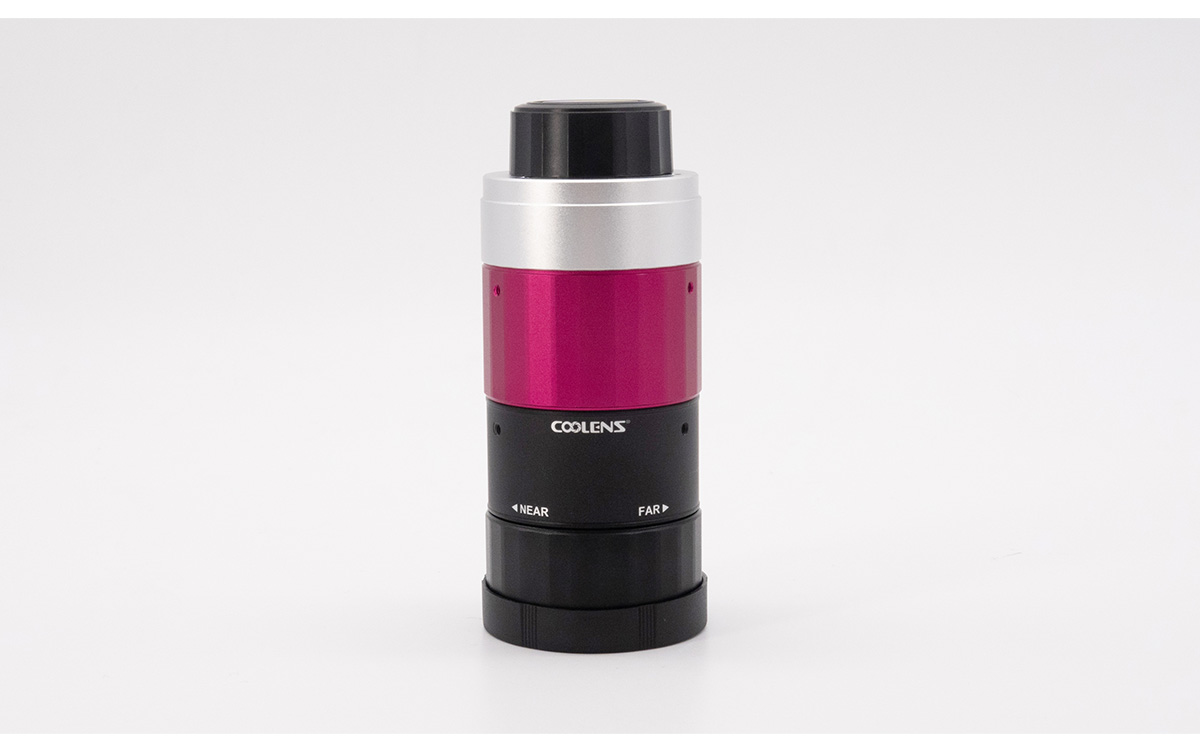

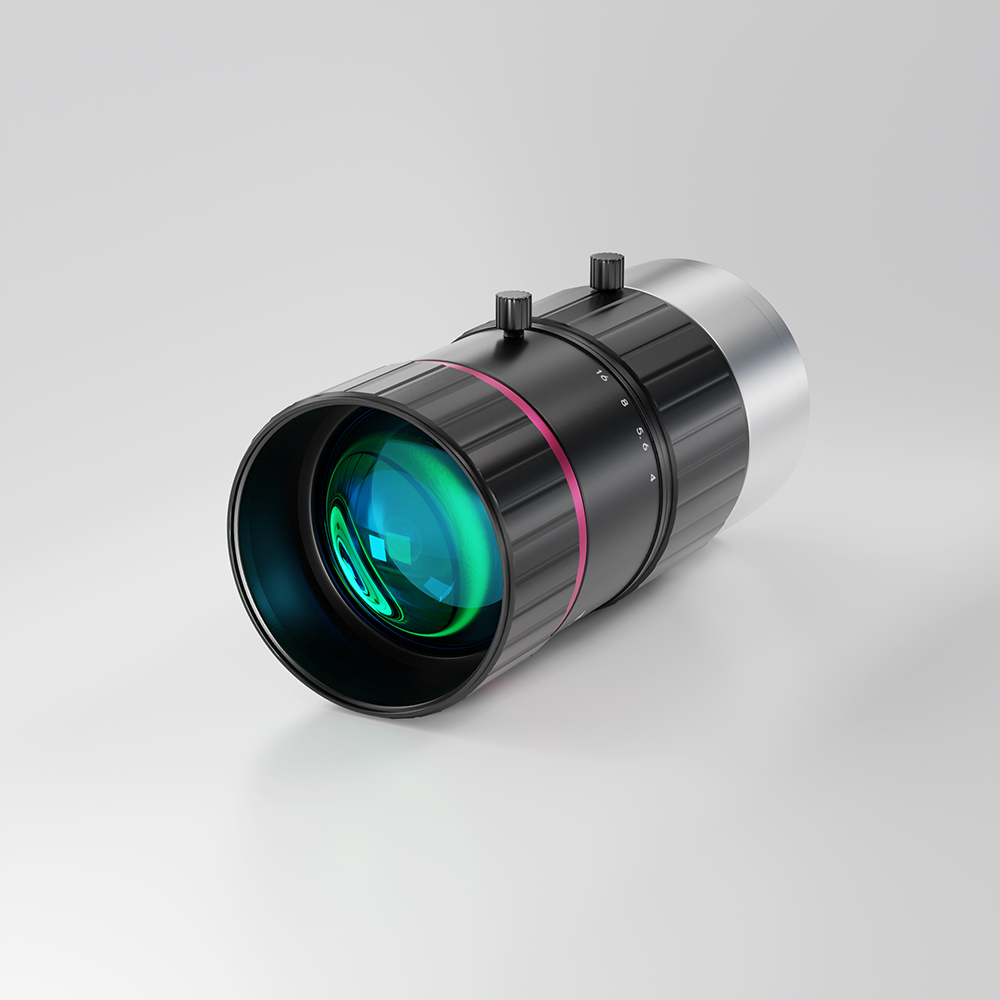

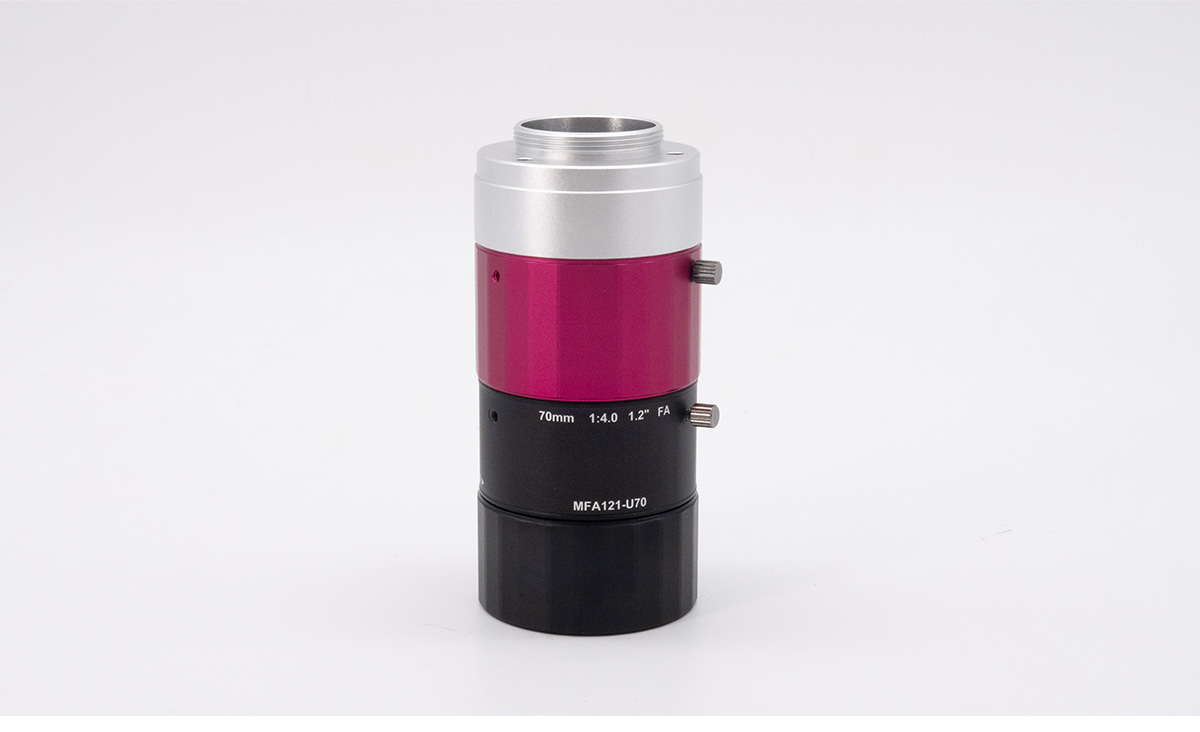

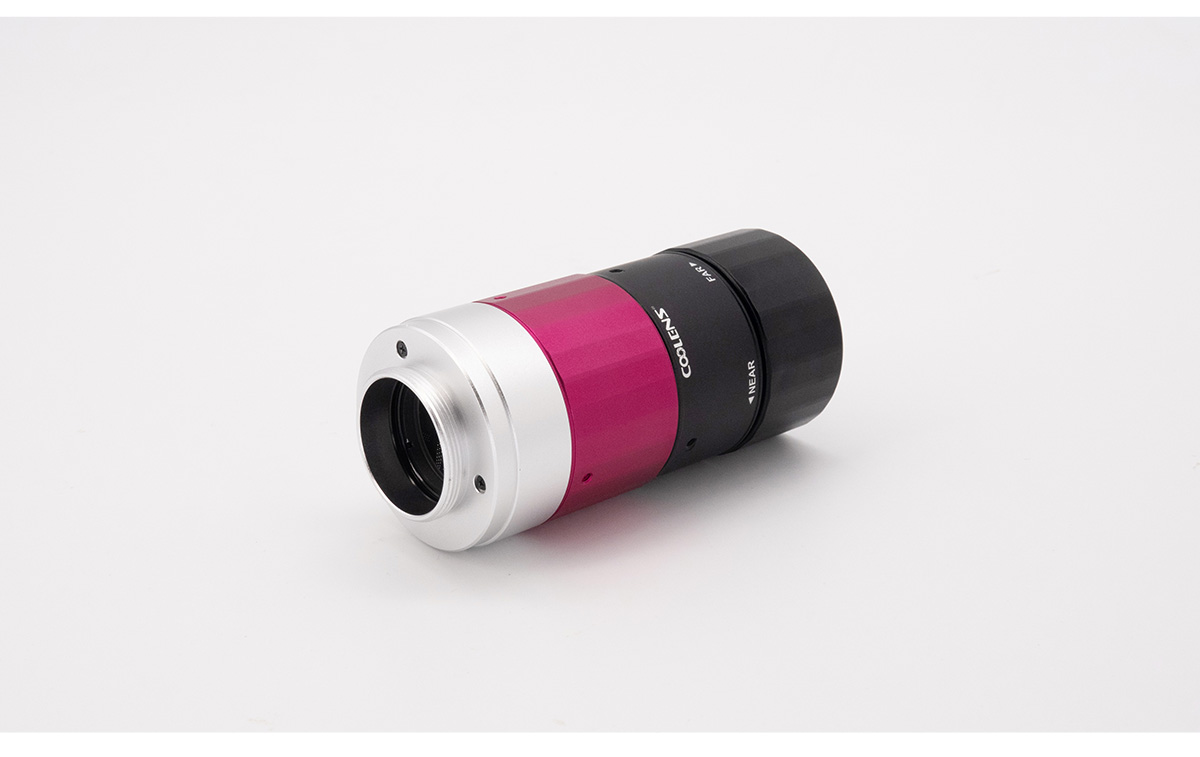

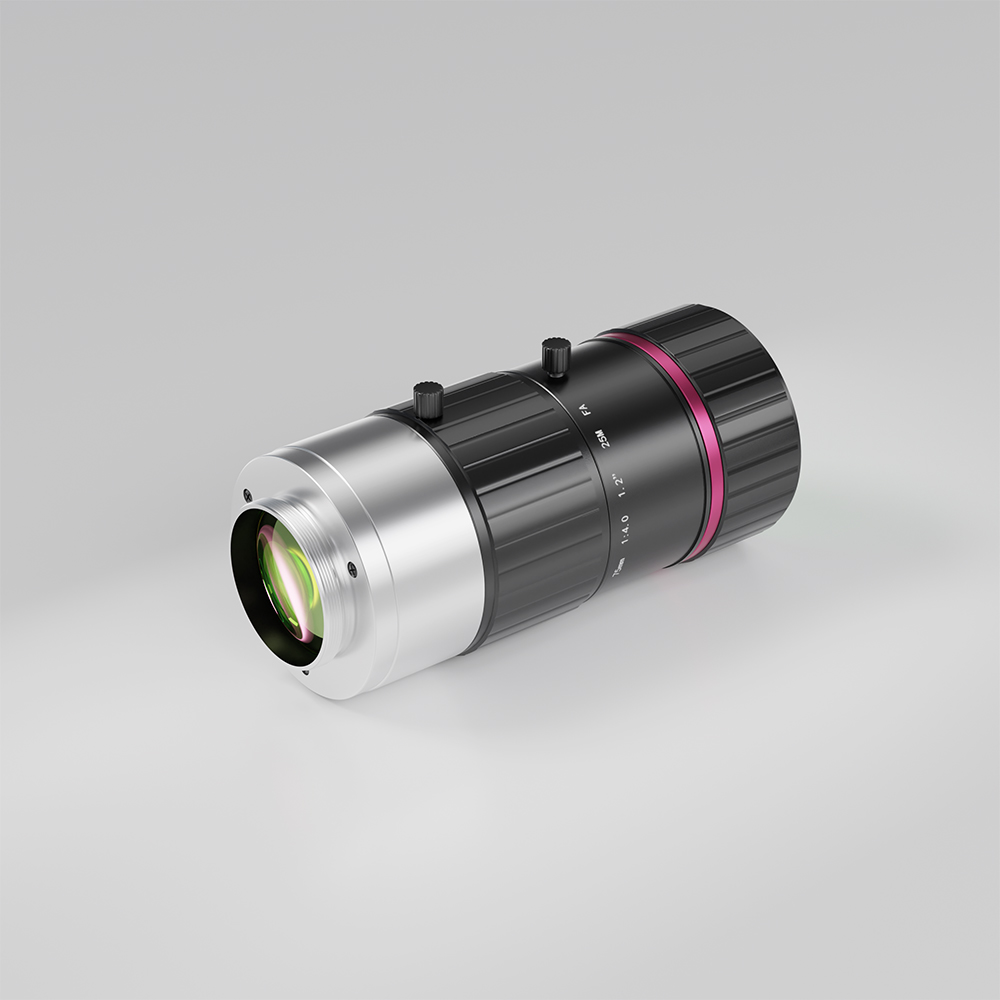

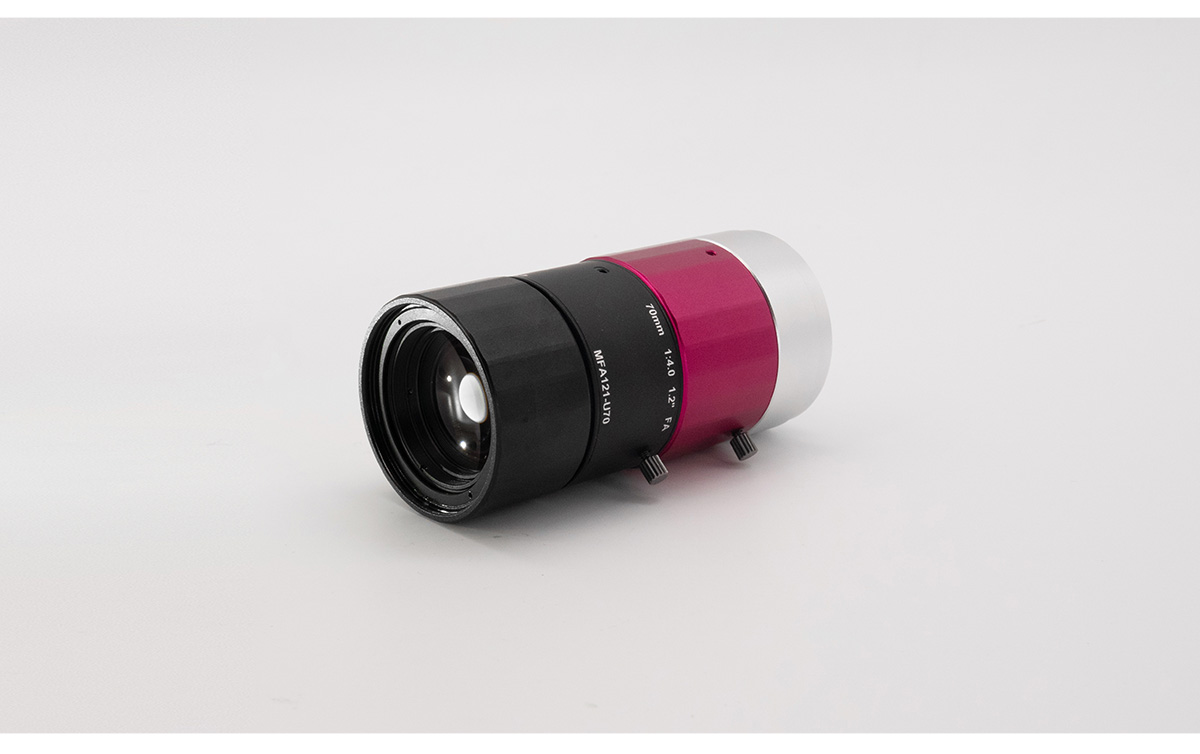

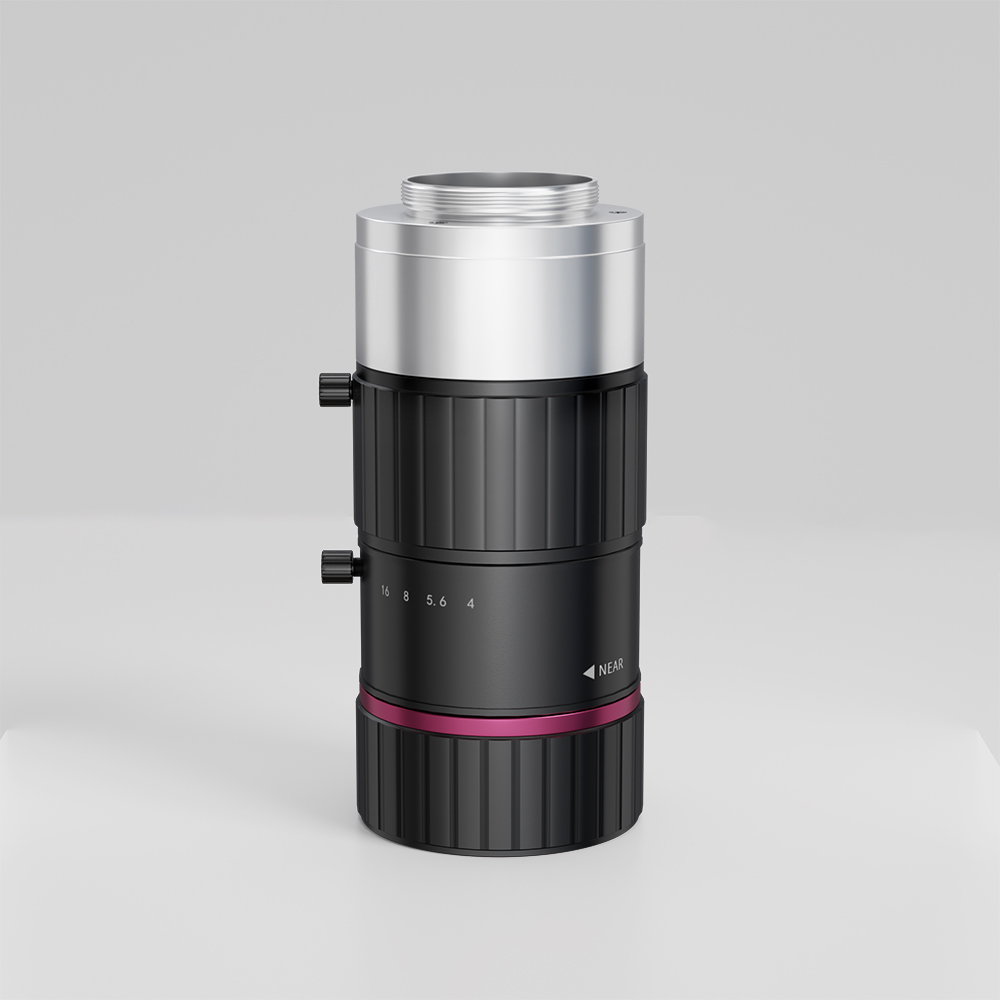

Product Photograph
