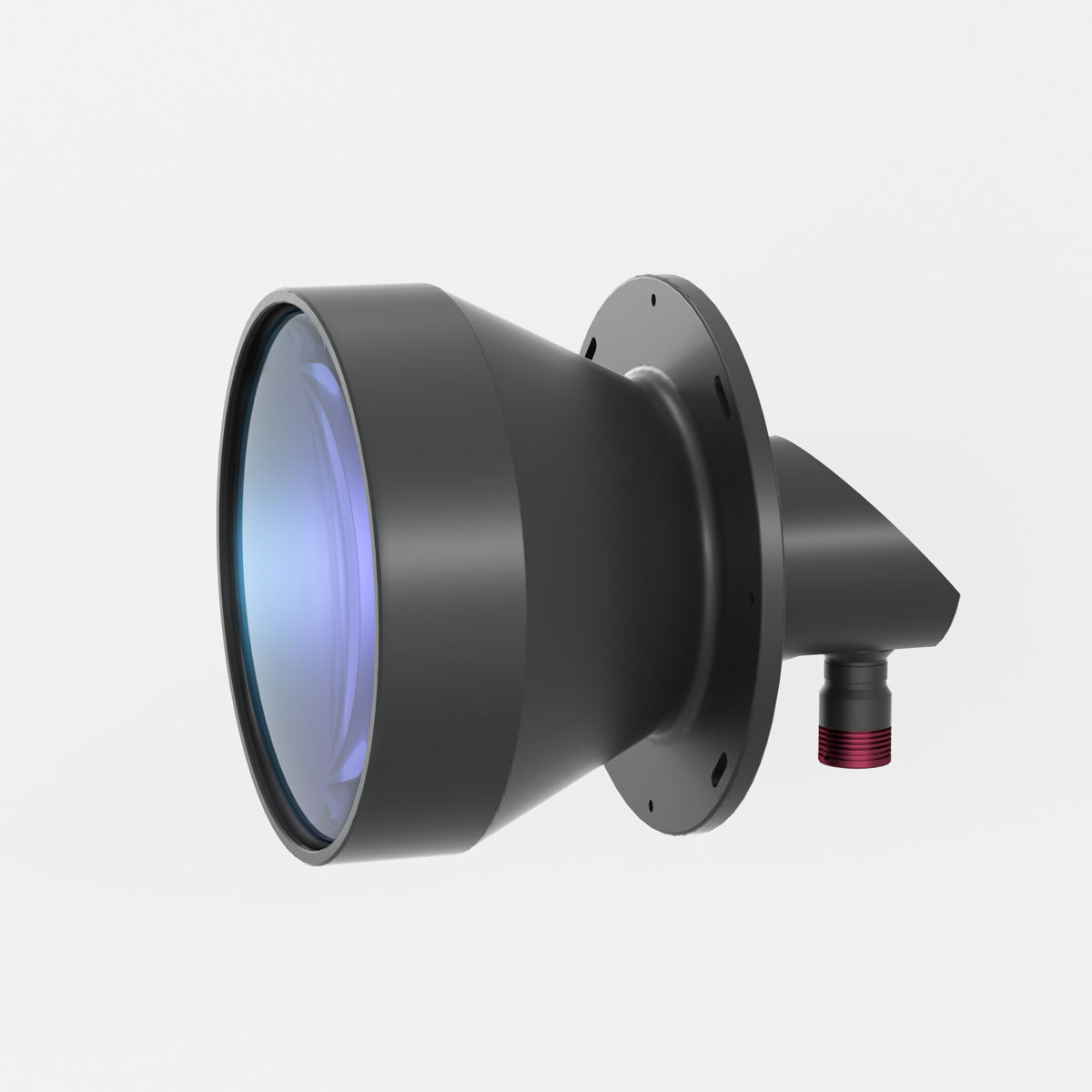

COOLIGHT® | Beam258-Telecentric Illuminators

DTCL-258H-T90-xW-y

• Specially developed for backlights which is for the objects inspected by telecentric lens; • All light from DTCL series light source collected by telencentric lens goes into camera to ensure high SNR; • More accurate imaging compared with diffusing light resource by decreasing diffuse reflection on edge; • Develop Telecentricity and DoF for the telecentric lens.

$8,500.00 USD

Quantity

Only 8 left

Description

Beam Dia.(mm)	Color	WorkingDis.(mm)	Length(mm)	Max Diameter(mm)	CompatibleLens	Voltage	Power	Electricity
258	R/G/B/W	145-290	355.2	300	DTCMxxx-258	12V~24V	1W/3W	350mA/750mA
