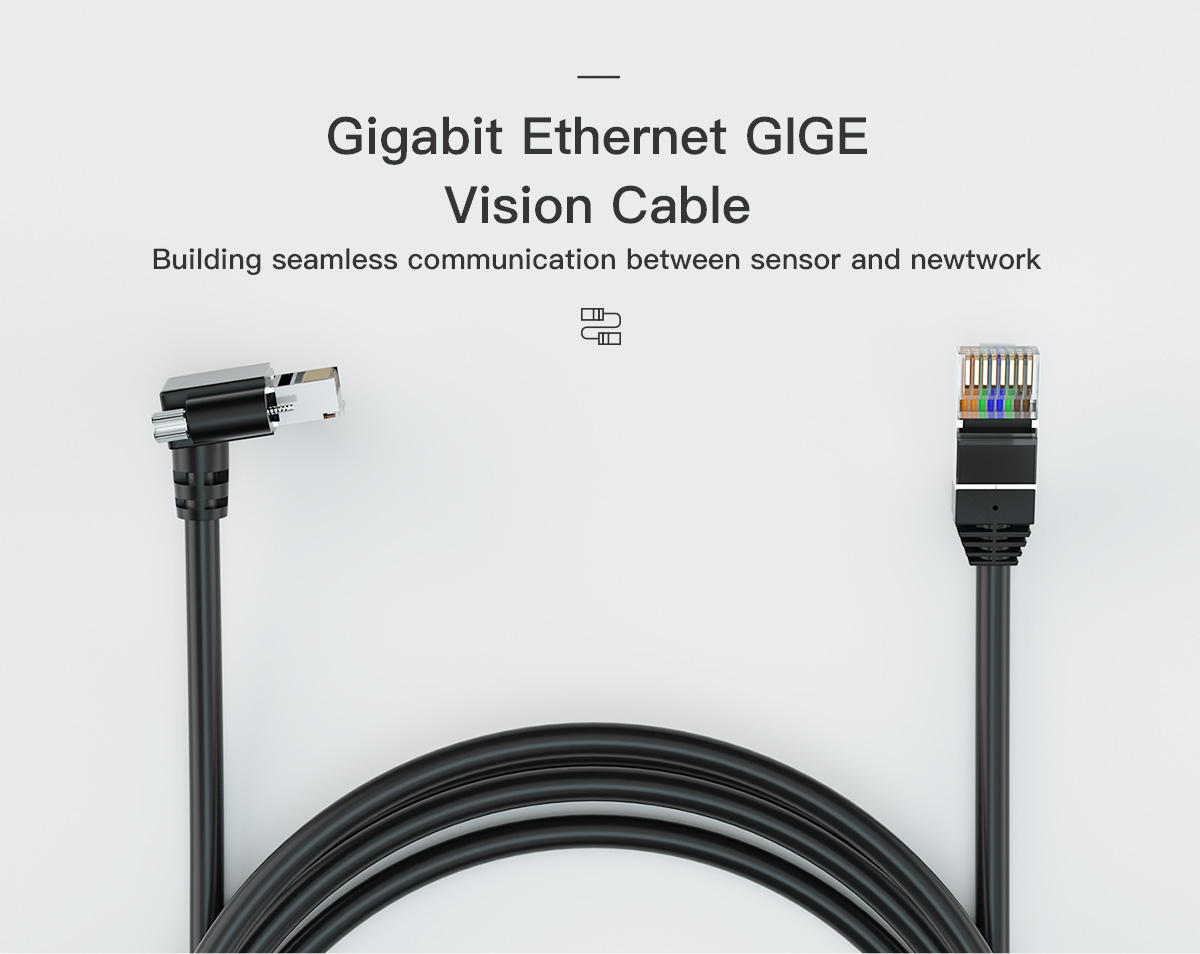

GigE vision Cat5E High Flex Ethernet Up Angle Horizontal Screws Cable | For Machine Vision

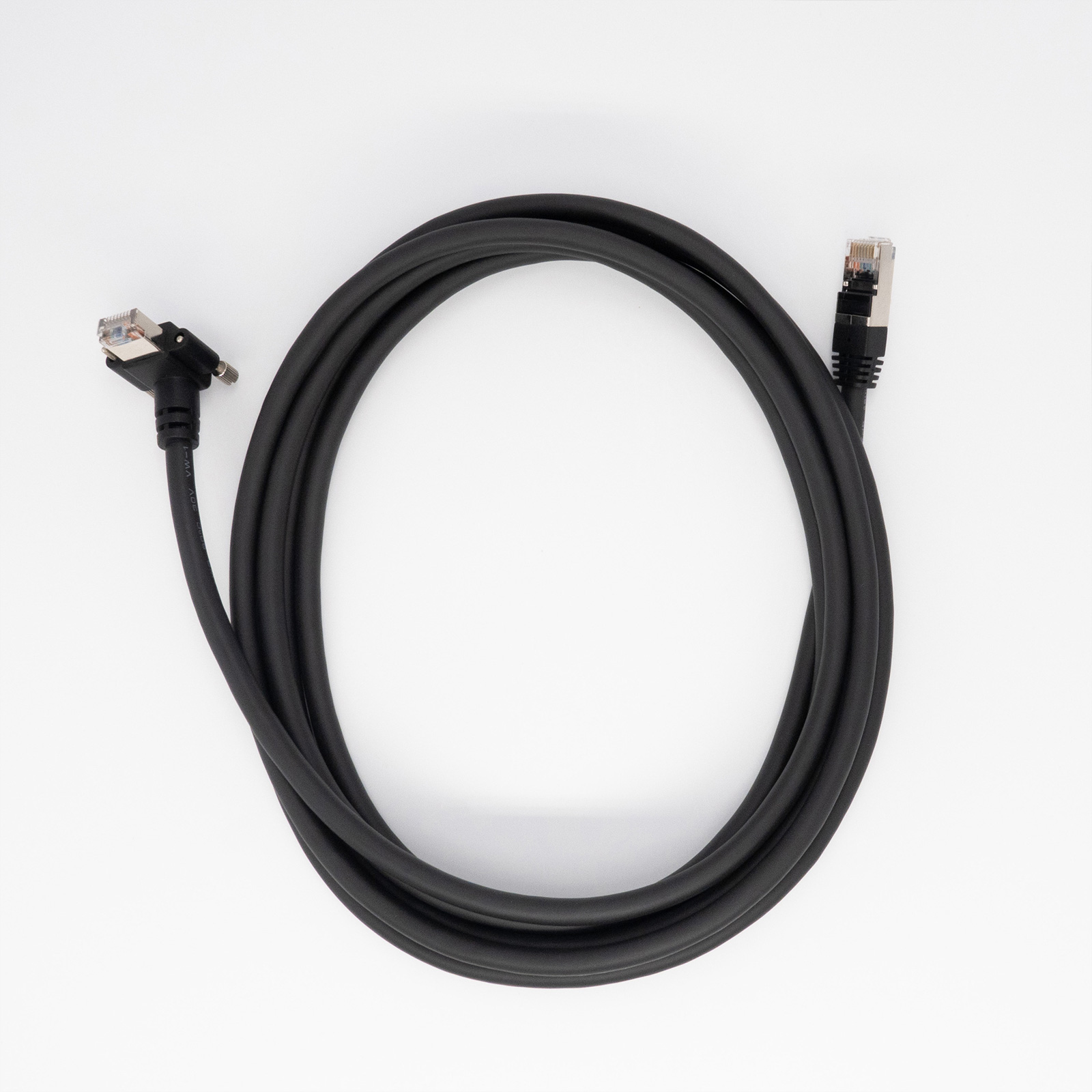

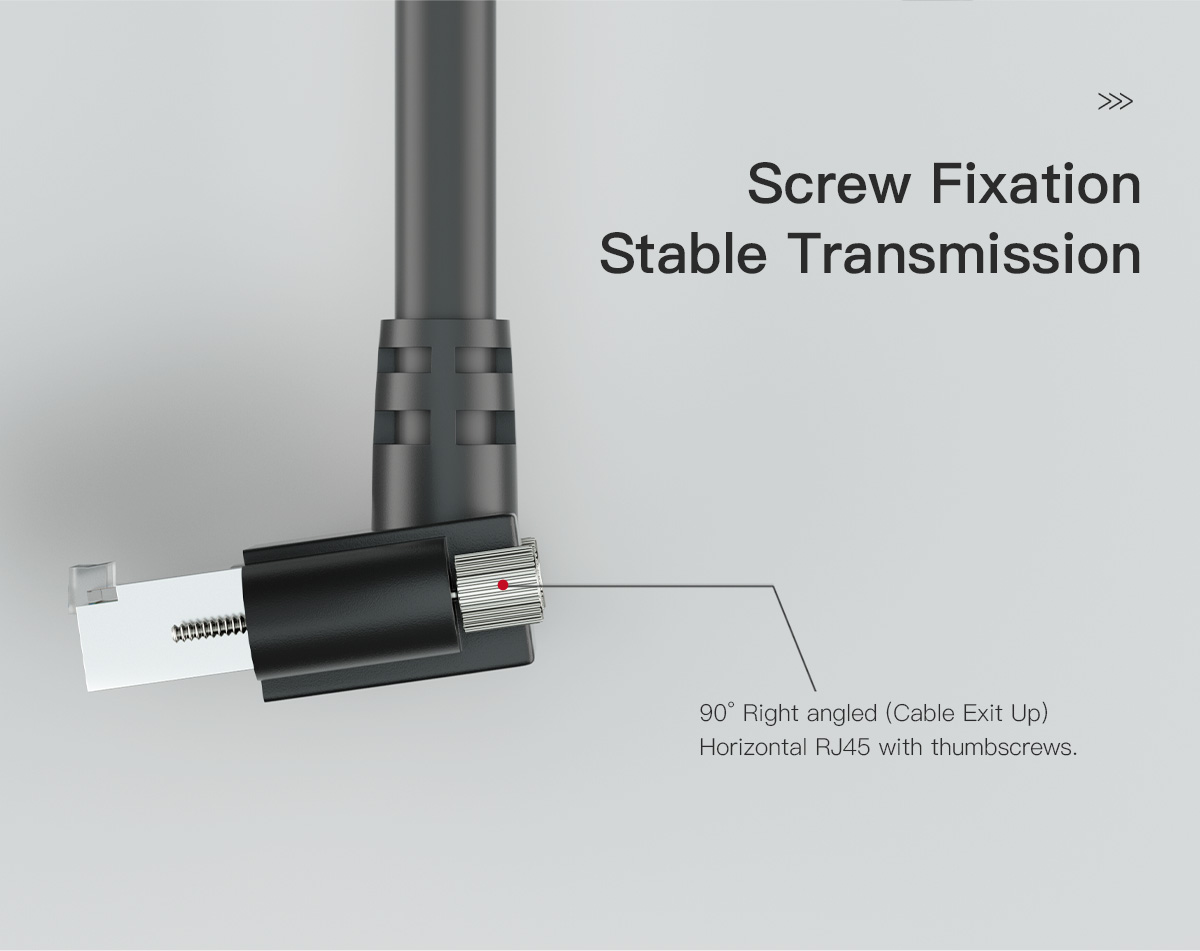

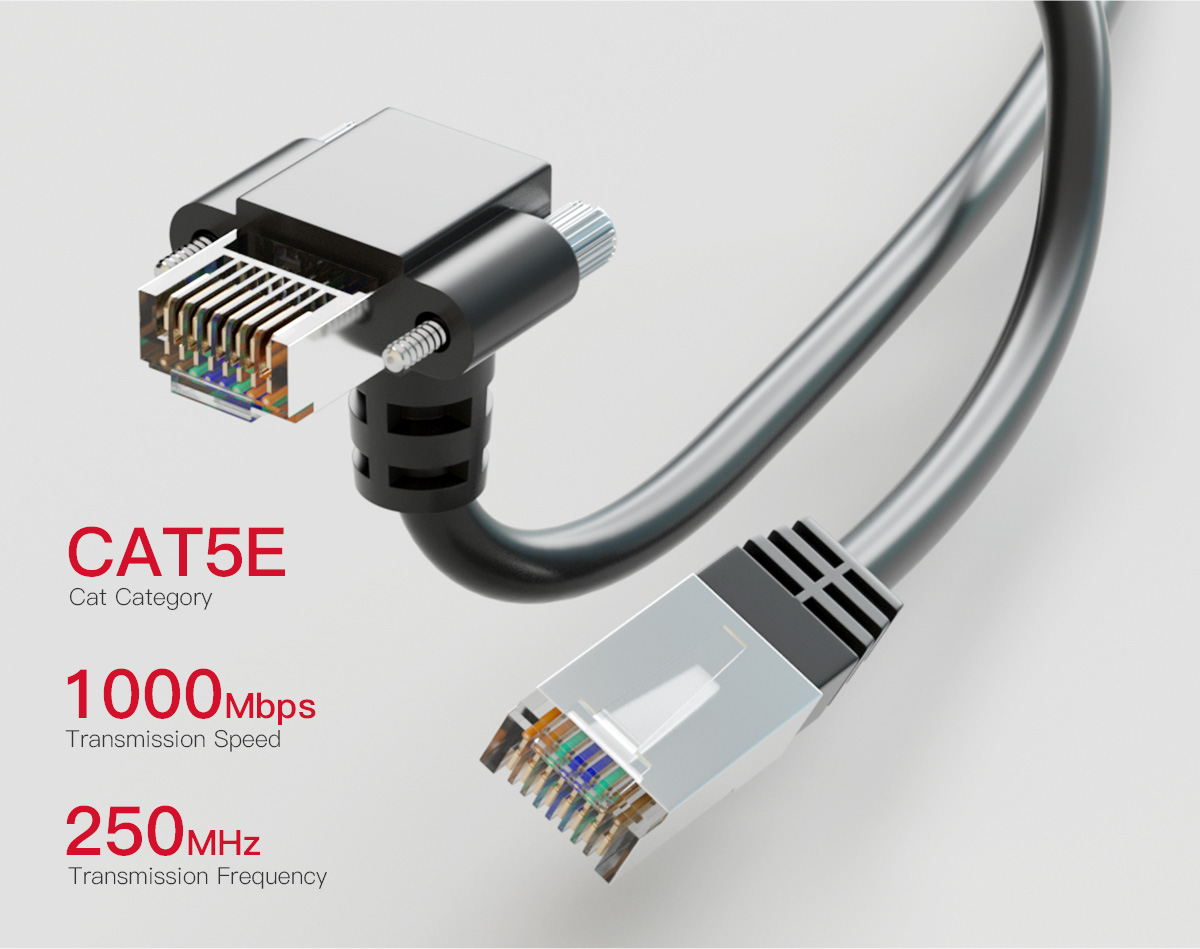

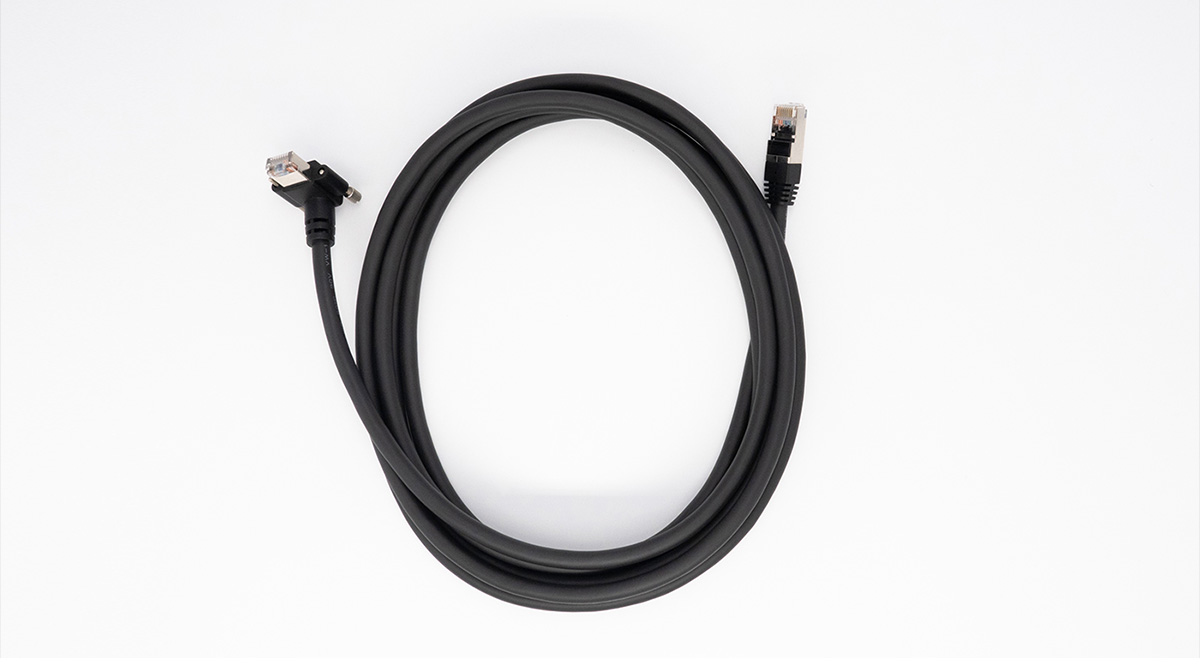

Model No: OLA-GIGE-7-1-2-XM Connector A: RJ45 Straight, Connector B: RJ45, 90° Right angled, Cable Exit Up, with horizontal screws Cable Type: High Flex (Cables are drag chain tested to 20 million cycles at 9xd cable OD.) Shielded: Double shielded braid + foil design for maximum protection from EMI/RFI. Flame Retardant Grade: VW-1
$25.00 $0.00
FREE SHIPPING
Length
3M
5M
8M
10M
Quantity
Only 100 left

Reliable Manufacturer

Fast Delivery

Always Care Your Needs

Return & Refund Policy

Description

High Flex

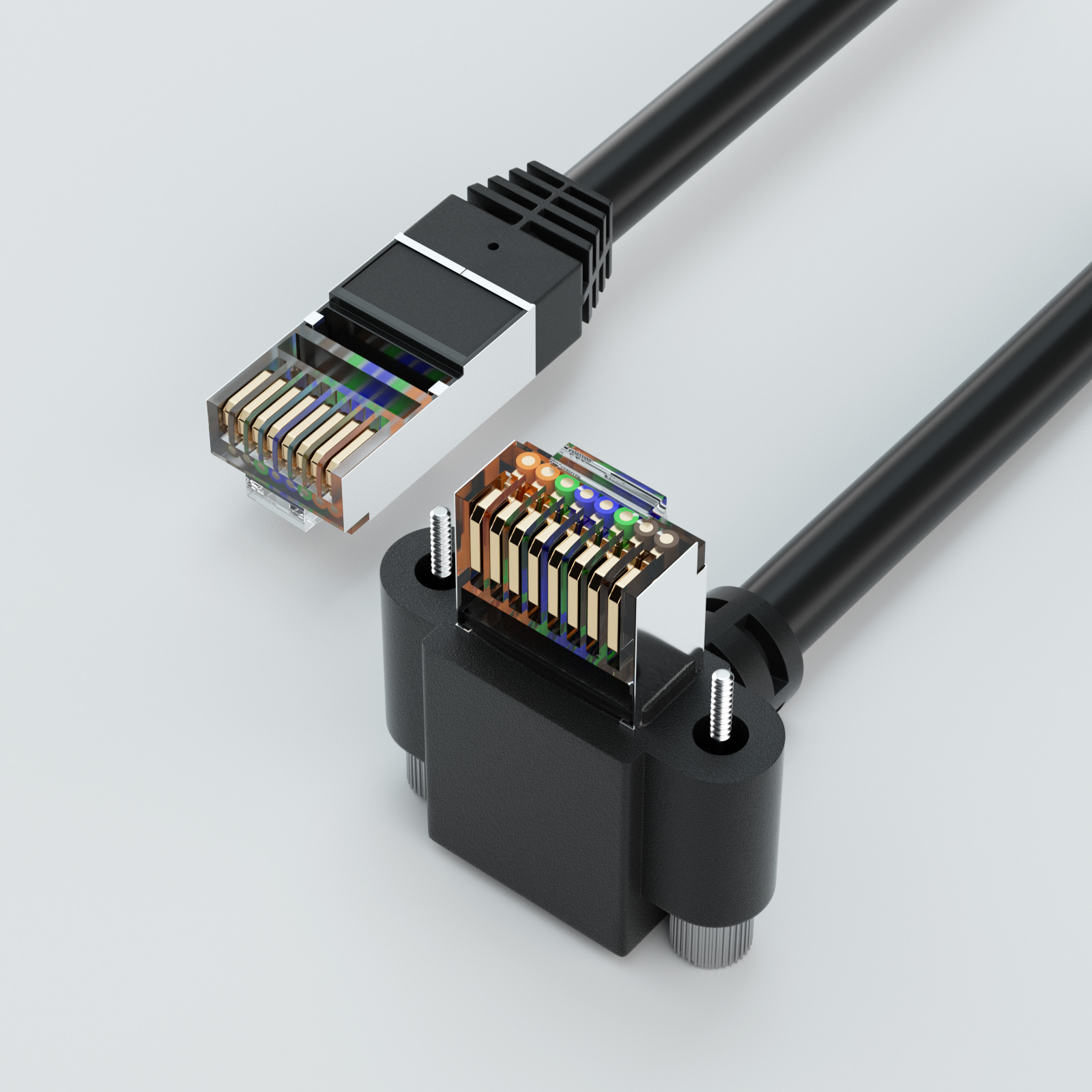

RJ45 Straight

RJ45, 90° Right angled

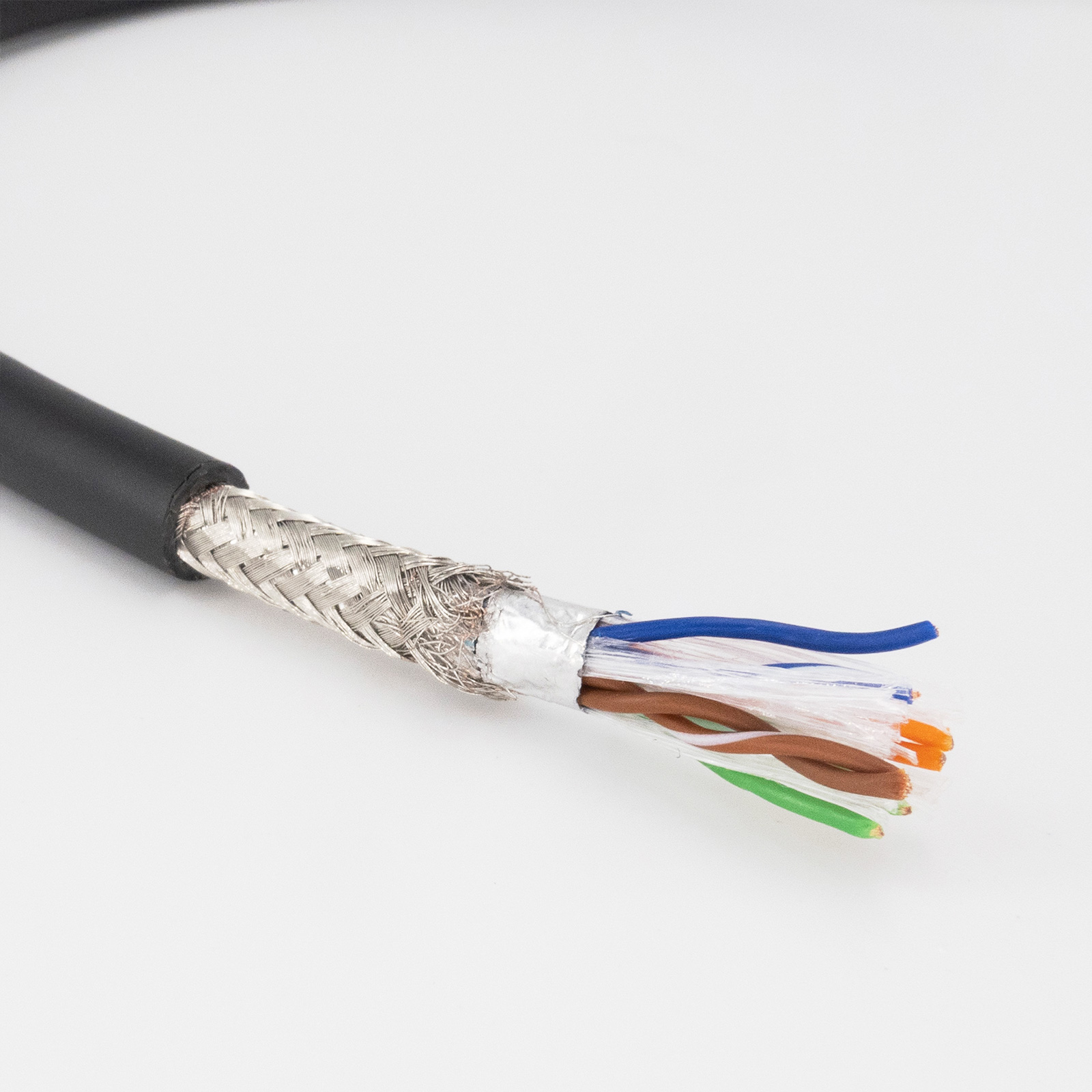

 Double shielded braid

These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

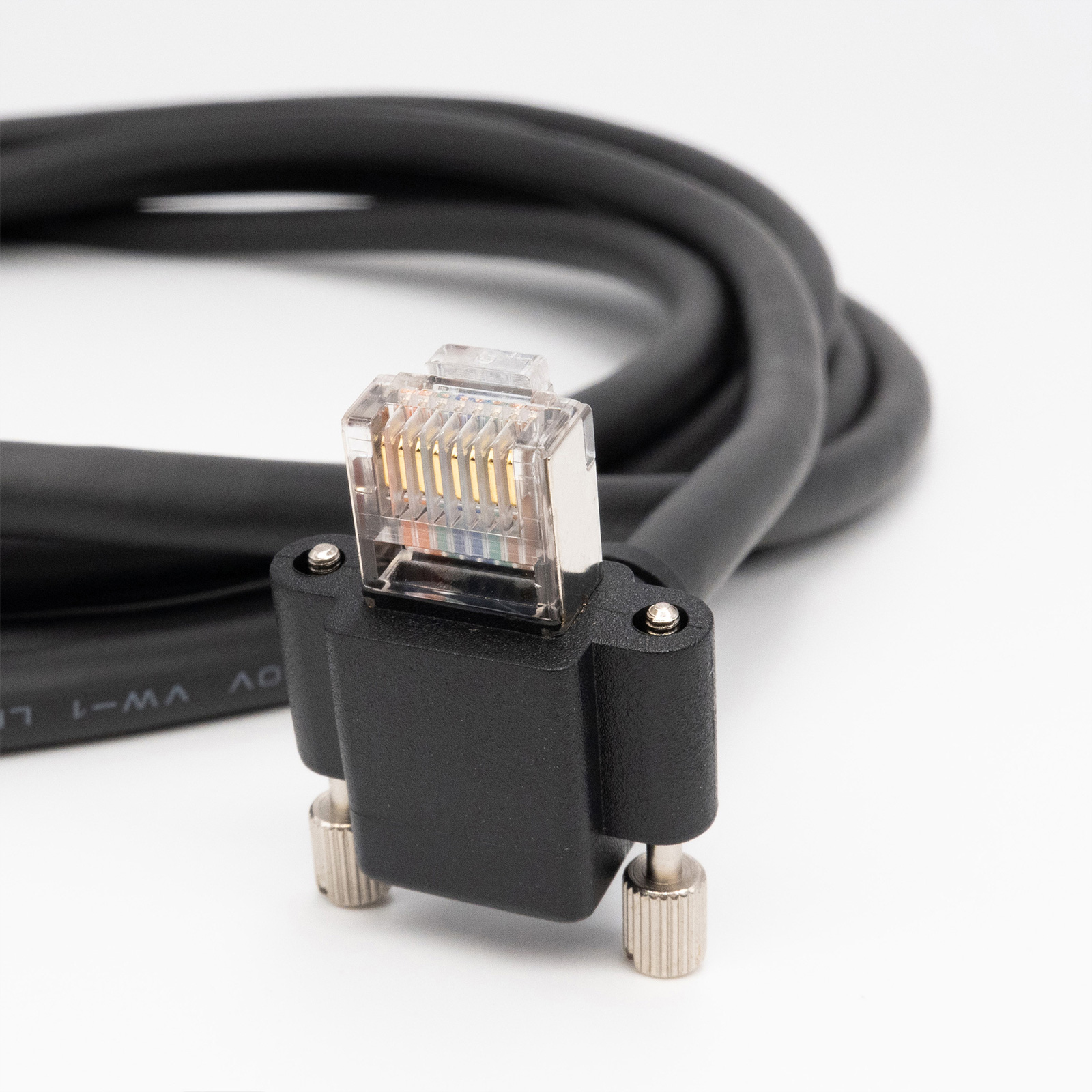

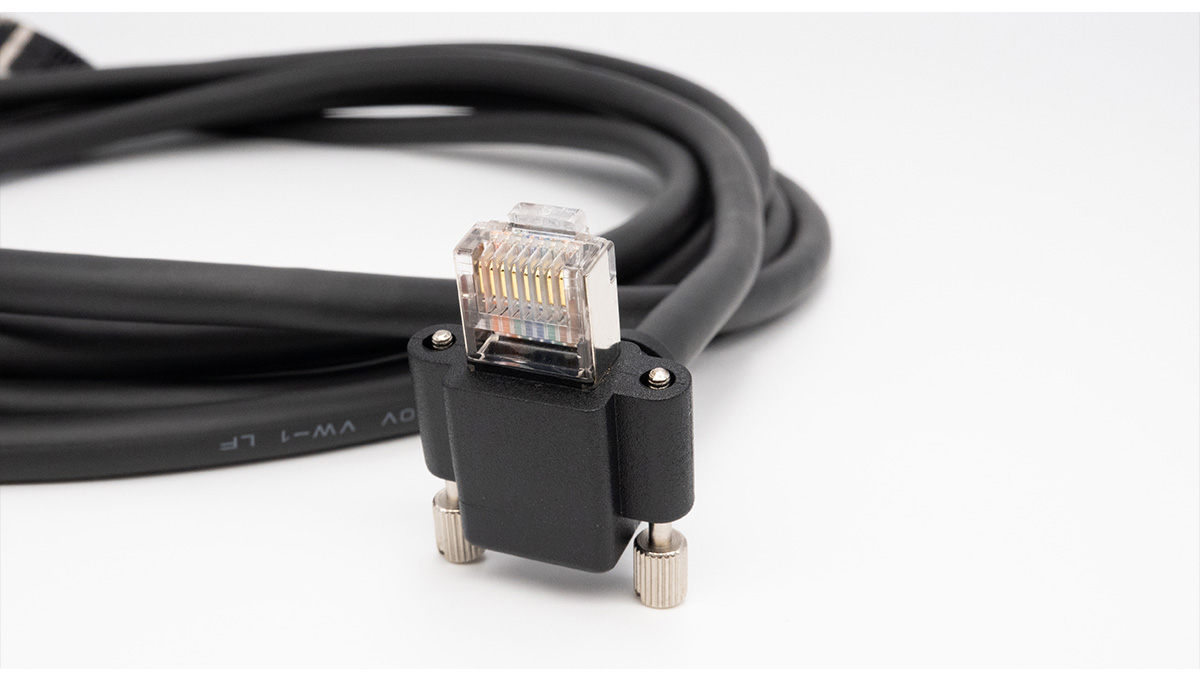

• This twisted GigE cable is used for data transmission and comes outfitted with two RJ45 plugs, one with horizontal screw.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain test 20KK cycles.

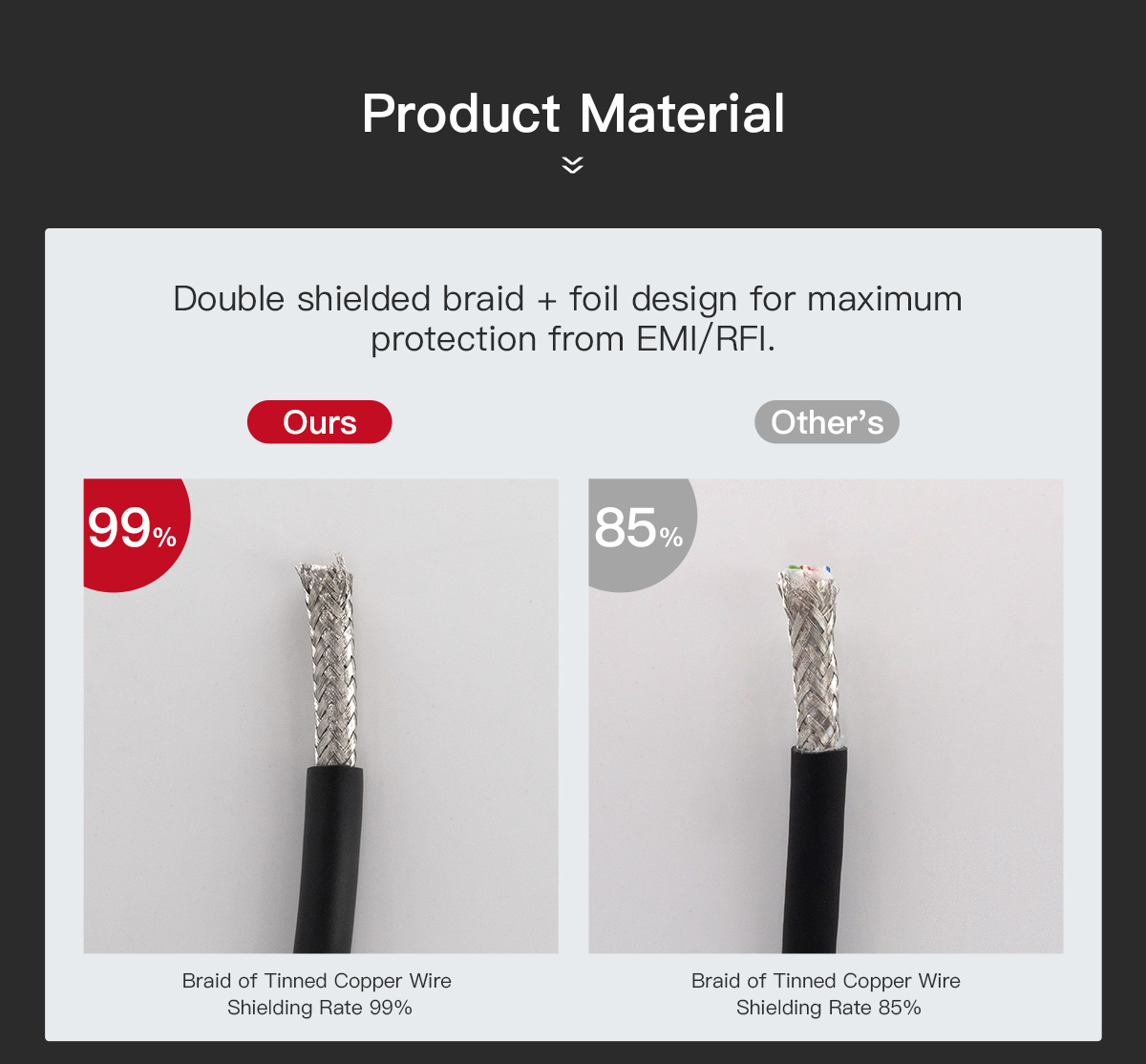

• 99% shielded, reliable signal transmission, 360 degree omni-directional Shielding in EMI Environment.

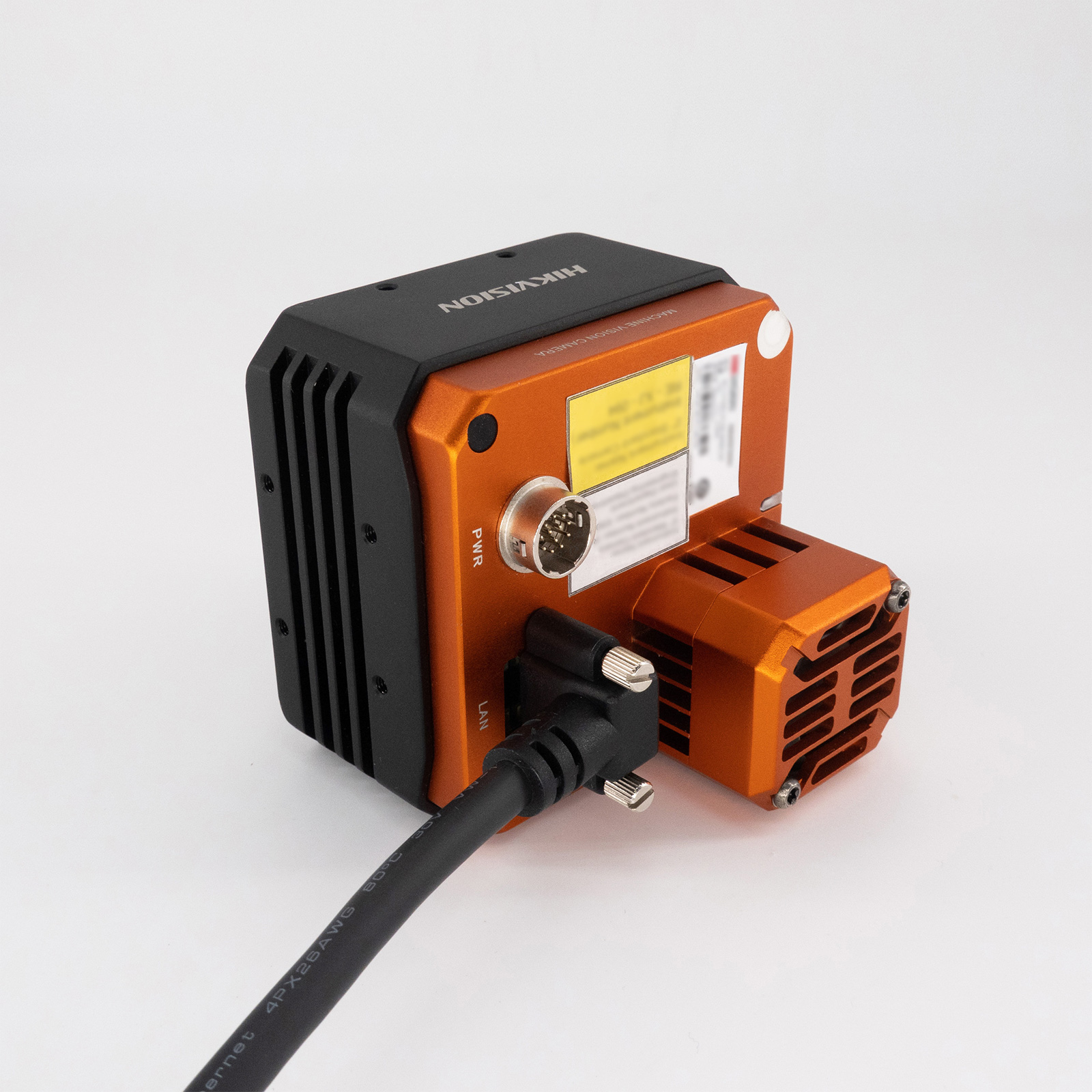

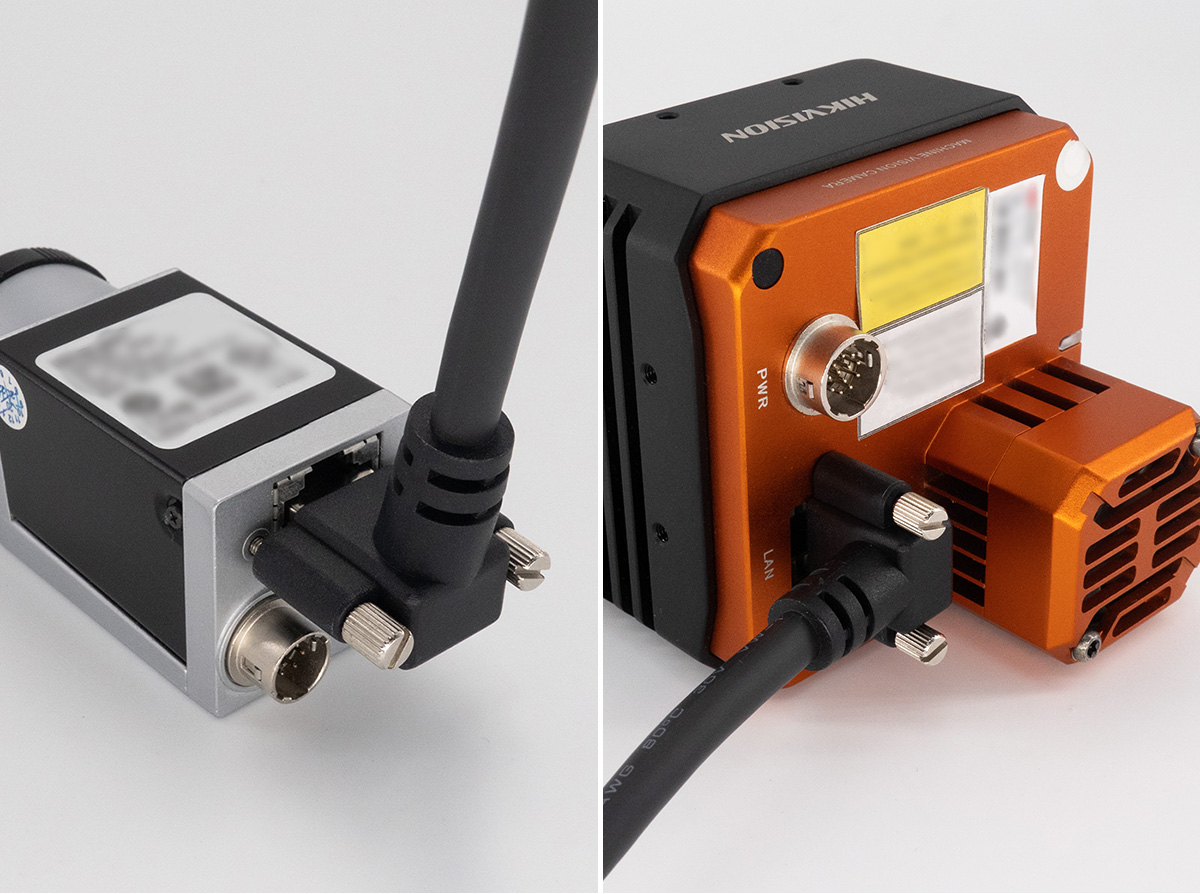

• For industrial machinery, Basler Sony Cognex CCD cameras, Matrix Vision Camera, Triton camera models, Networks, Ethernet, Power.

Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation
Delivery Time: 4-10 working days
Payment Terms: online or T/T

 Connector Specification

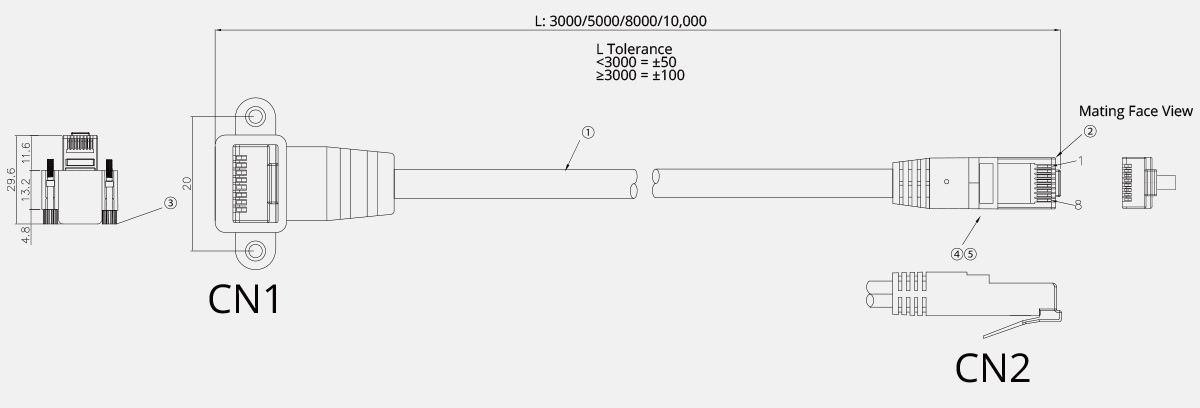

Bill Of Materials Wiring Diagram
Item Description QTY Specification
Wire 1 GIGE CABLE CAT5E BLACK LF 4PX26AWG
RJ45 Connector 2 8P8C
Screw Rod 2 M2.0*0.4 4.75
Inner Mold 1 PE(J5019)
Outer Mold 1 DWHC-10035(Black)



Drawing Pair Twist Insulator Colour
Pair Twist Insulator Colour 1 Insulator Colour 2
1 Blue Blue / White
2 Orange Orange / White
3 Green Green / White
4 Brown Brown / White
Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others.

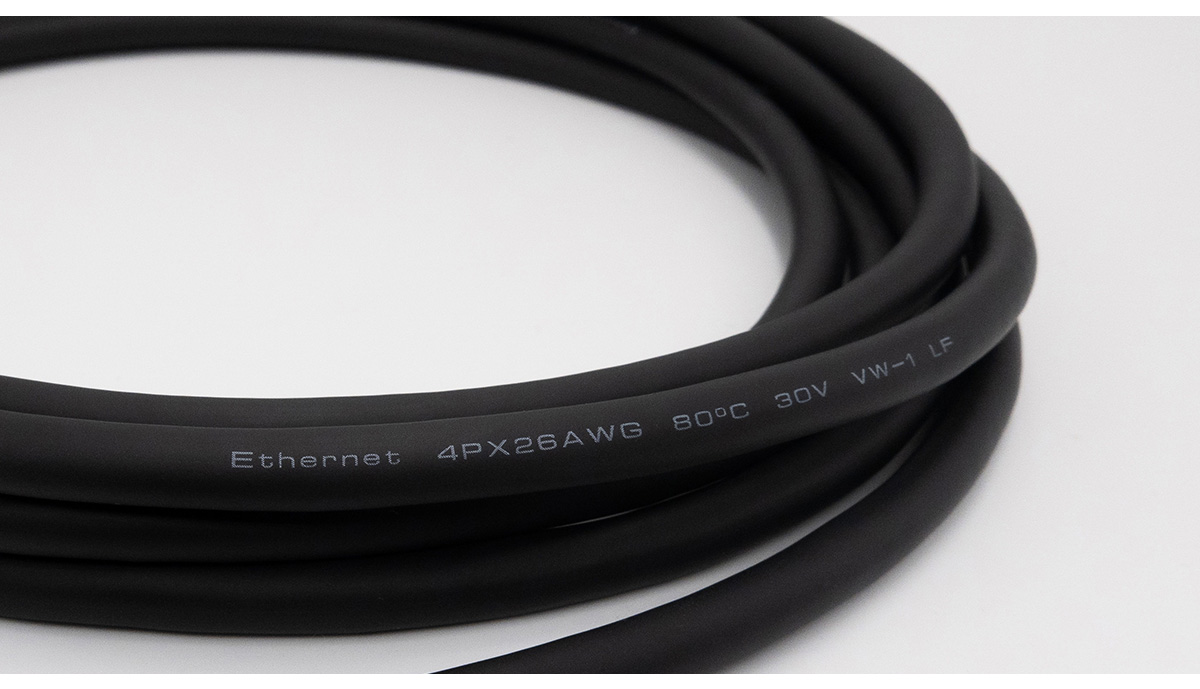

Model NO. OLA-GIGE-7-1-2-XM CABLE Printing Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF
Style GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG Size 4PX26AWG
Approbation UL20276 AWM 80°C 30V Flame Retardant Grade VW-1
Conductor




Size 26AWG/4P Shielded
Al/Pet 0.05*20mm

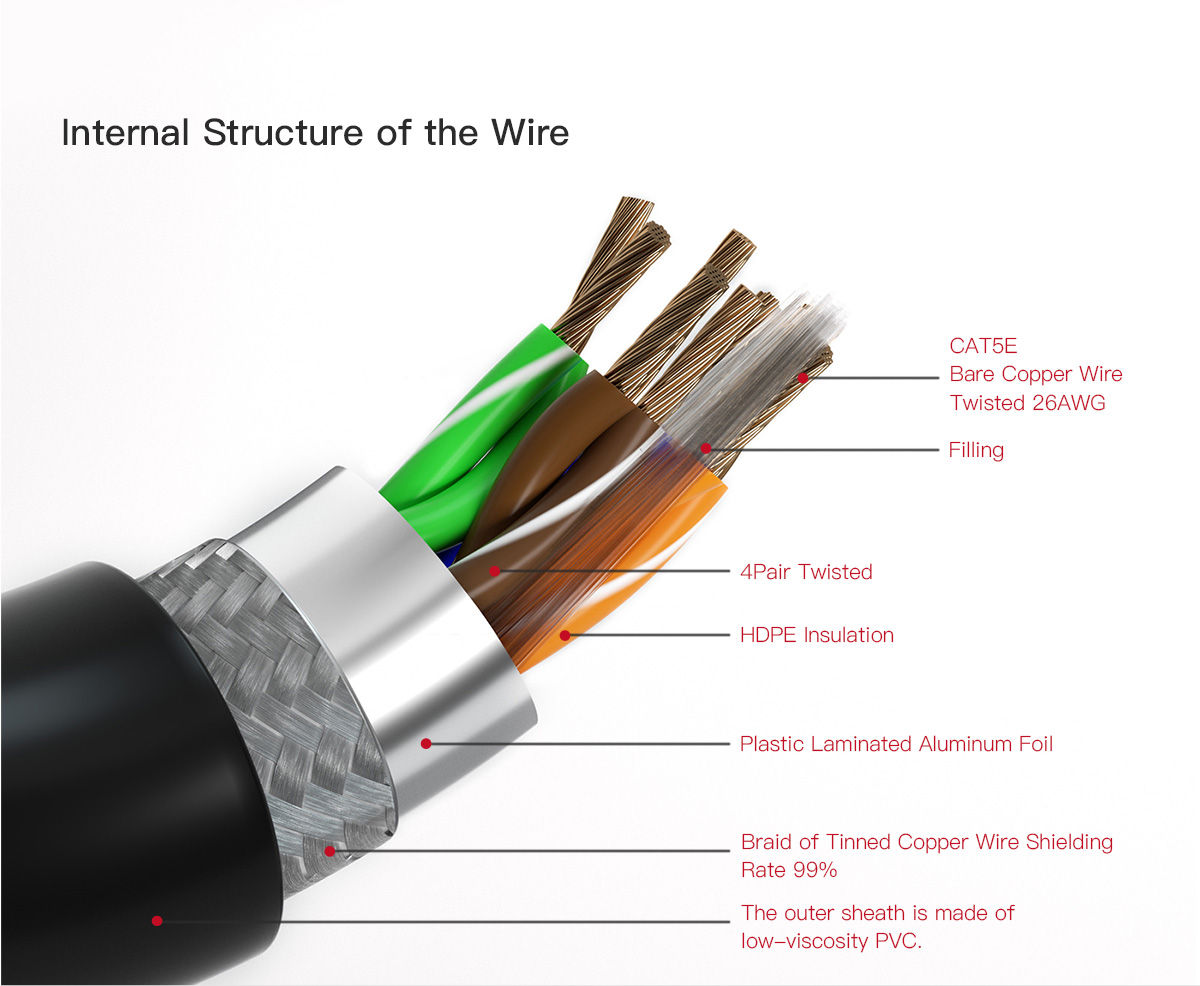

Cond. Material Bare Copper BC Braid 24/8/0.1TC
Construction 30/0.08 BC Covered 99% Min
Diameter 0.51mm Jacketed
Material PVC
Tolern ±0.003mm Avg.Thick. 0.765mm
Insulation Material HDPE Min.Thick. 0.723mm
Avg.Thick. 0.207mm Diameter ø6.5±0.2mm
Min.Thick. 0.184mm Colour Black (Similar to RAL 9005)
Diameter 0.95±0.05mm
Electrical Properties
Conductor Resistance  ≤124 Ω/km 20°C
Colour (Bule*Bule/White) Test Voltage 500V/1min
(Orange*Orange/White) Insulating Resistance > 10 MΩ/km 20°C
(Green*Green/White) Characteristic Impedance 100±15Ω
(Brown*Brown/White) Wokring Tempearture Fixed Installation -20°C ~ 80°C
Pair Twist
Pair Twist 1P*26AWG Moved Installation -5°C ~ 50°C
Diameter 1.94mm
Minimal Bending Radius
Fixed Installation 5 X Cable-ø
Assembly Standed 26AWG/4P Moved Installation 8.5 X Cable-ø
Quality Certifications

Product Photograph
