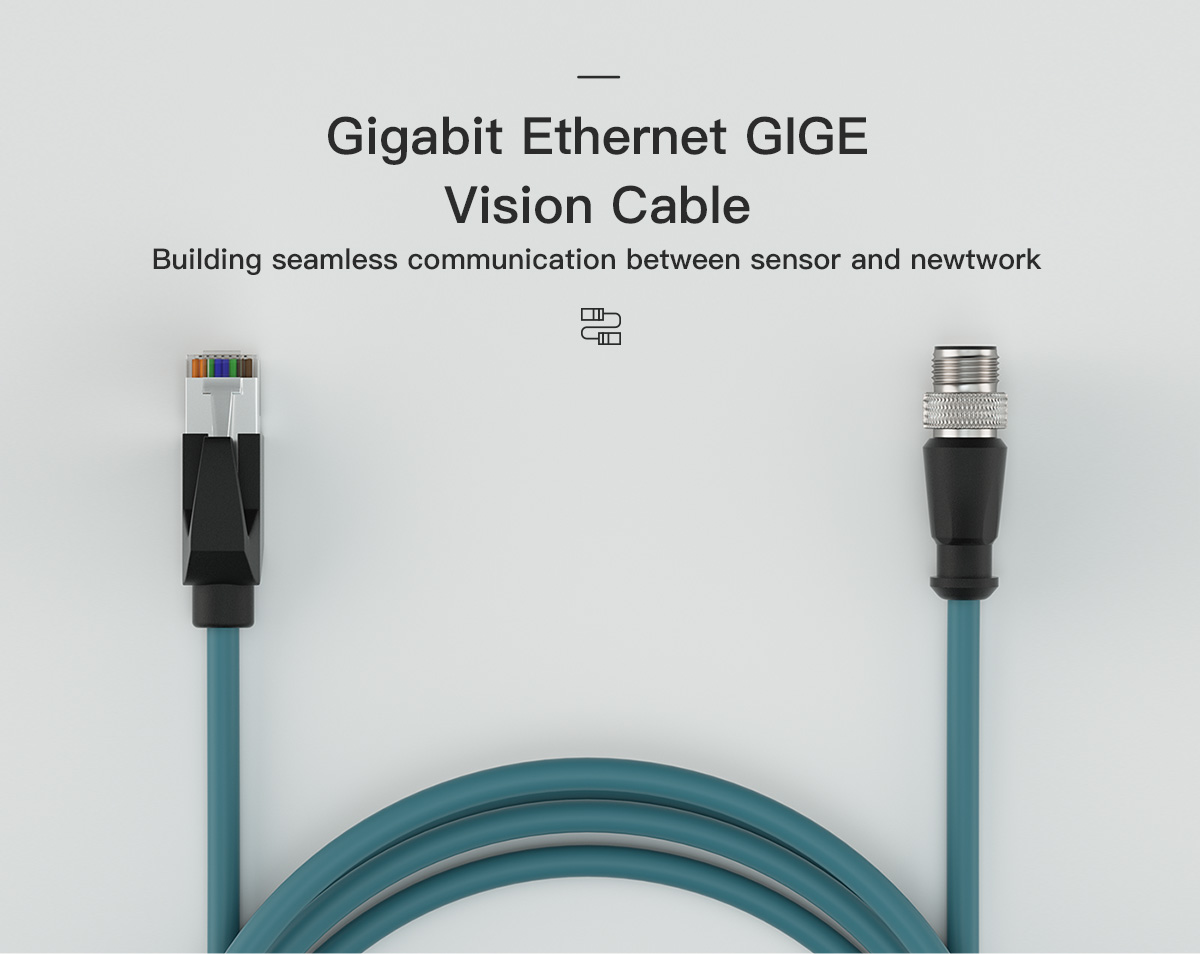

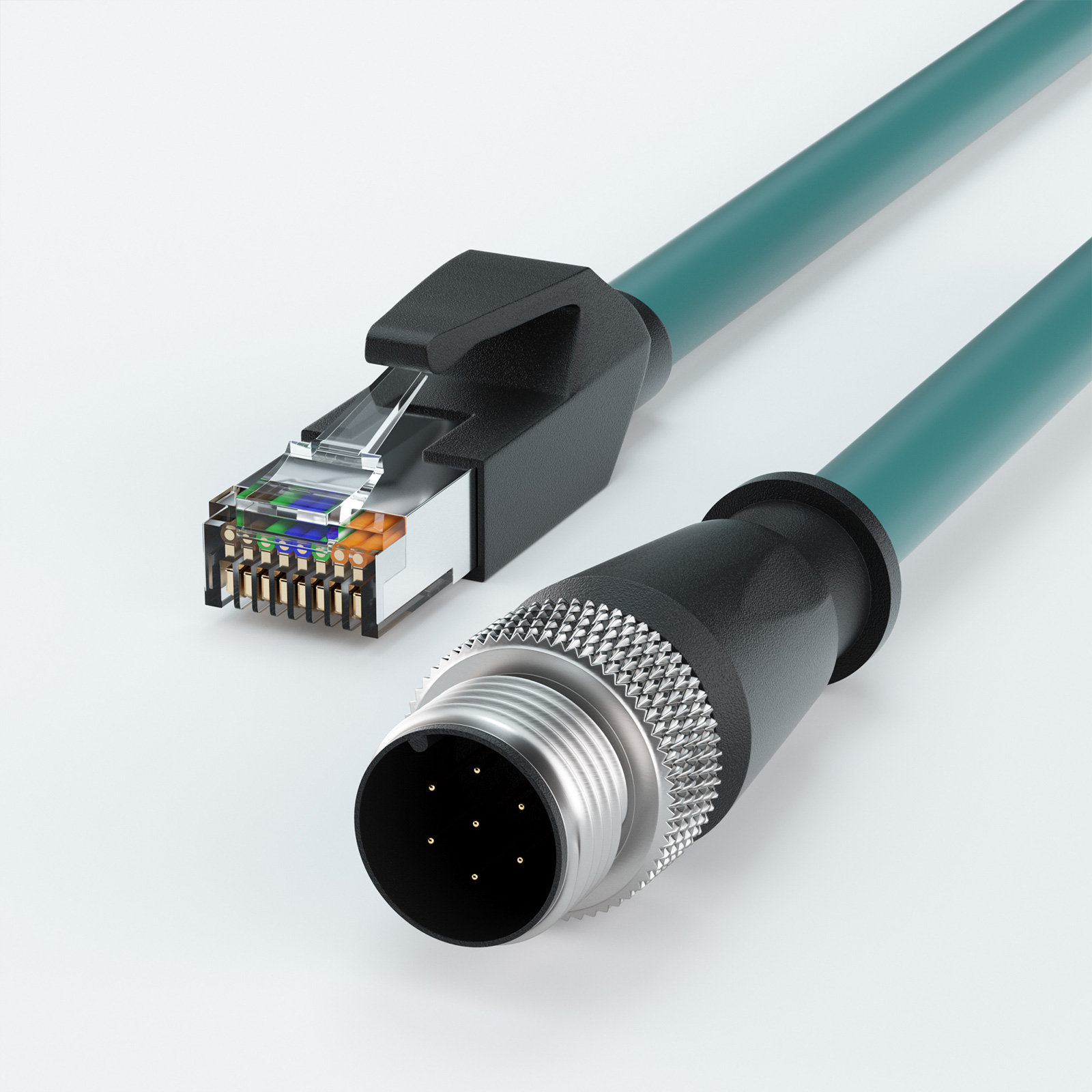

M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision

OLA-T-CCB-84901-1003-3M
$52.00 USD
Shipping calculated at checkout.
Length
Quantity
M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision-OKLAB M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision-OKLAB M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision-OKLAB M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision-OKLAB M12 A-Coded 8 Pin Male to RJ45 GigE vision Cat5E High Flex Ethernet Cable | For Machine Vision-OKLAB

Description

These cables can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

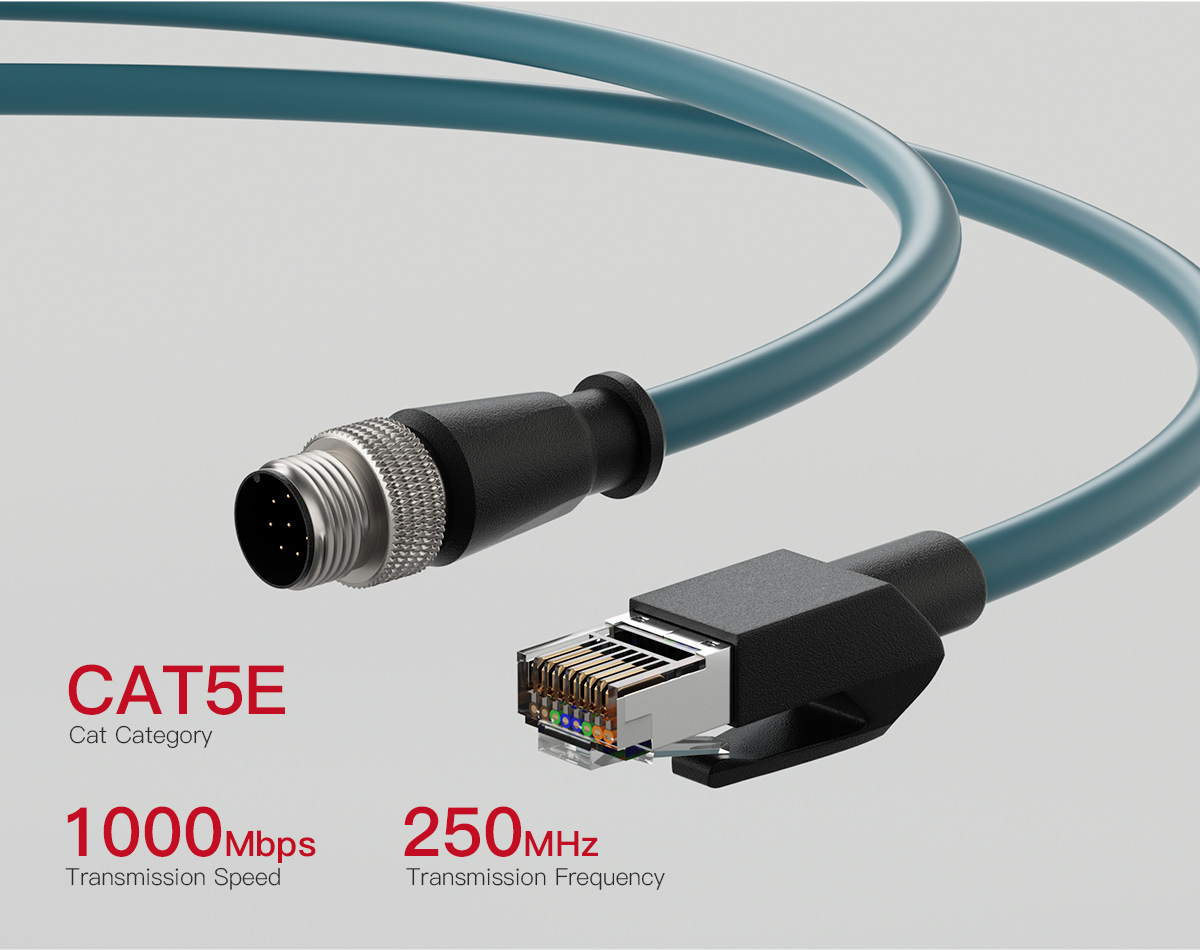

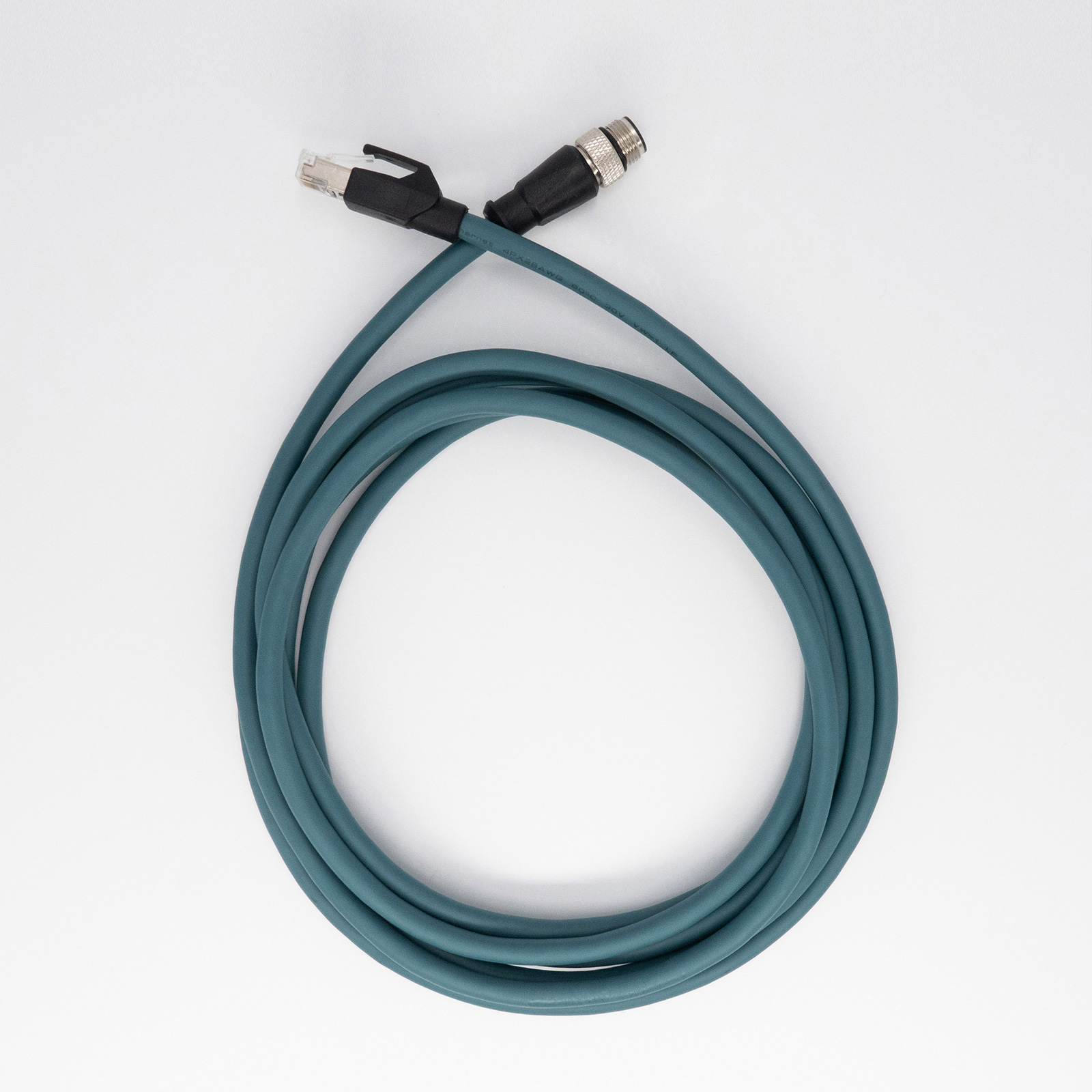

• M12 A-coded straight 8pole plug to RJ45 plug. 26AWG Cat5E cable.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.

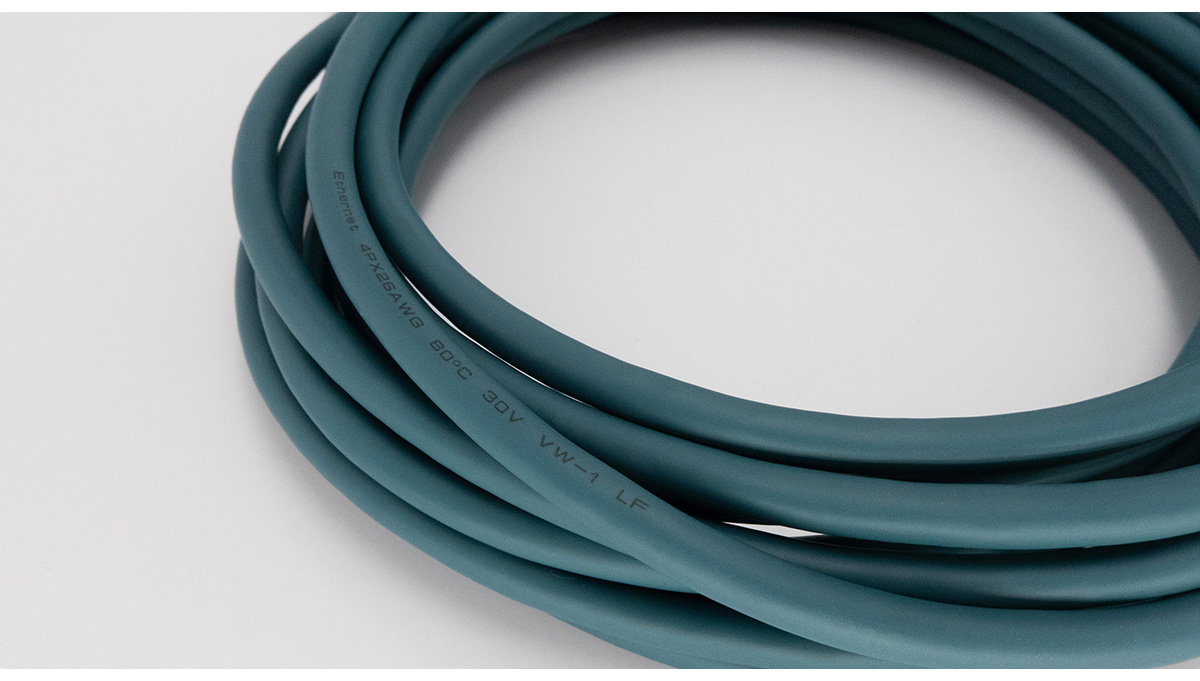

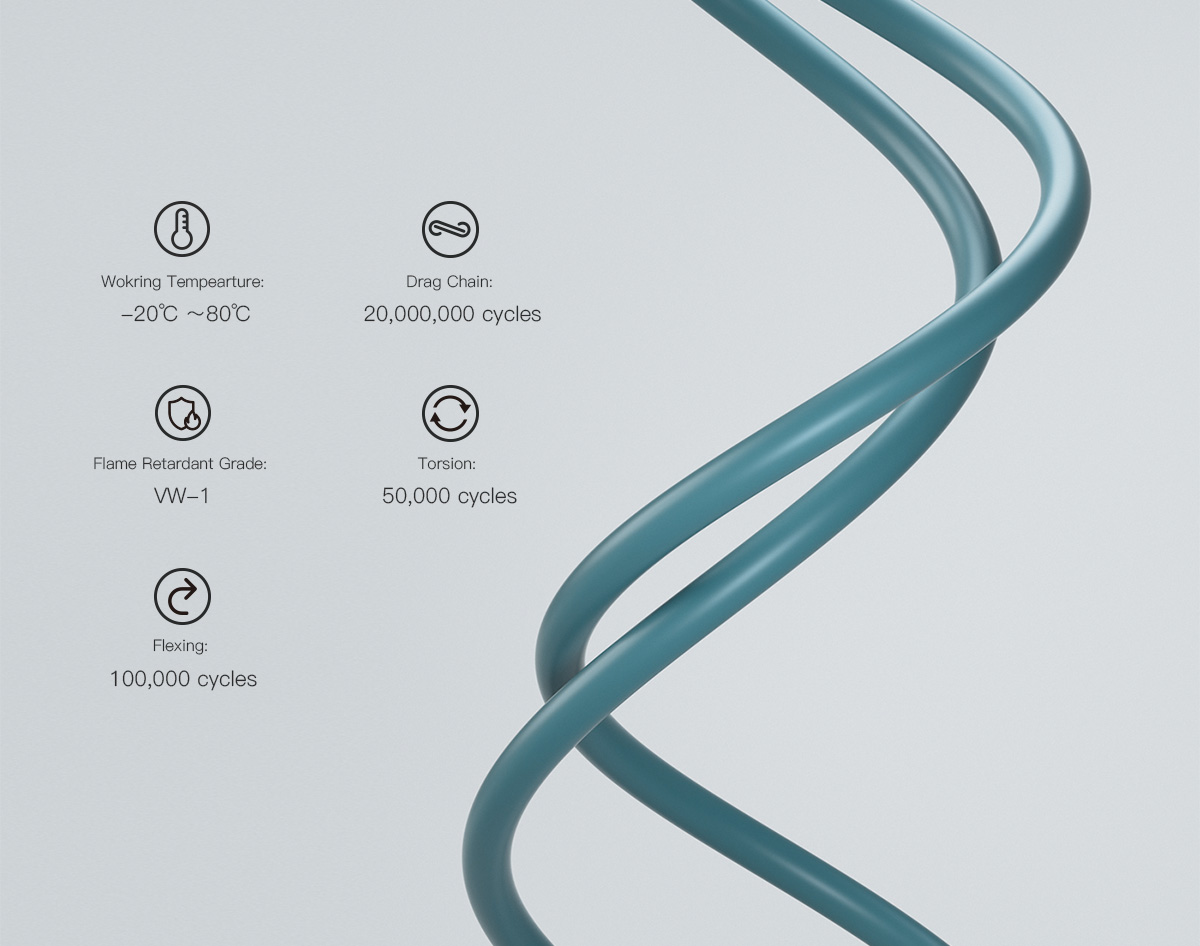

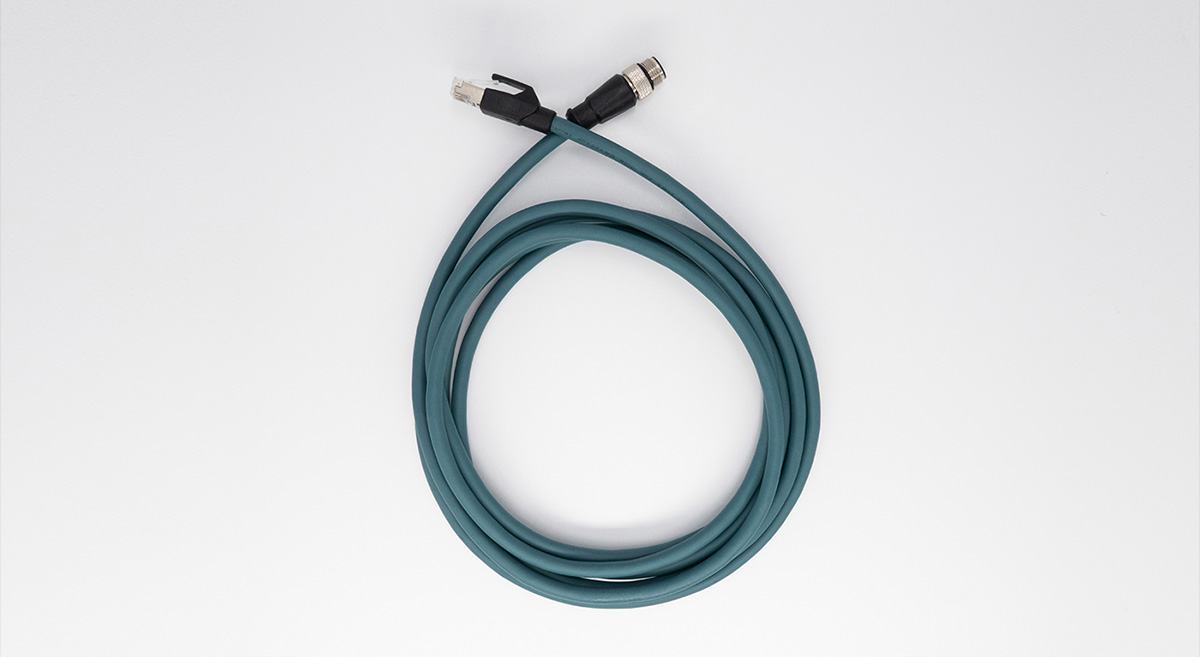

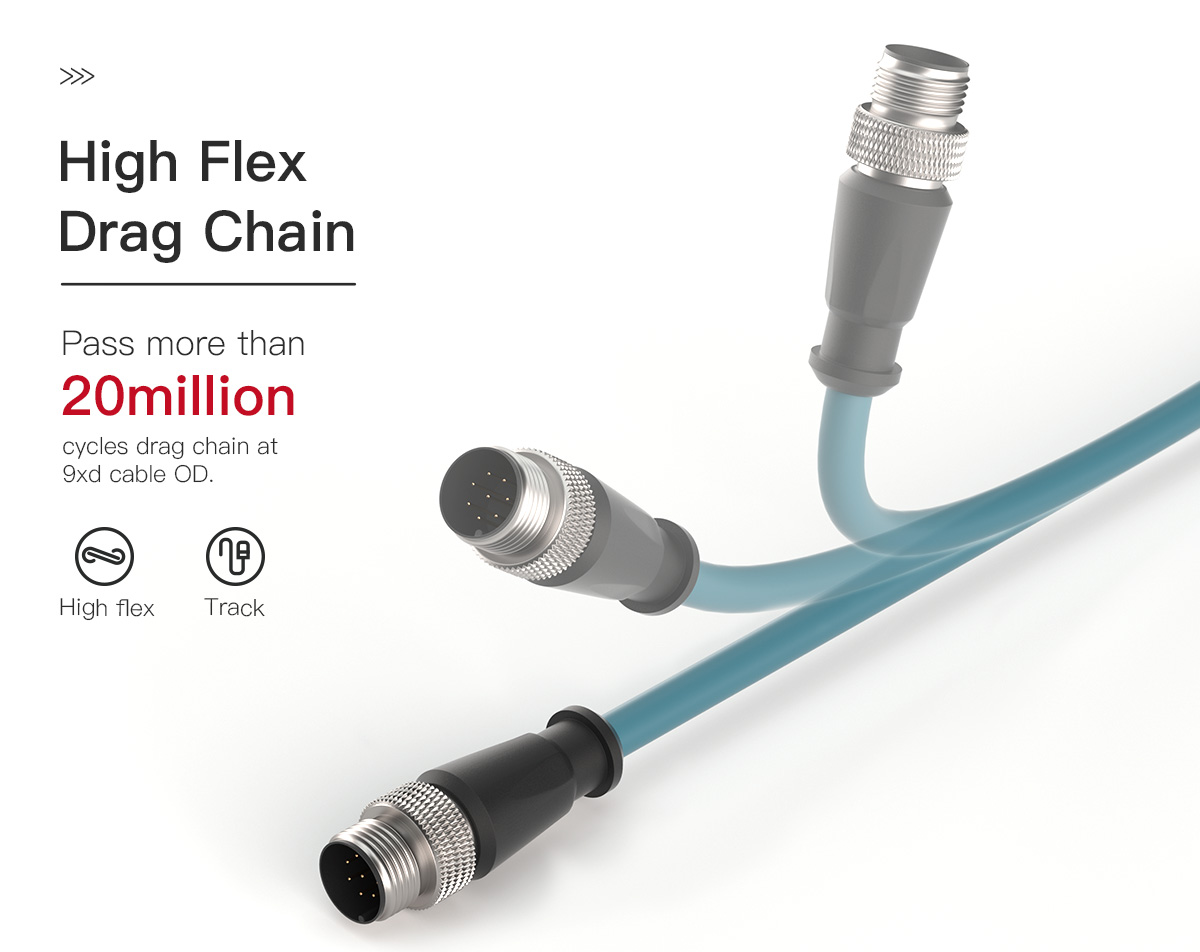

• High flexible, drag chain test 20KK cycles.
• 99% shielded, reliable signal transmission, 360 degree omni-directional Shielding in EMI Environment.

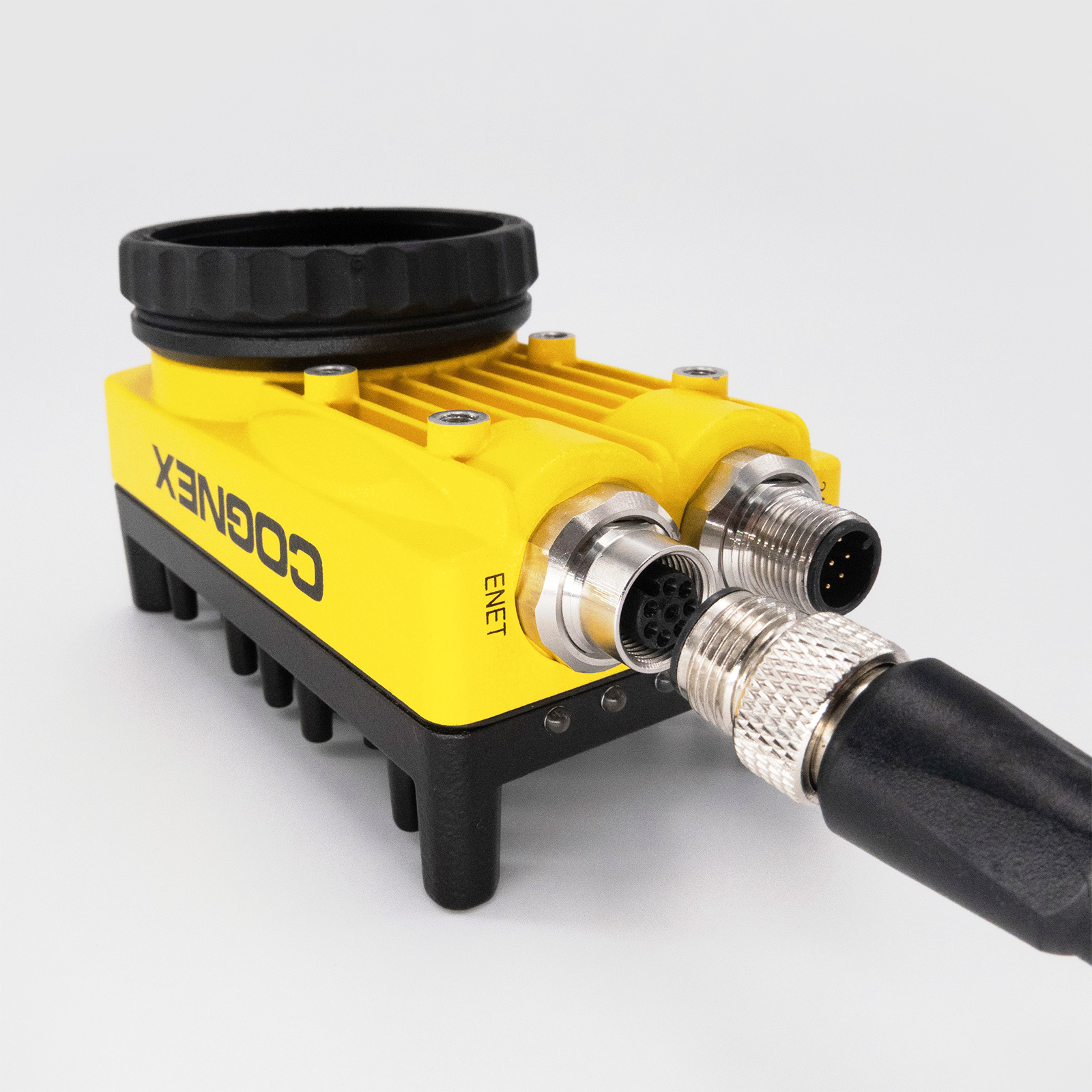

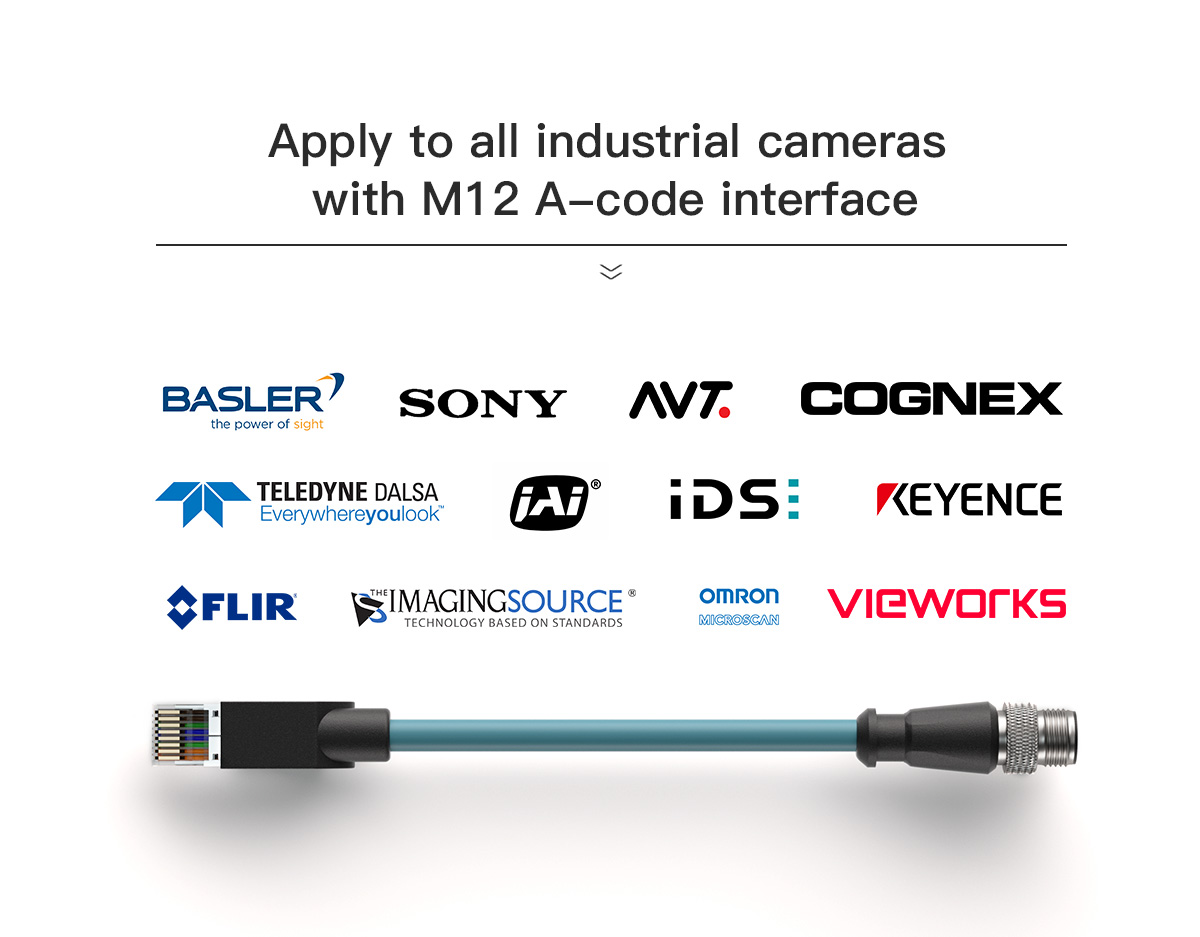

• For industrial machinery, Basler Sony Cognex CCD cameras, Matrix Vision Camera, Triton camera models, Networks, Ethernet, Power.

Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation
Delivery Time: 4-10 working days
Payment Terms: online or T/T

 Connector Specification
Bill Of Materials Wiring Diagram
Item Description QTY Specification
Wire 1 4PX26AWG RoHS LF Opal Green
RJ45 Connector 1 8P8C Cat5E
Connector 1 M12 8P Male X Coded
Inner Mold 1 PE(J5019)
Outer Mold 1 PVC-Opal Green(Similar to RAL 6026)
Copper Foil 1 6mmx18μm



Drawing Pair Twist Insulator Colour
Pair Twist Insulator Colour 1 Insulator Colour 2
1 Blue Blue / White
2 Orange Orange / White
3 Green Green / White
4 Brown Brown / White
Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others.



Model NO. OLA-T-CCB-84901-1003-XM Printing Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF
Style 4PX26AWG RoHS LF Opal Green Size 4PX26AWG
Approbation UL20276 AWM 80°C 30V Flame Retardant Grade VW-1
Conductor




Size 26AWG/4P Shielded
Al/Pet 0.05*20mm
Cond. Material Bare Copper BC Braid 0.1TC
Construction 30/0.08 BC Covered 99% Min
Diameter 0.51mm Jacketed
Material PVC
Tolern ±0.003mm Avg.Thick. 0.765mm
Insulation Material HDPE Min.Thick. 0.723mm
Avg.Thick. 0.207mm Diameter ø6.5±0.2mm
Min.Thick. 0.184mm Colour Black (Similar to RAL 9005)
Diameter 0.97±0.05mm
Electrical Properties
Conductor Resistance  ≤124 Ω/km 20°C
Colour (Bule*Bule/White) Test Voltage 500V/1min
(Orange*Orange/White) Insulating Resistance > 10 MΩ/km 20°C
(Green*Green/White) Characteristic Impedance 100±15Ω
(Brown*Brown/White) Wokring Tempearture Fixed Installation -20°C ~ 80°C
Pair Twist
Pair Twist 1P*26AWG Moved Installation -5°C ~ 50°C
Diameter 1.94mm
Minimal Bending Radius
Fixed Installation 5 X Cable-ø
Assembly Standed 26AWG/4P Moved Installation 8.5 X Cable-ø
Quality Certifications

Product Photograph

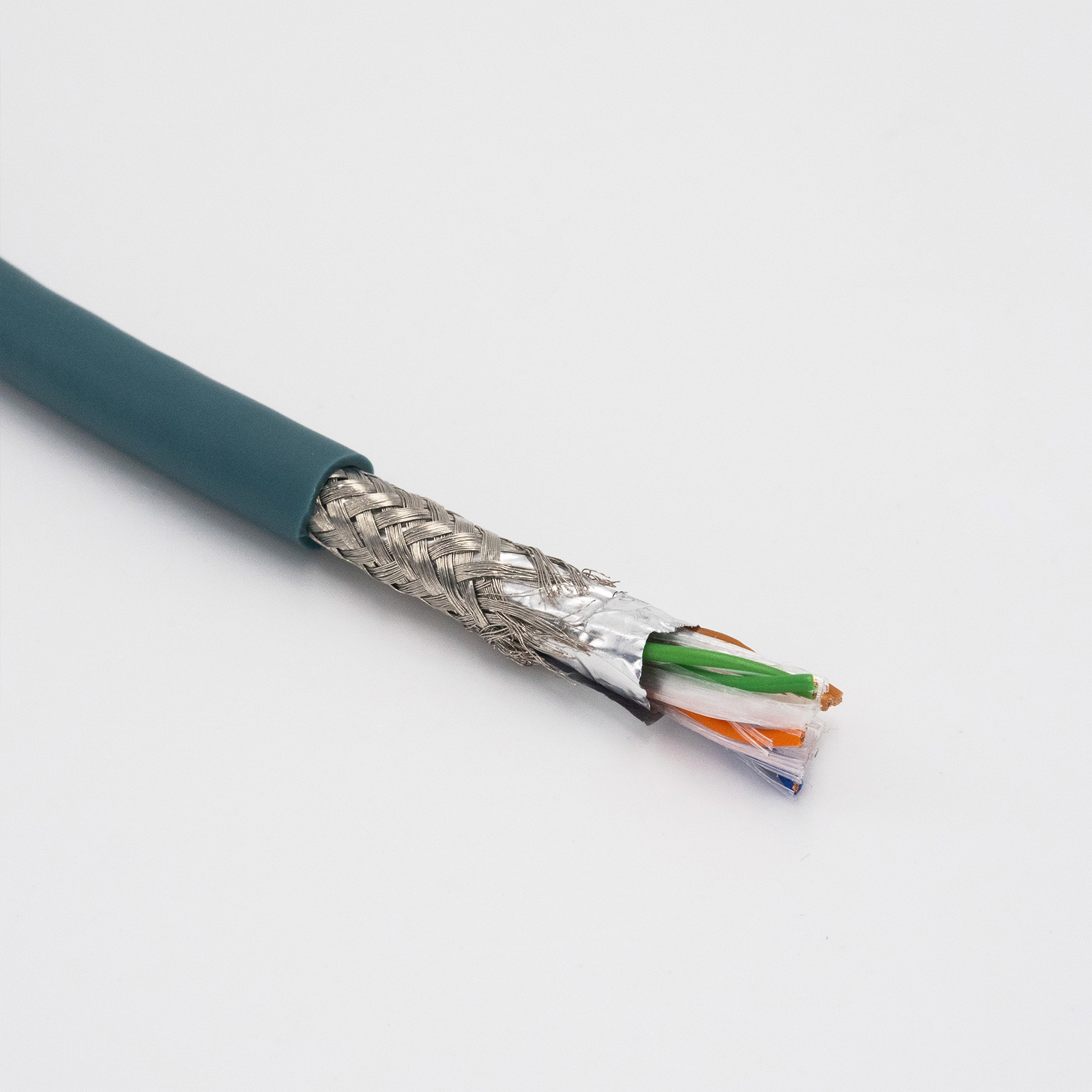

High Flex

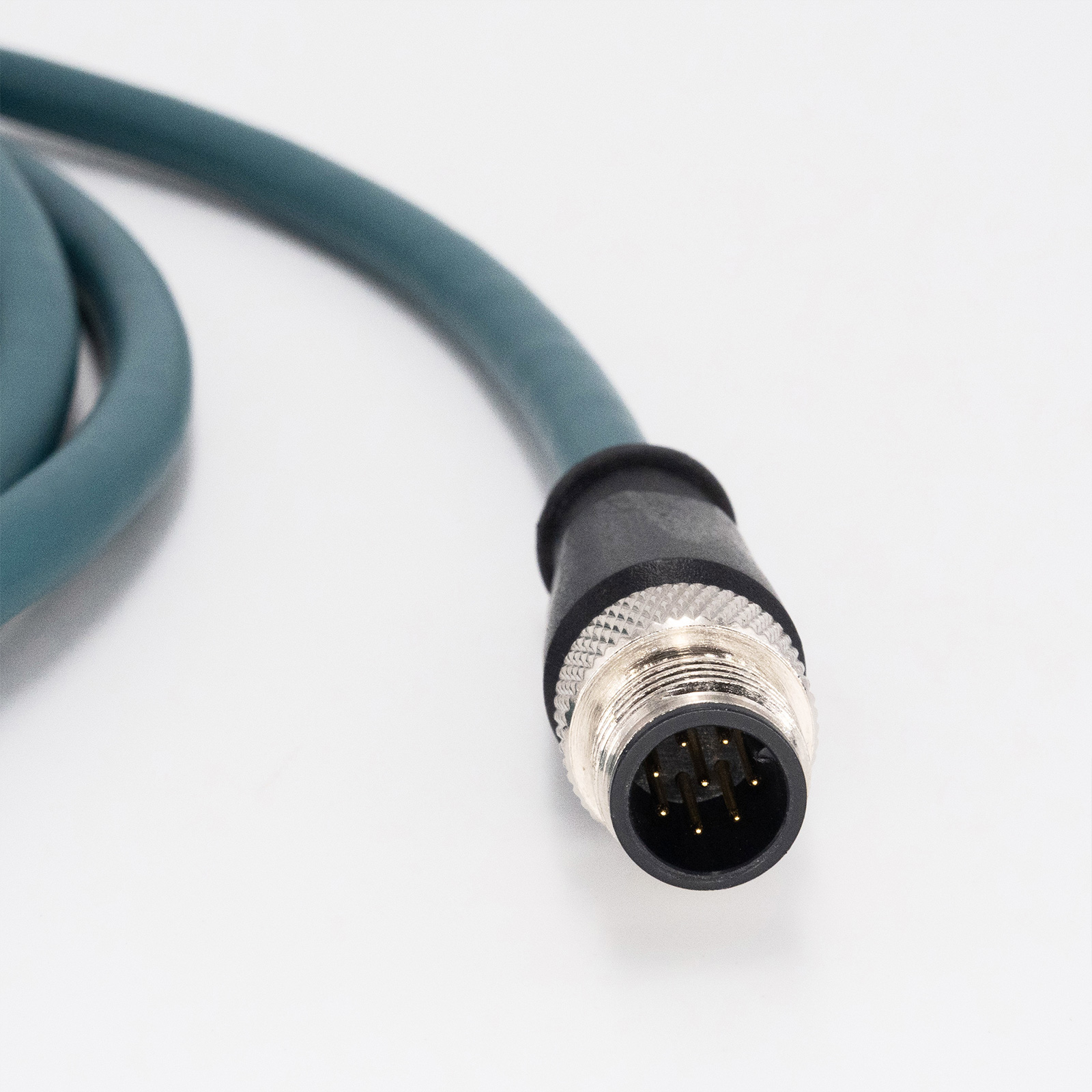

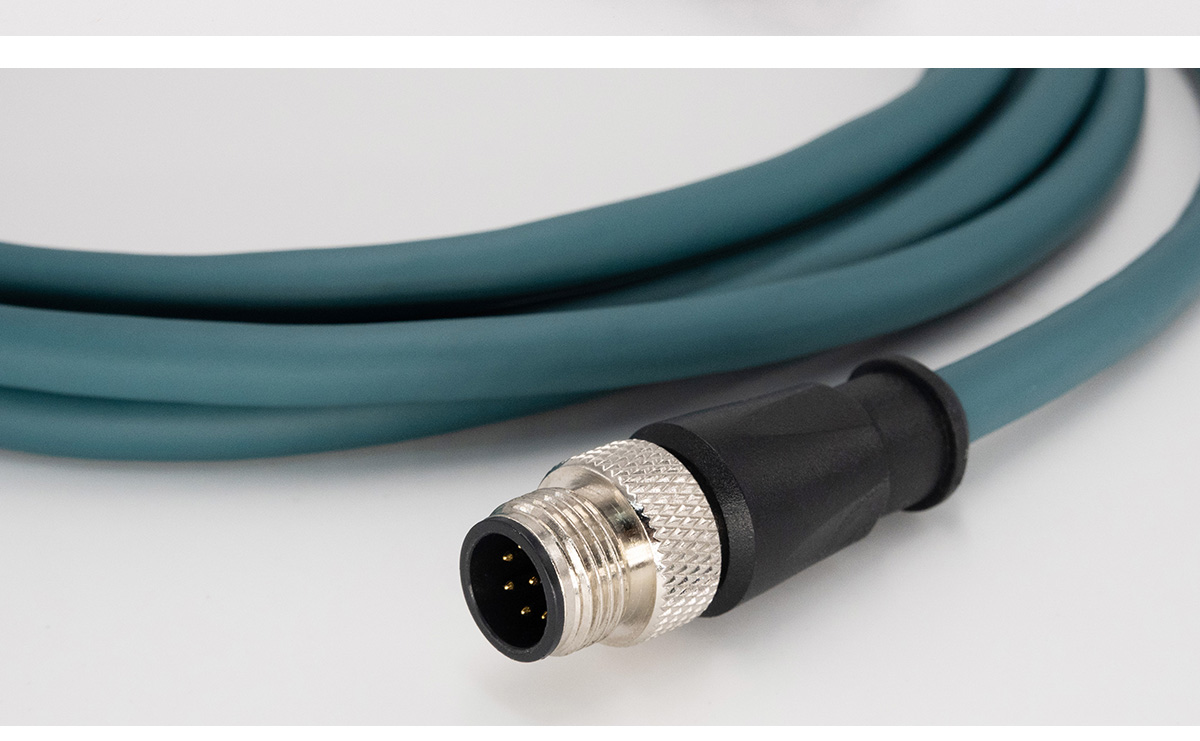

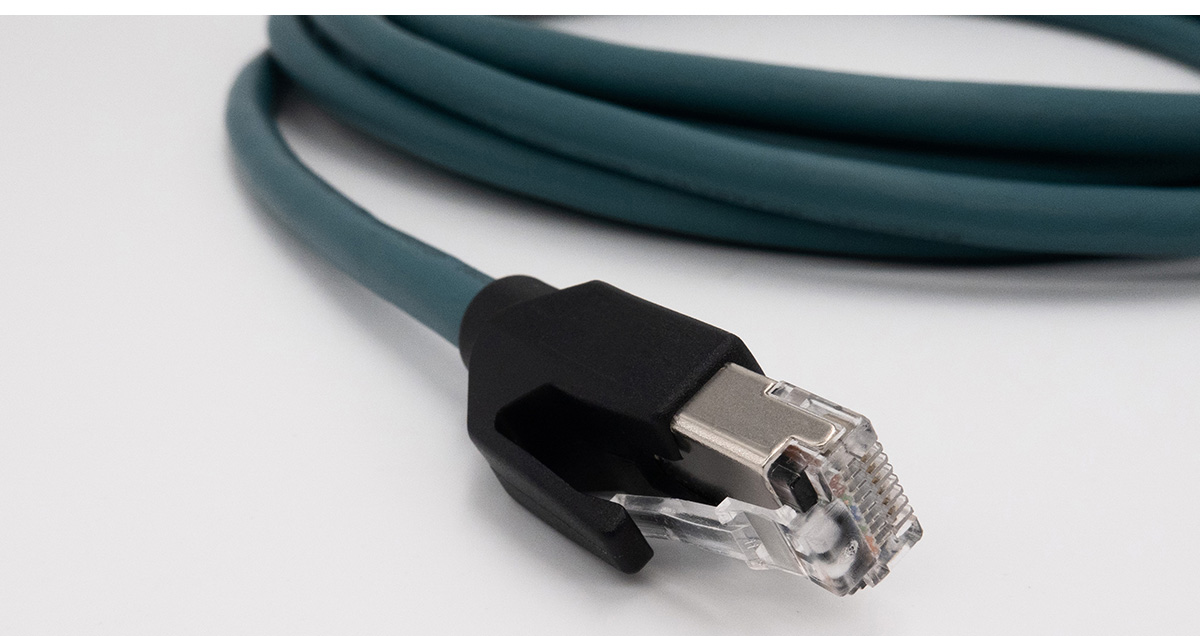

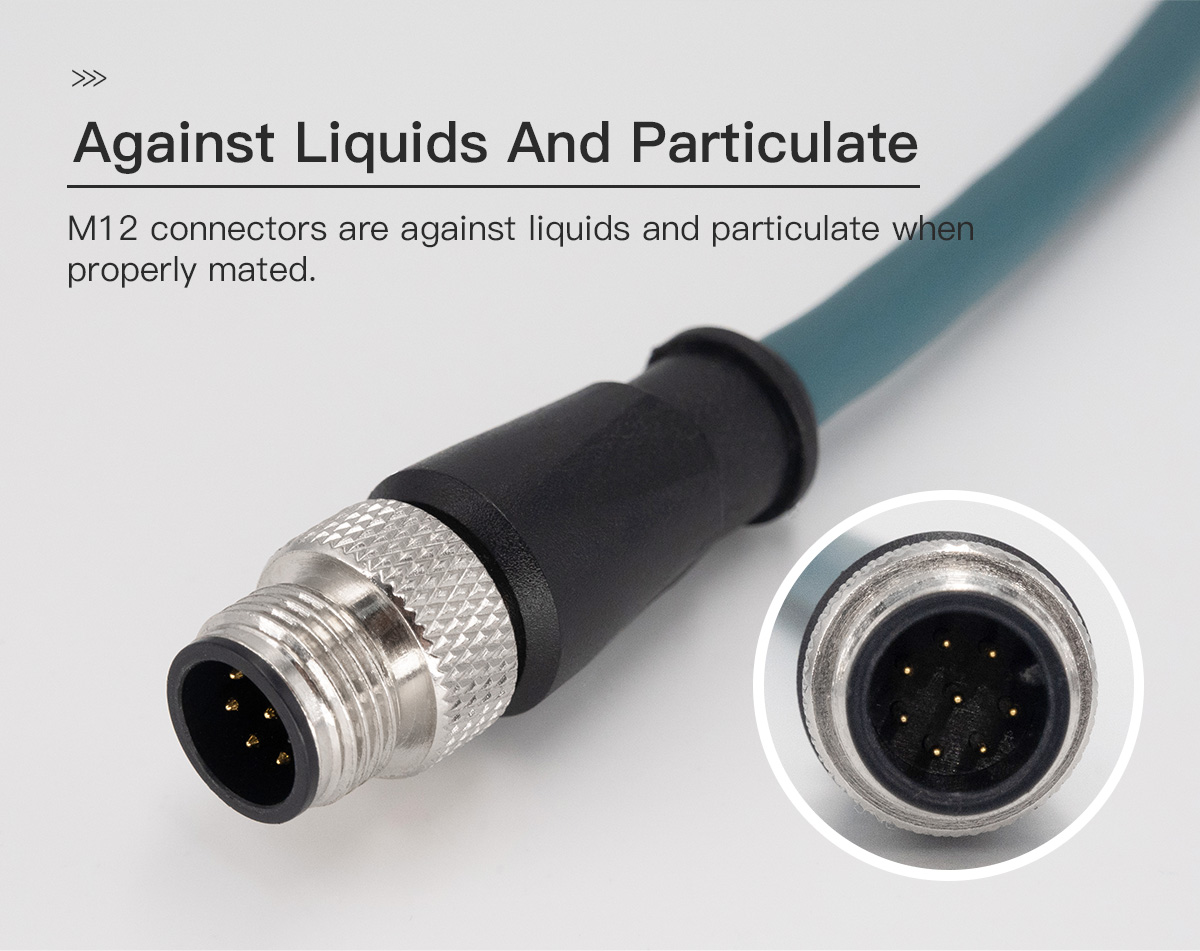

M12 8P Male A Coded

RJ45

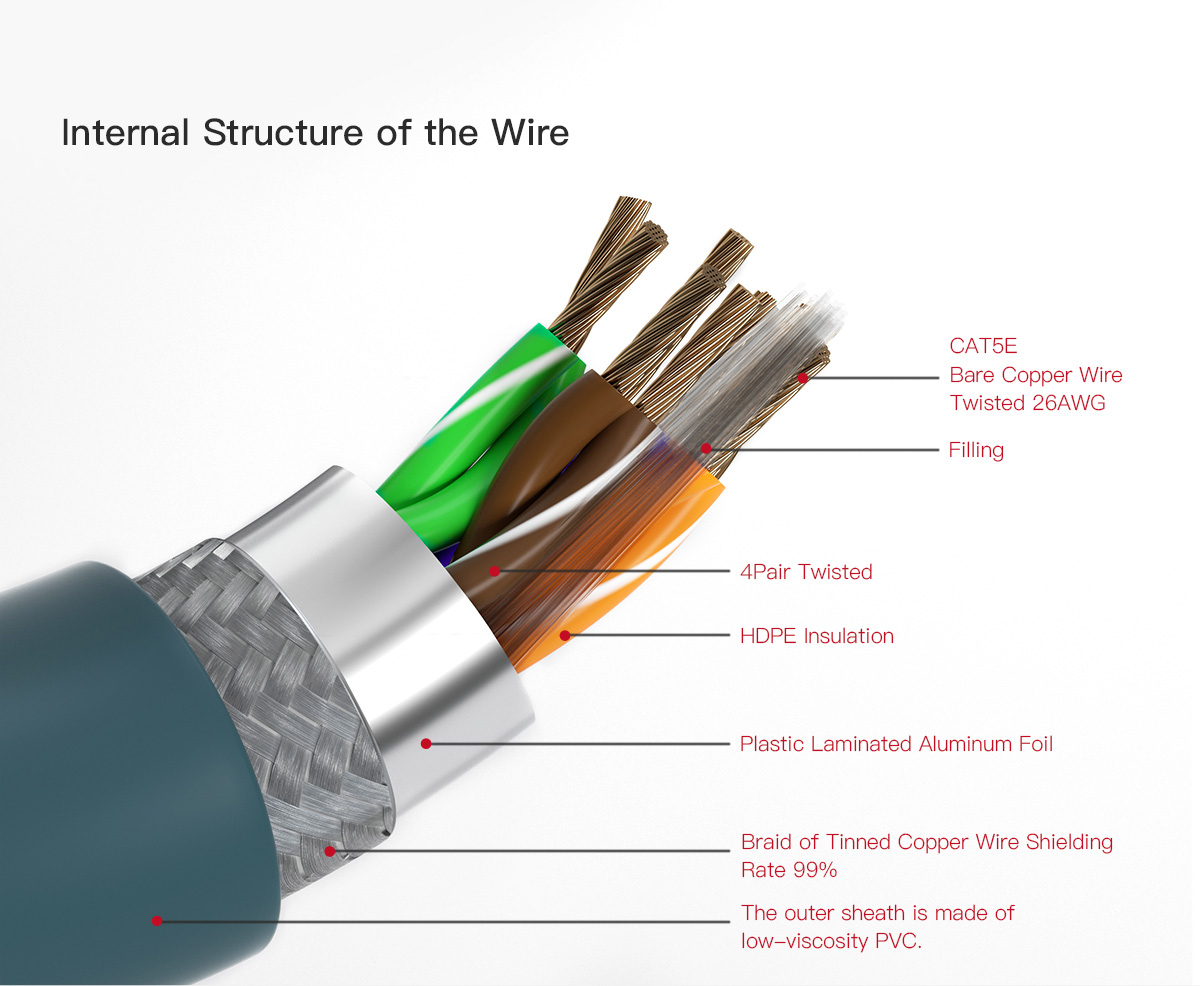

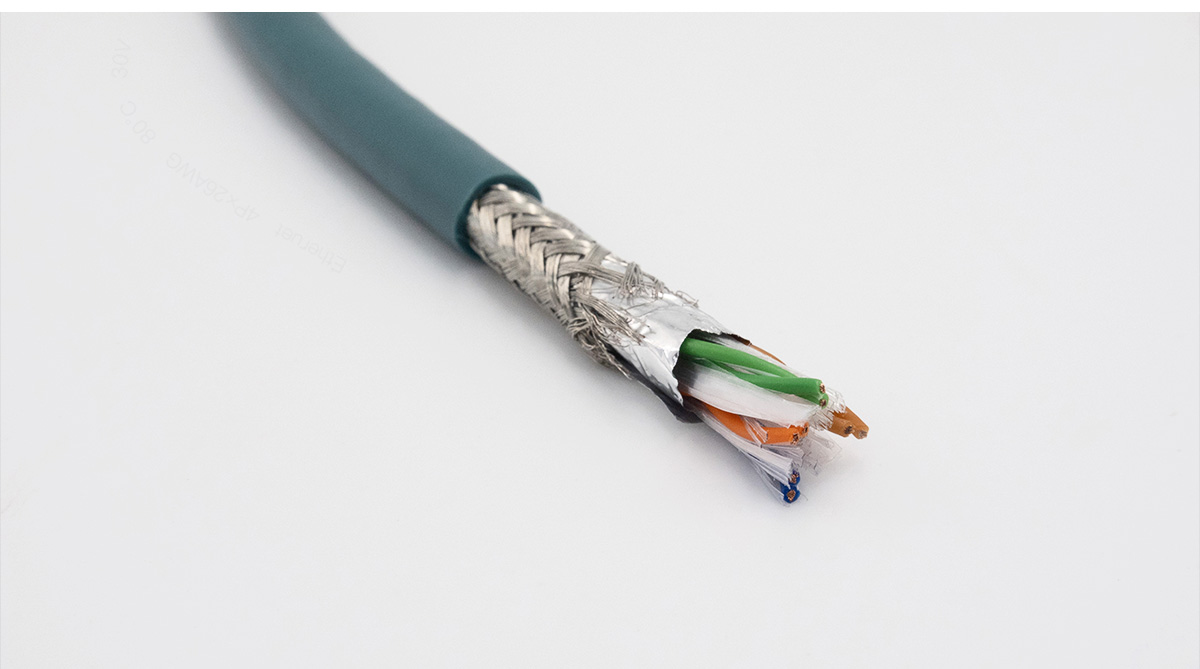

 Double shielded braid
