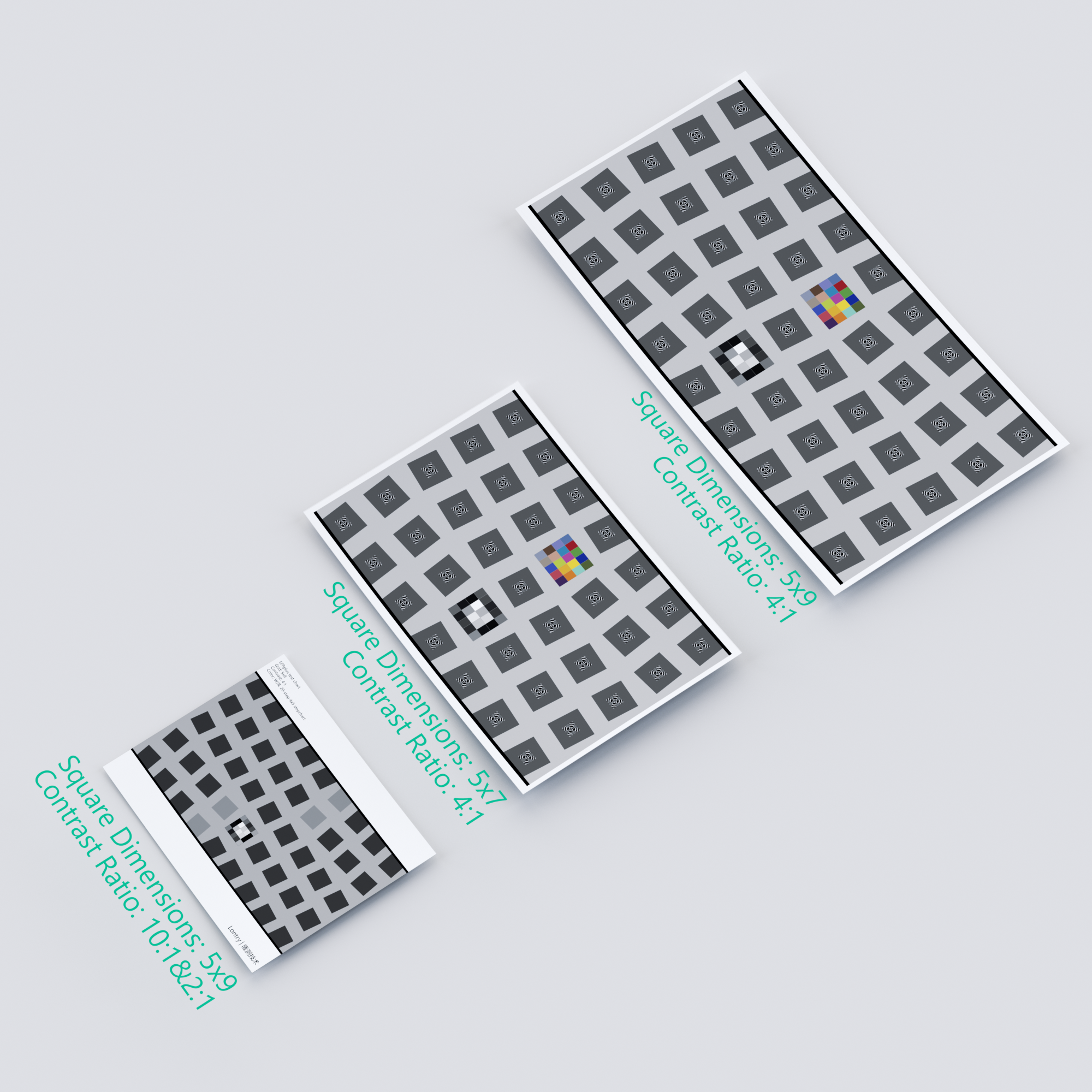

SFR Plus Test Chart for Camera Testing Requirement

Name: SFR Plus Test Chart for Camera Testing Requirement
Price: 189 USD
Availability: InStock

To measure MTF, lateral chromatic aberration, distortion, tonal response, and color accuracy;

Description

Model NO.	Material	Substrate Type	Active Pattern Area	Pattern Type	Accuracy
LT-FT-125x240-SFR Plus	Film	Transmissive	12.5''x24''	Spaure Array: 5x9 Contrast Ratio: 10:1, 2:1	±15μm
LT-FT-135x200-SFR Plus	Film	Transmissive	13.5''x20''	Spaure Array: 5x7 Contrast Ratio: 10:1, 2:1	±15μm
LT-WFT-125x240-SFR Plus	White Film	Transflective	12.5''x24''	Spaure Array: 5x9 Contrast Ratio: 4:1	±15μm
LT-WFT-135x200-SFR Plus	White Film	Transflective	13.5''x20''	Spaure Array: 5x7 Contrast Ratio: 4:1	±15μm
LT-WFT-220x392.2-SFR Plus	White Film	Transflective	22''x39.22''	Spaure Array: 5x9 Contrast Ratio: 4:1	±15μm
LT-WFT-220x330-SFR Plus	White Film	Transflective	22''x33''	Spaure Array: 5x7 Contrast Ratio: 4:1	±15μm
LT-PT-330x590-SFR Plus	Photo Paper	Transflective Matte	33''x59''	Spaure Array: 5x9 Contrast Ratio: 4:1	±0.1mm
LT-PT-400x590-SFR Plus	Photo Paper	Transflective Matte	40''x59''	Spaure Array: 5x7 Contrast Ratio: 4:1	±0.1mm
