  • USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision-OKLAB
  • USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision-OKLAB
1 / 2

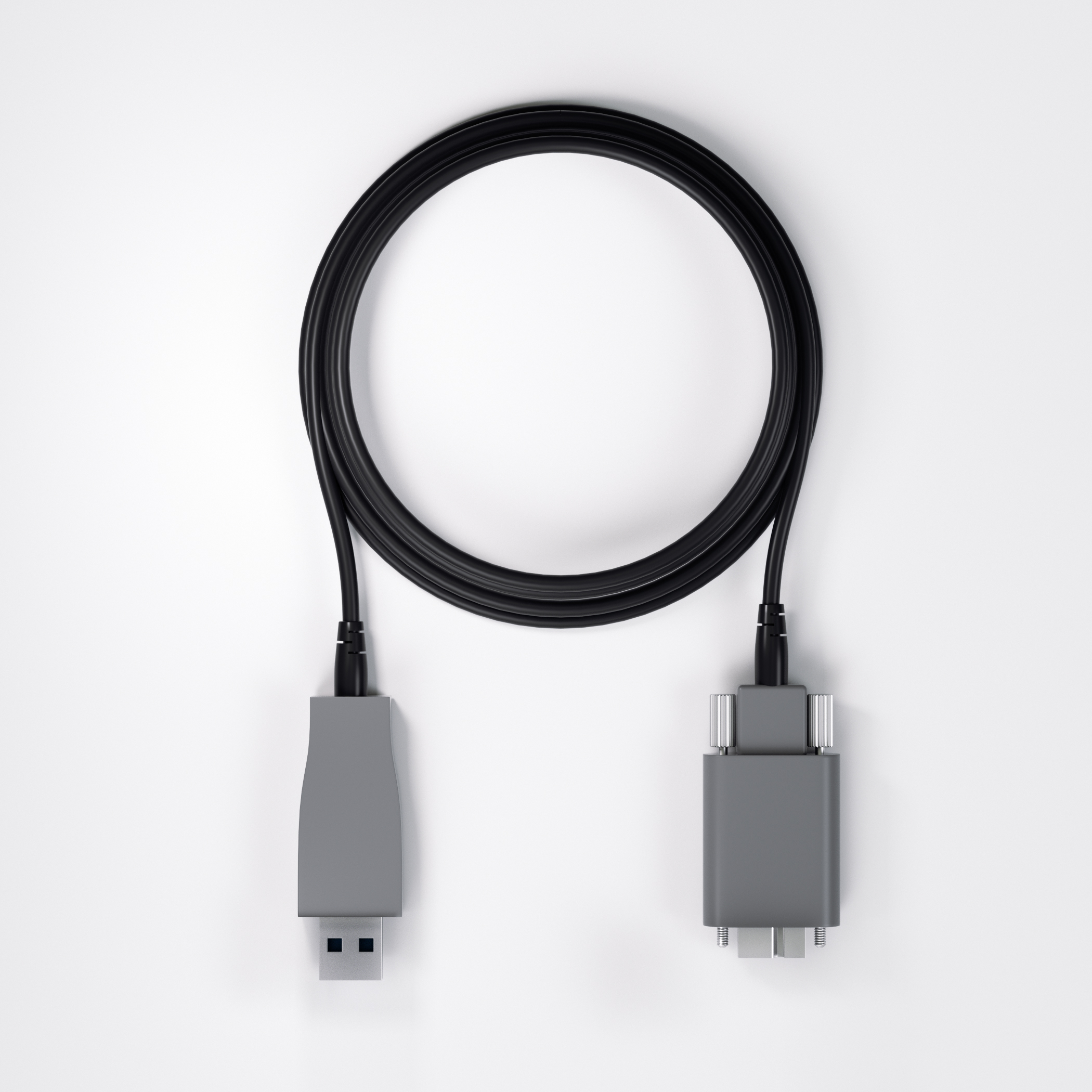

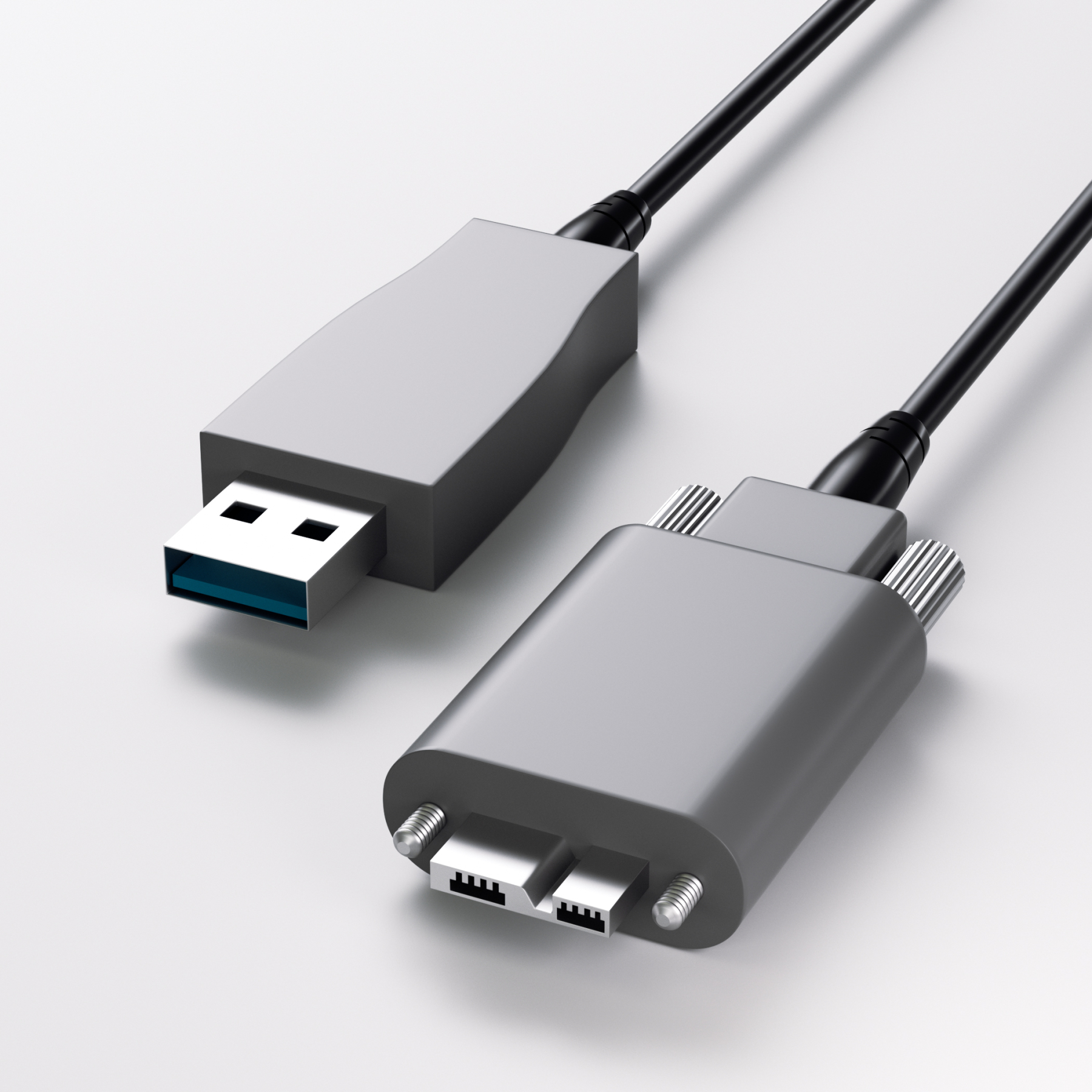

USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision

$0.00 USD
Shipping calculated at checkout.
Length
Quantity
USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision-OKLAB USB3.0 GEN1 Hybrid Type A Male to Micro-B with Screws High Flex Active Optical Cable | For Machine Vision-OKLAB

Description

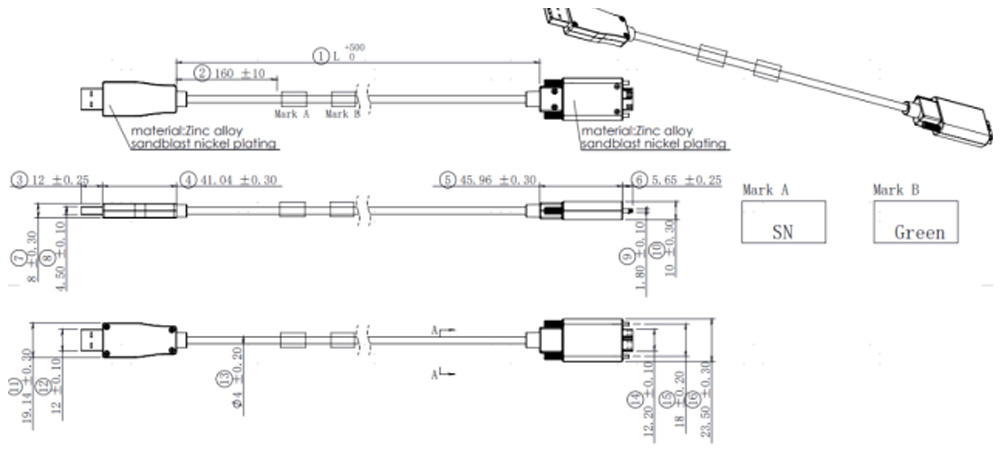

Connector Specification

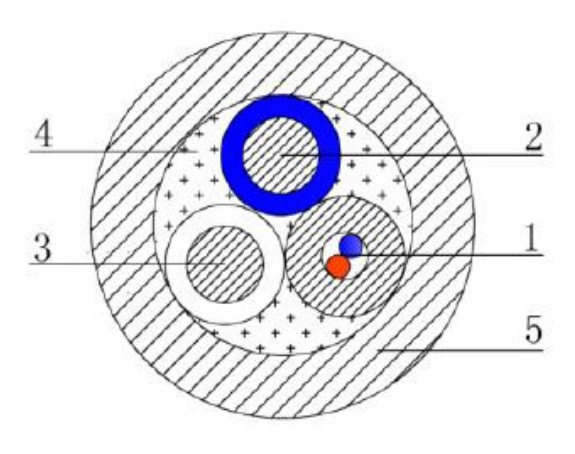

Fiber Specification
No. Category Value Supplementary
1 Raw Cable Outer diameter 1.1±0.05mm，thickness 0.25±0.03mm. 2 Cores
2 Blue PE Copper Wire Outer Diameter 1.20—1.25mm Twist
3 White PE Copper Wire Outer Diameter 1.20—1.25mm Twist
4 Kevlar Strength Member 5*1610dtex
5 Outer Jacket Black TPU OD 4.0±0.15mm



Model NO. OLA-EPIUH64-A0B3
Host Side USB3.0 Standard-A Plug Device Side USB3.0 Micro B Plug（with locking screw） Input Power(Host Side) Input Voltage 4.75~5V
Dimension of The End MB 51.61mm/23.5mm/8mm AM 53.04mm/19.14mm/10mm Net Weight (Typical 10m) 408g Current(max) 200mA
Cable Diameter 4.0mm Cable Length Up to 50m Power Consumption (max) 0.94W
Option Cable Length 5m/10m/20m/30m/40m/50m Bend Radius (Dynamic/Static) 40mm/20mm Output Power(Device Side) Output Voltage ＞4V
Tensile Strength (Long Term/Short Term) 220N/120N Crush Resistance (Long Term/Short Term)/100mm 200N/350N Current(max) 900mA, 700mA@20m
Operating/Storage Temperature -20~+60°C/-40~+85°C Operating/Storage humidity 20%~80% RH/20%~80% RH
General Information
ROHS2.0 CE/FCC Warranty
Yes Yes 1 year
