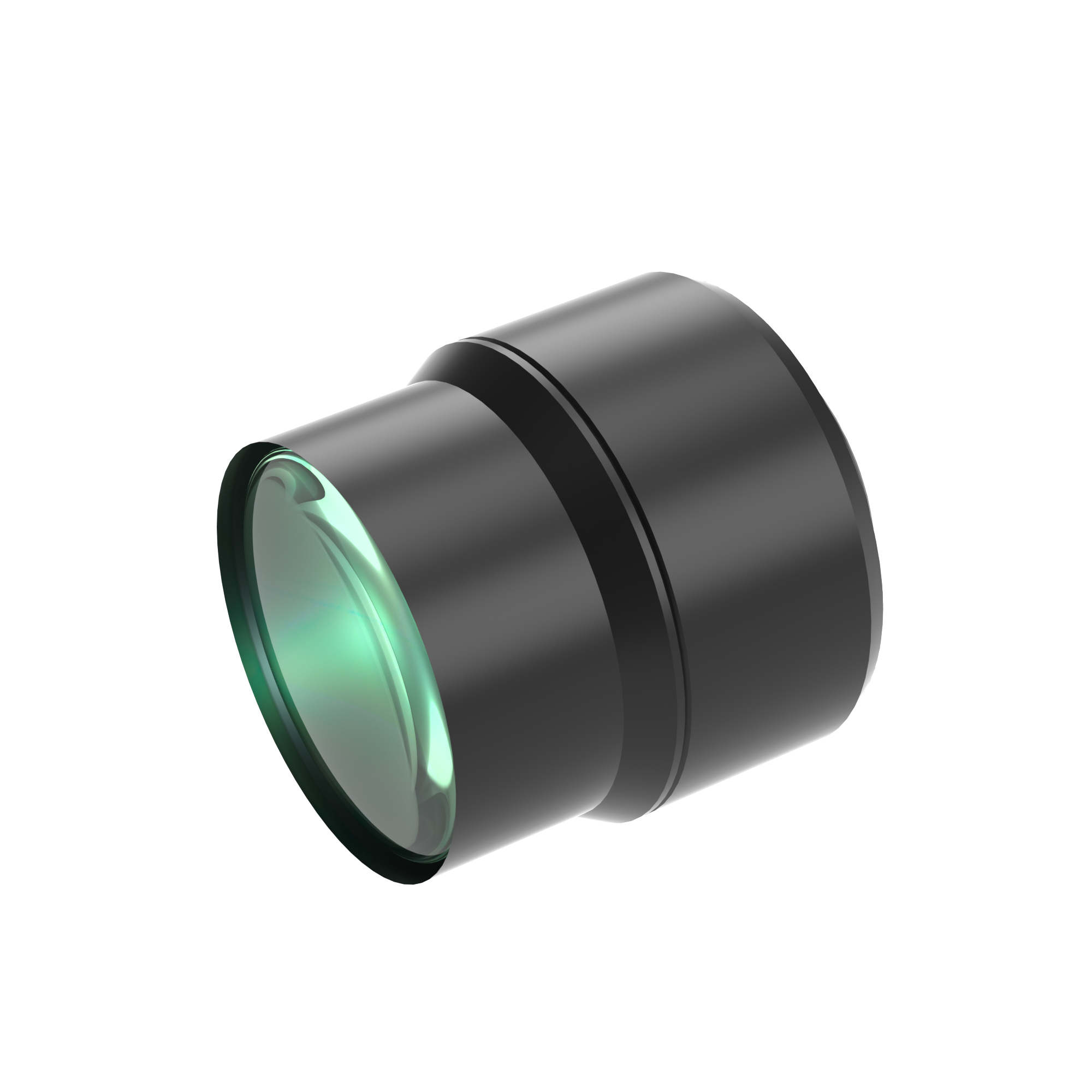

2/3" 34.83mm Fixed Magnification Focal Length Lens | WWT230-01-360 COOLENS®

Name: 2/3" 34.83mm Fixed Magnification Focal Length Lens | WWT230-01-360 COOLENS®
Brand: COOLENS
SKU: WWT230-01-360
Price: 95 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT230-01-360

Image Circle:11.0(2/3") Focal Length:34.83mm Magnification:0.1X WD:360mm MTF30 (lp/mm):116 Mount:C

$95.00 USD

Quantity

Description

Model NO.	WWT230-01-360	Image Circle Diameter (Φmm)	11.0(2/3")
Focal Length(mm)	34.83	Magnification(x)	0.1
Working Distance(mm)	360	MTF30 (lp/mm)	116
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0089	Best Aperture(f/#)	5.6
Object Resolution(μm)	37.6	Depth of Field(mm)	44.8
TV Distortion	-0.089	Length (mm)	38.3
Measured Depth of Field (mm)	8	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/1.8”（7.13x5.37）		71.3x53.7
1/1.8”（7.43x4.9）		74.3x49.0
2/3”（8.45x7.1）		84.5x71

2/3" 34.83mm Fixed Magnification Focal Length Lens | WWT230-01-360 COOLENS®

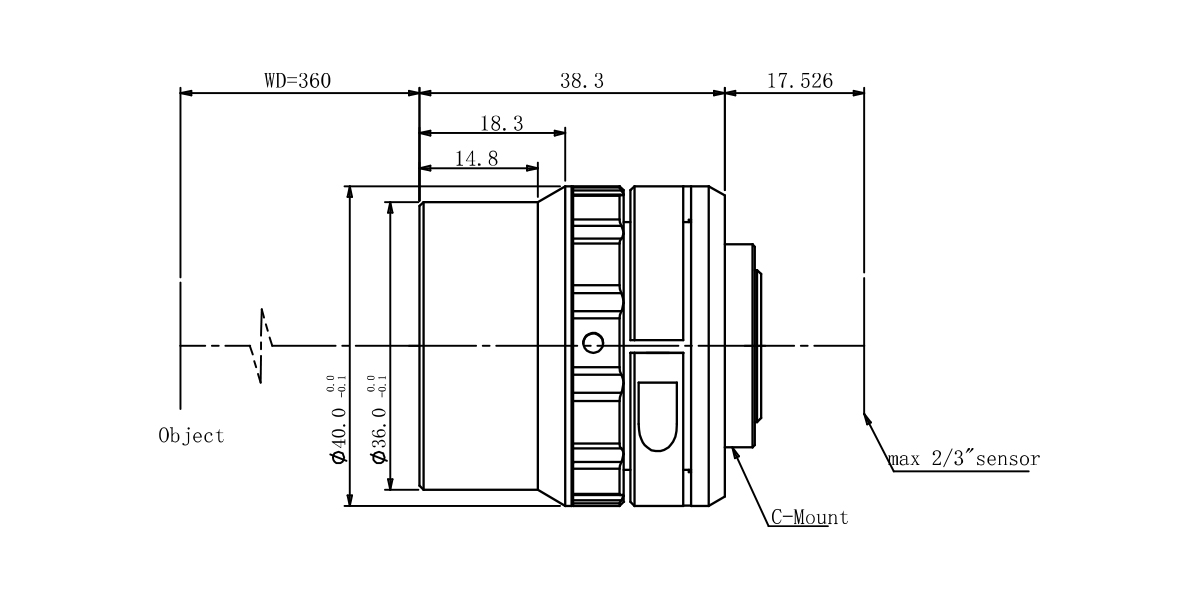

Dimensions

Naming Rule
