| Model NO. |
WWT230-02-192 |
Image Circle Diameter (Φmm) |
11.0(2/3") |
| Focal Length(mm) |
35.52 |
Magnification(x) |
0.2 |
| Working Distance(mm) |
192 |
MTF30 (lp/mm) |
124 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0178 |
Best Aperture(f/#) |
5.6 |
| Object Resolution(μm) |
18.9 |
Depth of Field(mm) |
11.2 |
| TV Distortion |
-0.028 |
Length (mm) |
40.7 |
| Measured Depth of Field (mm) |
5.2 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
35.65x26.85 |
| 1/1.8”（7.43x4.9） |
37.15x24.5 |
| 2/3”（8.45x7.1） |
42.25x35.5 |

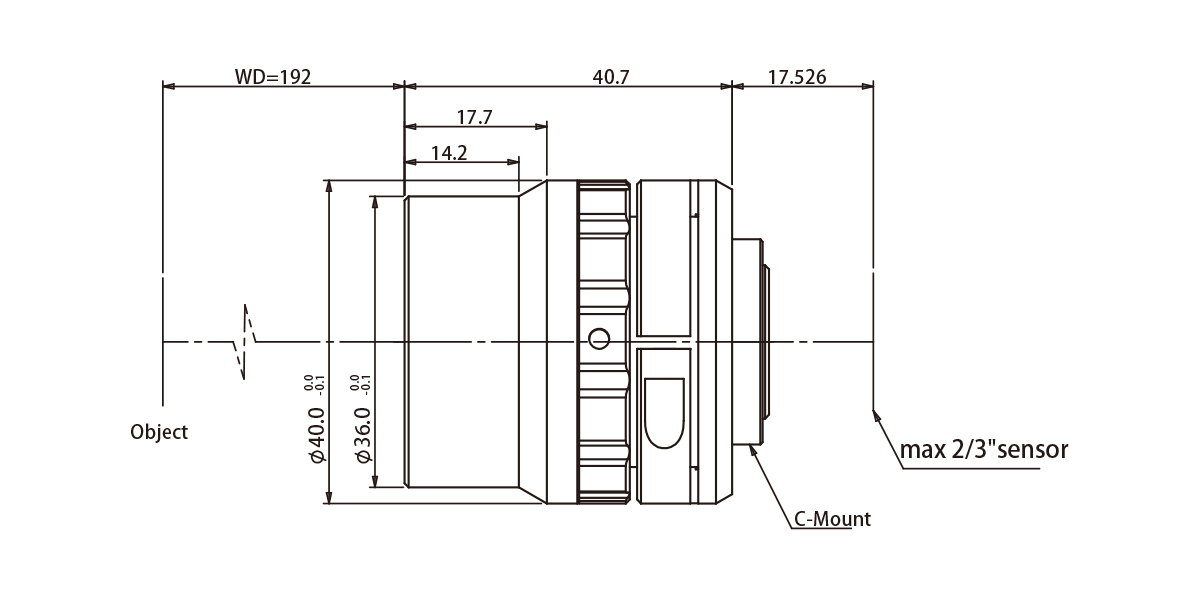

Dimensions

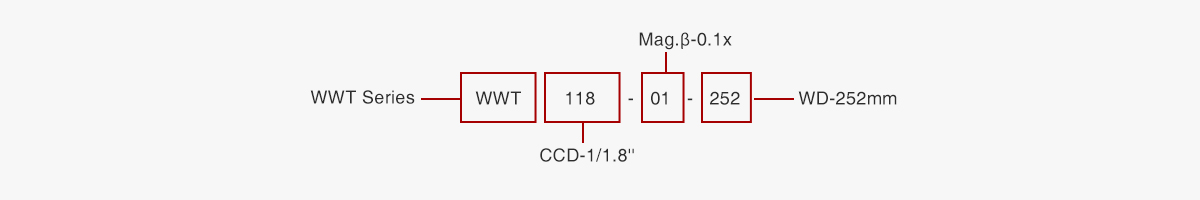

Naming Rule
