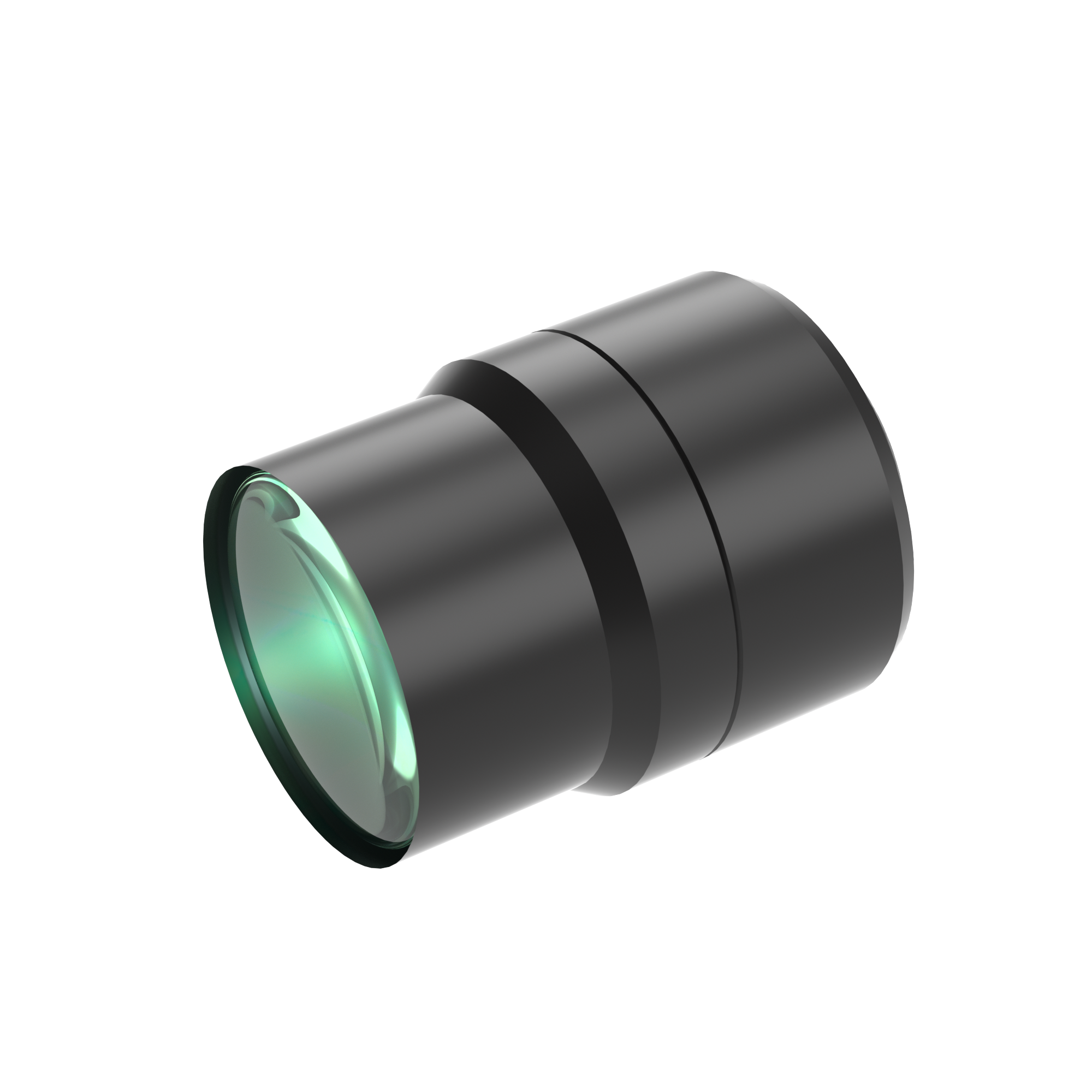

| Model NO. |
WWT230-04-106 |
Image Circle Diameter (Φmm) |
11.0(2/3") |
| Focal Length(mm) |
37.17 |
Magnification(x) |
0.4 |
| Working Distance(mm) |
106 |
MTF30 (lp/mm) |
118 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0333 |
Best Aperture(f/#) |
6 |
| Object Resolution(μm) |
10.1 |
Depth of Field(mm) |
3 |
| TV Distortion |
-0.021 |
Length (mm) |
49.3 |
| Measured Depth of Field (mm) |
2.8 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
17.83x13.43 |
| 1/1.8”（7.43x4.9） |
18.58x12.25 |
| 2/3”（8.45x7.1） |
21.13x17.75 |

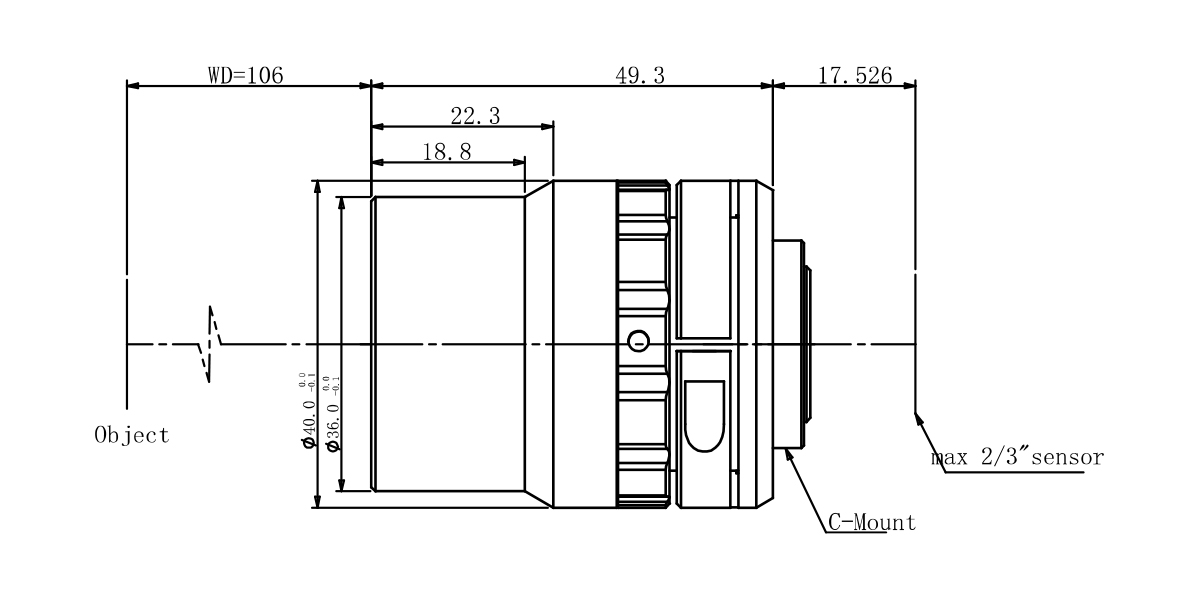

Dimensions
Naming Rule
